Good camera, image quality is okay, image angle matches.

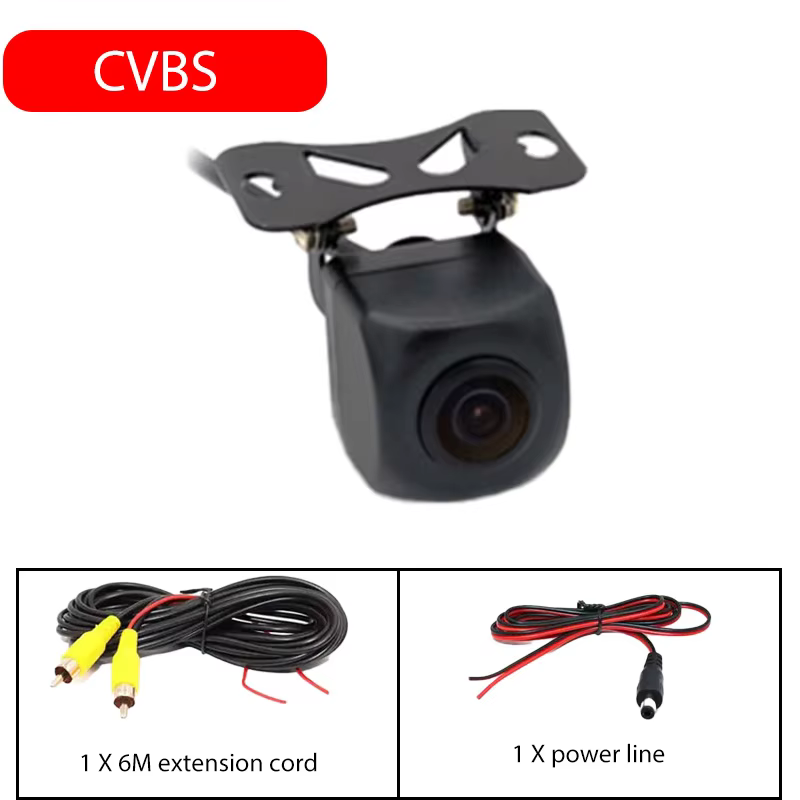

First Safe 170° AHD Car Backup Camera with Night Vision
Price range: $11.59 through $15.38
Pay now, in 4 interest-free payments of $2.90, or over 3–6 months
4 interest-free payments of $2.90
170° wide angle car backup camera with dual 720P/1080P resolution and enhanced IR night vision.
- Waterproof ABS and plastic+glass lens construction
- Supports AHD and CVBS signals with cable switching
- Includes guiding parking lines
↗
Estimated Delivery Time3–7 business days

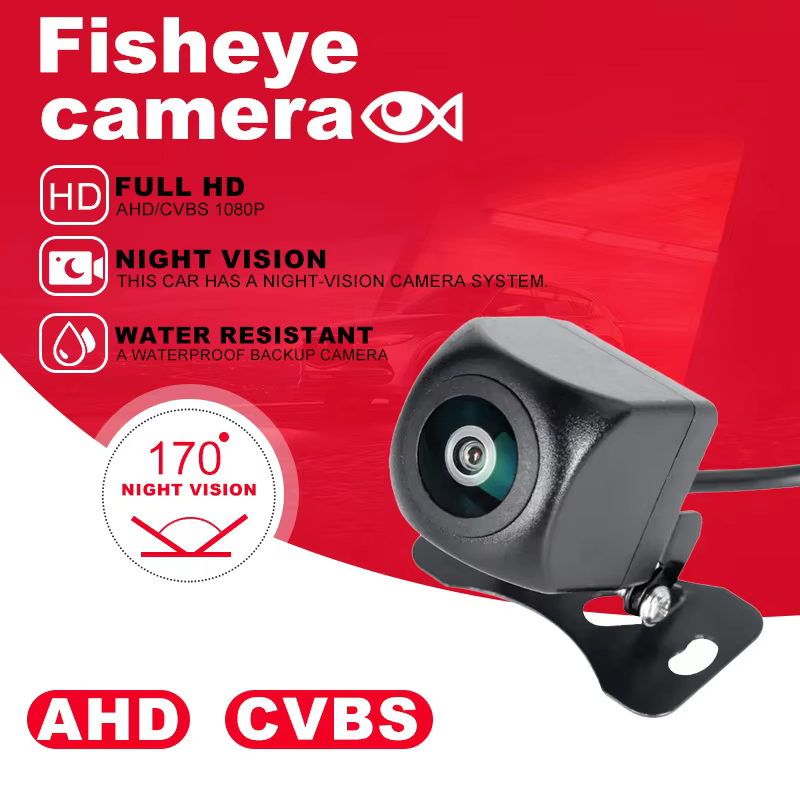

Wide-Angle Rearview with Dual Resolution
Experience a broad 170° field of view for improved rear visibility and safety.
Supports dual resolution output of 720P and 1080P to suit compatible Android large screens.
Signal and Image Mode Customization
Customize your camera functionality using the three cable controls enhancing compatibility and usability.
- Orange cable toggles between AHD and CVBS video signals.
- White cable switches mirror image to front view mode.
- Green cable turns parking guide lines on or off.
Enhanced Night Vision and Durable Build
Equipped with enhanced infrared night vision for clear images in low light conditions.
Robust waterproof ABS housing and plastic+glass lens ensure durability and weather resistance.
Compatibility and Technical Requirements
Designed specifically for Android large screens supporting AHD720P and AHD1080P.
For HD screens, a different CVBS version should be considered.
Note the differing video standards: CVBS uses NTSC, while AHD 1080P uses PAL.
Certified Quality and Safe Materials
Constructed from ABS with no high-concern chemicals, offering safe use.
Certified by CE and RoHS standards for quality assurance.

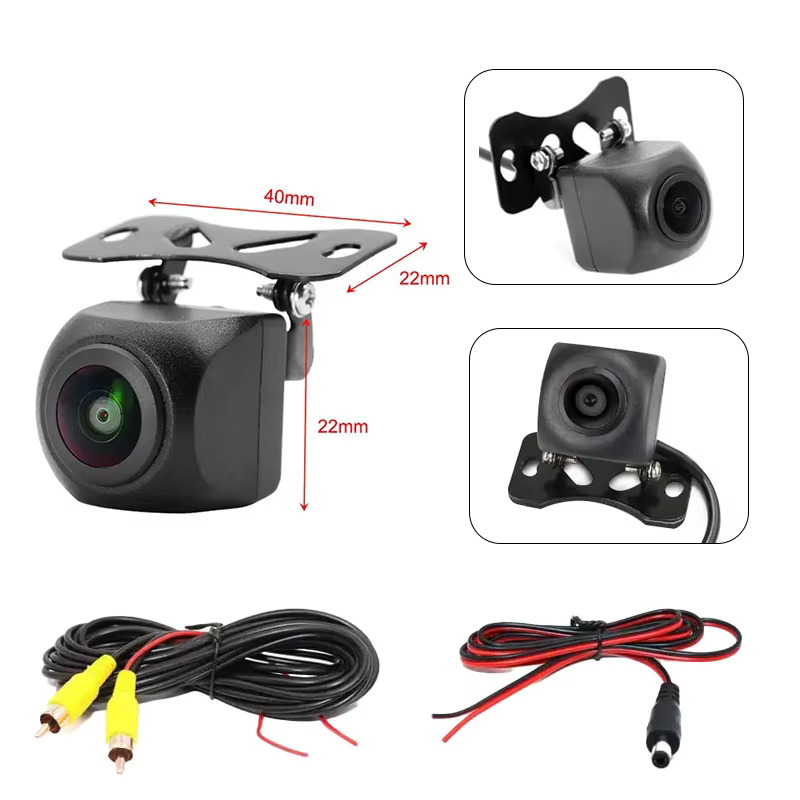

Key specifications
- Viewing Angle: 170° wide angle
- Resolution Options: 720P and 1080P dual resolution
- Lens Material: Plastic + Glass
- Housing Material: ABS plastic
- Video Signal Modes: AHD (PAL), CVBS (NTSC)
- Cable Length: 6 meters
- Power Supply: 12 V
- Certifications: CE, RoHS
- Waterproof: Yes
- Guide Lines: Yes, switchable
What's in the box
- 170° wide angle car backup camera unit
- 6-meter video cable
- Connector cables for signal and mode settings
Product FAQ
Frequently asked questions
01 What type of screens is this backup camera compatible with?
This camera supports Android large screens that accept AHD720P or AHD1080P signals.
02 Can this camera work with standard HD displays?
No, for HD screens, a CVBS camera is recommended instead of this AHD model.
03 Does this camera support universal video signals?
It supports CVBS CCD video signals universally, but AHD signals only work with AHD-compatible monitors.
04 How do I switch between AHD and CVBS signal modes?
Cut the orange cable to switch from the default AHD signal to CVBS signal mode.
05 Can I change the image orientation on this camera?
Yes, cutting the white cable switches between mirror image (default) and front view mode.
06 Is the parking line guide optional?
Yes, parking lines are on by default but can be switched off by cutting the green cable.
07 What video standards does this camera use?
CVBS cameras use NTSC, while AHD 1080P cameras use PAL video standards.
08 What is the lens material of this backup camera?
The lens is made with plastic and glass materials.
09 What is the main housing material of the camera?
The camera body is made from durable ABS plastic.
10 Is this camera waterproof?
Yes, it's designed to be waterproof for outdoor vehicle use.
Discussion
5.0
Based on 58 reviews
Excellent camera. Wide angle. High-quality image.
Excellent camera, meets the stated specifications.
Arrived in less than 15 days, excellent product.
Looks great, easy and simple installation.
