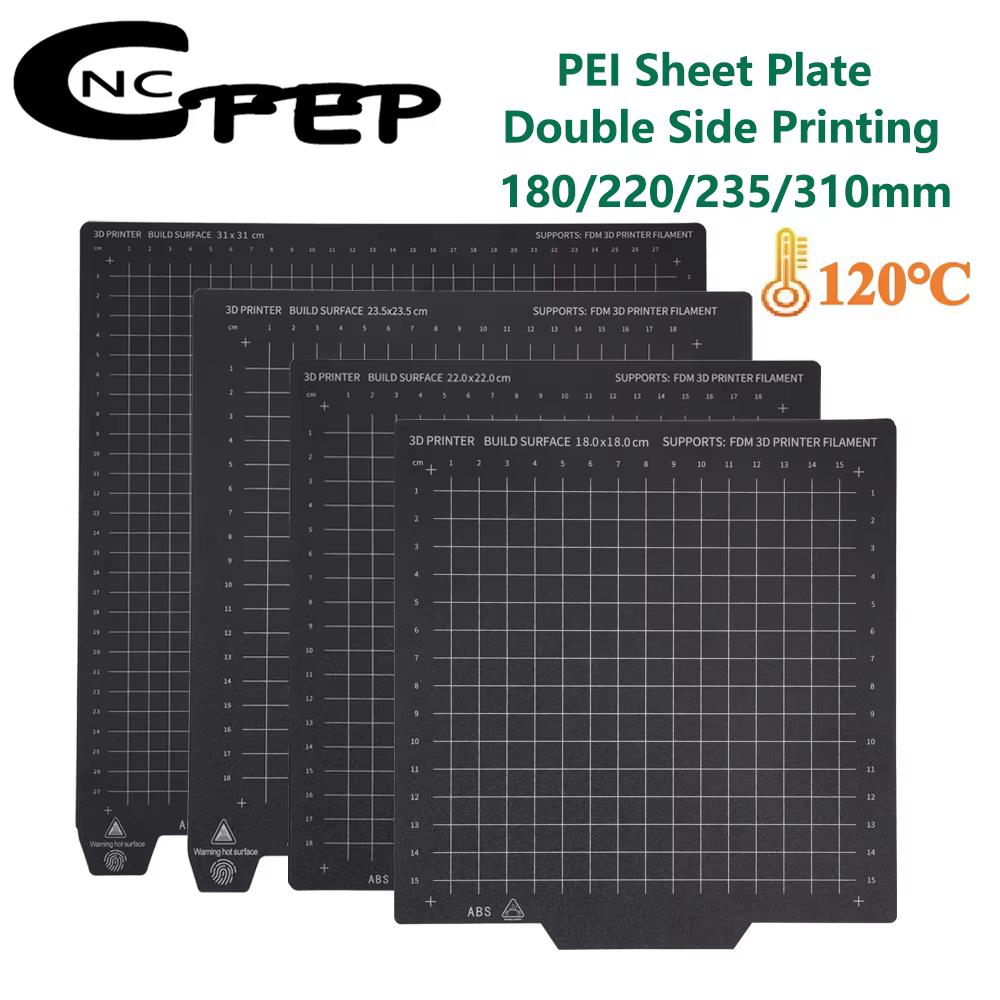

Double-Sided PEI Spring Steel Base Plate for 3D Printer
Price range: $14.31 through $52.65
Pay now, in 4 interest-free payments of $3.58, or over 3–6 months
4 interest-free payments of $3.58
Flexible magnetic 3D printer base plate with double-sided PEI surfaces: smooth for PLA, textured for ABS and more.
- Extra-hard spring steel for durability
- Compatible with Voron, Ender 3, CR10 printers
- Sizes from 180mm to 310mm available
↗
Estimated Delivery Time3–7 business days
Dual-Surface Versatility

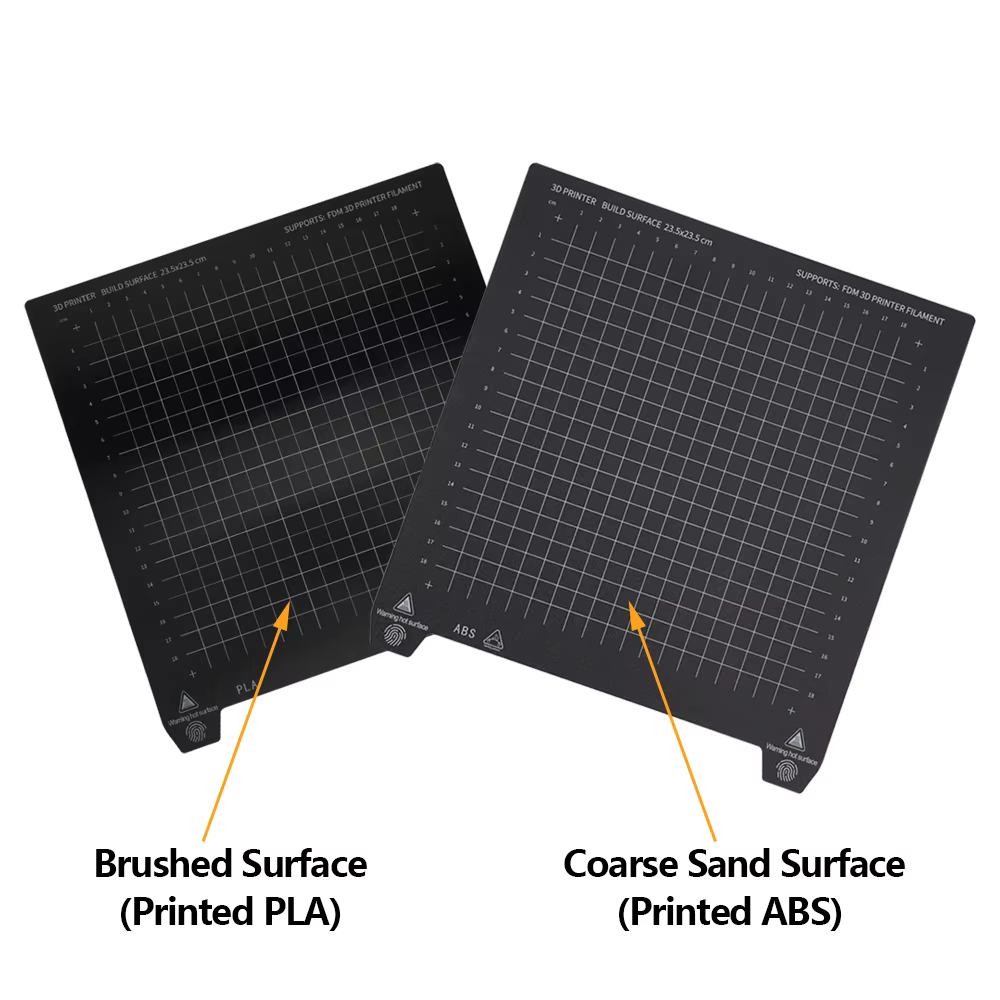

This base plate features a double-sided PEI coating with a smooth surface optimized for PLA and other common filaments, while the textured side provides enhanced adhesion for ABS and materials requiring a stronger grip. Users can switch sides depending on their printing needs, offering greater flexibility for multi-material printing.

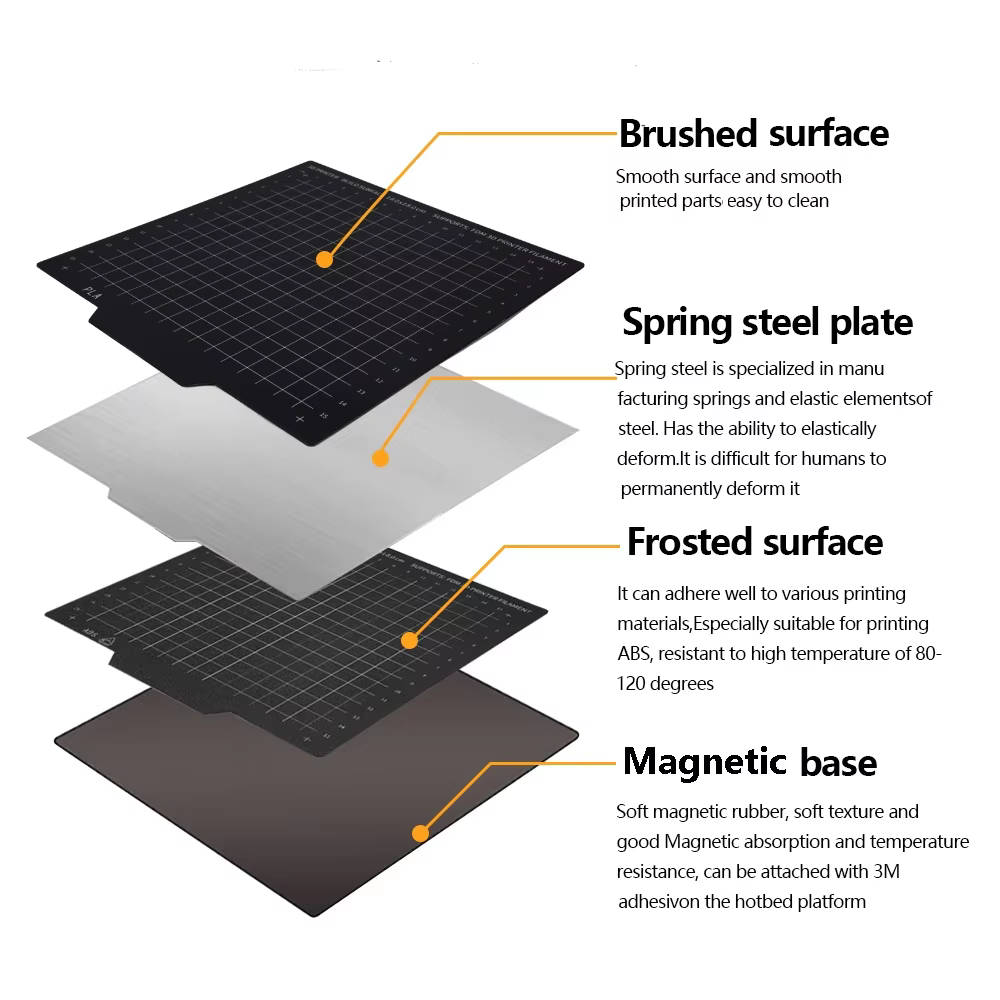

Durable Spring Steel Construction
Crafted from selected extra-hard stainless spring steel, the plate maintains excellent flatness and flexes easily to aid in removing finished prints without damage. Its resilience assures long-term performance even with repeated bending.

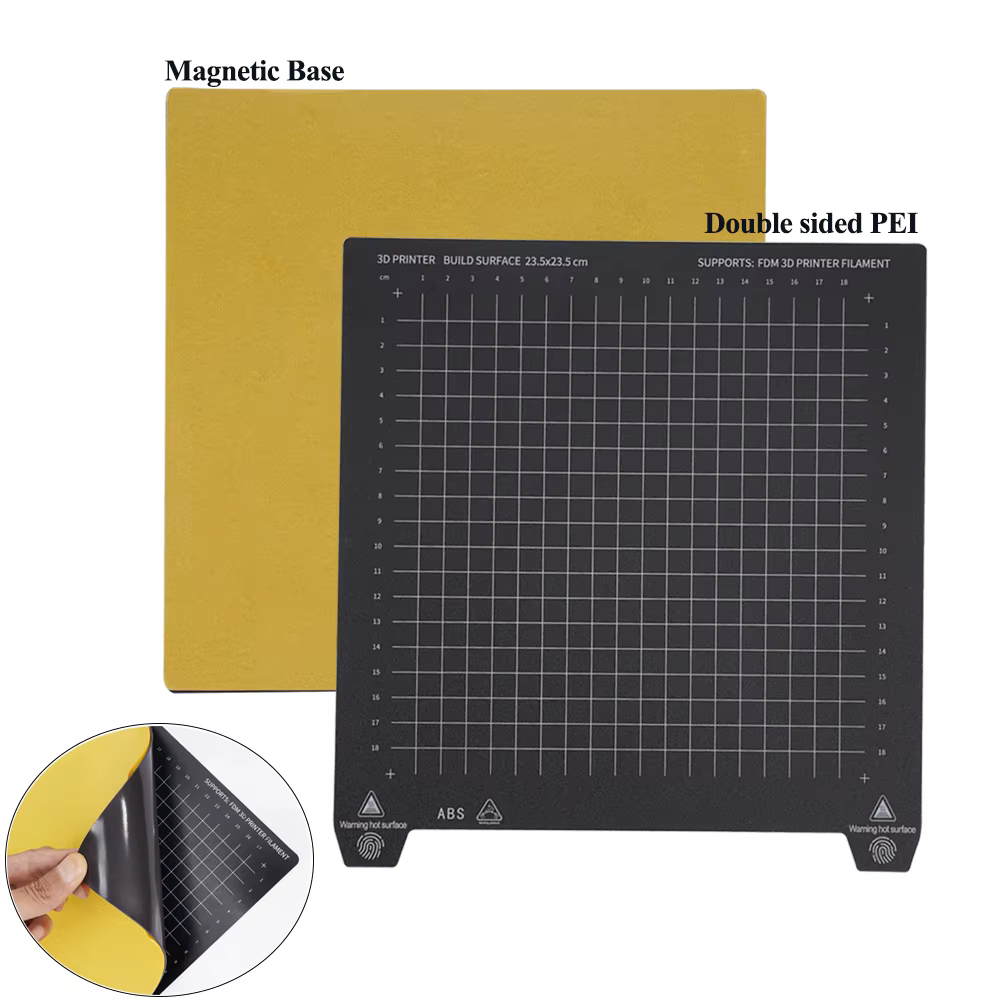

Magnetic Base for Easy Use
A high-temperature resistant magnetic rubber base secures the spring steel plate to the heatbed. This design enables simple attachment and removal, allowing users to quickly swap or adjust the print surface without additional tools.
- Magnetic base withstands up to 120°C
- Easy installation with clips or magnets
- No tools required for setup or removal
Optimized Print Removal
Flexing the spring steel plate helps pop off finished prints cleanly, simplifying post-processing. For PLA, cool the bed to room temperature before removal; for ABS prints, removal after cooling also works but requires careful handling to avoid damaging the textured surface.
Wide Compatibility and Sizes
Compatible with popular models like Voron, Ender 3, CR10, KP3S, KP5L, and others. Available in multiple sizes from 180×180mm to 310×310mm to fit a range of 3D printers and build volumes.
Temperature Limits and Maintenance
The magnetic base tolerates temperatures up to 120°C but prolonged use above 80°C may reduce magnet effectiveness due to aging or demagnetization. Proper temperature management helps maximize product lifespan.
Key specifications
- Magnetic Base Thickness: 1.3mm
- Total Plate Thickness: 2.3mm
- Max Temperature Resistance: 120°C
- Compatible Printers: Voron, Ender 3, CR10, KP3S, KP5L, and similar

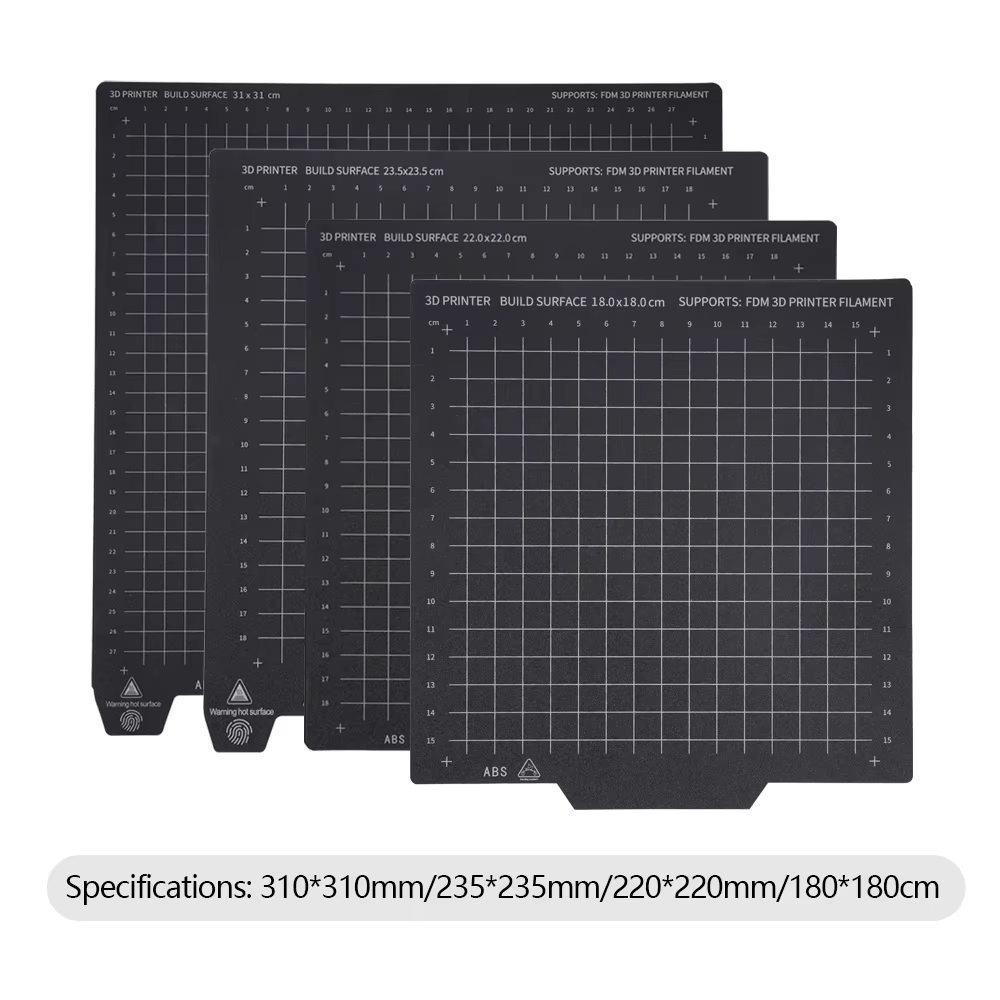

- Available Sizes: 180×180mm, 220×220mm, 235×235mm, 310×310mm
What's in the box
- PEI smooth print surface sheet
- PEI textured print surface sheet
- Extra-hard spring steel plate
- Magnetic rubber base
Product FAQ
Frequently asked questions
01 What materials are coated on the double-sided PEI plate?
One side is coated with a smooth PEI surface ideal for PLA, and the other with a textured PEI surface suited for ABS and materials needing stronger adhesion.
02 Which 3D printer models is this base plate compatible with?
It is compatible with 3D printers such as Voron, Ender 3, CR10, KP3S, KP5L and similar models.
03 What sizes are available for this spring steel base plate?
Sizes offered include 180×180mm, 220×220mm, 235×235mm, and 310×310mm.
04 What is the maximum temperature the base plate can handle?
The base plate can withstand temperatures up to 120°C, but prolonged exposure above 80°C may degrade the magnetic base.
05 How does the magnetic base facilitate installation?
The magnetic rubber base allows easy installation and removal of the steel plate on the heatbed using clips or magnets without extra tools.
06 Can I remove prints easily with this base plate?
Yes, by flexing the spring steel plate, 3D prints can be popped off easily without damaging the print or plate.
07 Are there any special considerations for removing models printed on PLA or ABS sides?
For PLA, wait for the plate to cool to room temperature before removing. For ABS, models can be removed once cooled, but strong adhesion may require extra force which could risk damaging the plate film.
08 What is the total thickness of the base plate assembly?
The total thickness including the magnetic base is approximately 2.3mm.
09 Does assembly of this base plate require tools or special skills?
No assembly is required; simply hold the PEI spring steel plate on the heatbed with clips or magnets.
10 What is the benefit of the extra-hard spring steel used in the plate?
It offers excellent flatness, durability, and flexibility to repeatedly bend the plate for easy print removal without warping.
