Compact audio module supports MP3, WAV, WMA formats with up to 32GB TF card and 32GB USB drive compatibility.
4 in stock

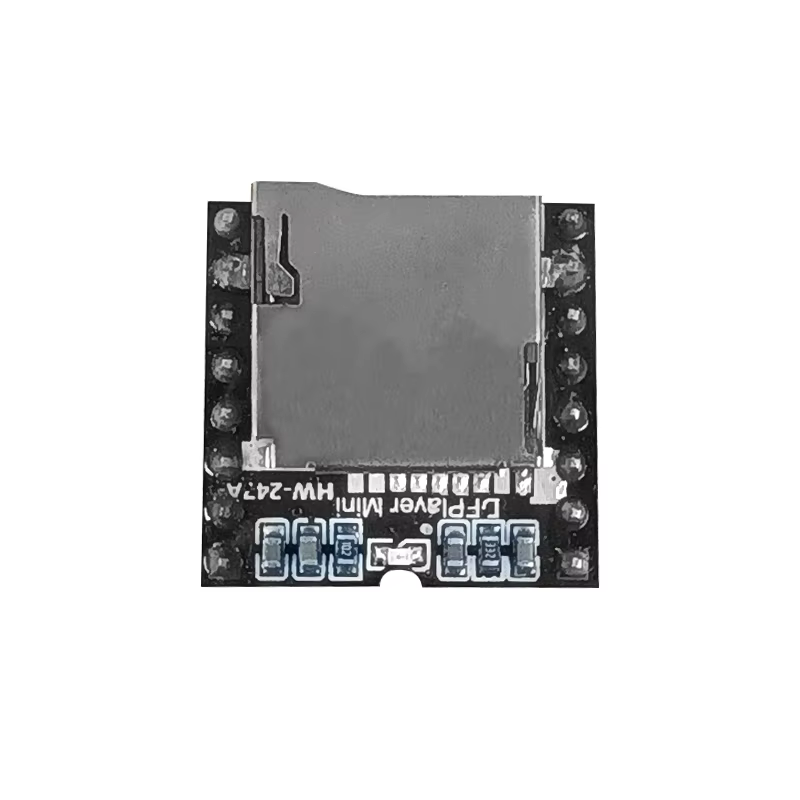

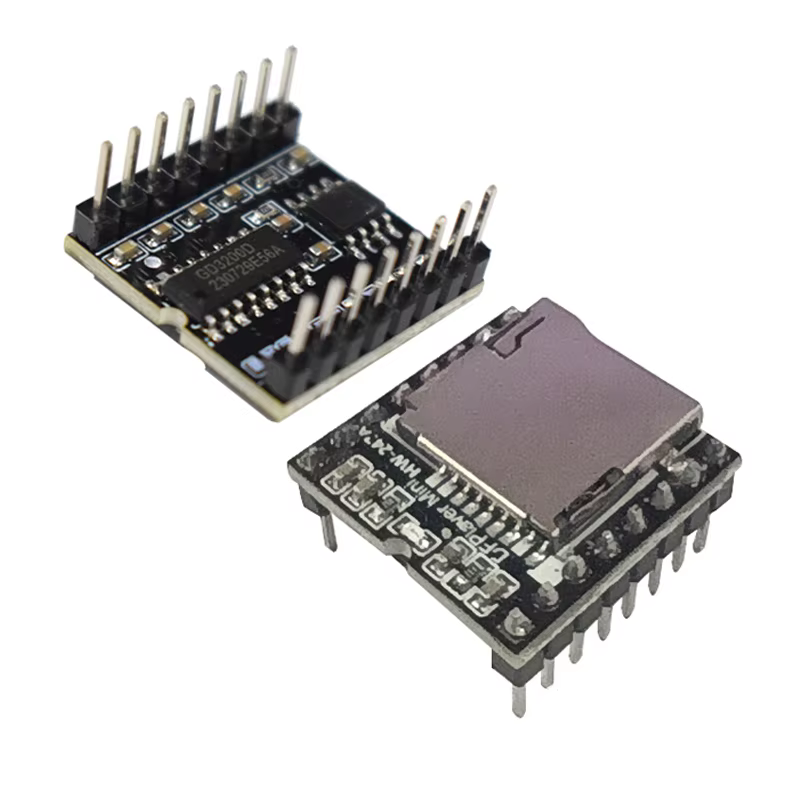

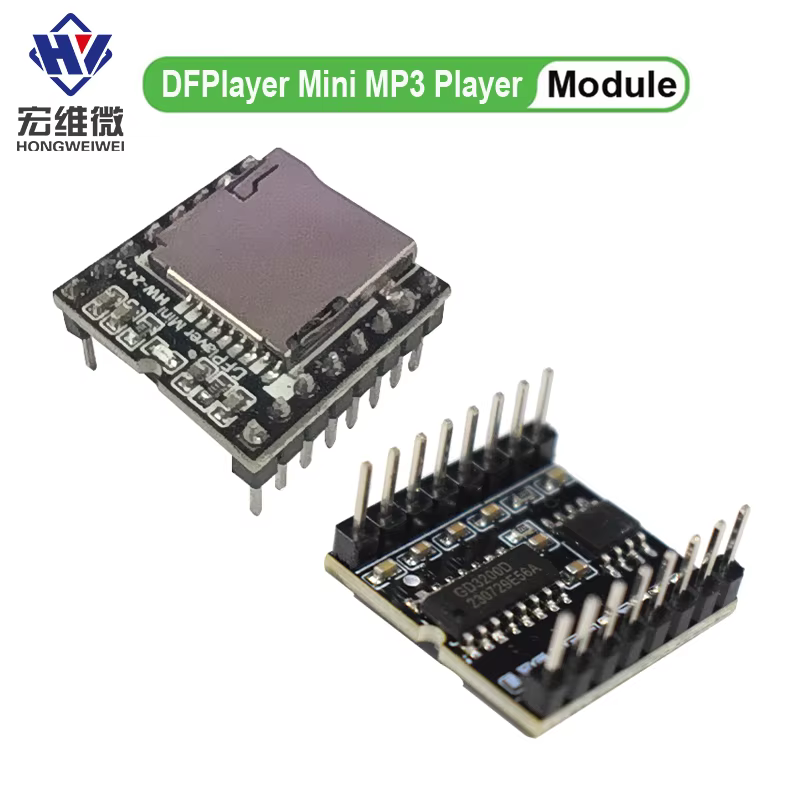

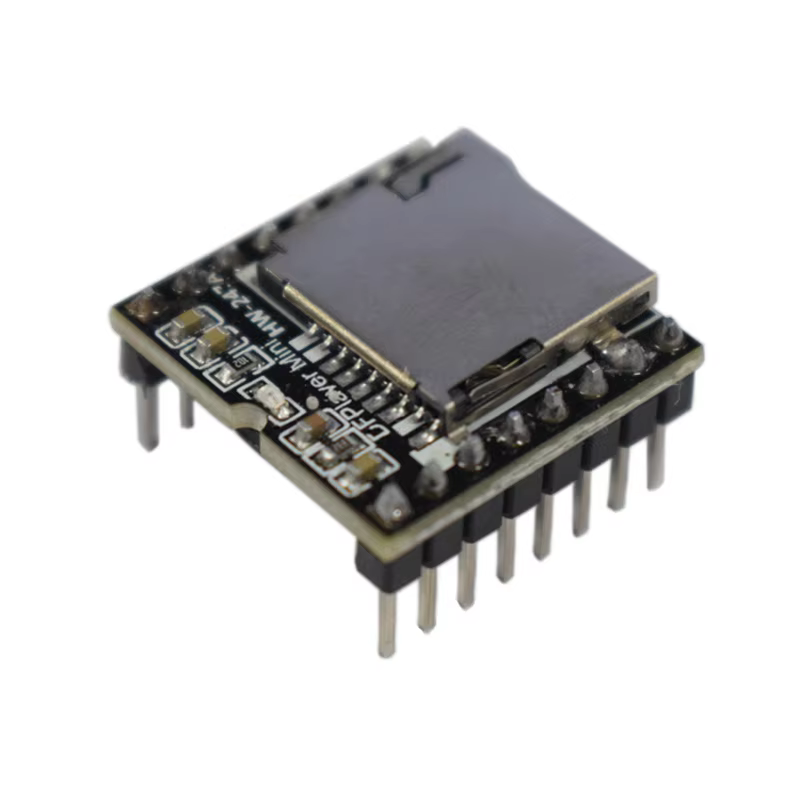

The DFPlayer Mini is a small yet powerful MP3 player module that supports MP3, WAV, and WMA audio formats for broad compatibility. Measuring just 20.65mm by 20.45mm, itβs designed for integration into embedded systems requiring voice prompts or audio playback.
With a 64MB NOR flash onboard and compatibility for up to 32GB microSD cards or USB flash drives, the module offers ample storage for complex audio applications.
Users can choose from IO control, serial port communication, or AD key control to operate the module, allowing integration with various microcontrollers and systems.
This versatility enables programming for tasks such as alarms, automated announcements, or voice guidance systems.
Equipped with a 24-bit DAC output and dynamic range of 90dB alongside an 85dB signal-to-noise ratio, this module delivers high-quality sound.
Adjustable volume with 30 levels and six equalizer presets allows tailoring of audio output to specific environments and preferences.
Ideal for voice prompts in car navigation, transport inspection points, and safety checks at stations, the module supports multi-channel voice alarms and device operation guidance.
Additional uses include mechanical failure alarms, firefighting alerts, and scheduled broadcasts for public announcements.
The module operates on a working voltage between 3.3V and 5V, not exceeding 5.2V for safe operation.
Interface connector type is DIP pin set, simplifying integration.
Supports FAT16 and FAT32 file systems for broad memory card compatibility.
It supports MP3, WAV, and WMA audio file decoding.
It works with up to 32GB microSD (TF) cards and 32GB USB flash drives.
It supports IO control mode, serial port mode, and AD key control mode.
The recommended voltage is 5V, with a working range from 3.3V to 5.2V maximum.
It supports up to 100 folders, each folder can store up to 255 tracks.
Yes, it features 30 levels of adjustable volume and 6 levels of adjustable equalizer.
Suitable for car navigation voice broadcast, public safety voice prompts, alarm systems, scheduled broadcasting, and more.
Its dimensions are approximately 20.65mm by 20.45mm by 1.6mm.
Yes, it includes 64MB of NOR flash memory.
Yes, it can be used in conjunction with powered batteries and external speakers.
There are some differences in quality between DFPlayer clone products depending on the chip used!
As soon as the power is turned on, it won't start playing. The power source needs to be short-circuited once when connected to the ground of ADKEY1 for it to work, but if you only use the module without using UART, this product will be difficult to use!
Its amplifier module is class AB, meaning the sound it produces in a 3W 4ohm speaker is as if you were using an LM386 amplifier module. You would have to buy another class D amplifier module like the PAM8... and only then would you be able to use it; otherwise, this would only serve to play music, you would have to buy the amplifier module separately.
No problem, it's just a normal sound, it's great.
Everything arrived as advertised.
Very good quality. I will add more comments later.
