Creality CR Touch 32bit Auto Leveling Sensor Kit

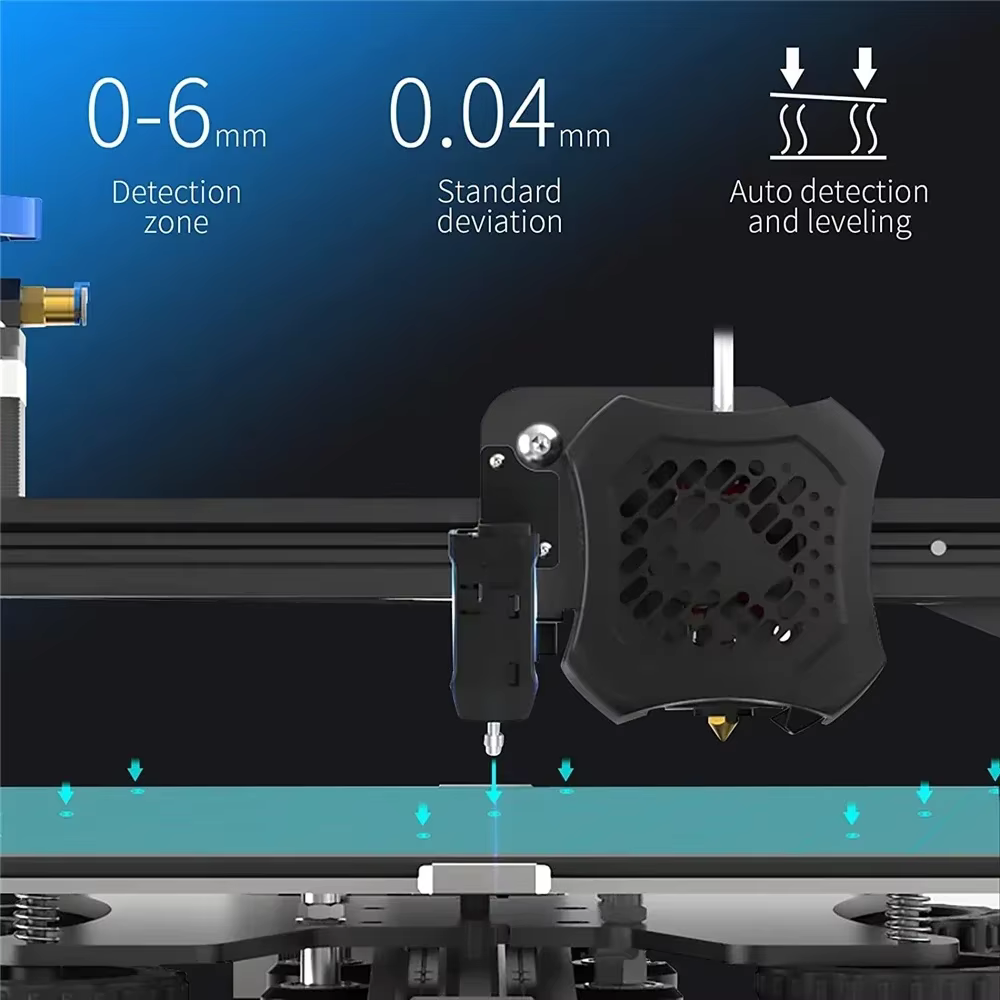

The Creality CR Touch sensor delivers highly accurate leveling with a positioning precision of up to 0.04 mm. Utilizing multi-point detection and smart compensation technology, it creates a virtual leveling plane to adjust for uneven print surfaces.

This results in improved first layers and overall print reliability on compatible Creality models, ensuring professional-grade print quality every time.

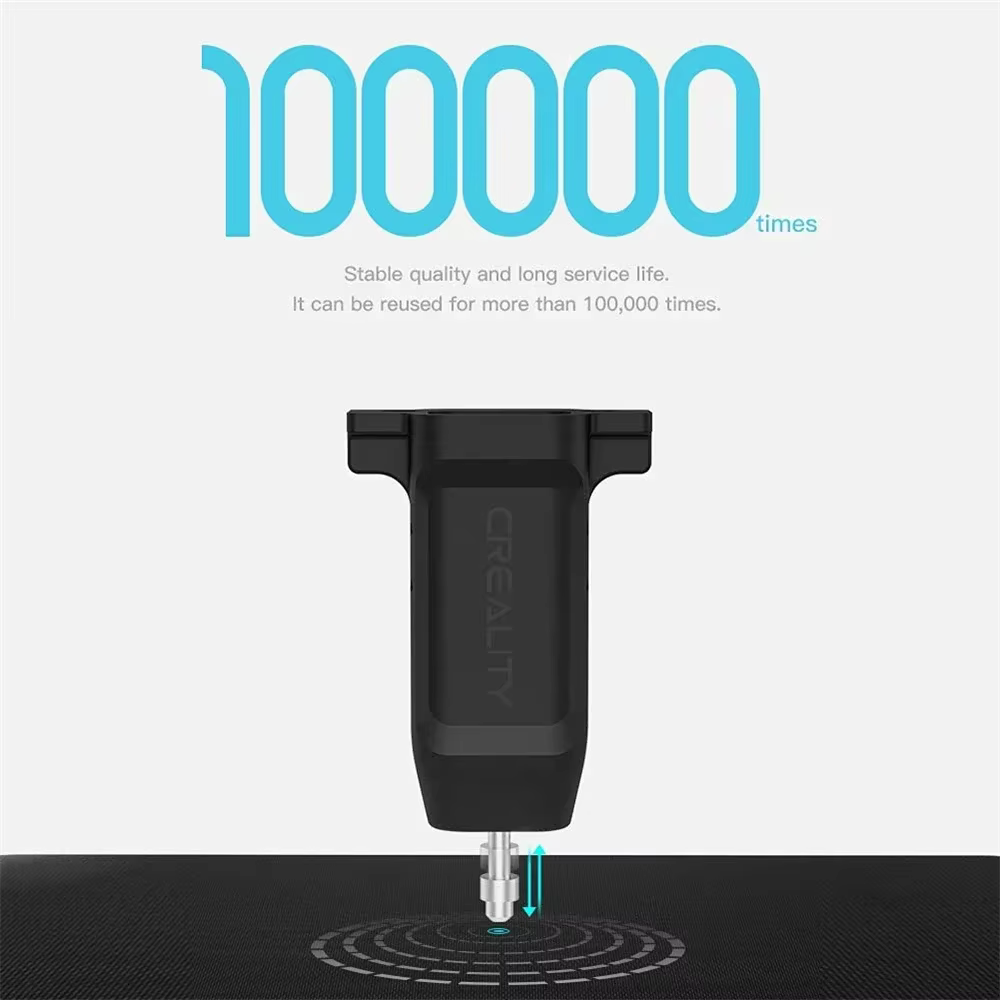

Unlike traditional plastic probes, the CR Touch uses a metal probe that significantly reduces wear and extends the sensor's life up to approximately 100,000 probe cycles.

This upgrade improves durability and cuts down maintenance needs, making it a cost-effective leveling solution for your 3D printer.

The sensor supports various print bed surfaces including PEI sheets, glass, metal, and sticker type platforms, making it versatile for different printing setups.

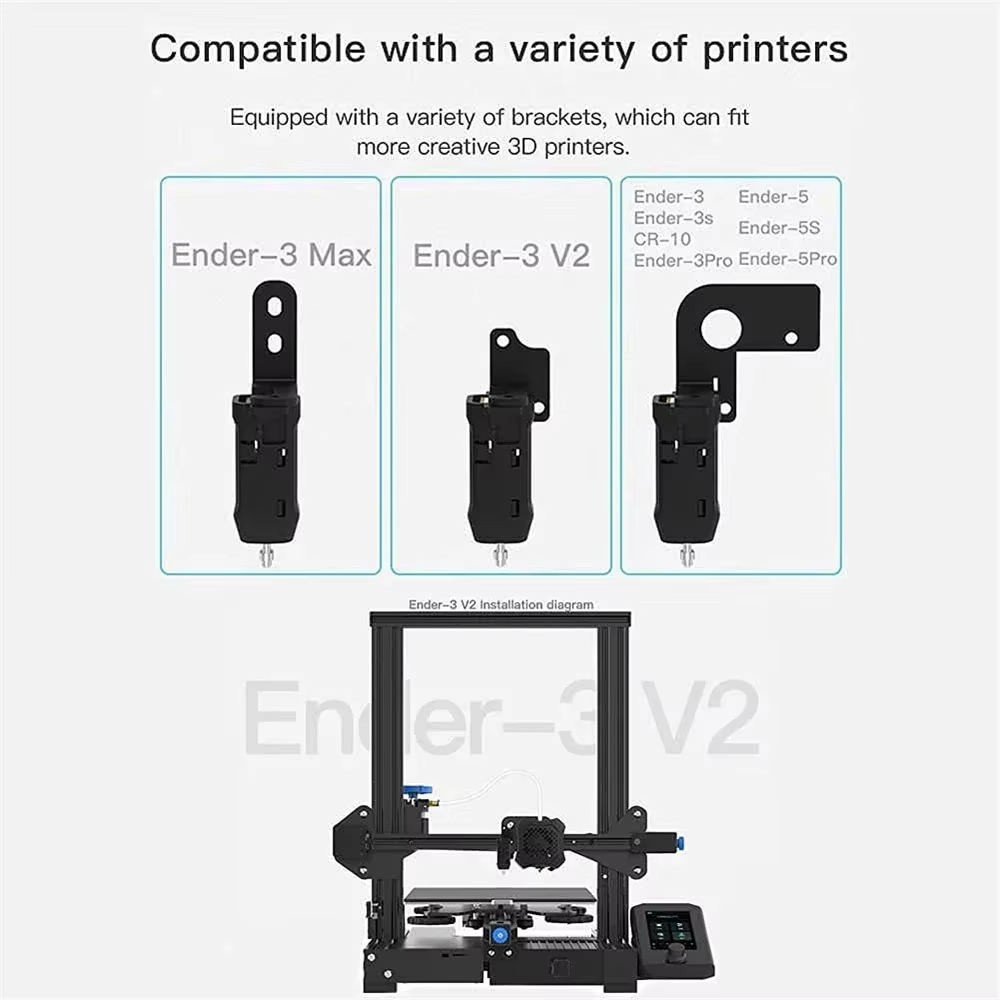

It is compatible with key Creality models like Ender-3 series, Ender-5 series, Ender-5 Pro, and CR-10 printers for easy upgrades.

Installation is straightforward: simply download the CR Touch firmware from Creality’s official site, copy it to a TF/SD card, and insert it into your printer.

The system supports program updates via the memory card, ensuring your sensor stays current with software improvements.

Powered electromagnetic components extend the probe under suction, while a photoelectric sensor detects contact with the build platform.

This dual-technology approach allows precise and reliable height measurements, enhancing print accuracy and reducing errors.

• Model Name: CR Touch
• Power Consumption: Less than 1W
• Dimensions: 27 x 17.5 x 39.3 mm
• Weight: 11.5 grams ±2g
• Operating Voltage: 5V
• Positioning Accuracy: ≤ 0.04 mm
• Probe Travel Distance: 6 mm
• Operating Temperature: Up to 65°C
• Estimated Service Life: Around 100,000 probe detections

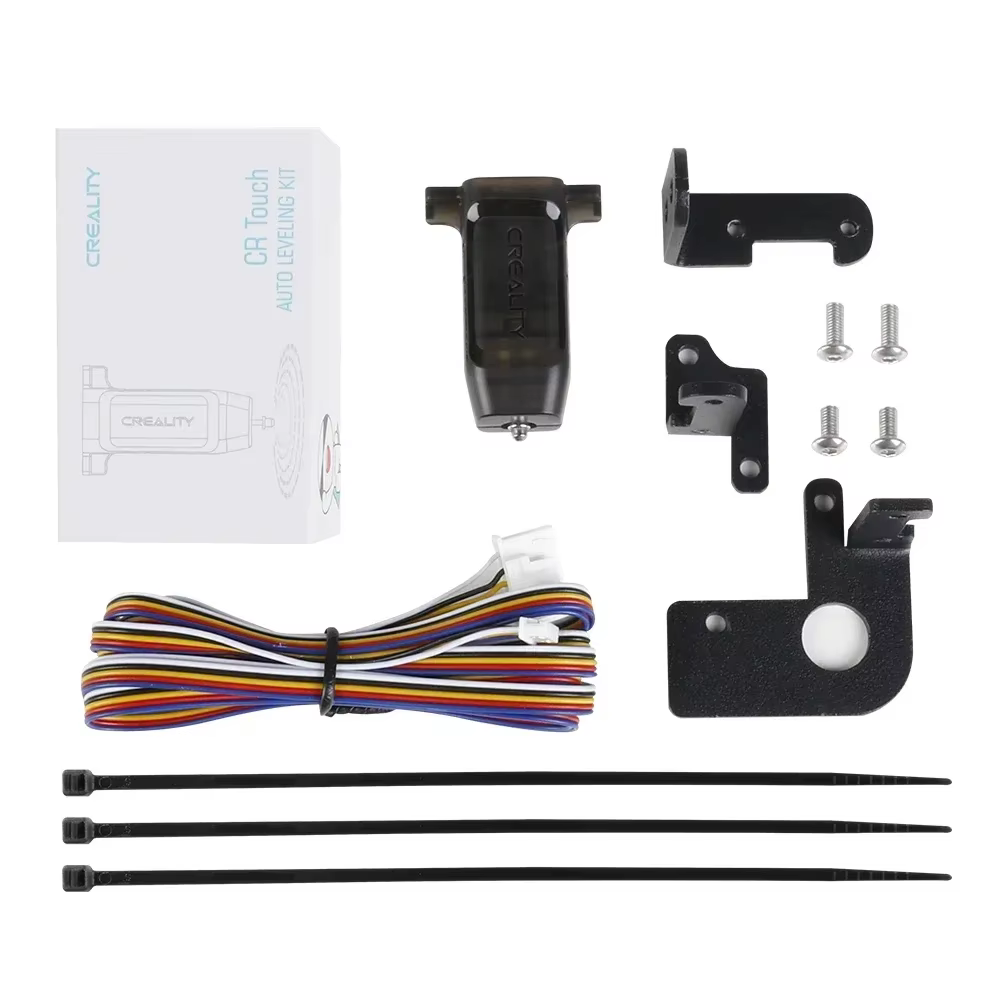

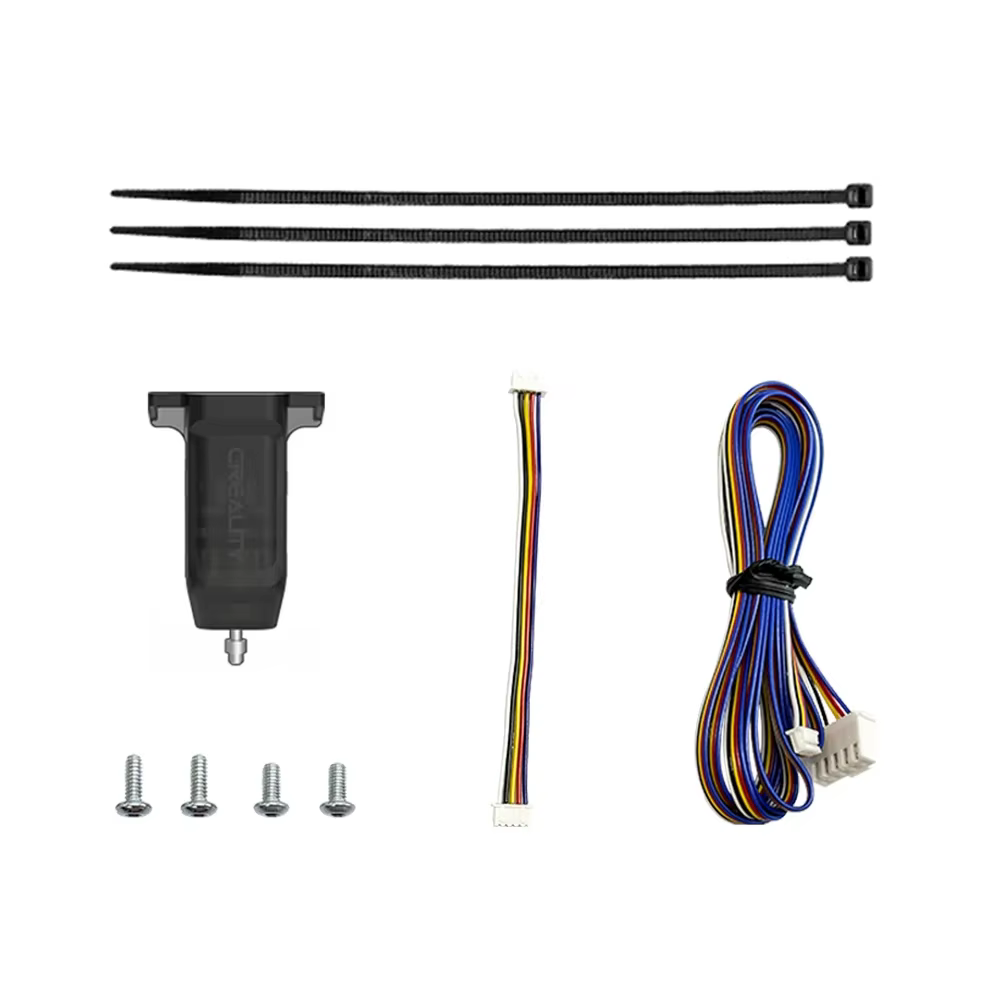

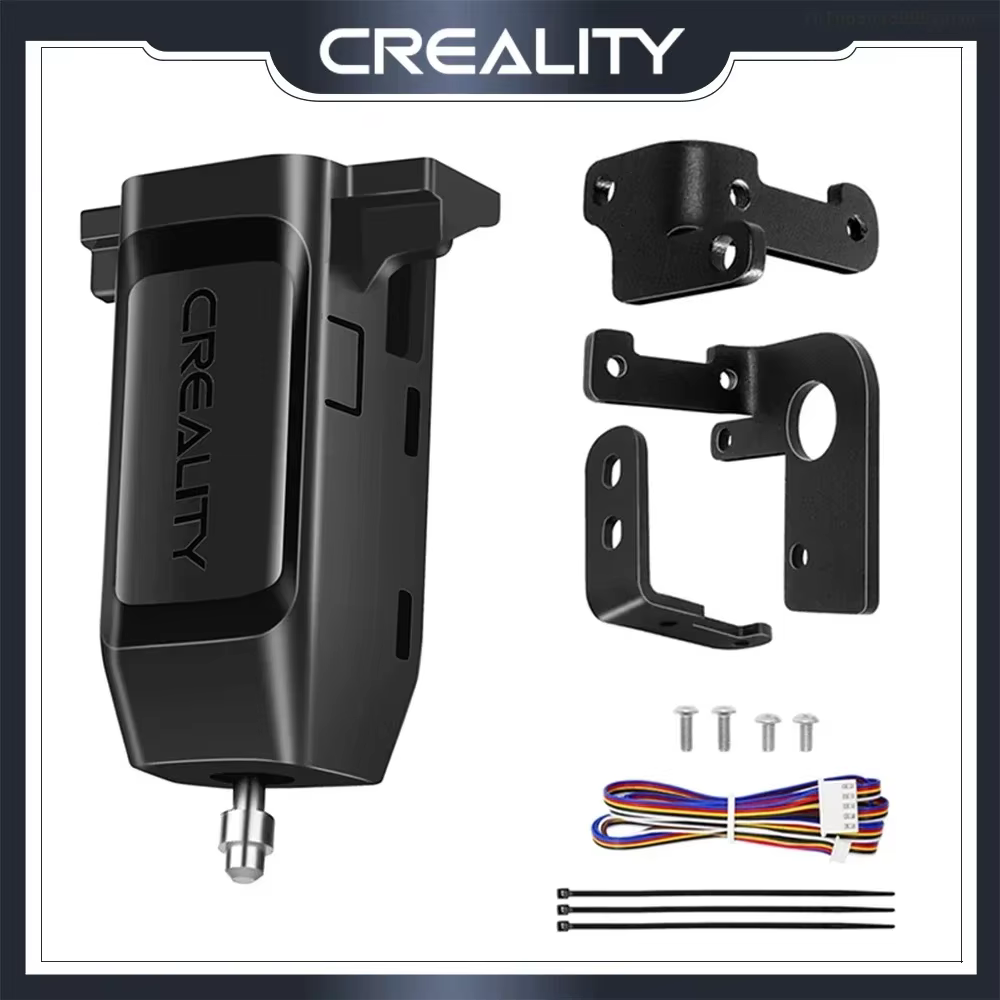

• CR Touch auto leveling sensor unit
• Mounting bracket plate
