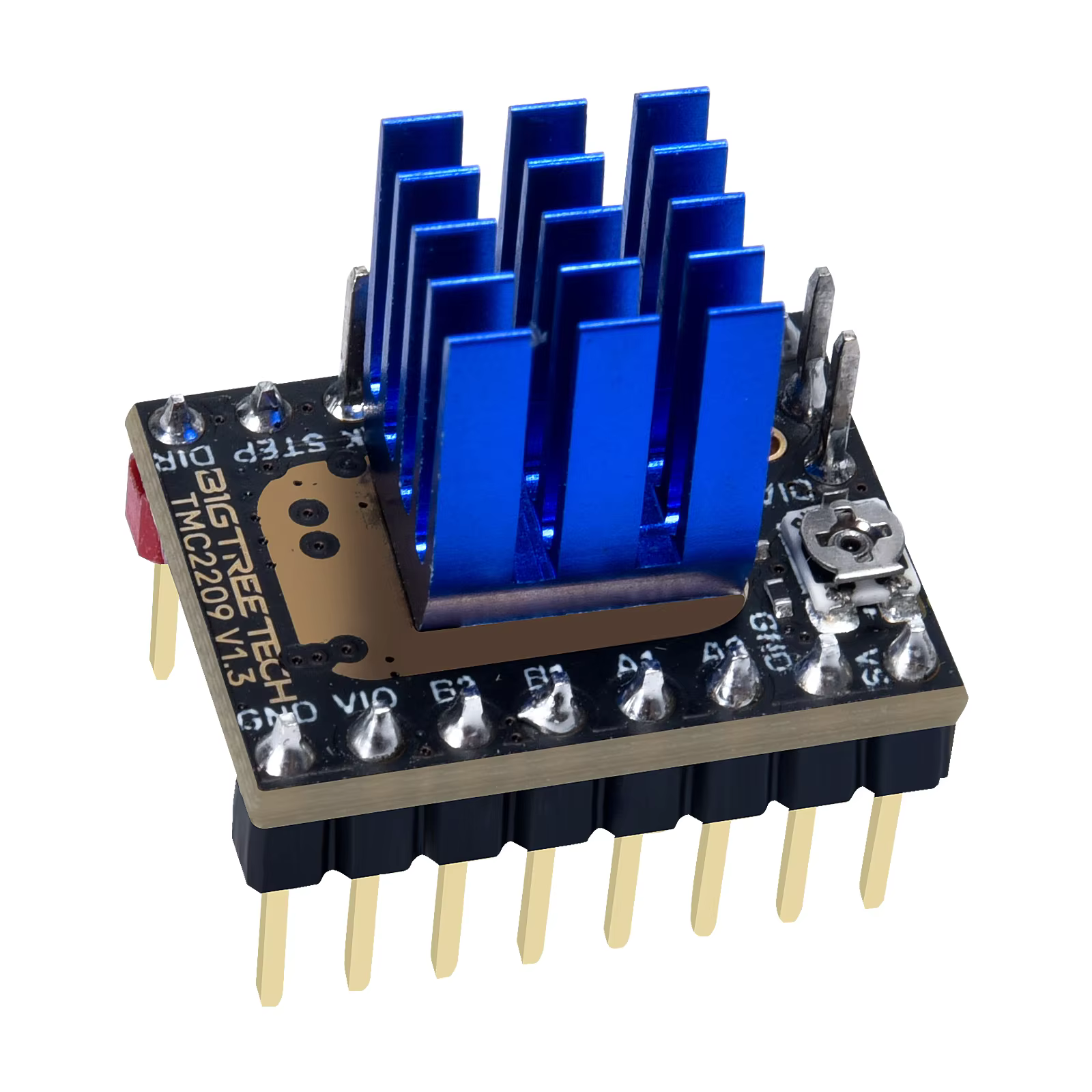

BIGTREETECH TMC2209 V1.3 Stepper Motor Driver for 3D Printers
Price range: $8.11 through $49.94
Pay now, in 4 interest-free payments of $2.03, or over 3–6 months
4 interest-free payments of $2.03
Upgrade your 3D printer with the TMC2209 V1.3 stepper motor driver featuring quiet StealthChop2 technology, dynamic current control, and sensorless stall detection.
↗
Estimated Delivery Time3–7 business days
Efficient Stepper Motor Control
The TMC2209 V1.3 is a high-performance stepper motor driver designed for 3D printers. It supports step/dir interface with microstep interpolation up to 256 microsteps, resulting in smooth and precise motor movements.
It offers silent operation with StealthChop2 technology for quiet printing environments.
Advanced Features for Improved Printing
This driver supports StallGuard4 for sensorless motor load detection, enabling load and stall detection without additional sensors.
CoolStep technology provides dynamic current control, optimizing power consumption and reducing heat dissipation significantly.
- StallGuard4 sensorless stall detection
- CoolStep current dynamic regulation
- Switchable between stealthChop2 and SpreadCycle modes via pin configuration
Wide Compatibility and Easy Installation
Compatible with popular 3D printer control boards including SKR V1.3, SKR Mini, MKS GEN L, MKS GEN V1.4, and RAMPS 1.4/1.5/1.6, allowing versatile use in different printers.
Hardware pinout is compatible with StepStick and Pololu A4988 drivers for easy replacement.
- Fits common 3D printer boards
- Direct replacement for TMC2208, TMC2130, A4988, DRV8825
Key Specifications
- Operating Voltage: 4.75V – 28V
- Maximum Current: 2A continuous (2.8A peak)
- Microstepping: Up to 256 microsteps
- Control Interface: Step/Dir and UART
- Features: StealthChop2, SpreadCycle, CoolStep, StallGuard4

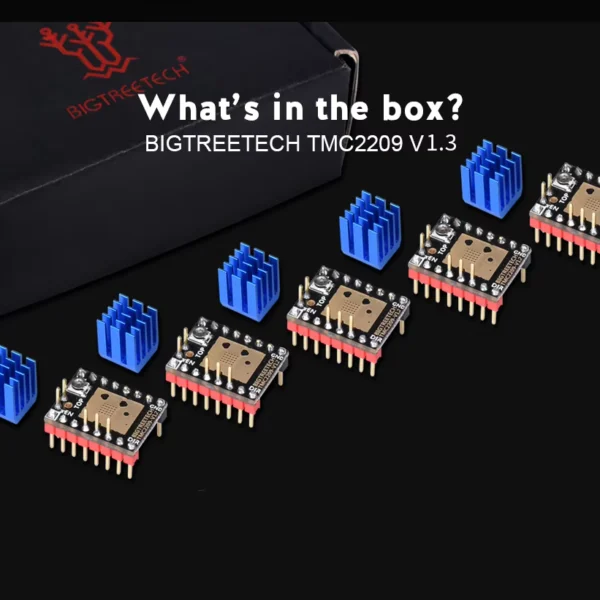

What's in the box
- TMC2209 V1.3 Stepper Motor Driver (without cable)
Product FAQ
Frequently asked questions
01 What is the TMC2209 V1.3 stepper motor driver used for?
It is used to control stepper motors in 3D printers, providing smooth and quiet motion.
02 Is the TMC2209 V1.3 compatible with the SKR series boards?
Yes, it is compatible with SKR V1.3, SKR Mini, and common 3D printer boards like MKS GEN L and RAMPS.
03 What advantages does the TMC2209 have over the TMC2208?
The TMC2209 offers higher current capabilities, lower heat dissipation, advanced StallGuard4 sensorless detection, and CoolStep current control.
04 Does this driver support microstepping?
Yes, it supports up to 256 microsteps via microstep interpolation for precise motor control.
05 Can the TMC2209 switch between stealthChop and SpreadCycle modes?
Yes, it can toggle between quiet stealthChop and dynamic SpreadCycle modes via a configuration pin.
06 What is the maximum peak current supported by the TMC2209 V1.3?
It supports up to 2A continuous current with a peak current of 2.8A.
07 Is assembly required to use this driver?
No assembly is required; it is hardware compatible and ready to install.
08 Does the driver come with cables?
The TMC2209 V1.3 model does not include cables.
09 Does it feature any energy-saving technology?
Yes, it uses CoolStep technology for dynamic current regulation, saving up to 75% electrical energy.
10 What motor types are compatible with this driver?
It is designed for controlling stepper motors typically used in 3D printers.
Discussion
4.8
Based on 33 reviews
These drivers are absolutely the best l4988 replacement driver available. they make the motors so quiet with only one draw back you have to reverse one motor coil to change the direction as they change motor direction. don't buy if you are not comfortable with doing that but they work so well.
Works great with my skr3. very quiet!
BIGTREETECH TMC2209 V1.3 is a high-performance, ultra-quiet stepper motor driver that is very popular for 3D printer upgrades and CNC machines. Below are the main technical details, features, and precautions.
They work perfectly... I have installed about 20 of them by now.
