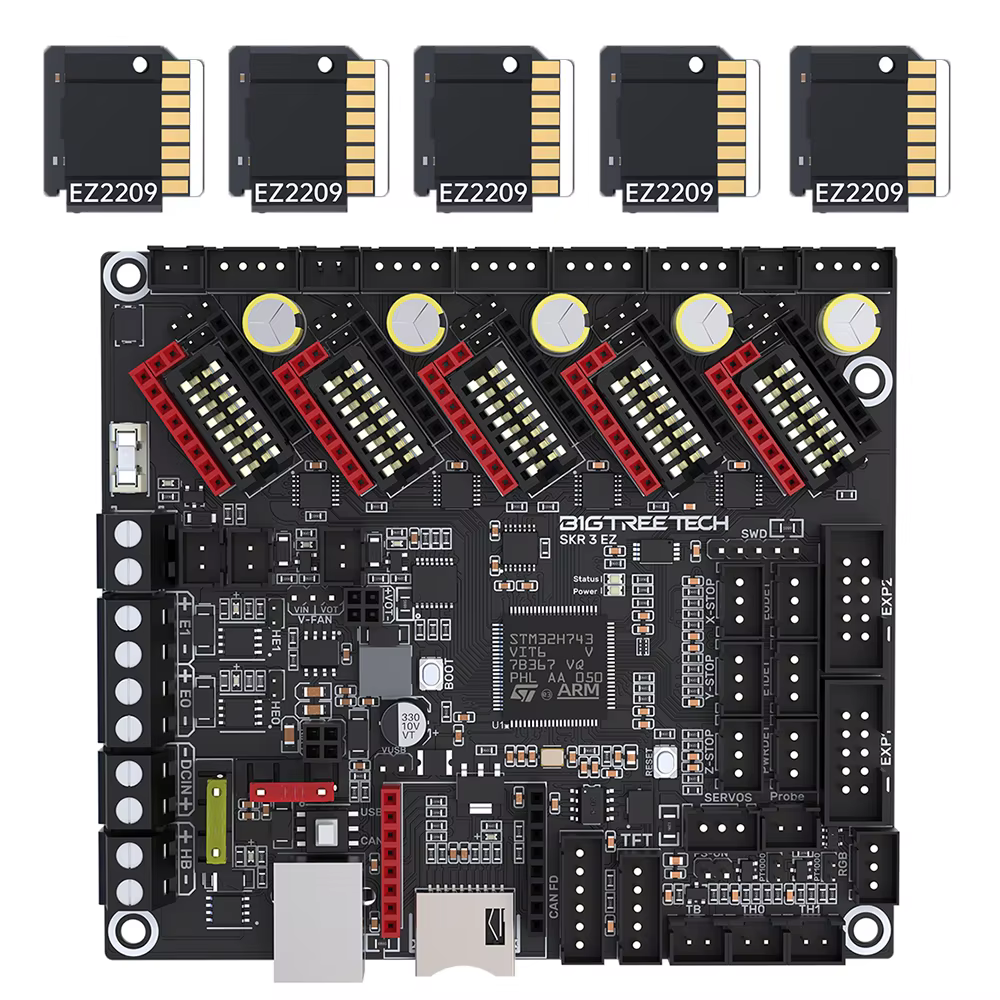

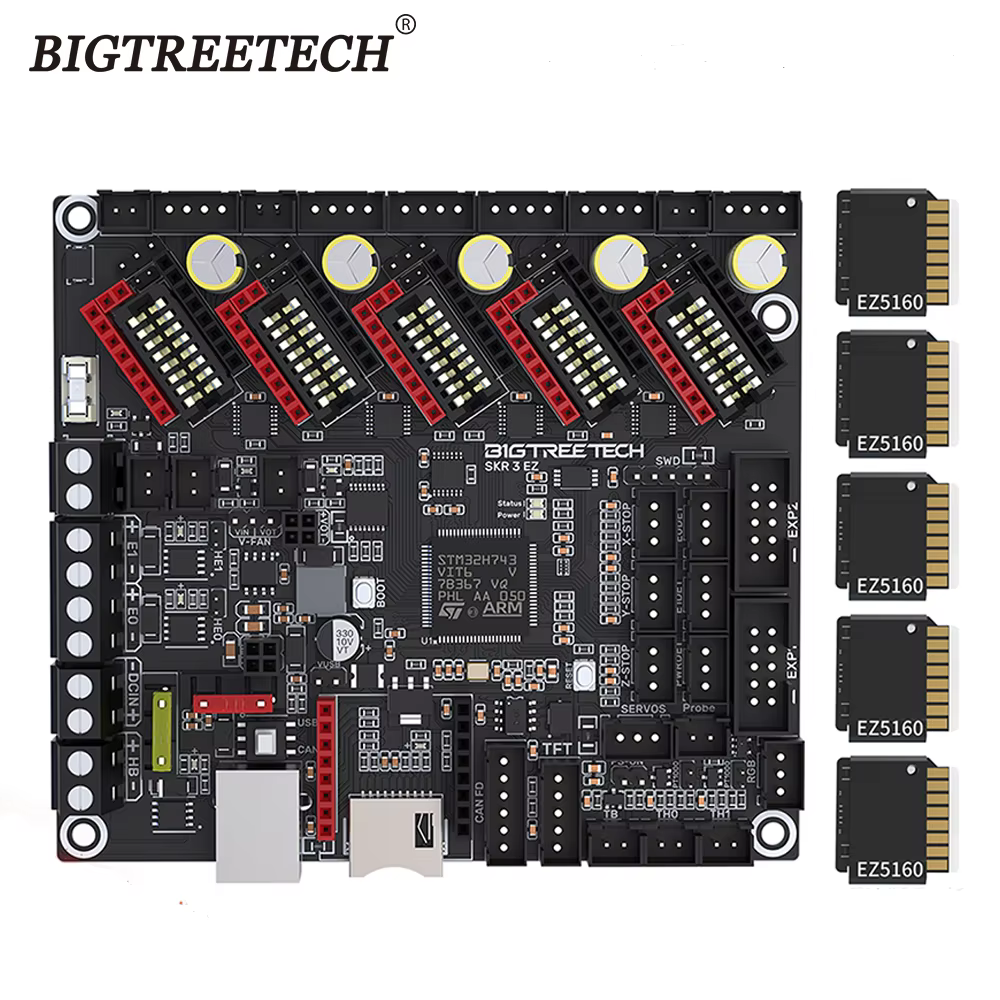

BIGTREETECH SKR 3 EZ 32Bit 3D Printer Motherboard Upgrade
Price range: $126.92 through $228.34
Pay now, in 4 interest-free payments of $31.73, or over 3–6 months
4 interest-free payments of $31.73
Powerful 32-bit 3D printer motherboard with ARM Cortex-M7 CPU and flexible driver support.
- Supports EZ and TMC drivers
- Advanced thermistor protection circuit
- Multiple firmware compatibility including Marlin and Klipper
↗
Estimated Delivery Time3–7 business days
Advanced 32-bit Processing Power
The SKR 3 EZ motherboard uses a cutting-edge 32-bit ARM Cortex-M7 microcontroller (STM32H743VIT6 or STM32H723VGT6) delivering significantly improved performance for your 3D printer.
This powerful processor ensures smooth operation handling multiple functions such as managing stepper motors, sensors, heaters, and firmware commands efficiently.
Robust Power and Safety Features
Equipped with a TPS5450-5A power chip, it supports 12V to 24V power input and can output up to 5A continuously with peaks of 6A, making it perfect for powering peripherals including Raspberry Pi.
Enhanced thermistor protection circuitry reduces risk of motherboard damage due to heated bed or heating rod faults, adding reliability during extended prints.
- Replaceable fuse for easy maintenance
- High-performance MOSFETs reduce heat generation
- Selectable thermistor pull-up resistor supports PT1000 sensors without external modules
Versatile Connectivity and Driver Compatibility
Designed for flexibility, this board supports EZ series and TMC series driver modules with dual driver sockets allowing easy upgrades and customization.
Connectivity options include USB and CAN interfaces with a double-pole double-throw switch enabling convenient switching between them.
A universal WiFi modular port compatible with ESP-12S, ESP-07, and ESP32 allows wireless control and firmware options like RRF for DIY enthusiasts.
- BOOT0 button supports DFU firmware flashing
- Non-elastic SD card slot in SDIO mode for faster transfers
- Onboard EEPROM to save parameter configurations
Enhanced Cooling and Motor Control
Three CNC fans are dedicated to model cooling, heat dissipation of pipes, and chassis cooling, improving printing quality and maintaining stable board operation.
Five motor driver interfaces correspond to X, Y, Z (double), E0, and E1 axes, supporting dual extruders and stable multi-axis movement.
Motor voltage is selectable up to 48V with jumper caps, enabling faster printing speeds especially when using TMC5160 and EZ5160 drivers.
- Compatible with various 3D printer types including Ender3 and Ender5
- Protective driver design prevents accidental damage and short circuits
Firmware Support for Advanced Features
Compatible with multiple firmware options including Marlin, Klipper, and RepRap to cater to diverse 3D printing needs.
Supports advanced firmware features such as automatic bed leveling, filament runout detection, resume printing, completed shutdown, BLTouch, and RGB lighting control.
Firmware supports over 150 G-code commands and multiple languages enhancing user experience globally.
Key Specifications
- Main CPU: STM32H743VIT6 / STM32H723VGT6 ARM Cortex-M7
- Power Input: DC 12V to 24V (TPS5450-5A chip)
- Fan Voltage Selection: 24V, 12V, 5V via external supply
- Driver Compatibility: EZ series and TMC series drivers
- Motor Voltage Support: Up to 48V, selectable per motor
- Connectivity: USB, CAN (switchable), WiFi module port
- Cooling: 3 CNC fans for model, pipe, and chassis cooling
- Firmware: Marlin, Klipper, RepRap support
- Onboard: EEPROM, MicroSD card slot (SDIO mode), BOOT0 button for DFU
What's in the box
- BIGTREETECH SKR 3 EZ 32-bit motherboard
Product FAQ
Frequently asked questions
01 What main processor does the SKR 3 EZ motherboard use?
It uses a 32-bit ARM Cortex-M7 series STM32H743VIT6 or STM32H723VGT6 microcontroller for improved performance.
02 What voltage input does the power chip support?
The TPS5450-5A power chip supports DC12/24V power input with output current up to 5A and peak of 6A.
03 Is the motherboard compatible with Raspberry Pi power supply?
Yes, the power chip output supports and perfectly accommodates Raspberry Pi power supply.
04 Can the motherboard firmware be easily upgraded?
Yes, you can upgrade the configuration firmware through an SD card, making the process simple and efficient.
05 What driver modules are compatible with the SKR 3 EZ?
It supports both the EZ series driver modules and the TMC series driver modules.
06 Does the motherboard support printing resume and filament detection?
Yes, it supports features like resume printing, filament runout detection, completed shutdown, BLTouch, and RGB lights.
07 What type of cooling fans does the SKR 3 EZ include?
It includes three CNC fans for model cooling, pipes heat dissipation, and chassis cooling to improve printing stability.
08 Is there protection for the thermistor in the motherboard?
Yes, there is an increased protection circuit for the thermistor section to prevent damage from heated bed or heating rod leakage.
09 What firmware options are compatible with this motherboard?
It is compatible with Marlin, Klipper, and RepRap firmware, supporting extensive 3D printing features.
10 Can the motor voltage be adjusted on this motherboard?
Yes, each motor drive module's voltage can be selected through jumper caps, and it supports motor power supply up to 48V.
