AZISHN 5MP Outdoor IP Bullet Camera POE Waterproof
5MP outdoor bullet IP camera with waterproof ABS casing and built-in microphone for audio recording. Features motion detection and 24 IR LEDs for night vision up to 20m.
- Supports H.265 video compression to save bandwidth
- Compatible with Hikvision/Dahua NVRs and ONVIF protocol
- Power options: DC12V or 48V POE
High-Resolution Imaging for Clear Surveillance
Choose between 8MP, 5MP, or 4MP Ultra HD video resolution for detailed monitoring that captures fine details day and night.
Supports frame rates up to 25fps depending on resolution, delivering smooth video footage.
Robust Night Vision and Weatherproof Design
Equipped with 24 high-quality infrared LEDs providing 10 to 20 meters of clear night vision.

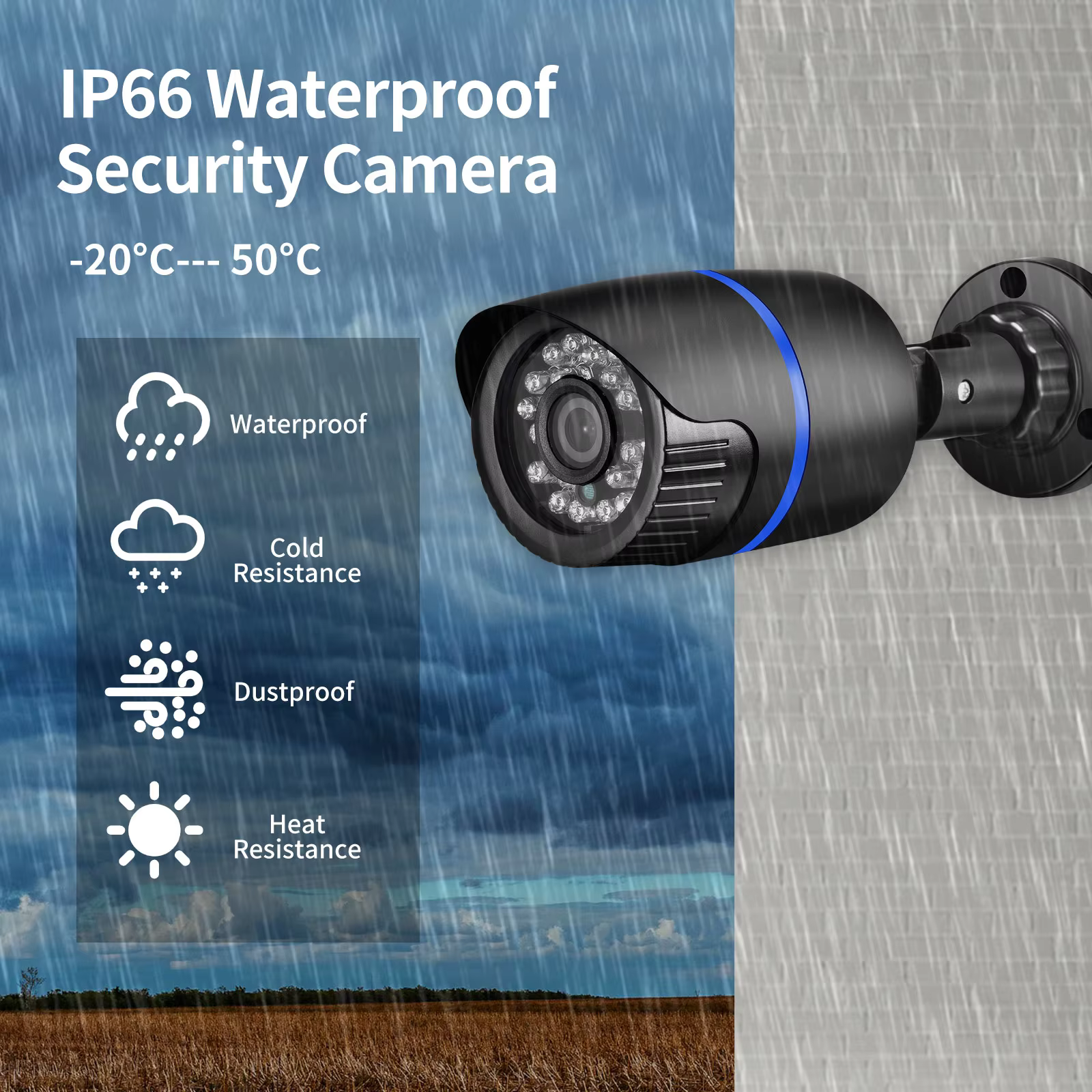

The IP66-rated ABS plastic housing protects against harsh weather, ensuring reliable outdoor performance.

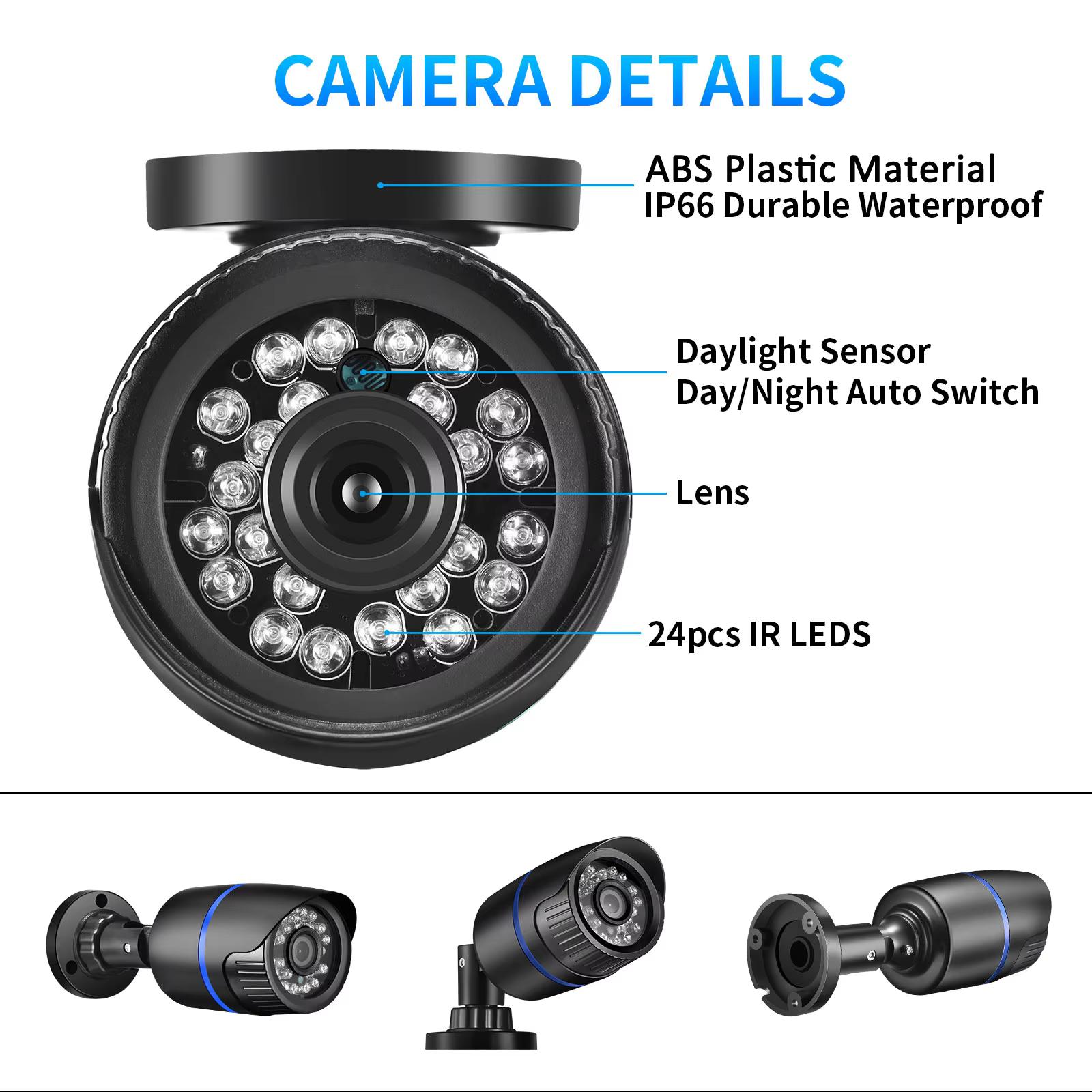

- 24 IR LEDs with auto IR-cut for real color daytime images
- Waterproof and weatherproof design suitable for outdoor ceilings or walls
Advanced Features and Compatibility
Features built-in microphone for audio recording (no two-way communication).
Supports motion detection with instant alerts via email and mobile notifications.
Compatible with popular NVR brands like Hikvision and Dahua via ONVIF protocol.
- Motion detection with email and push notifications
- Supports H.265/H.264 video compression to reduce bandwidth
- Works with third-party ONVIF-compliant NVRs and multi-device viewing
Flexible Power and Installation
Offers wiring convenience with optional Power over Ethernet (PoE) at 48V or traditional 12V DC power input.
Compact dimensions (17.8 x 5.5 cm) with standard bullet camera form factor for ceiling or wall mounts.
- POE simplifies installation using a single cable for power and data
- Compatible with standard DC12V power supplies (sold separately)
Key Specifications
- Sensor Types: SmartSens CMOS for 8MP/5MP/4MP options
- Lens Sizes Available: 2.8mm, 3.6mm, 6mm, 8mm
- Video Output: Up to 3840×2160@15fps (8MP), 2880×1616@25fps (5MP)
- Network Interface: 1 × RJ45 10/100M Ethernet port
- Power Consumption: Approx. 3W
- Operating Systems Supported: Windows 7/8/10, Windows XP/Vista, macOS
- Ingress Protection: IP66 waterproof rating
- Weight: 250g
What's in the box
- 1 x IP Camera
- 1 x User Manual
- 1 x Waterproof Cap for Cable
- 3 x Wall Plugs and Screws
Frequently asked questions
01 What resolution options does this camera support?
The camera supports 8MP, 5MP, 4MP, and 2MP resolutions depending on the model variant.
02 Does the camera support night vision?
Yes, it has 24 infrared LEDs providing night vision up to 10-20 meters.
03 Is the camera waterproof for outdoor use?
Yes, it features an IP66-rated ABS plastic waterproof housing suitable for outdoor environments.
04 What power supply options are available?
The camera can be powered via DC 12V or 48V POE (Power over Ethernet).
05 Can the camera record audio?
Yes, it has a built-in microphone and supports audio recording but does not support two-way audio.
06 Is motion detection supported?
Yes, it features motion detection with alert notifications sent via email or push messages.
07 What video compression formats does it use?
The camera supports H.265 and H.264 video compression formats to reduce file size and bandwidth.
08 Is this camera compatible with other NVR brands?
Yes, it is compatible with major brands like Hikvision and Dahua via ONVIF protocol.
09 What viewing software is supported?
The camera supports multi-viewing on Windows PCs and iOS/Android devices using the XMEye app.
10 Does the package include a power adapter?
No, the package does not include a power adapter or POE switch; these must be purchased separately.
Discussion
Everything is perfect, delivery was fine, and the quality is as expected.
The only problem is with the waterproofing of the connection. without revamping, the only way it would work is if the rj45 end would be installed after the cable was run through the 2 end caps.
The only problem is with the waterproofing of the connection. without revamping, the only way it would work is if the rj45 end would be installed after the cable was run through the 2 end caps.
Don’t work! ;’(
