There are no damaged areas at all.
I am very happy to have purchased a 4-inch midrange speaker at an affordable price.
Now, it seems we just need to create a chamber that is suitable for this product.
Sale

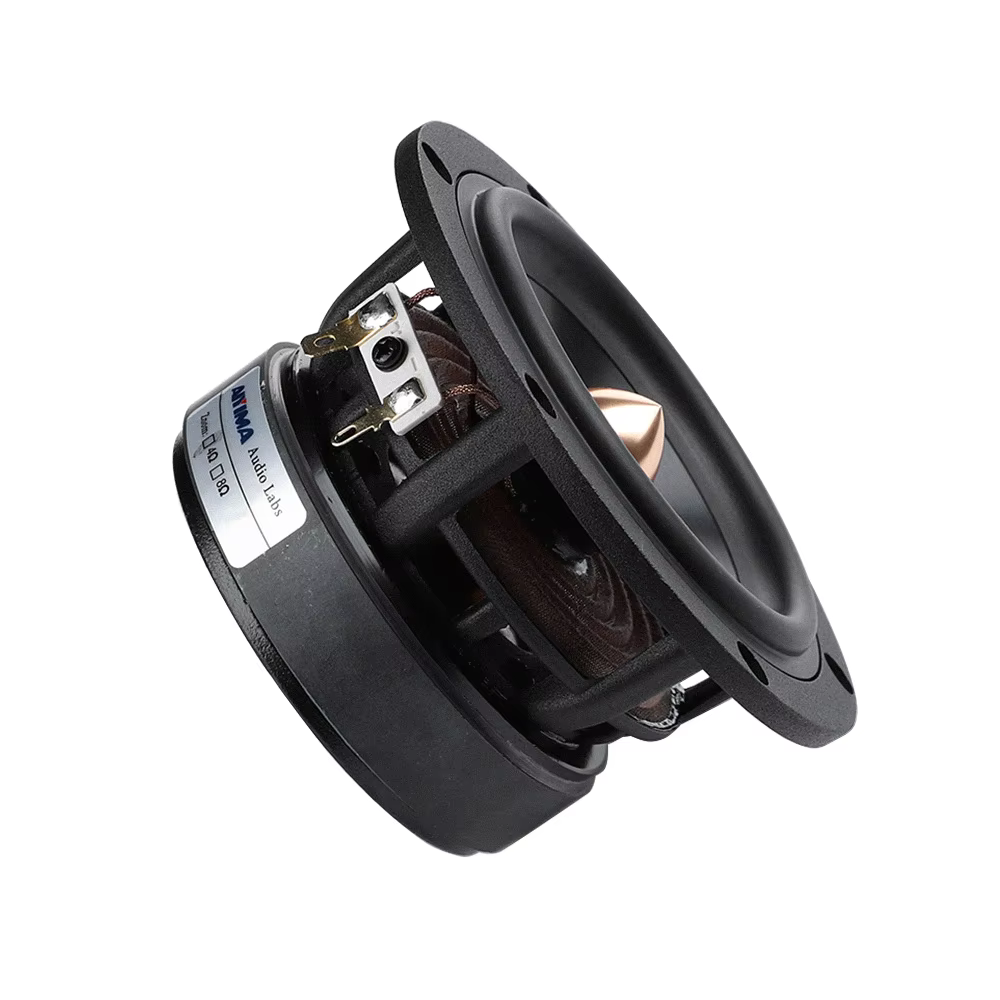

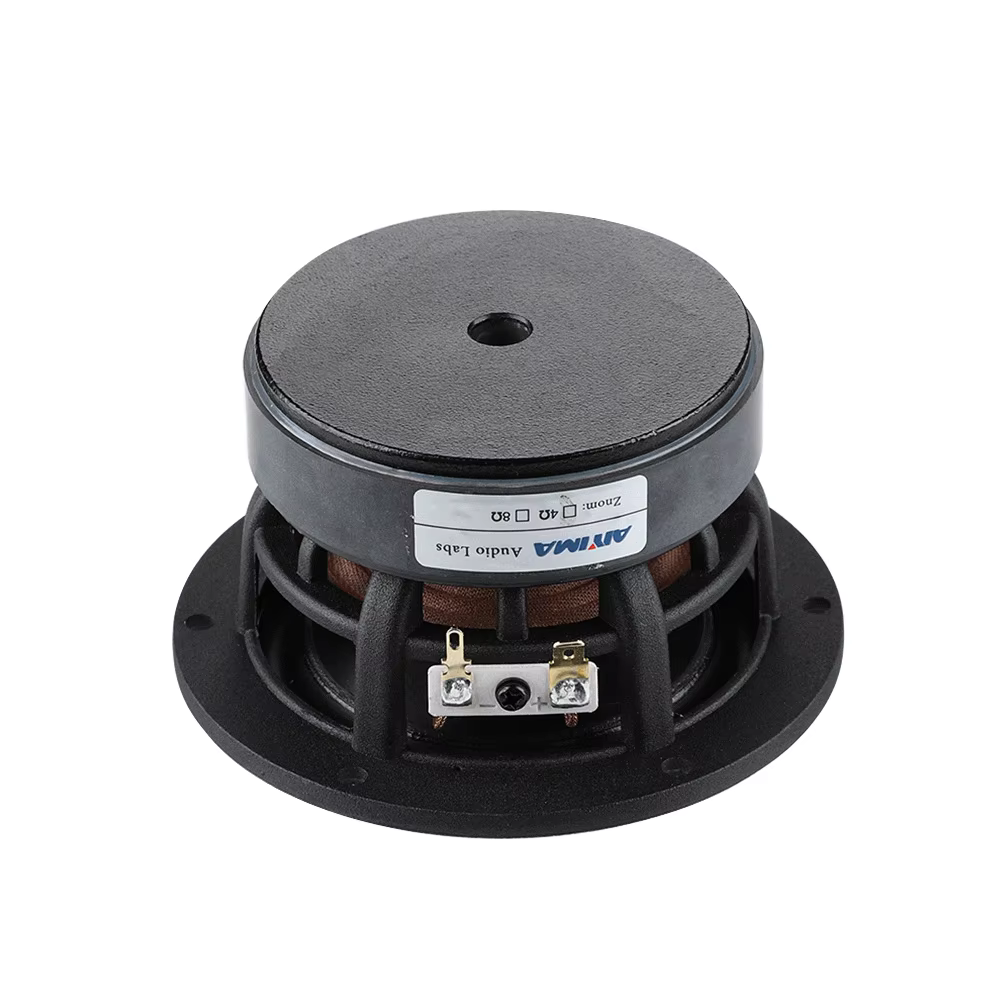

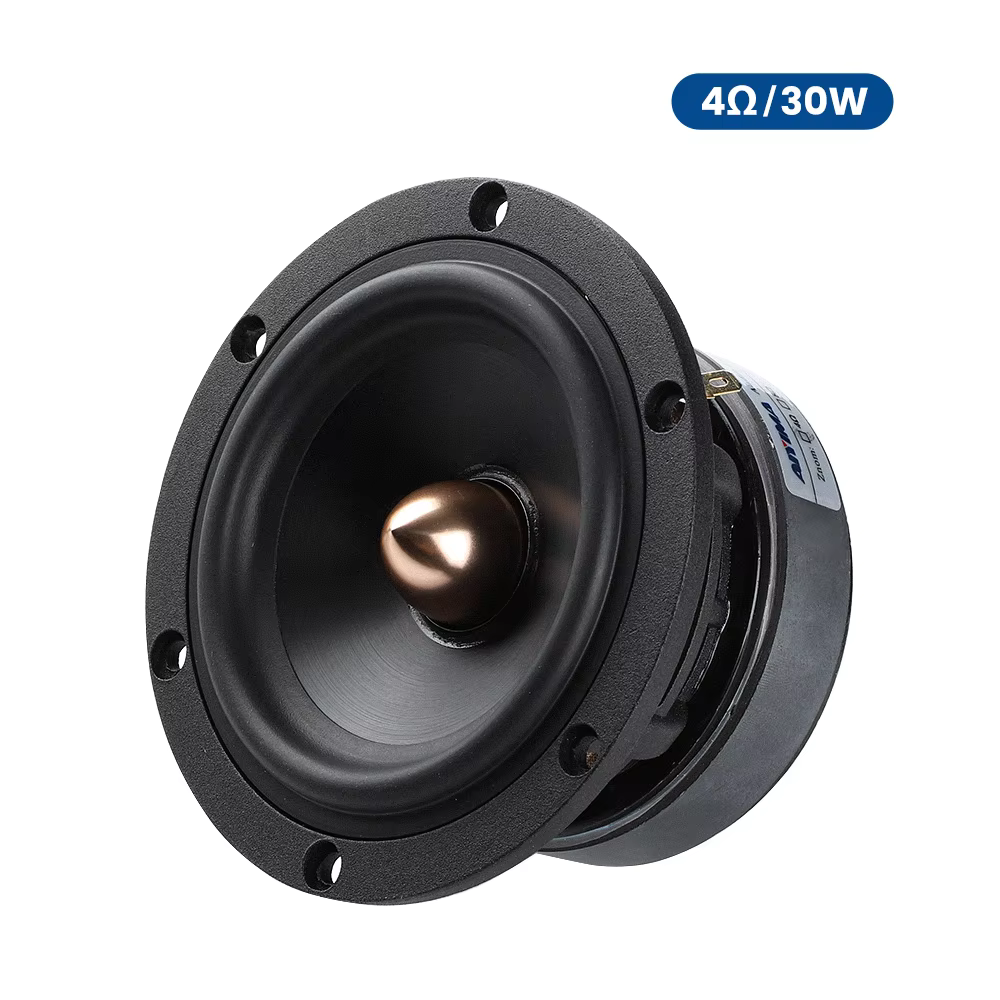

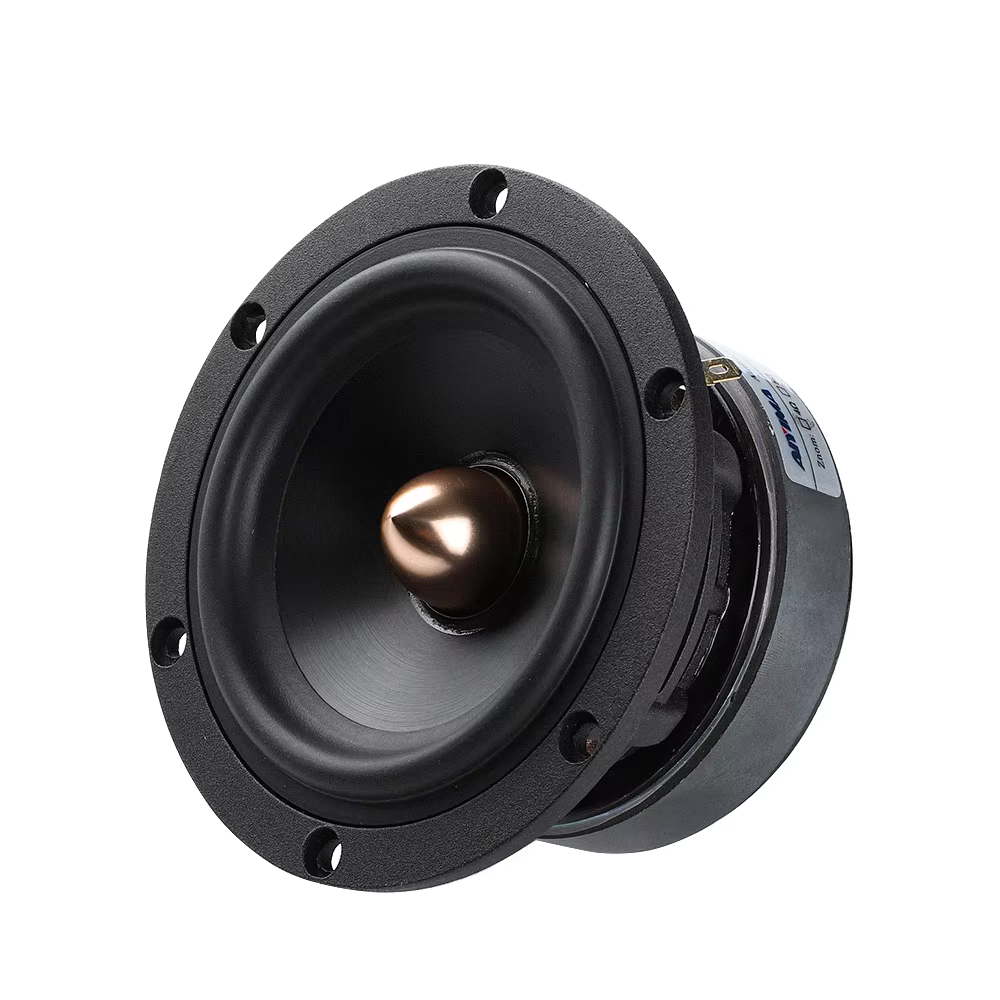

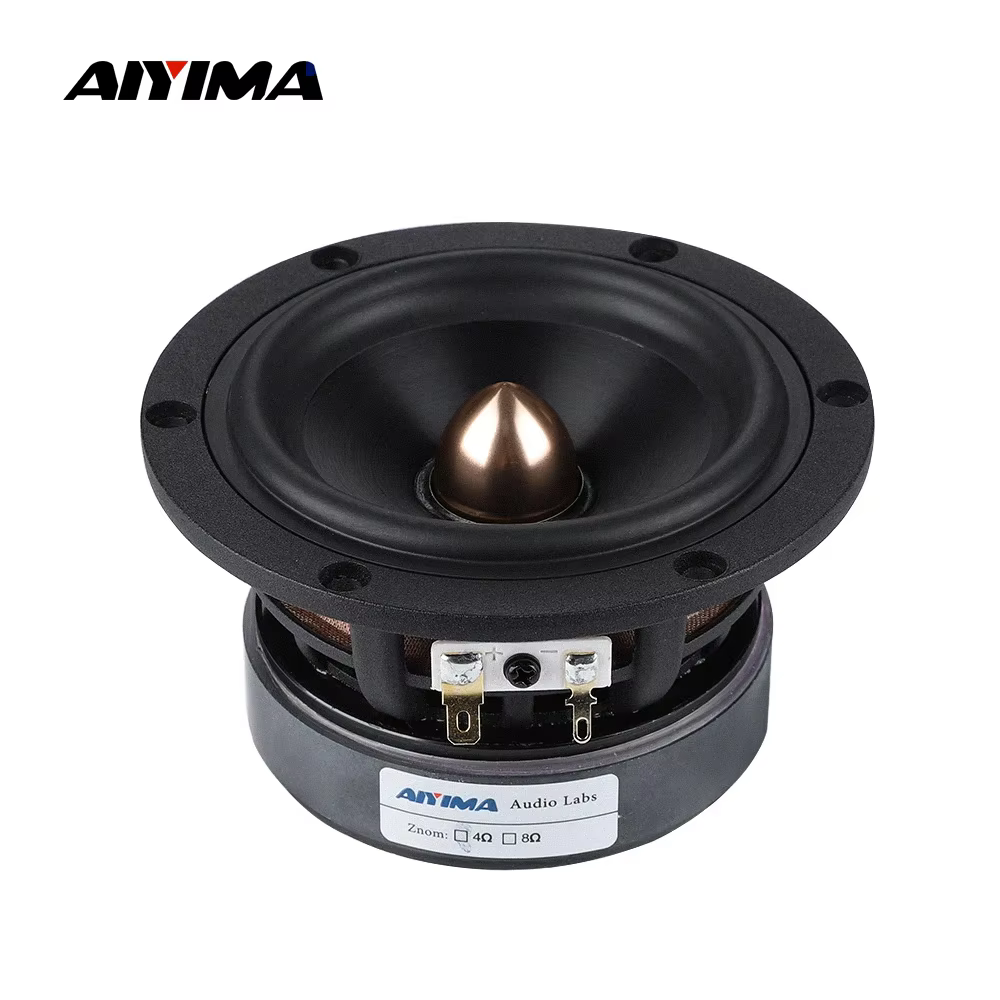

Aiyima 4 Inch Midrange Woofer Speaker 50W 4/8 Ohm
Original price was: $69.69.$51.57Current price is: $51.57.
Pay now, in 4 interest-free payments of $12.89, or over 3β6 months
4 interest-free payments of $12.89
High-performance 4 inch midrange woofer speaker by Aiyima featuring aluminum cone and 50W power handling. Available in 4 Ohm or 8 Ohm impedance.
β
Estimated Delivery Time3β7 business days
Focused Midrange Performance
This 4 inch midrange woofer from Aiyima delivers clear and accurate sound within the critical midrange frequency band from 75Hz to 8000Hz. Its aluminum cone construction ensures reliable performance and improved sound dispersion.
With a power handling capacity up to 50W and impedance choices of 4 Ohm or 8 Ohm, it adapts easily to various audio configurations for home or portable speaker setups.
Durable Components and Design
Designed for longevity and sound fidelity, the speaker uses a 25 core high-temperature ASV voice coil and a strong 90 magnetic magnet structure for dynamic audio response.
The metal frame offers sturdy durability for mounting and integration into different cabinet types or speaker enclosures.
Precise Fit and Easy Installation

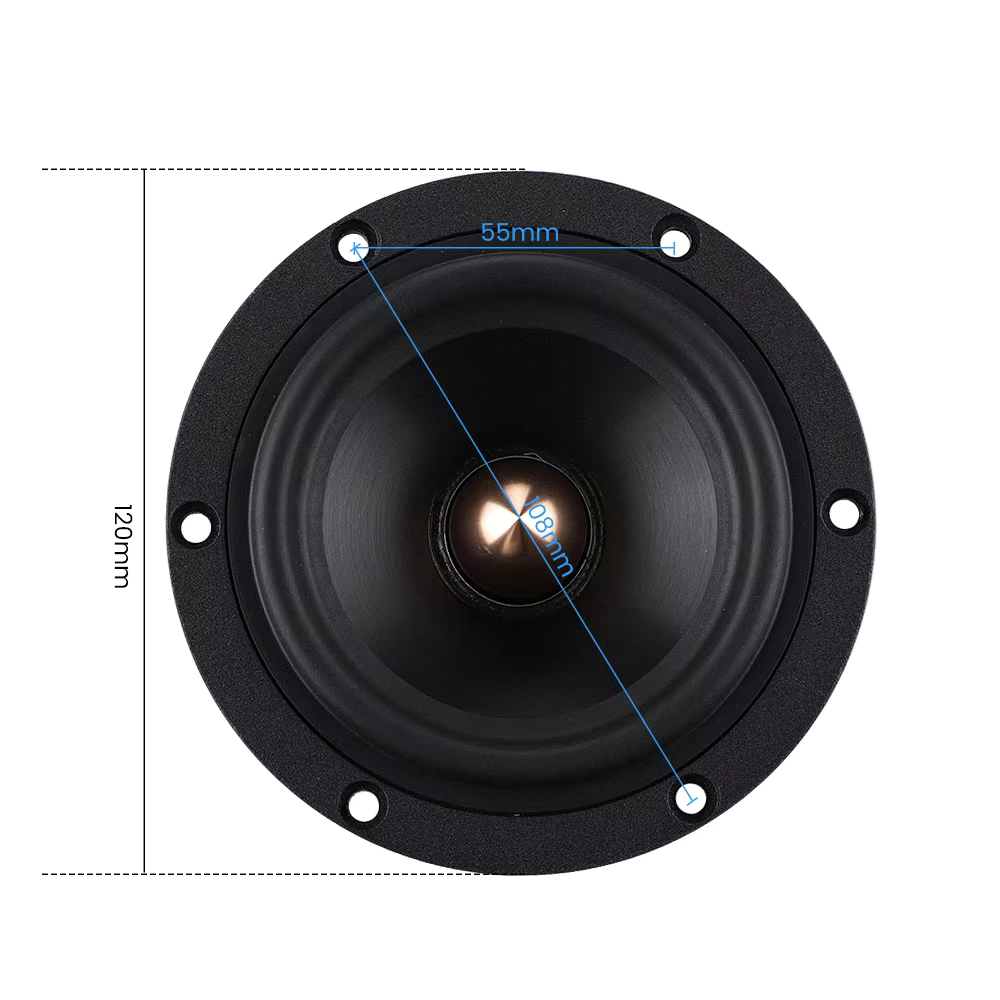

This woofer features an opening diameter of 120mm and a mounting through hole size ranging from 97 to 100mm, with a counterbore depth of 5mm, fitting standard speaker mounts.

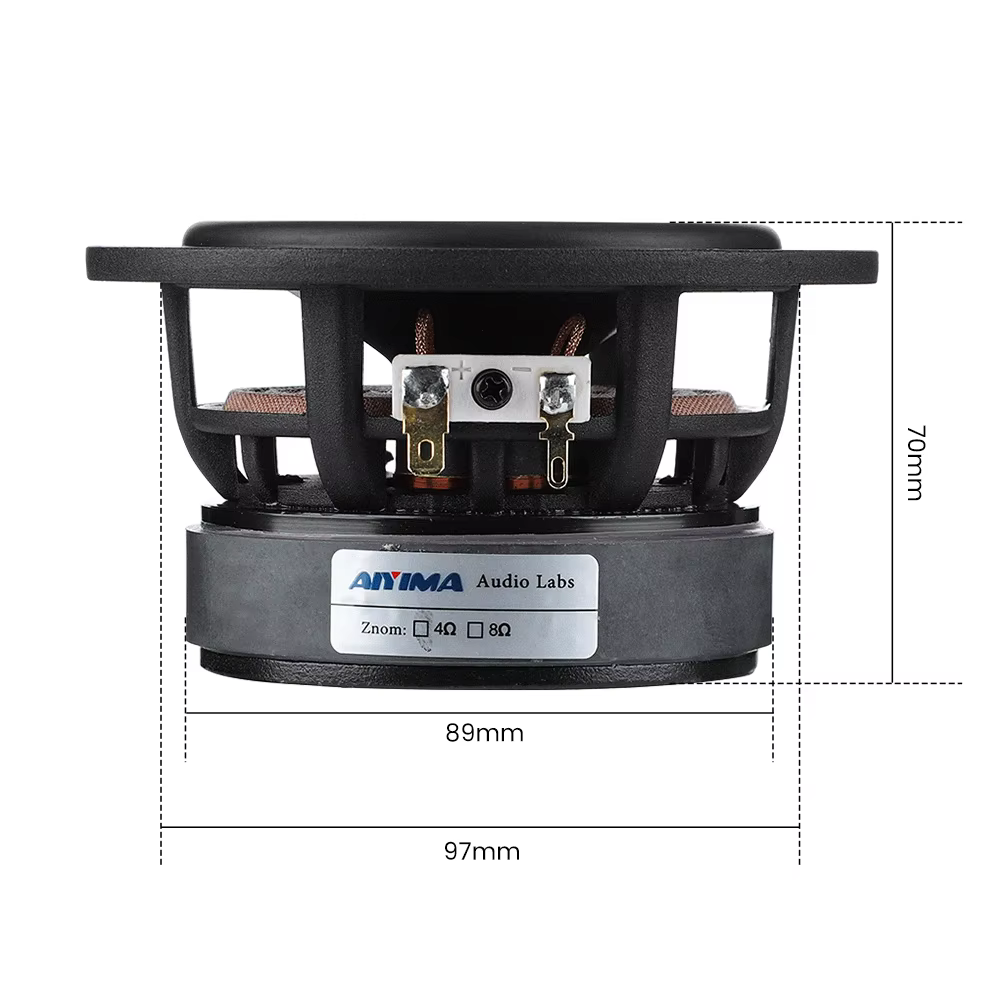

Its 70mm height allows compact integration into a variety of speaker designs without compromising performance.
Certified Quality and Compliance
The speaker holds CE and RoHS certifications, ensuring compliance with European safety, health, and environmental standards.
These certifications reflect the product's quality manufacturing process and reduced environmental impact.
Key specifications
- Power Handling: 30-50W
- Impedance: 4 Ohm or 8 Ohm Β± 15%
- Sensitivity: 89dB Β± 3dB
- Frequency Response: 75Hz β 8000Hz
- Cone Material: Aluminum
- Voice Coil: 25 core high-temperature ASV
- Magnet Material: 90 Magnetic
- Mounting Hole Diameter: 97-100mm
- Opening Diameter: 120mm
- Counterbore Depth: 5mm
- Speaker Height: 70mm
- Certifications: CE, RoHS
What's in the box
- 1 x Aiyima 4 inch midrange woofer speaker
Product FAQ
Frequently asked questions
01 What is the power rating of this Aiyima midrange woofer speaker?
The Aiyima 4 inch midrange woofer speaker supports power between 30W and 50W.
02 What impedance options are available for this speaker?
This speaker is available in both 4 Ohm and 8 Ohm impedance variants.
03 What material is the speaker cone made of?
The speaker cone is constructed from aluminum for durability and sound clarity.
04 What is the frequency response range of this woofer?
The frequency response range is 75Hz to 8000Hz, suitable for midrange audio frequencies.
05 What type of voice coil does this woofer use?
It features a 25 core high-temperature ASV voice coil to handle heat efficiently during operation.
06 What are the speaker's physical dimensions?
The speaker has an opening of 120mm, a mounting through hole of 97-100mm, a counterbore depth of 5mm, and a height of 70mm.
07 Does the speaker include a built-in cabinet or enclosure?
No, the speaker is a standalone component made with a metal frame; an external cabinet is required.
08 Is this speaker suitable for portable audio systems?
Yes, it is classified as a portable speaker, compatible with two-way audio crossover systems.
09 Does the package include any adapters or cables?
No, the package includes only one 4 inch midrange woofer speaker without adapters or cables.
10 Is this speaker certified for quality or environmental standards?
Yes, it carries CE and RoHS certifications.
Discussion
4.8
Based on 5 reviews
The same product is sold as a single piece rather than a set, causing me to write a review twice.
It's a great fit for car or home use bookshelf speakers.
I recommend it.
I liked the speakers, but their specifications on the website were not accurate. The resonance frequency is 102-108 Hz, the quality factor is higher at 0.67, and the volume, accordingly, is lower at 1.8 liters, with an inductance of 0.4 mH. The program does not accept files from Ali, sorry.
That's why one star is deducted. Yes, for a 4-phase inverter, the minimum frequency is 60 Hz, I think that's not bad.
The speakers are super! They arrived in NSK in 35 days.
They work. Haven't done the acoustics yet. Packaging is trash but the product is intact.
