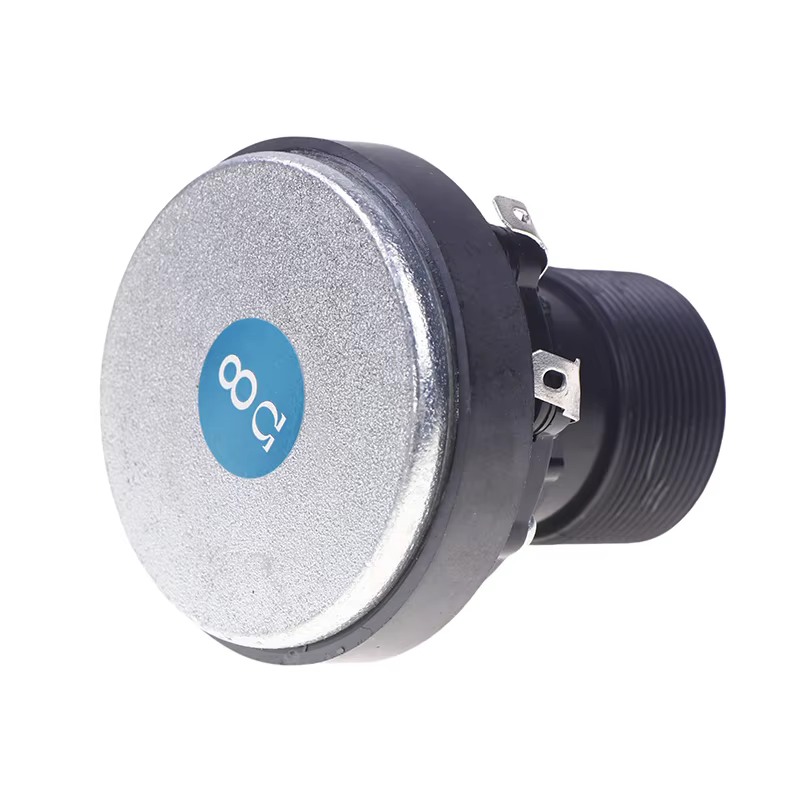

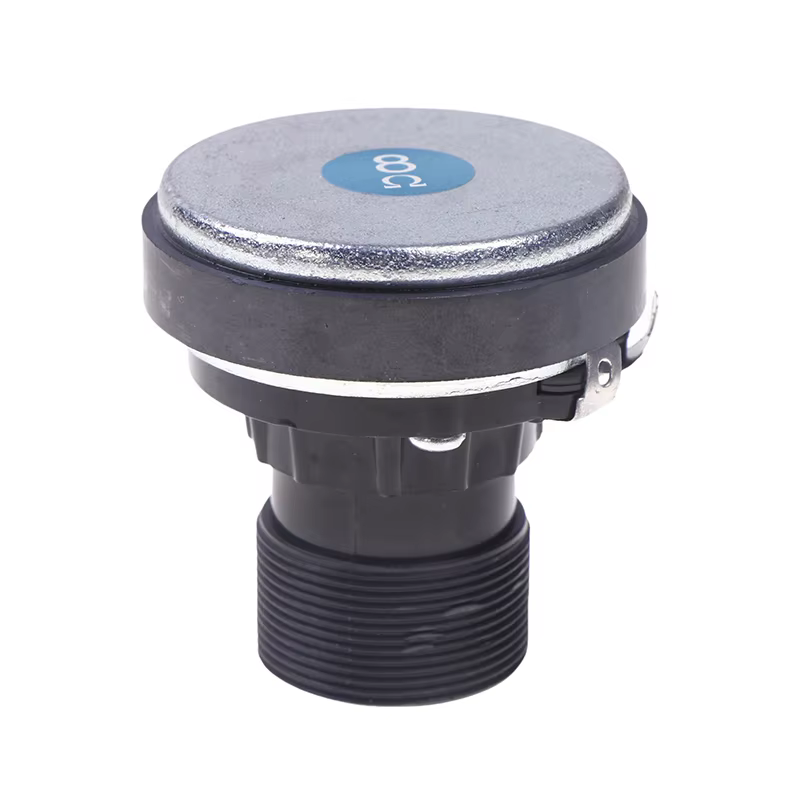

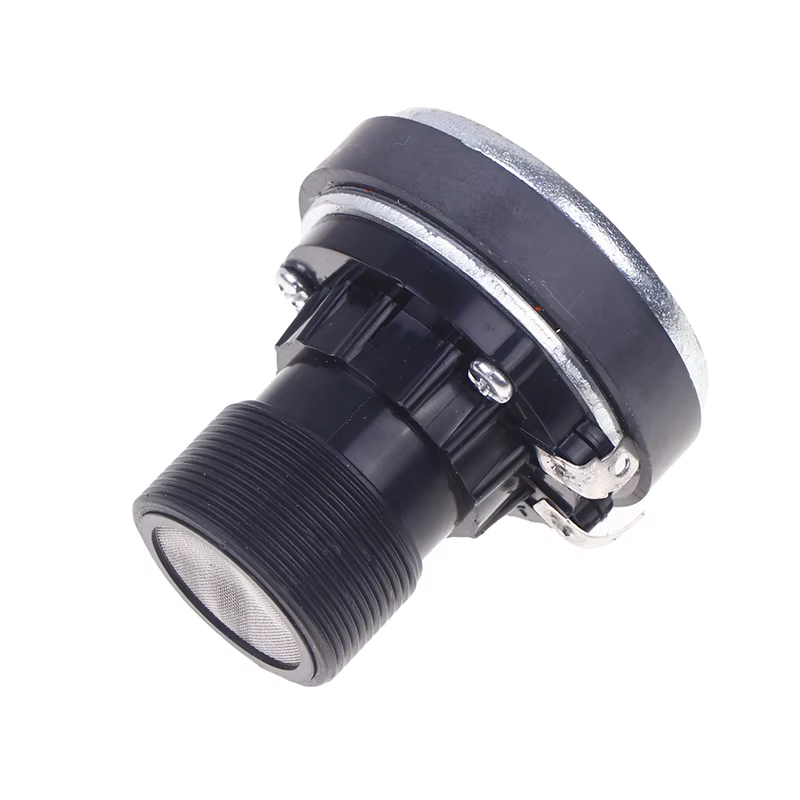

8Ohm 40W Titanium Film Tweeter Speaker Driver for DIY
Original price was: $17.01.$15.37Current price is: $15.37.
Pay now, in 4 interest-free payments of $3.84, or over 3β6 months
4 interest-free payments of $3.84
High-quality 8Ohm, 40W titanium film tweeter driver designed for DIY audio enthusiasts. Features 109dB sensitivity and 1-inch throat diameter for crisp, clear highs.
999 in stock
β
Estimated Delivery Time3β7 business days
Precise High-Frequency Audio
This titanium film tweeter driver delivers clear and detailed high-frequency sound, ideal for enhancing your DIY audio projects. The titanium diaphragm ensures accurate sound reproduction with minimal distortion.
Its 109 dB sensitivity allows efficient sound output, making the most of your amplifier's power.
Durable Build and Mounting Versatility
Constructed from high-quality plastic and metal components, this tweeter is both durable and reliable for long-term use.
The threaded screw or bolt mounting design fits a 1 3/8 inch opening, simplifying installation in custom speaker enclosures.
- Material: Plastic and metal
- Mounting type: Threaded screw or bolt on 1 3/8 inch
- Color: Black
Technical Performance Highlights
Designed with a strontium ferrite magnet and round aluminum wire voice coil, this tweeter balances power handling with sound clarity.
A wide frequency range of 1.2KHz to 20KHz covers essential high frequencies for dynamic music playback.
Compact Size for Flexible Installation

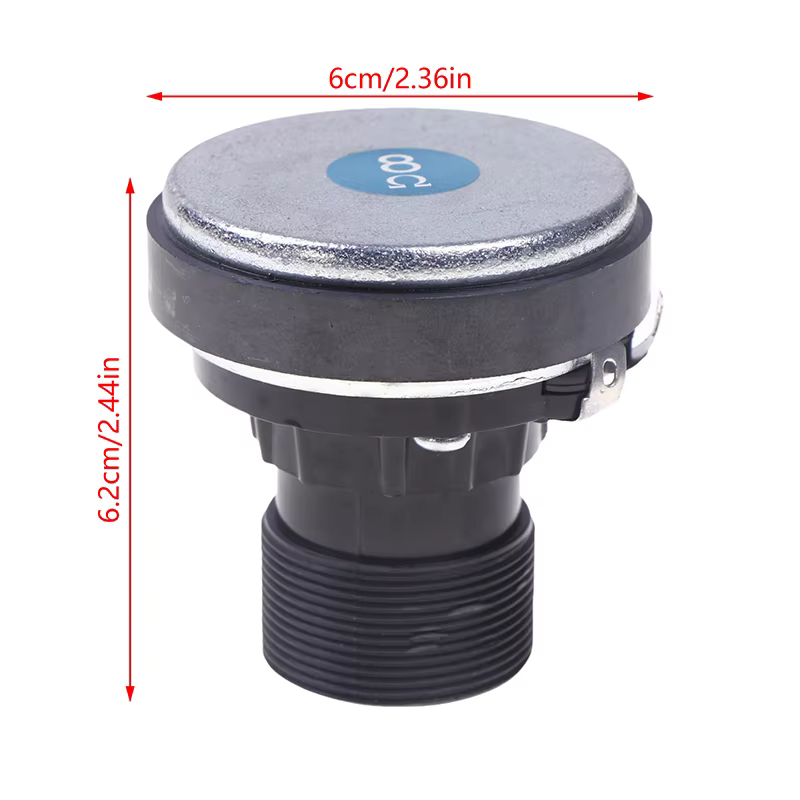

Measuring just 6 cm by 6.2 cm, it fits neatly into various speaker enclosures without adding bulk.
Lightweight and compact design makes it suitable for bookshelf and home audio setups.
Key Specifications
- Nominal impedance: 8 Ohms
- Power capacity: 20W RMS, 40W max
- Sensitivity: 109 dB (1W/1m)
- Frequency range: 1.2KHz β 20KHz
- Diaphragm: Titanium
- Voice coil diameter: 1 inch (25.4 mm)
- Magnet type: Strontium ferrite
What's in the box
- 1 x 8Ohm 40W Titanium Film Tweeter Speaker Driver
Product FAQ
Frequently asked questions
01 What is the nominal impedance of this tweeter?
The tweeter has a nominal impedance of 8 Ohms.
02 What power capacity does this tweeter support?
It supports a power capacity of 20 watts RMS and 40 watts RMS maximum.
03 What is the frequency range of this tweeter?
The frequency response ranges from 1.2KHz to 20KHz.
04 What material is the tweeter diaphragm made from?
The diaphragm is made of titanium, allowing crisp high-frequency sound.
05 What is the diameter of the throat opening?
The throat diameter is 1 inch (25 mm).
06 How can this tweeter be mounted?
It mounts via a threaded screw or bolt on a 1 3/8 inch opening.
07 What type of magnet does the tweeter use?
It uses a strontium ferrite magnet for magnetic flux.
08 What material is used for the voice coil?
The voice coil is made of round aluminum wire with a diameter of 1 inch (25.4 mm).
09 What are the overall dimensions of the tweeter?
The unit measures approximately 6 cm by 6.2 cm (2.36 by 2.44 inches).
10 Is the tweeter waterproof or designed for outdoor use?
No, this tweeter is not waterproof and is designed for indoor, home audio use.
