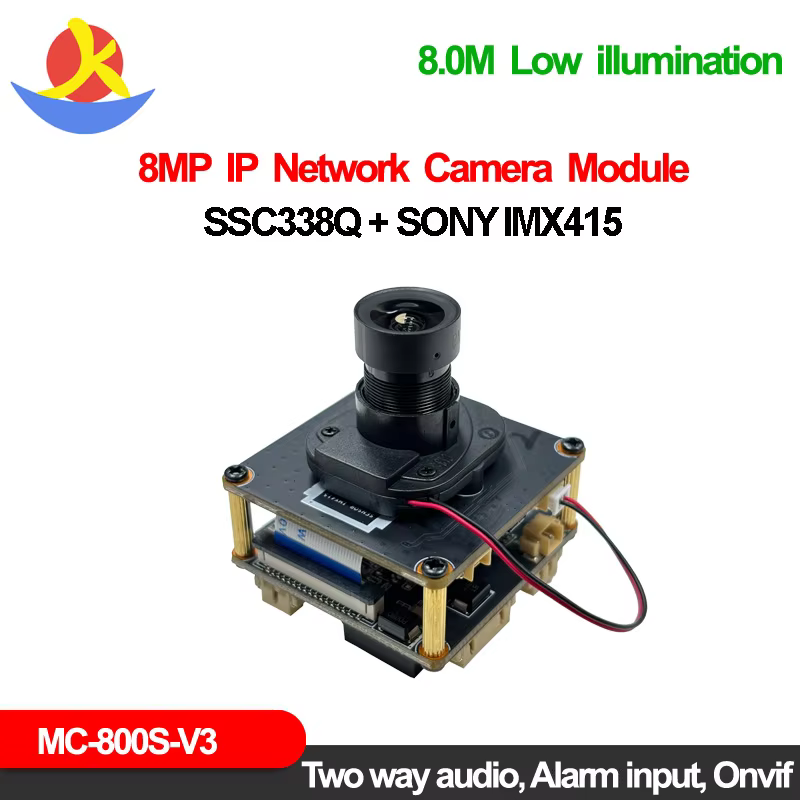

8MP Sony IMX415 IP Camera Module with AI Detection
Price range: $87.44 through $98.55
Pay now, in 4 interest-free payments of $21.86, or over 3–6 months
4 interest-free payments of $21.86
8MP Sony IMX415 IP camera module featuring AI human detection and night vision. Supports 4K HD resolution with H.265/H.264 compression. Multiple lens and cable options available.
↗
Estimated Delivery Time3–7 business days
Advanced Image Sensor and Resolution
Equipped with a 1/2.8” Sony IMX415 CMOS sensor, this camera module delivers ultra low-illumination progressive scan capabilities and crisp 8MP 4K HD resolution for detailed surveillance images.
The sensor ensures high sensitivity at 0.0001 Lux @ F1.2, enabling reliable night vision performance in low light environments.
Versatile Lens Options
Choose from multiple fixed lens options including fisheye 1.7mm and standard options at 2.8mm, 3.6mm, 6mm, or 8mm, all featuring an F1.6 aperture for optimal light gathering.
- Fisheye 1.7mm for wide-angle coverage
- Standard 2.8mm, 3.6mm, 6mm, 8mm lenses for various focal lengths
Robust Connectivity and Compatibility
Supports IP/network wired connections with the ONVIF 2.6 protocol allowing straightforward integration with other security systems.
Includes embedded web server accessible via Internet Explorer and supports Videolink app on Android and iOS for remote monitoring.
- ONVIF 2.6 compliant
- Supports videolink app on Android & iOS
- Embedded web server for configuration and upgrade
Efficient Video Encoding and Streams
Delivers two simultaneous video streams using H.264 and H.265 main profile encoding for bandwidth-efficient, high-quality footage.
Perfect for reducing storage and network load while maintaining clear video.
- Dual stream support
- H.264 and H.265 encoding
AI-Powered Smart Detection
Features AI human detection and area detection for intelligent security alerts, minimizing false alarms and focusing on relevant activity.
- AI-based human detection
- Customizable area detection
Flexible Power and Installation Options
Available with different package combinations including only the module, with IR-cut and lens, or with 12V or 48V POE cables.
Compact 38x38mm size makes it easy to install in diverse environments.
- 12V cable or 48V POE cable options
- Compact mini camera style
- Multiple package configurations
Comprehensive Software Support
Compatible with Videolink PC client software and mobile apps for easy management and live viewing.
Standard SDK available for Linux and Windows for custom digital system integration.
- Videolink PC client software for Windows
- SDK support for Linux and Windows
Key Specifications
- Image Sensor: 1/2.8” Sony IMX415 CMOS
- Resolution: 8MP (4K HD)
- Lens options: 1.7mm, 2.8mm, 3.6mm, 6mm, 8mm
- Power supply: 12V or 48V POE
- Video compression: H.264/H.265
- Connectivity: IP/Network Wired
- Operating Systems: Windows 7/8/10, macOS, Android, iOS
- Dimensions: 38 x 38 mm
- Minimum Illumination: 0.0001 Lux @ F1.2
What's in the box
- Camera Module
- Optional IR-CUT Filter
- Choice of Lens (Optional)
- 12V or 48V POE Cable (if selected)
Product FAQ
Frequently asked questions
01 What image sensor is used in this camera module?
This camera module uses a 1/2.8” Sony IMX415 CMOS image sensor for ultra low-illumination performance.
02 Does the camera support high-definition video?
Yes, it supports 8MP 4K HD resolution video output for clear and detailed images.
03 What video compression formats does it support?
It supports H.264 and H.265 main profile encoding for efficient video streaming with two simultaneous video streams.
04 Is AI human detection supported?
Yes, the camera supports AI-based human detection and area detection features for enhanced security.
05 Which lenses are available with this module?
Optional lenses include fisheye 1.7mm, 2.8mm, 3.6mm, 6mm, and 8mm with F1.6 aperture YTOT CCTV lens.
06 What connectivity does the camera use?
It uses IP/network wired connectivity and supports ONVIF 2.6 for easy integration with other network devices.
07 Can this camera be monitored remotely?
Yes, it supports an embedded web server compatible with Internet Explorer and the Videolink app on Android and iOS devices via P2P.
08 What are the power supply options for this camera?
The camera operates on a 12V power supply with options that include 12V cable or 48V POE cable configurations.
09 Is the camera compatible with different operating systems?
It supports Windows 7, 8, 10, macOS, and mobile systems Android and iOS for client software and app use.
10 What is the default IP and login credentials?
Default IP address is 192.168.1.10 with username 'admin' and password '123456' (case sensitive).
Discussion
5.0
Based on 5 reviews
Openipc 4k 30fps image quality is very good
It works
With the primary stream there is quite a large delay, but with the secondary it's tolerable. The camera's sensitivity is very good in poor lighting conditions.
The camera works, but in my opinion it slows down a bit and heats up quite significantly.
