Top product, works perfectly in an old computer, as a replacement for a drive
5V SD Card to IDE3.5 40 Pin Adapter Board Riser for 128GB SDXD
$12.79
Pay now, in 4 interest-free payments of $3.20, or over 3β6 months
4 interest-free payments of $3.20
Turn your SD card into an IDE hard drive with this 5V adapter board. Supports up to 128GB SDXD cards and standard ATA IDE interface.
- Supports PIO, Multi-word DMA, Ultra DMA modes
- No driver needed, boots OS from SD card
- Standard 3.5' IDE interface and large 4-pin power connector
7 in stock
β
Estimated Delivery Time3β7 business days
Compact IDE Adapter for SD Cards
This adapter board converts an SD card into a standard ATA IDE 3.5-inch disk drive. It transforms your SD card into a silent, shock-resistant, and durable storage device compatible with IDE interfaces.
Designed to expand compatibility, it allows easy integration of SD cards with legacy ATA IDE systems without requiring drivers or complex setup.
Robust Compatibility and Performance
The adapter supports SDXD cards up to 128GB and interfaces via a standard 40-pin IDE connector using an 80-pin cable. It works with popular data transfer protocols including PIO, Multi-word DMA, and Ultra DMA mode 3, ensuring efficient read/write speeds comparable to traditional hard drives.
- Supports PIO, Multi-word DMA, Ultra DMA (U-DMA Mode 3) transfers
- Compatible with up to 128GB SDXD cards
- Utilizes a standard IDE 3.5-inch interface
- No driver installation needed
Simple Power and Connection Setup
Powered through a large 4-pin hard disk power connector, the board requires only 5 volts and under 200mA current for stable operation. Plugging in the SD card and connecting to the IDE cable effectively makes your SD card behave like a conventional hard disk drive.
- Operates at 5V Β± 0.25V
- Uses standard 4-pin power connector
- Power supplied by typical hard disk power cable
Bootable SD Storage Option
This adapter enables booting operating systems like Windows 98 directly from the SD card, providing a versatile and silent alternative storage solution for legacy PC setups.
Its high data transfer rate makes it suitable for system boot and data storage with performance similar to an ATA/133 hard drive.
Physical and Design Details

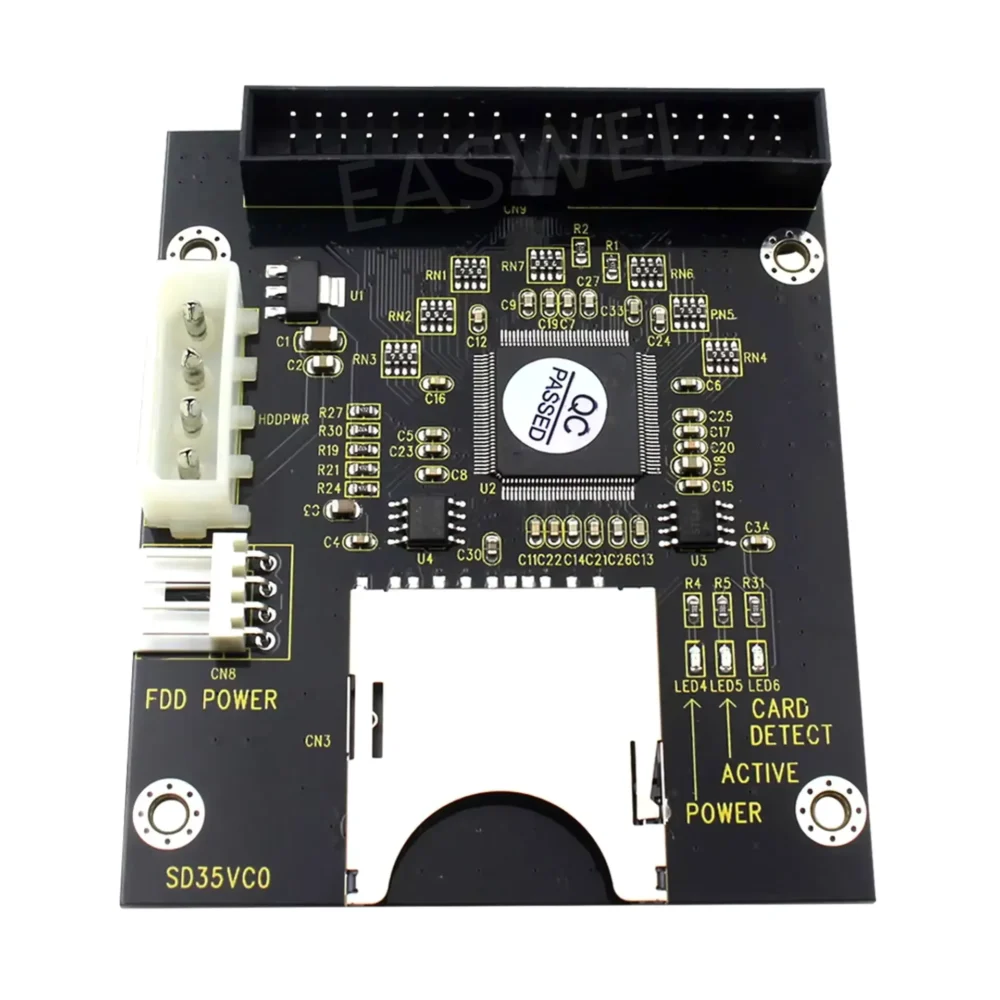

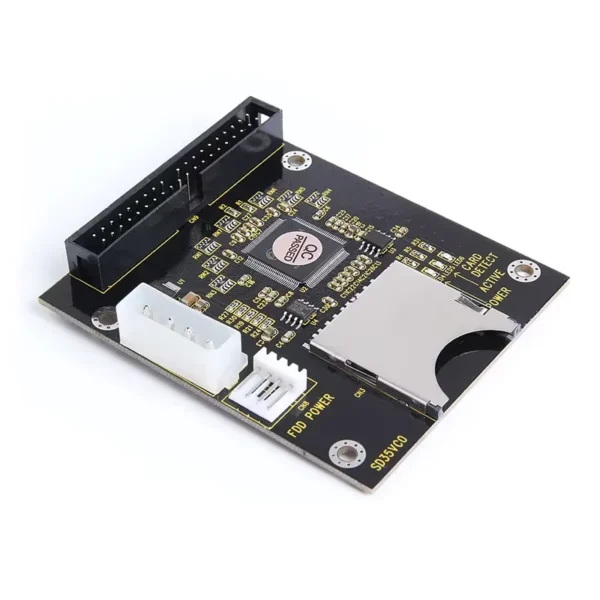

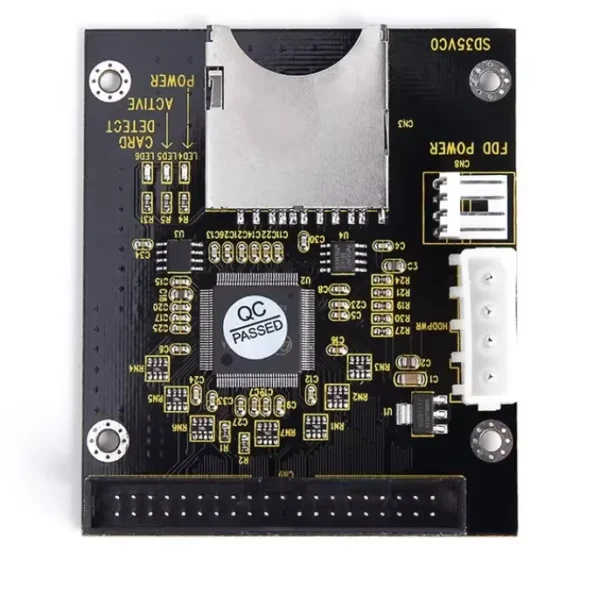

The conversion board measures 80Γ68 mm and features a black circuit board with the latest 1309 integrated chip for reliable performance.
Its compact size fits standard 3.5-inch drive bays using conventional IDE connections.
- Dimensions: 80 mm x 68 mm
- Black PCB color
- Equipped with chip model 1309
Key specifications
- Supported Card Type: SD, SDHC, SDXC up to 128GB SDXD
- Interface: Standard IDE 3.5-inch 40 Pin
- Power Supply: 5V via 4-pin hard disk connector
- Data Transfer Modes: PIO, Multi-word DMA, Ultra DMA Mode 3
- Operating Current: Less than 200mA
- Dimensions: 80mm x 68mm
What's in the box
- 1 x SD-IDE Conversion Interface Board (SD Card not included)
Product FAQ
Frequently asked questions
01 What SD card capacities does this adapter support?
It supports SDXD cards up to 128GB in capacity.
02 What interface does this adapter use to connect to a computer?
It connects via a standard IDE 3.5-inch 40 pin interface.
03 Does the adapter require additional drivers to function?
No drivers are required; it works as a standard IDE storage device once connected.
04 What power input is needed for this adapter?
The adapter requires a 5V power supply with an operating current under 200mA, typically powered via a standard hard drive power connector.
05 Which data transfer modes are supported?
It supports PIO, Multi-word DMA, and Ultra DMA Host data transfer modes.
06 Can I boot an operating system from an SD card using this adapter?
Yes, after installing the OS on the SD card, you can boot systems like Windows 98 via the SD card using this adapter.
07 What are the physical dimensions of the adapter board?
The board measures approximately 80mm in length by 68mm in width.
08 What type of IDE cable should be used with this adapter?
An 80-pin hard drive cable is recommended for connecting the IDE socket.
09 What color is the adapter board?
The adapter board is black.
10 Is the SD card included with this adapter?
No, the package includes only the SD-IDE conversion interface board; the SD card is not included.
Discussion
4.8
Based on 47 reviews
Sellers on aliexpress sell this device on a new obsolete firmware (1.55) that only works as a lba28 device (137gb), when a newer lba48 firmware (3.72) exists, i thus have to manually program the new firmware for this to be usable.
It worked perfectly for connecting a micro SD card to a motherboard with an IDE interface.
Not yet put to use, however device seem well designed
A quick note; the chipset has some caveats!
Main limitations capacity cap: limited by lba28 addressing, meaning storage is generally capped at 128gb (or ~137gb) even if you insert a larger sd card.
Speed limits: performance is restricted to ata33 speeds, maxing out around 25 mb/s read speeds.
Formatting rules: requires the first partition on the sd card to be formatted as fat32 or ntfs, or retro systems may read the drive as blank.
Very good!
