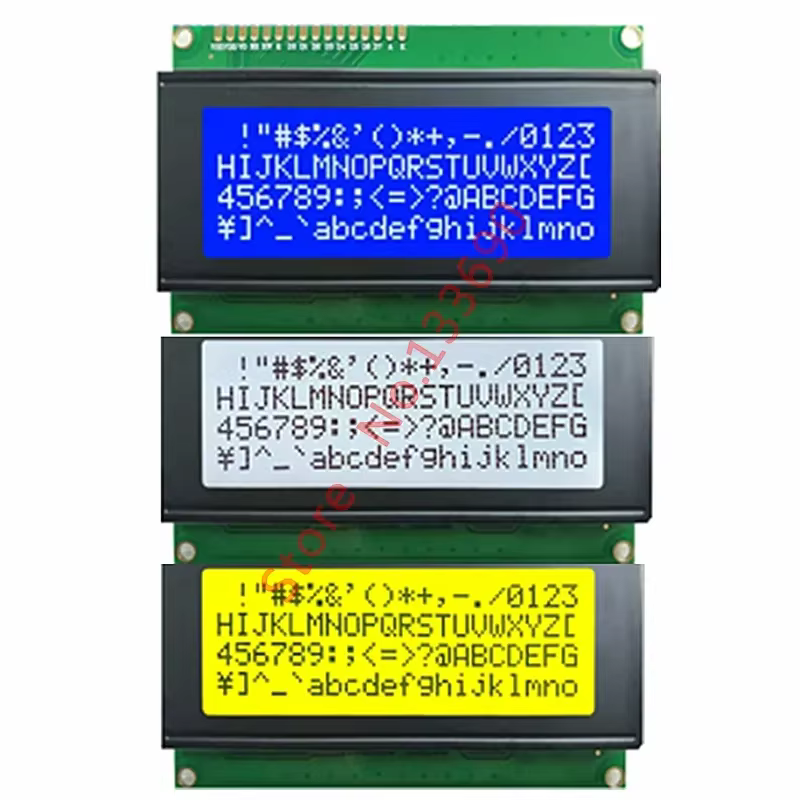

5V 20×4 LCD Display Module Blue Yellow Screen
Price range: $6.68 through $7.33
Pay now, in 4 interest-free payments of $1.67, or over 3–6 months
4 interest-free payments of $1.67
5V LCD display module featuring a 20x4 character resolution with selectable blue or yellow screen options. Powered by KS0066 or compatible controller ICs and ideal for 3D printer displays or embedded systems.
↗
Estimated Delivery Time3–7 business days
Clear 20×4 Character Display
This 5V LCD module offers a clear 20 characters by 4 lines display suitable for detailed text output.
Ideal for integration in 3D printers and various embedded devices requiring readable data display.
Color Options with Quality Control
Available in blue or yellow screen colors, allowing you to select based on your project needs and visibility preferences.
- Blue and yellow display screen options
- KS0066 or SPLC780 compatible controller ICs
Compact and Functional Design
With overall dimensions of 98x60x14 mm, this display module fits nicely into compact setups.
The 76×26 mm viewing area ensures ample space for information display without excess bulk.
- Module size: 98.0mm x 60.0mm x 14.0mm
- View area: 76.0mm x 26.0mm
Reliable Electrical Specifications
Operates on a standard 5V power supply, making it compatible with most microcontrollers and embedded systems.
Employs a reliable character type LCD display for easy integration.
- Operating voltage: 5V
- Character display mode: 2004-A
Key Specifications
Resolution: 20 characters x 4 lines
Controller IC: KS0066 or SPLC780 compatible
Dot pitch: 0.6mm x 0.6mm
Product FAQ
Frequently asked questions
01 What is the resolution of the LCD module?
The LCD module displays 20 characters per line and has 4 lines, providing a 20x4 character resolution.
02 What colors are available for the screen?
The LCD module comes with either a blue or yellow screen option.
03 What is the operating voltage for this LCD?
This LCD module operates at 5 volts.
04 Which controller IC does the display use?
It uses a KS0066 or SPLC780 compatible controller IC.
05 Is the I2C adapter included with the LCD module?
No, the I2C adapter is not included with this LCD module.
06 What are the physical dimensions of the module?
The module measures approximately 98.0mm width x 60.0mm height x 14.0mm depth.
07 What is the viewable area size of the screen?
The viewable area measures 76.0mm width by 26.0mm height.
08 What type of display mode does this LCD use?
It uses a 2004-A character display mode.
09 Is this product free from harmful chemicals?
Yes, it contains no high-concerned chemicals.
10 Where is this LCD module manufactured?
This LCD module is manufactured in Mainland China.
Discussion
5.0
Based on 14 reviews
Ok
The module is working, I highly recommend buying it.
Ok.
It works well. The backlight setting needs to be adjusted since it doesn't match that of another similar screen.
