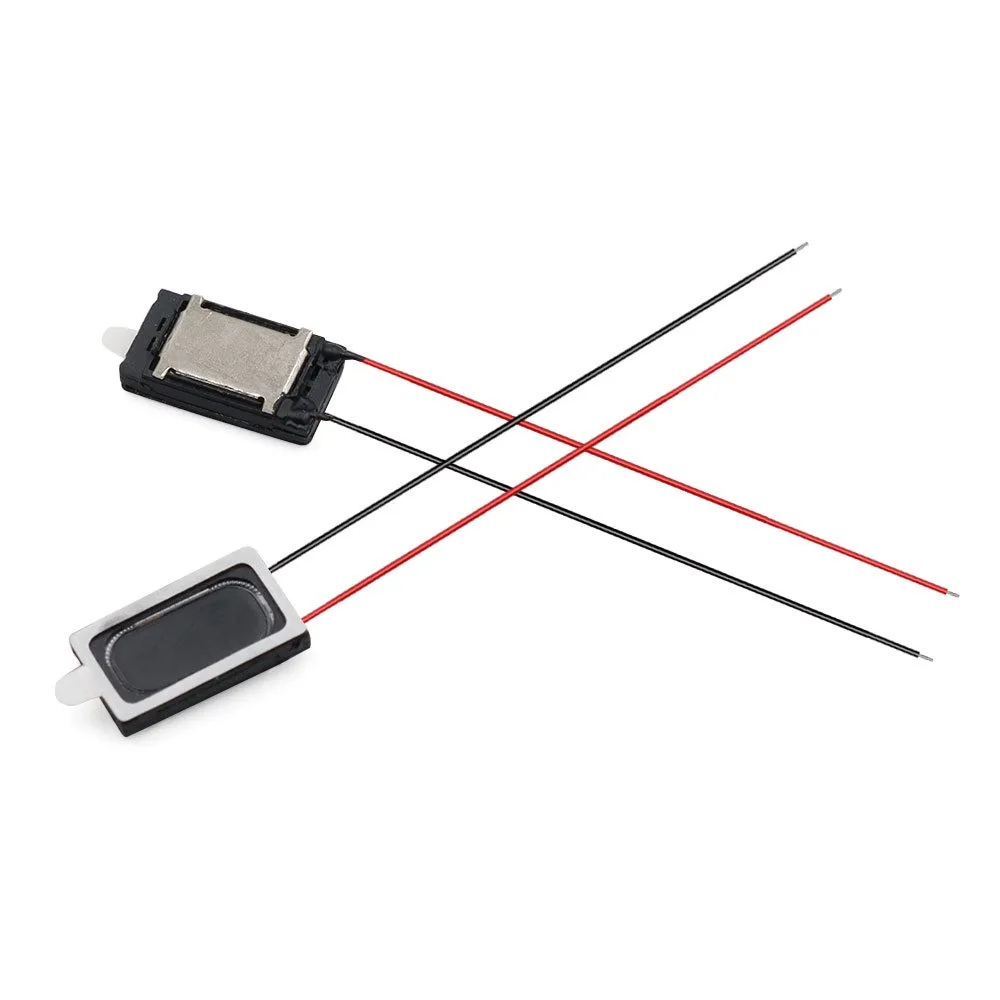

5PCS 16mm×9mm×3mm 8Ω 1W Square Magnetic Speakers
Original price was: $5.02.$2.51Current price is: $2.51.
Pay now, in 4 interest-free payments of $0.63, or over 3–6 months
4 interest-free payments of $0.63
Set of 5 compact, 8Ω 1W square magnetic speakers, sized 16×9×3mm.
- Ideal for smartwatches, toys, robotic appliances.
- Delivers clear sound at 88dB pressure.
26 in stock
↗
Estimated Delivery Time3–7 business days
Compact high-performance speakers
These 16×9×3mm square magnetic speakers provide reliable 8 ohm, 1 watt audio output ideal for compact electronic devices.
They are widely used in voice recorders, translation gadgets, robotic vacuum cleaners, toys, and smart voice-enabled home appliances.
Designed for precise mounting
To avoid resonant noise, speakers must fit snugly into mounting slots.
Maintain a minimum 1mm gap between the speaker diaphragm and front panel for best sound clarity.
- Speaker diameter must perfectly match the mounting slot.
- Secure positioning is essential for optimal audio performance.
Acoustic performance
Operating frequency centers around 1000 Hz with ±15% tolerance, delivering clear audio reproduction.
Sound pressure level reaches approximately 88 dB with a ±3 dB margin, ensuring audible and crisp output.
- Frequency: 1000 ±15% Hz
- Sound pressure: 88 ±3 dB
Operating specifications
These speakers operate reliably within temperature ranges from -25°C to +65°C, suitable for various environments.
- Impedance: 8±15% Ω
- Power rating: 1 W
- Operating temperature: -25°C to +65°C
Key specifications
- Size: 16mm (L) × 9mm (W) × 3mm (H)
- Impedance: 8±15% Ohms
- Power: 1 Watt
- Frequency: 1000±15% Hz
- Sound Pressure: 88±3 dB
- Operating Temperature: -25°C to +65°C
