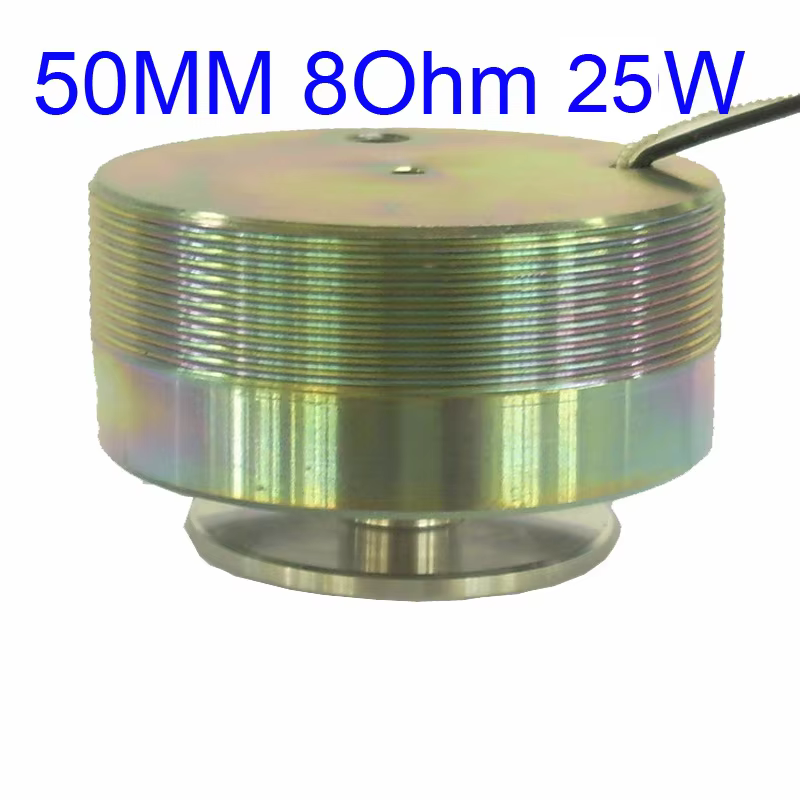

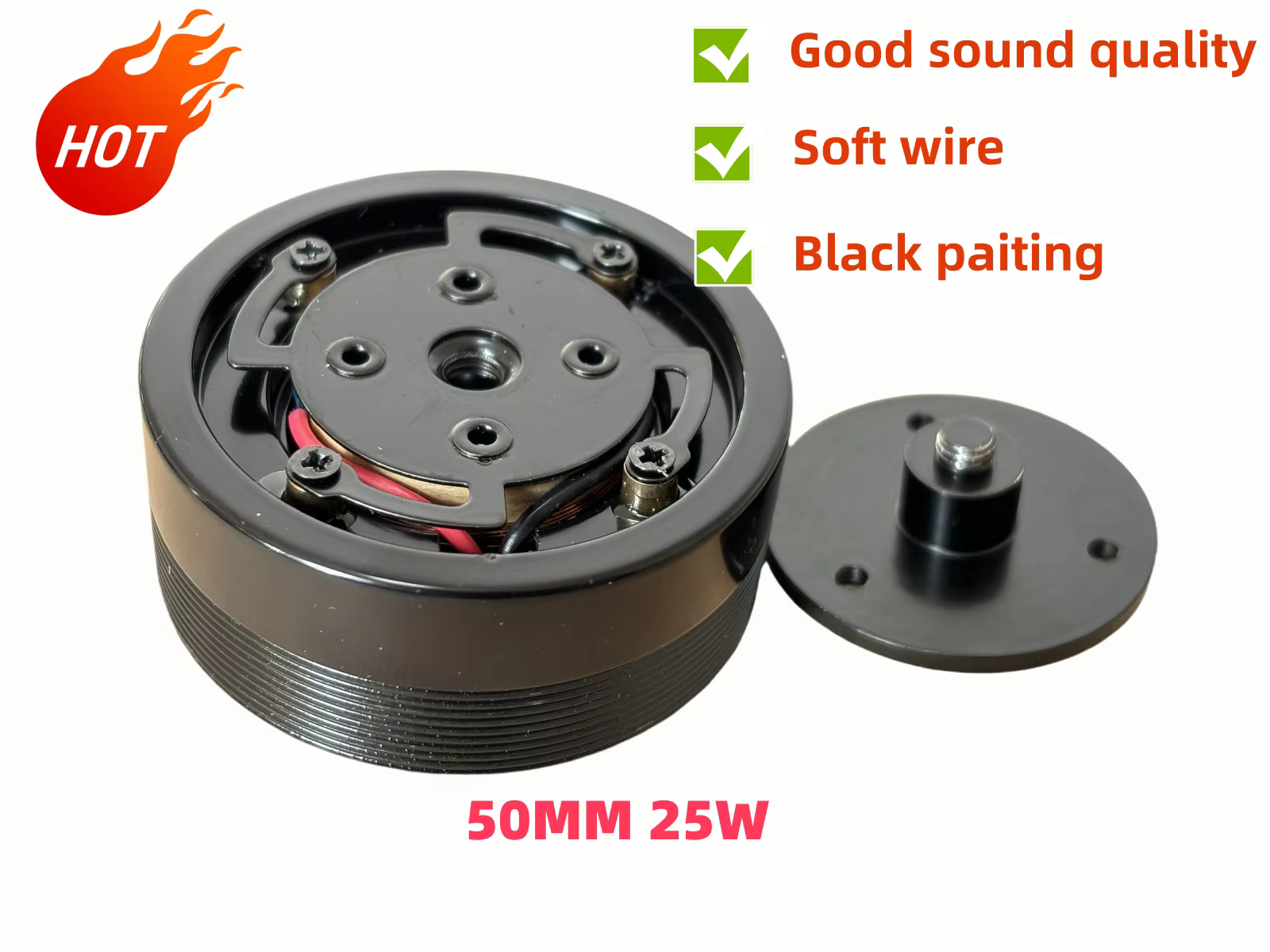

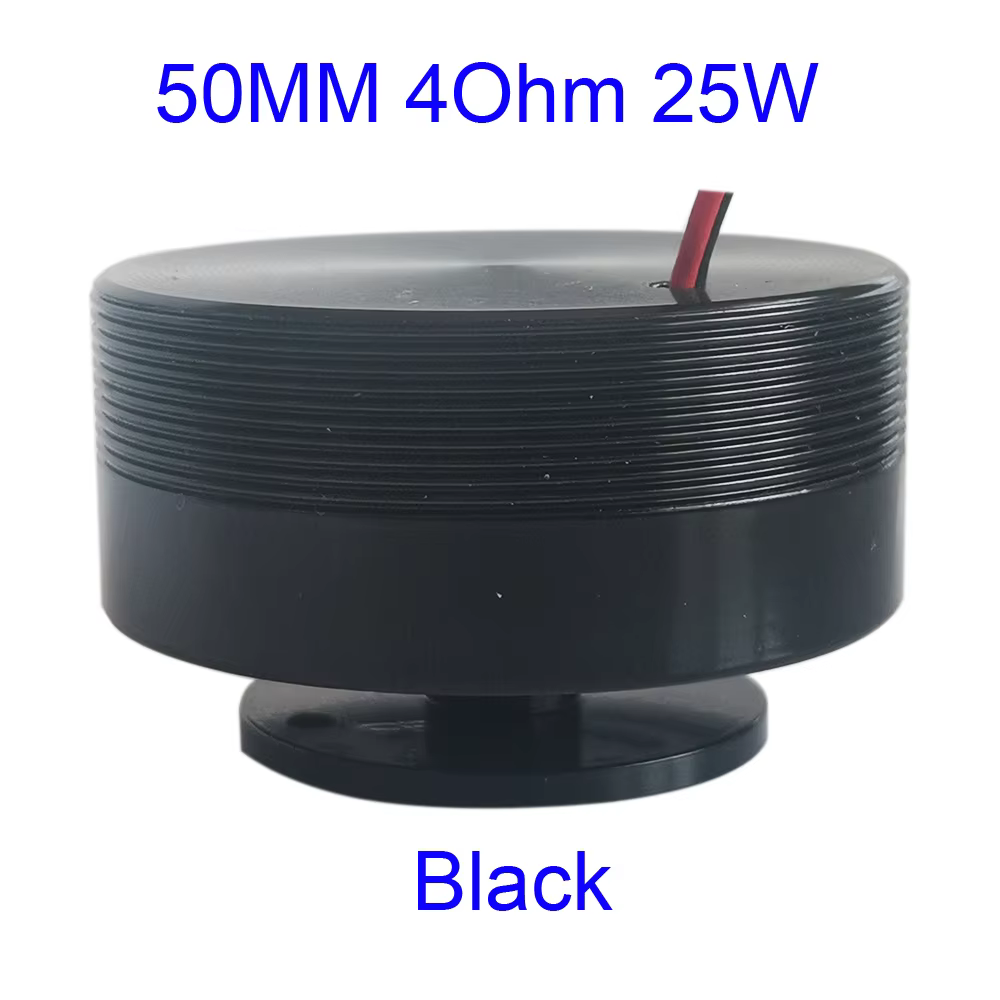

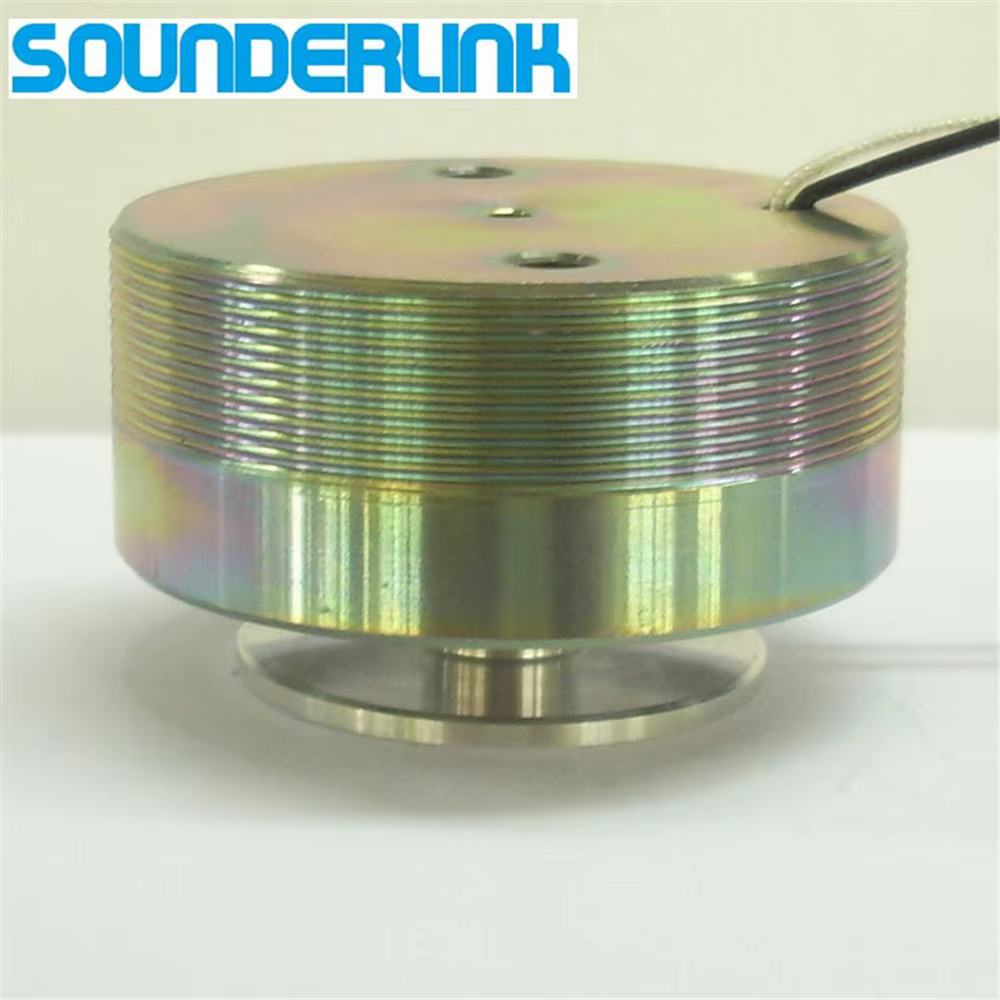

50MM 25W Vibration Speaker Full Range DIY Loudspeaker
Price range: $23.13 through $39.90
Pay now, in 4 interest-free payments of $5.78, or over 3–6 months
4 interest-free payments of $5.78
Compact 50MM vibration speaker with 25W rated power and full-range sound. Ideal for DIY audio projects delivering clear bass via resonance.
↗
Estimated Delivery Time3–7 business days
Compact High-Power Vibration Speaker
This 50MM diameter vibration speaker is designed for DIY enthusiasts seeking full-range audio performance. With a slim 30MM profile and robust construction, it delivers rich sound by converting vibration energy into audible bass and mid frequencies.
Its compact size makes it suitable for mounting on various surfaces to create immersive audio experiences in custom speaker builds.
Power and Sound Performance
Featuring a rated power of 25W at 4OHM and 20W at 8OHM impedance, this speaker supports up to 30W max power handling for dynamic sound output. The 25MM voice coil and resonance frequency at 60Hz enable strong bass response. Output sound pressure level reaches 86dB ±3dB, offering clear and immersive sound.
- Rated power: 25W (4OHM), 20W (8OHM)
- Resonance frequency: 60Hz
- Output SPL: 86 dB ±3 dB
- Maximum power: 30W
- Frequency response extends to 20KHz
Easy Installation with Enhanced Bass

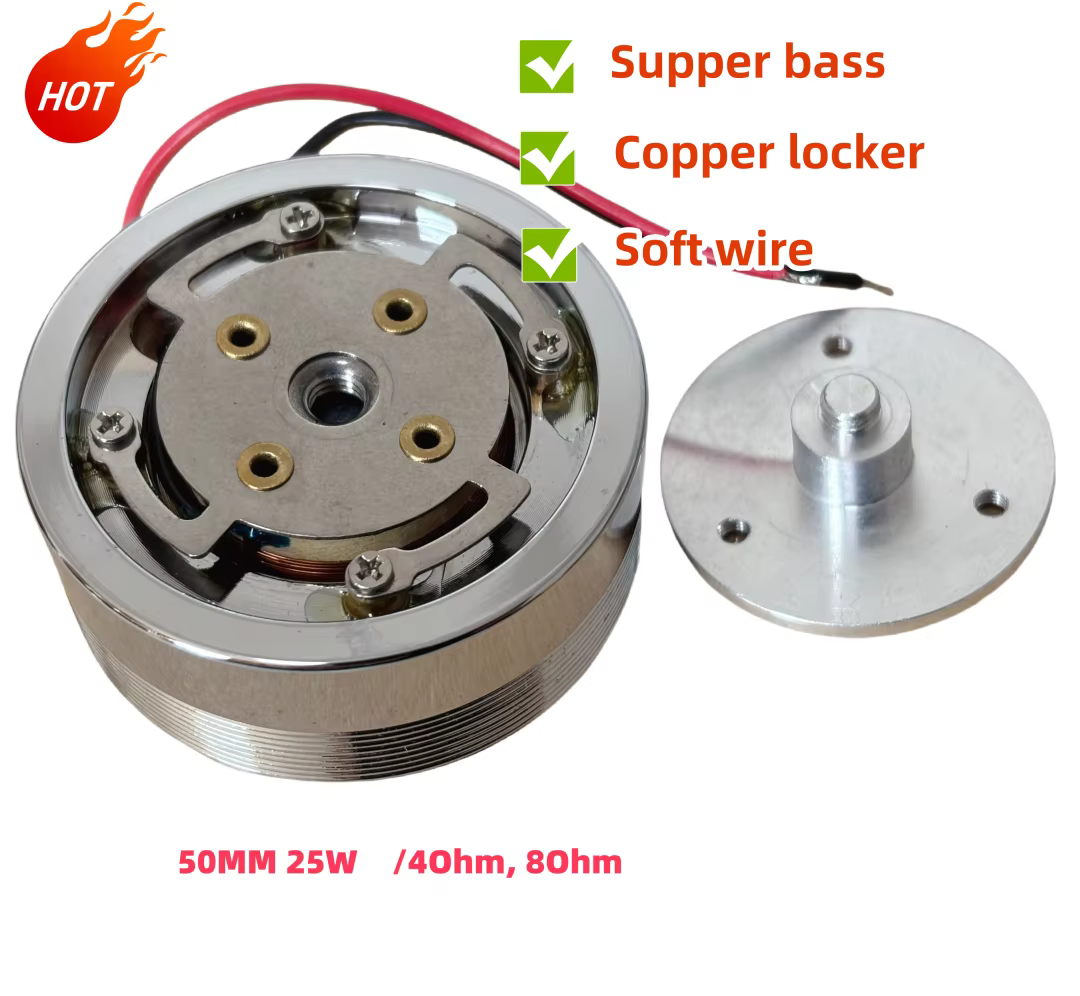

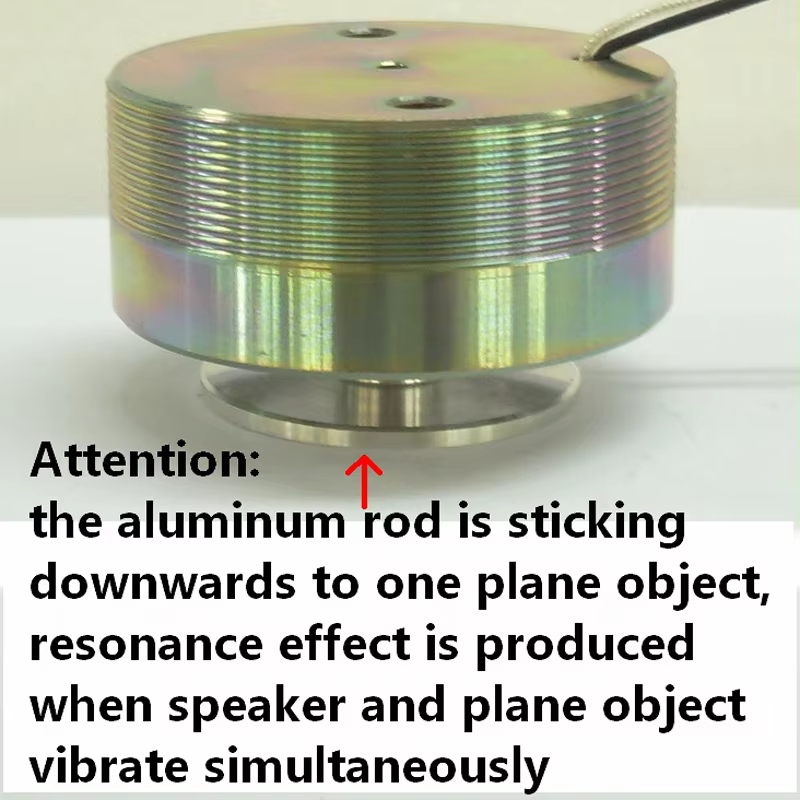

The speaker features three mounting holes with copper screws for secure fixing. Installation instructions recommend attaching the speaker to a flat aluminum panel placed vertically on a plain surface such as a wooden table. This setup utilizes the surface resonance to amplify bass frequencies effectively.
- Three-hole mounting design
- Copper screws for enhanced bass
- Requires flat aluminum panel for optimal resonance
- Ideal for DIY vibration speaker systems
Durable Metal Cabinet Construction
Constructed with a metal cabinet, the speaker ensures durability and low distortion during operation. This robust build supports accurate audio reproduction and long-term use in custom audio projects.
- Metal cabinet for durability
- Low distortion under 5% at 1KHz
- Supports full-range audio output
Wide Compatibility for Power Sources
The speaker can be powered via multiple sources including battery, AC, USB, and DC inputs, offering versatility for various DIY applications.
- Supports battery, AC, USB, and DC power sources
- Compatible with amplified audio signals
- Perfect for portable and fixed installations
Key Specifications

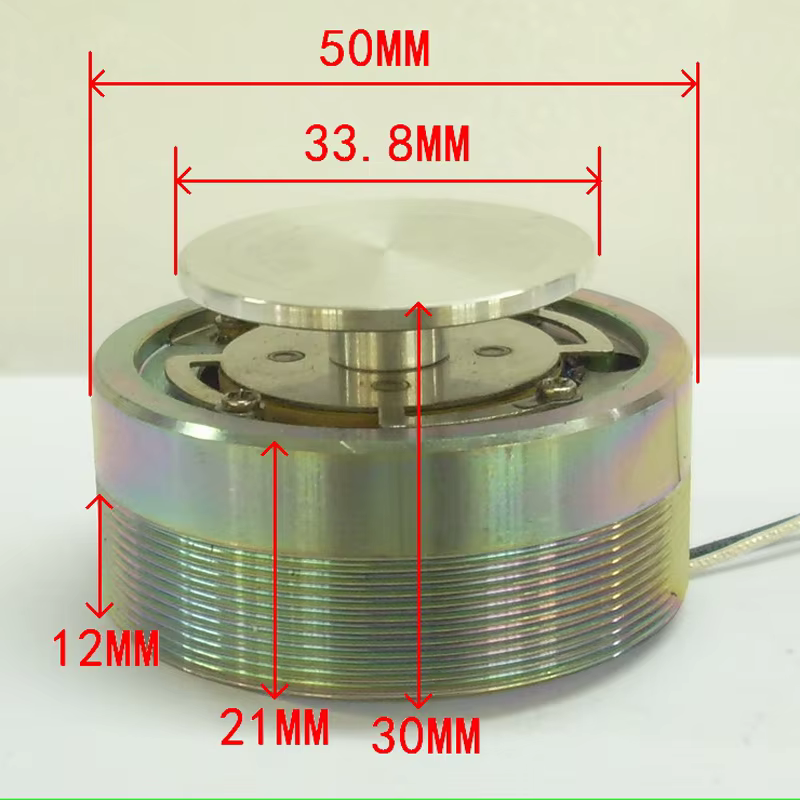

- Diameter: 50MM
- Height: 30MM
- Impedance: 4OHM or 8OHM

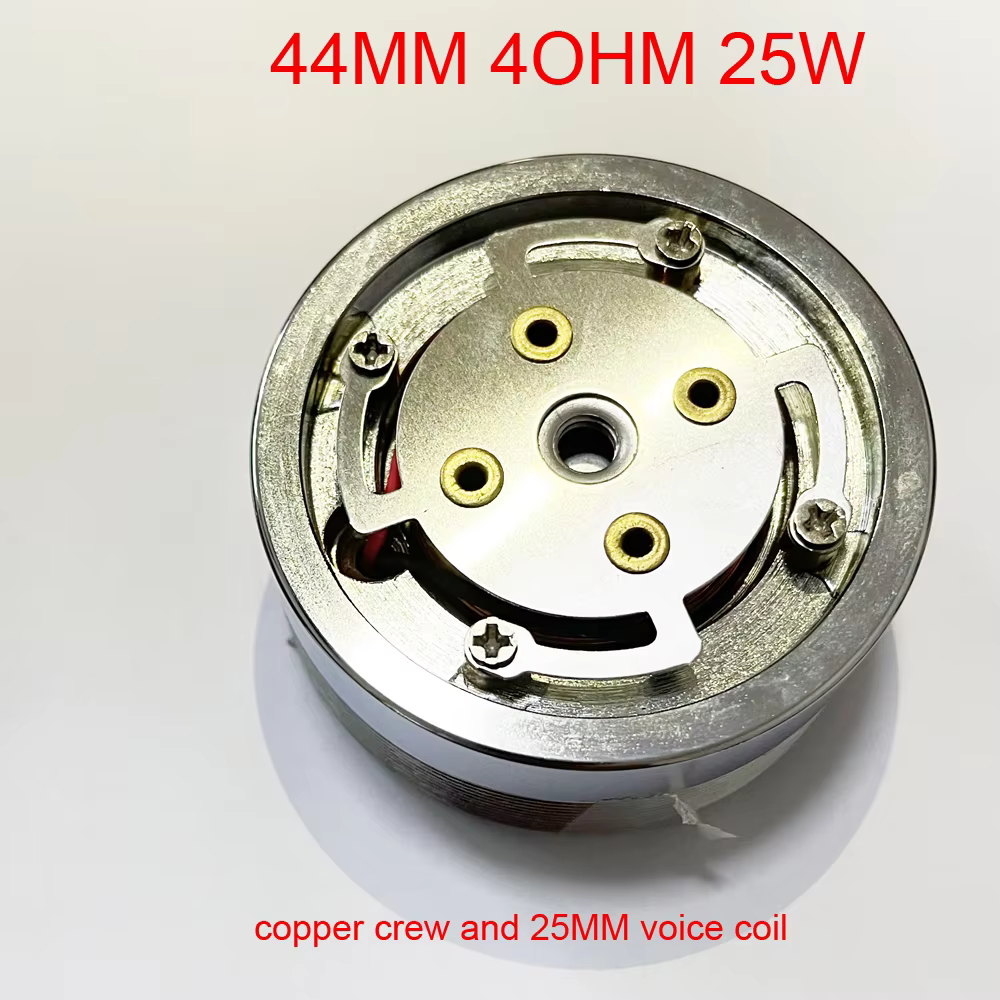

- Voice coil size: 25MM
- Rated power: 25W (4OHM) / 20W (8OHM)
- Max power: 30W
- Resonance frequency: 60Hz
- Output SPL: 86dB ±3dB
- Distortion:
- Frequency response: FO-20KHz
What's in the box
- 1 x 50MM Vibration Speaker
Product FAQ
Frequently asked questions
01 What is the size of this vibration speaker?
This speaker has a diameter of 50MM and a height of 30MM.
02 What is the rated power output of the speaker?
Rated power is 25W for the 4OHM impedance version and 20W for the 8OHM version.
03 What impedance options are available?
The speaker supports 4OHM or 8OHM impedance.
04 What is the maximum power this speaker can handle?
The maximum power rating of the speaker is 30W.
05 What frequency response range does the speaker cover?
The speaker has a frequency response from approximately FO to 20KHz.
06 How loud is the speaker at 1.0V input?
It produces an output sound pressure level (SPL) of 86 dB ±3 dB at 1.0V.
07 How should the speaker be installed for optimal bass performance?
Mount the speaker on a flat aluminum panel positioned vertically on a plain surface like a wooden table to utilize surface resonance for enhanced bass.
08 Does the speaker use copper screws for installation?
Yes, the updated design includes copper screws for improved bass and secure mounting.
09 What is the size of the voice coil?
This model has a 25MM voice coil.
10 Is this speaker suitable for DIY audio projects?
Yes, it is specifically designed for DIY vibration speaker systems.
