4Ohm 60W AMT Air Motion Tweeter with Kapton Diaphragm
Price range: $91.63 through $109.02
Pay now, in 4 interest-free payments of $22.91, or over 3β6 months
4 interest-free payments of $22.91
Robust 4Ohm AMT tweeter with ultra-low mass Kapton & aluminum diaphragm delivers crisp audio up to 40kHz. Features high-grade Neodymium motor for powerful, efficient sound output suitable for audiophile 2-way systems.
β
Estimated Delivery Time3β7 business days
Precision Engineering for Clear Sound

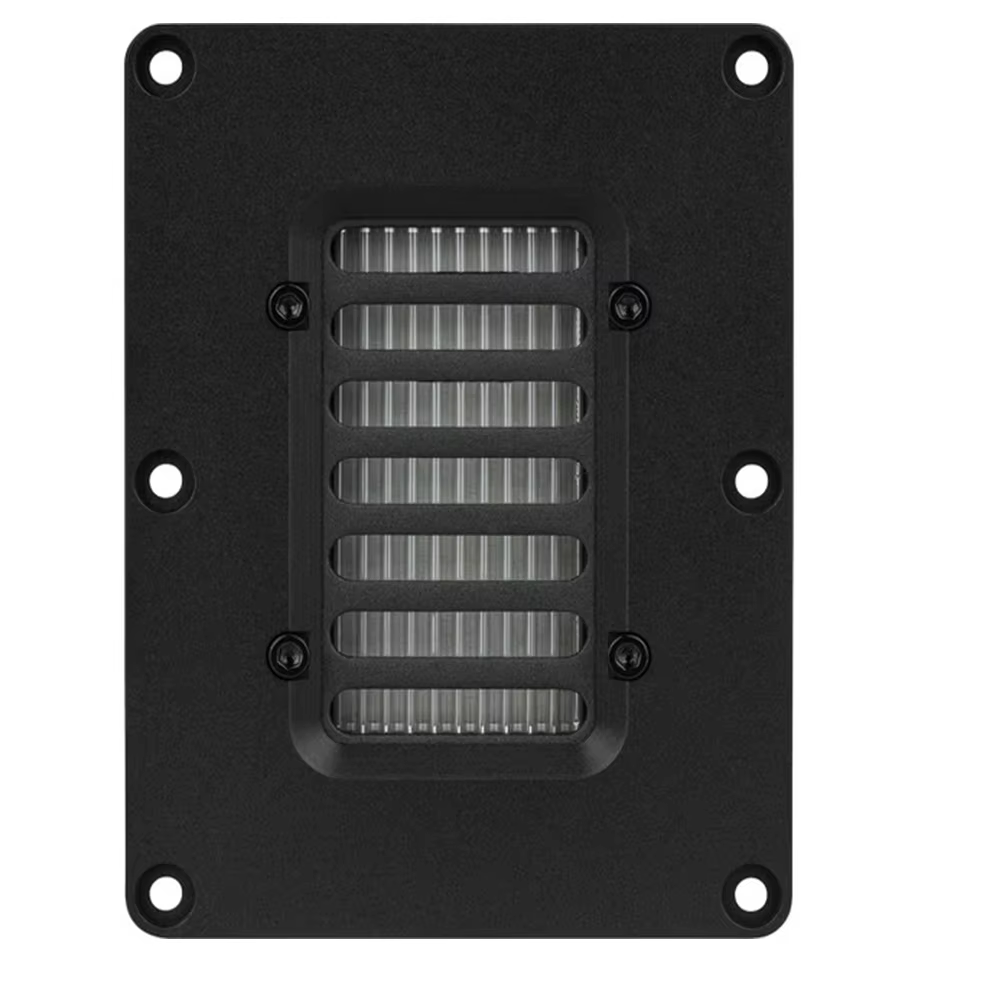

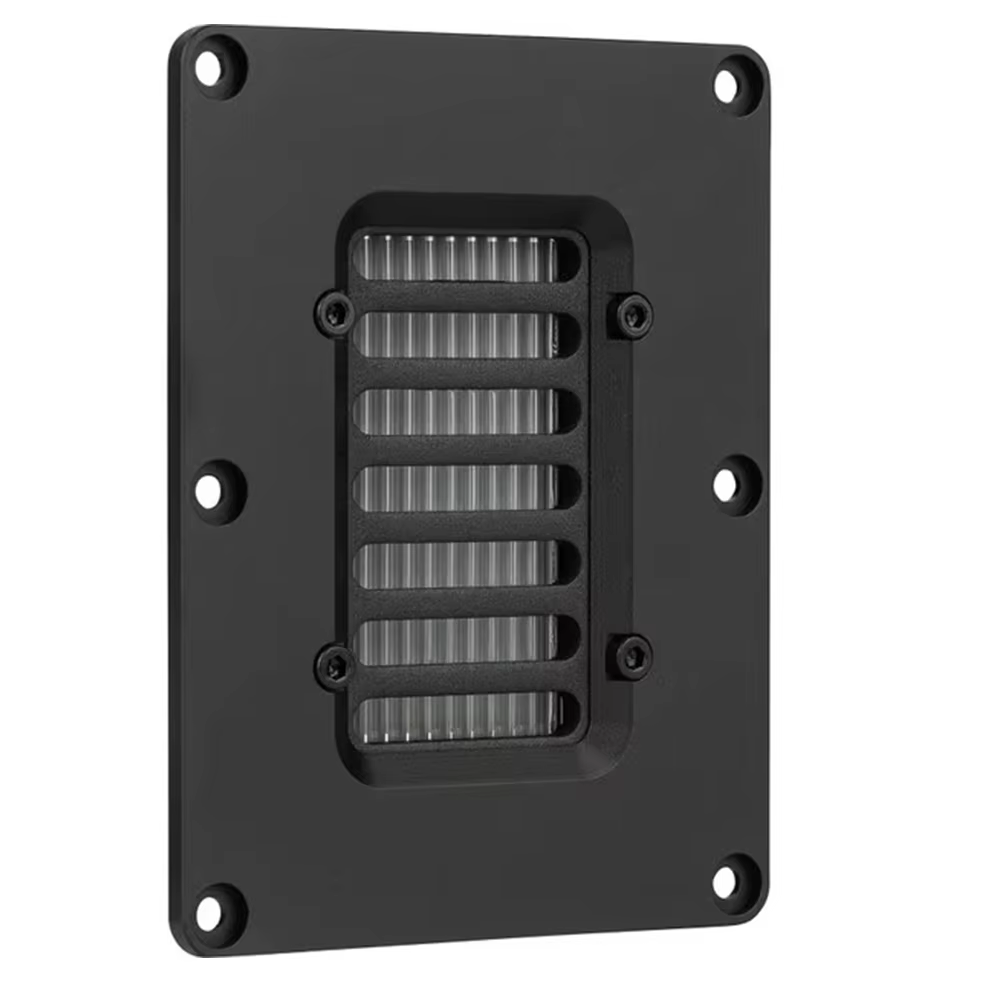

This AMT Air Motion Tweeter features a premium aluminum alloy faceplate ensuring rigid mounting and eliminating vibration for pristine audio clarity.
The high-flux Neodymium motor provides excellent efficiency and dynamic headroom for powerful sound reproduction.
Ultra-Low Mass Diaphragm

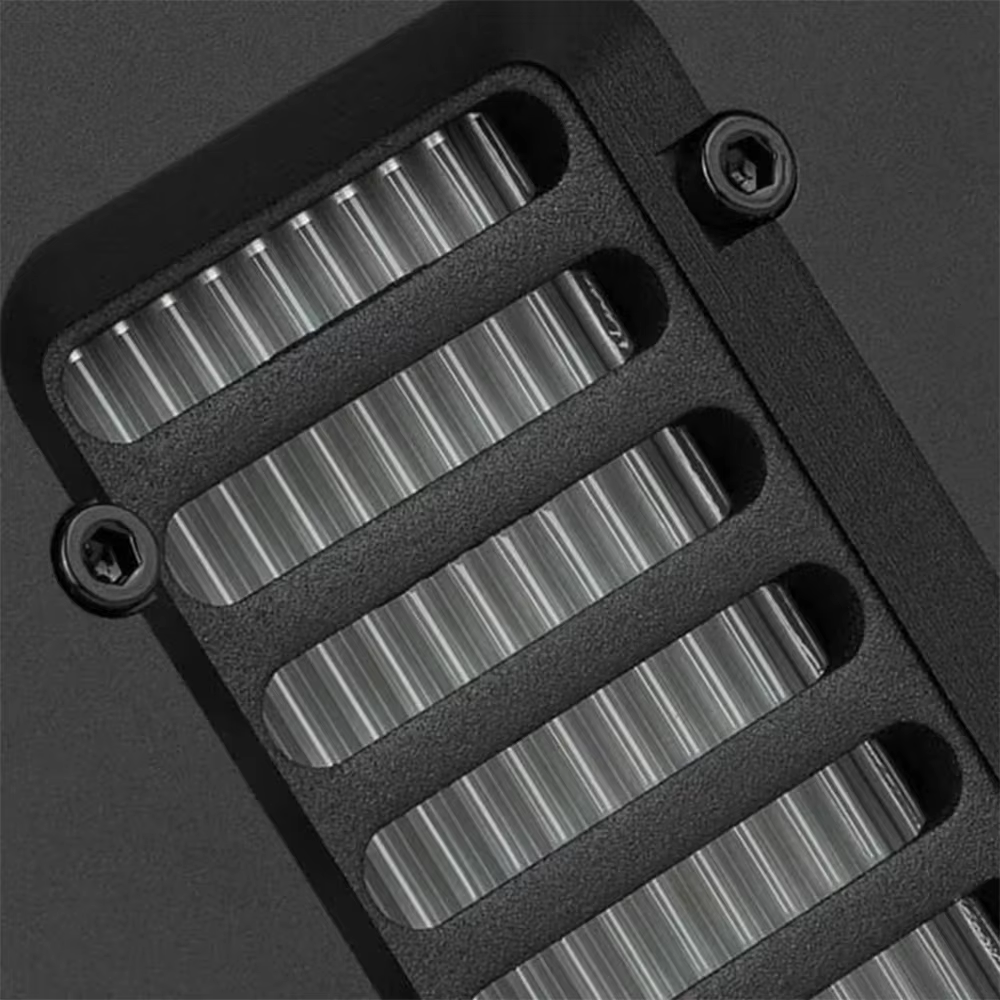

Its pleated Kapton and aluminum diaphragm achieves lightning-fast transient response and minimizes audio distortion, delivering crystal-clear micro-details.
Wide Frequency Range

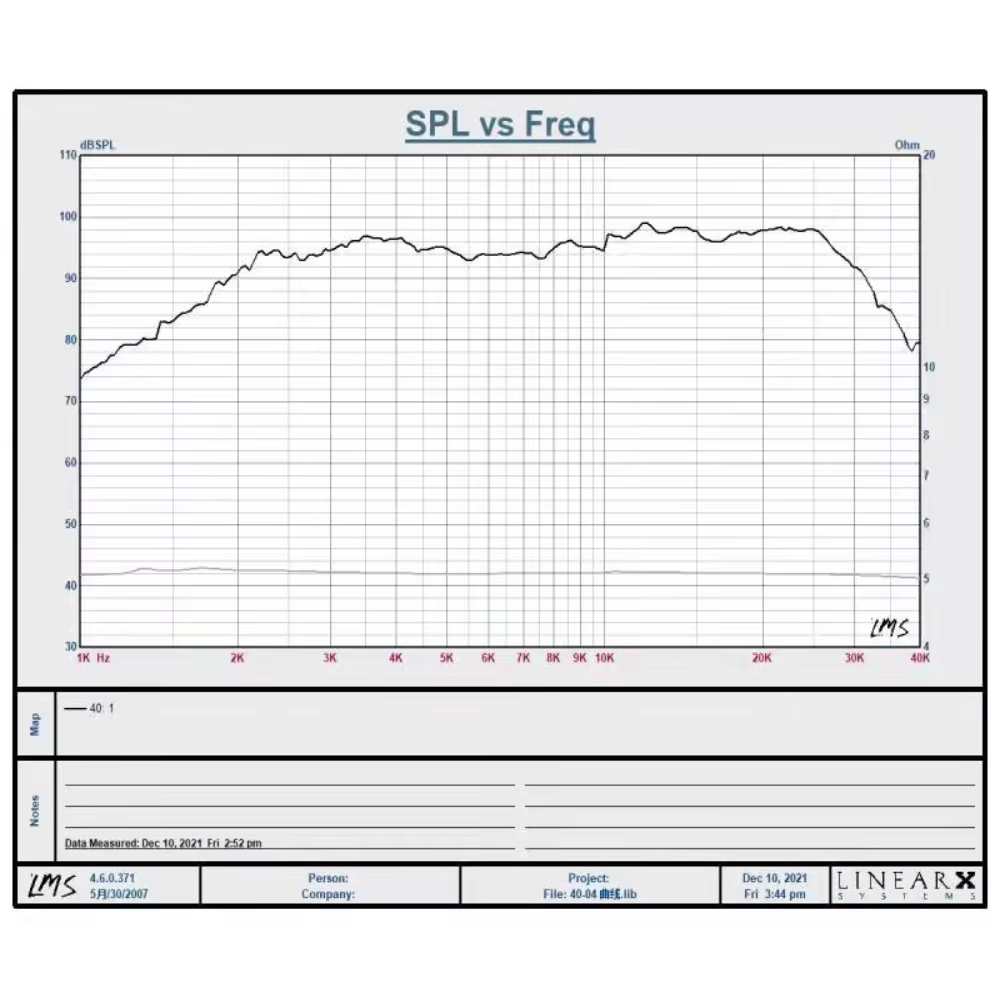

With a smooth response extending up to 40 kHz, this tweeter reproduces spacious, high-fidelity soundscapes with airy top-end extension.
Seamless System Integration
The tweeter's ultra-wide bandwidth starts at 1.3 kHz, enabling easy crossover pairing with midwoofers in premium 2-way bookshelf or high-end 3-way studio monitor setups.
Key specifications
- Nominal Impedance: 4 Ξ©
- Power Handling: 30W RMS / 60W Max
- Sensitivity: 94 dB @ 1W/1m
- Frequency Response: 1,300 Hz β 40,000 Hz
- Diaphragm Material: Kapton & Aluminum Foil
- Magnet Type: High-Grade Neodymium
- Recommended Crossover: β₯ 2,200 Hz

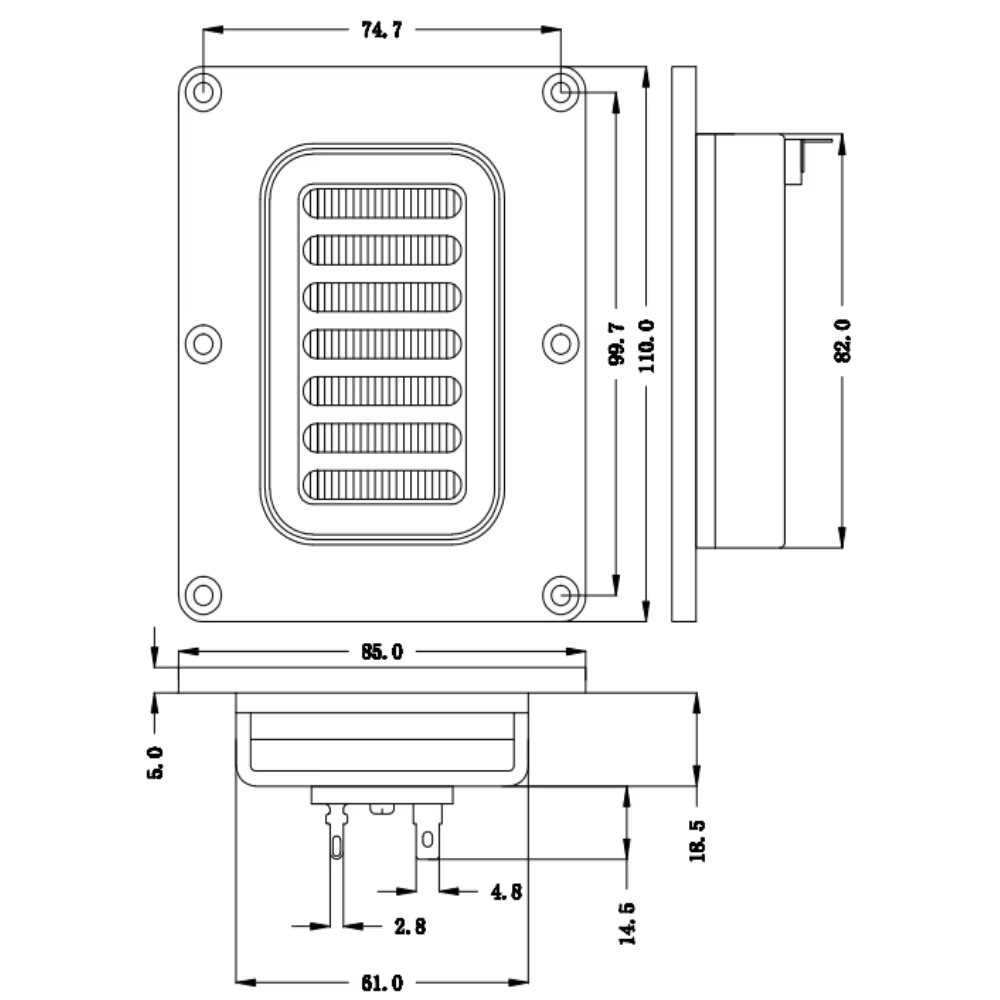

- Dimensions: 110 x 85 x 23.2 mm (Depth)
- Net Weight: 420 g
What's in the box
- 1 Γ AMT Air Motion Tweeter 4 Ohm 60W
Product FAQ
Frequently asked questions
01 What is the nominal impedance of the tweeter?
The tweeter has a nominal impedance of 4 Ohms.
02 What is the maximum power handling capacity?
It can handle up to 60 watts maximum power.
03 Which material is used for the diaphragm?
The diaphragm is made from pleated Kapton and aluminum foil.
04 What type of magnet system does it use?
This tweeter uses a high-grade Neodymium magnet system.
05 What is the frequency response range of this tweeter?
Its frequency response ranges from 1,300 Hz to 40,000 Hz.
06 Is it suitable for 2-way speaker systems?
Yes, its ultra-wide bandwidth down to 1.3 kHz allows seamless integration in 2-way systems.
07 What is the recommended crossover frequency?
A crossover frequency of 2,200 Hz or higher is recommended for optimal performance.
08 What are the physical dimensions of the tweeter?
The overall dimensions are 110 x 85 mm, with a depth of 23.2 mm.
09 How much does this tweeter weigh?
It weighs approximately 420 grams per unit.
10 What is the sensitivity rating?
The sensitivity is rated at 94 dB measured at 1 watt/1 meter.
Discussion
4.9
Based on 15 reviews
I donβt have much experience with amt drivers. i used this one in an open baffle system to supplement the liisong f12, crossed at 7khzβ¦.itβs surprisingly polite and blends very well with the system. it gives some air and some additional realism to many instruments, specially horns and chords.. overall very satisfied.
fire
Great, haven't connected it yet, will need to check!?
High sensitivity, accurate measured AC response, and very low distortion.
