4K 60Hz HDMI Video Capture USB 3.0 Game Recorder
Price range: $21.85 through $22.21
Pay now, in 4 interest-free payments of $5.46, or over 3β6 months
4 interest-free payments of $5.46
Capture 4K HDMI video and audio at 60Hz with USB 3.0 output. Compatible with Windows, macOS, Android, and popular streaming software.
- Supports MJPEG, XRGB, YUY2, NV12 video formats
- Works with PS5, Xbox, PC, mobile devices
- Plug-and-play, no external power needed
β
Estimated Delivery Time3β7 business days
High-Resolution Video Capture
Capture ultra HD video at up to 4K 60Hz resolution with YCbCr420 color format, ensuring crisp, vibrant visuals for gaming, teaching, or medical imaging. Enjoy smooth MJPEG video output via USB 3.0 for real-time previews and recordings.
Compatible with multiple video formats including XRGB, YUY2, and NV12, it delivers flexible and high-quality video capture for diverse needs.
Wide Compatibility and Easy Setup

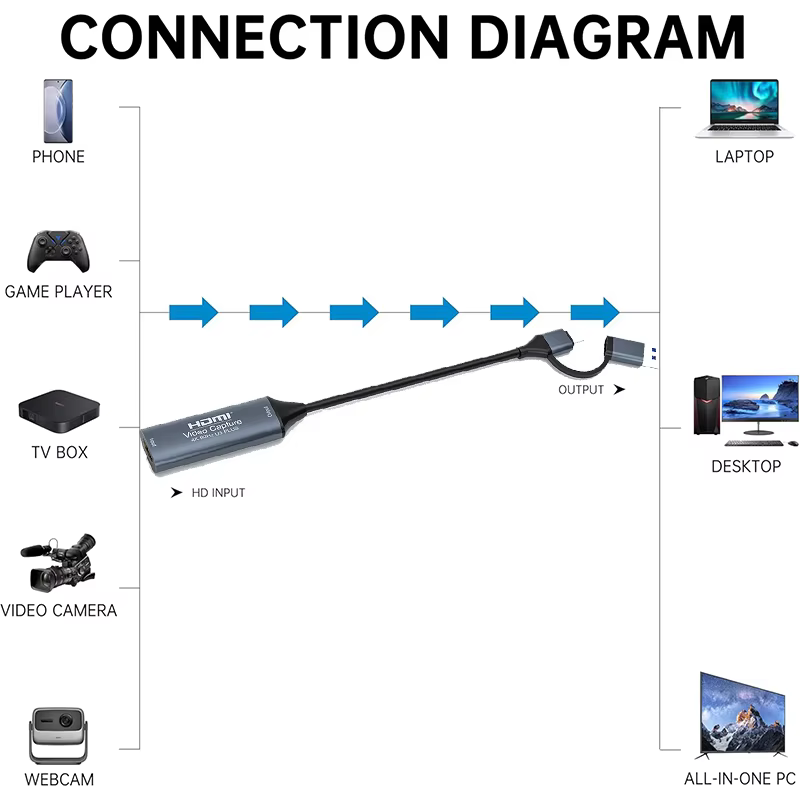

Works seamlessly with Windows, macOS, and Android platforms, connecting effortlessly to consoles like PS5, Xbox, PCs, DSLR cameras, and smartphones (requiring DP output support).
- Plug-and-play with UVC1.0 and UAC1.0 USB protocols
- No external power needed, compact and portable design
- Supports popular streaming software such as OBS, VLC, and Potplayer
Advanced Audio and Video Features
Supports 24, 30, and 36-bit deep color to preserve rich, true-to-life images. The USB audio output provides 96kHz/24bit stereo sound for clear, immersive audio capture.
- HDCP 1.4 support for content protection
- Supports CEA-861-E and CEA-861-F video standards
Durable Design and Performance Specs
Designed to operate within -10Β°C to 55Β°C, it handles long HDMI cable distances up to 15m at 1080p or 10m at 4K with standard AWG26 cables. The device draws only 0.3A at 5V, making it energy efficient and portable.
Key Specifications
- Max HDMI Input Resolution: 4096Γ2160 @ 60Hz (YCbCr420)
- Video Output Formats: MJPEG, XRGB, YUY2, NV12
- USB Interface: USB 3.0 (max 4K 60Hz), USB 2.0 (max 1080p 60Hz)
- Audio Output: USB audio conforms to UAC1.0, 96kHz/24bit stereo
- Device Size: 11 x 23 x 240 mm
- Supported OS: Windows, macOS, Android
What's in the box
- 4K HDMI Video Capture Card
- USB Type-C Cable
- User Manual
Product FAQ
Frequently asked questions
01 What maximum video resolution does this capture card support?
It supports up to 4096 x 2160 at 60Hz with YCbCr420 color format input.
02 Which devices is this HDMI capture compatible with?
Compatible with Windows, macOS, Android systems and devices like PS5, Xbox, PC, DSLR cameras, and smartphones with DP output.
03 Does this capture card require external power?
No, it does not require an external power supply as it draws power via USB.
04 Which video output formats does the device support?
It supports XRGB, YUY2, NV12, and MJPEG video output formats.
05 Can this device capture both video and audio?
Yes, it captures HDMI video and HDMI audio signals simultaneously.
06 Is this device compatible with streaming software?
Yes, it works with software like VLC, OBS, Potplayer, and Amcap.
07 What USB interface does this capture card use?
It uses USB 3.0 for video output and supports USB 2.0 at lower resolutions.
08 What are the dimensions of the capture card?
The device measures approximately 11 x 23 x 240 mm.
09 Does the capture card support HDCP?
Yes, it supports HDCP 1.4 for protected content.
10 What hardware is recommended for optimal use?
Recommended specs include Intel Core i5-6xxx or i7-7700HQ CPU, NVIDIA GTX 1060 or 1050Ti GPU, and 8GB RAM.
Discussion
4.7
Based on 29 reviews
It's not 4K by any means. It records at 1080p 60fps and in that way, I don't recommend it at all.
La verdad que por el precio por el que comprΓ© esta capturadora no esperaba que cumpliera con las especificaciones que dice, pero me equivoquΓ©. La capturadora funciona de maravilla y sin problemas. Eso sΓ, para llegar a 2K o incluso 4K creo que reescala la imagen. La he comprado para compartir mi PS5 en mi PC. Primero la probΓ© con OBS, teniendo la PS5 en salida de 2K y notΓ© los dientes de sierra en la imagen, entonces puse la PS5 en salida de 4K y la cosa mejoro un poco. Aun asΓ, no llegΓ³ a la calidad que esperaba, entonces me descarguΓ© Media Player Classic, lo configurΓ© para ver la PS5 y la calidad mejorΓ³ notablemente. En OBS no tuve ningΓΊn problema con el audio pero en el MPC sΓ. Se escuchaban petardazos en el audio. Finalmente, cambiando algunos ajustes en el Media Player Classic pude conseguir que el audio se escuchara perfecto. La calidad con el MPC es lo que me sorprendio y por eso recomiendo esta capturadora.
There is a problem with this device. With usb-c to usb-a adapter it does not work with most usb ports. I tested laptop and desktop. I managed to make it work only with usb hub with external power adapter. I did not have this problem when i used my own usb-c to usb-a adapter.
Even without usb-c to usb-a adapter, i recommend to plug this device to usb ports with good power delivery.
4k 60fps recording works as advertised. Obviously lower resolutions and framerates work, too.
This device does not support:
* hdr
* de-interlacing (de-interlacing is done in a very bad way of dropping half the resolution)
Device is based on macrosilicon technology ms2132 chip.
