4 Ohm 5W 40mm Internal Magnetic Horn Full Range Speaker

This 40mm internal magnetic horn speaker delivers reliable full-range audio performance in a compact size, perfect for DIY audio projects like Bluetooth speakers and walkie talkies.

Its plastic cabinet and internal magnetic circuit ensure durability and minimize magnetic interference, enhancing sound clarity.

Designed with a low internal resistance of 4Ω, this speaker offers a high sensitivity of 94 dB/W, resulting in efficient power usage and clear sound output.

• Rated power: 3W
• Maximum power: 5W
• Sensitivity: 94 dB/W
• Resistance: 4Ω

The speaker covers a wide frequency range from 0 to 20 kHz, allowing for accurate reproduction of both lows and highs, suitable for various audio applications.

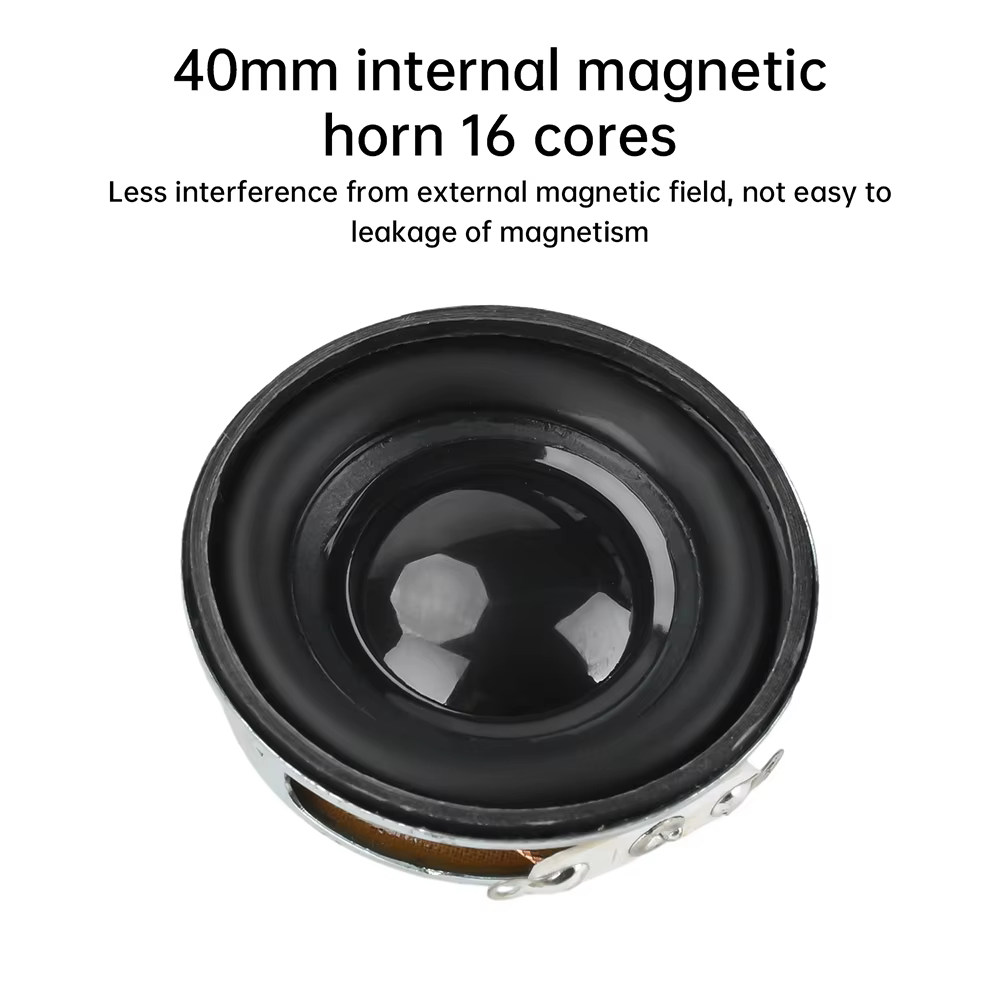

The internal magnetic circuit design reduces the risk of external magnetic field interference and prevents magnetic leakage for improved audio fidelity.

This also permits the speaker to withstand high-intensity low-temperature cycling tests, ensuring long-term performance.

Ideal for use in walkie talkies, Bluetooth speakers, and other portable audio devices, this speaker integrates seamlessly with DIY electronics requiring compact, full-range sound.

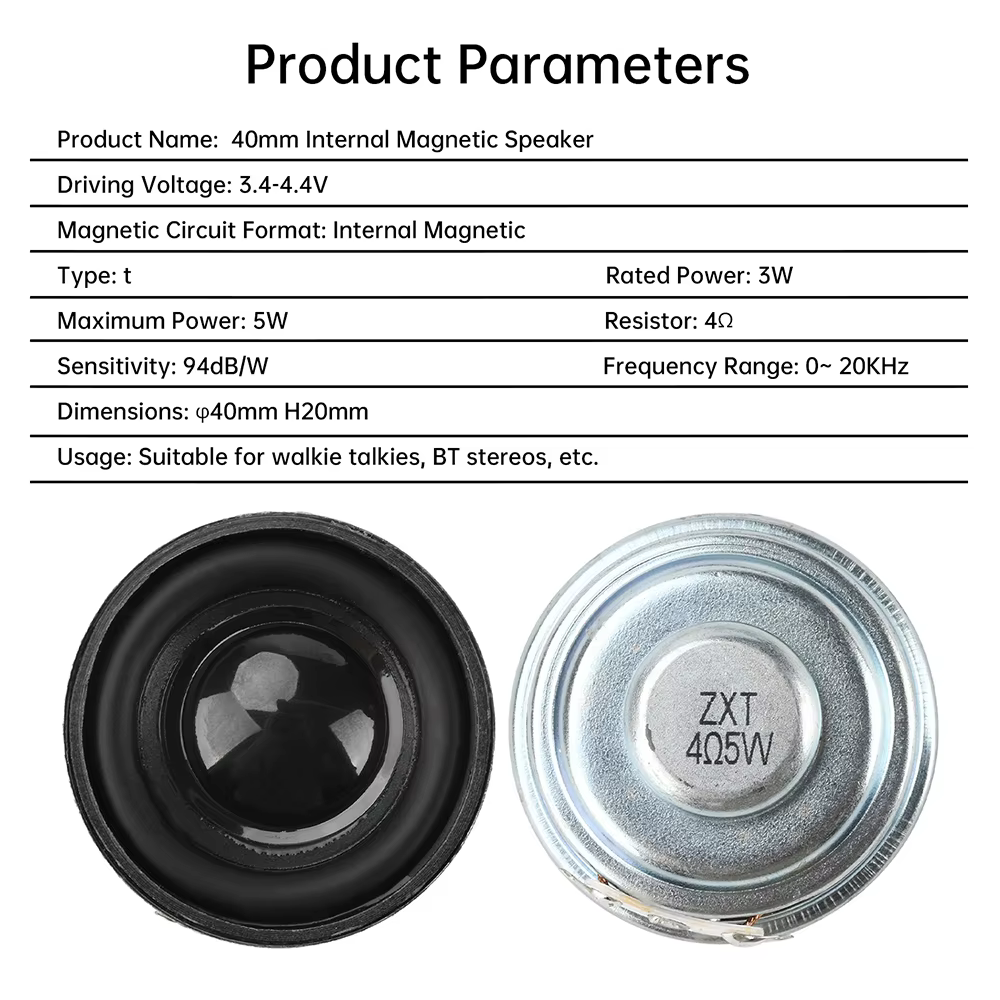

• Product Name: 40mm Internal Magnetic Horn Speaker
• Driving Voltage: 3.4 – 4.4 V
• Magnetic Circuit Type: Internal Magnetic
• Speaker Type: Pot Bottom Cap Horn
• Rated Power: 3 W
• Maximum Power: 5 W
• Resistance: 4 Ω
• Sensitivity: 94 dB/W
• Frequency Range: 0 – 20 kHz

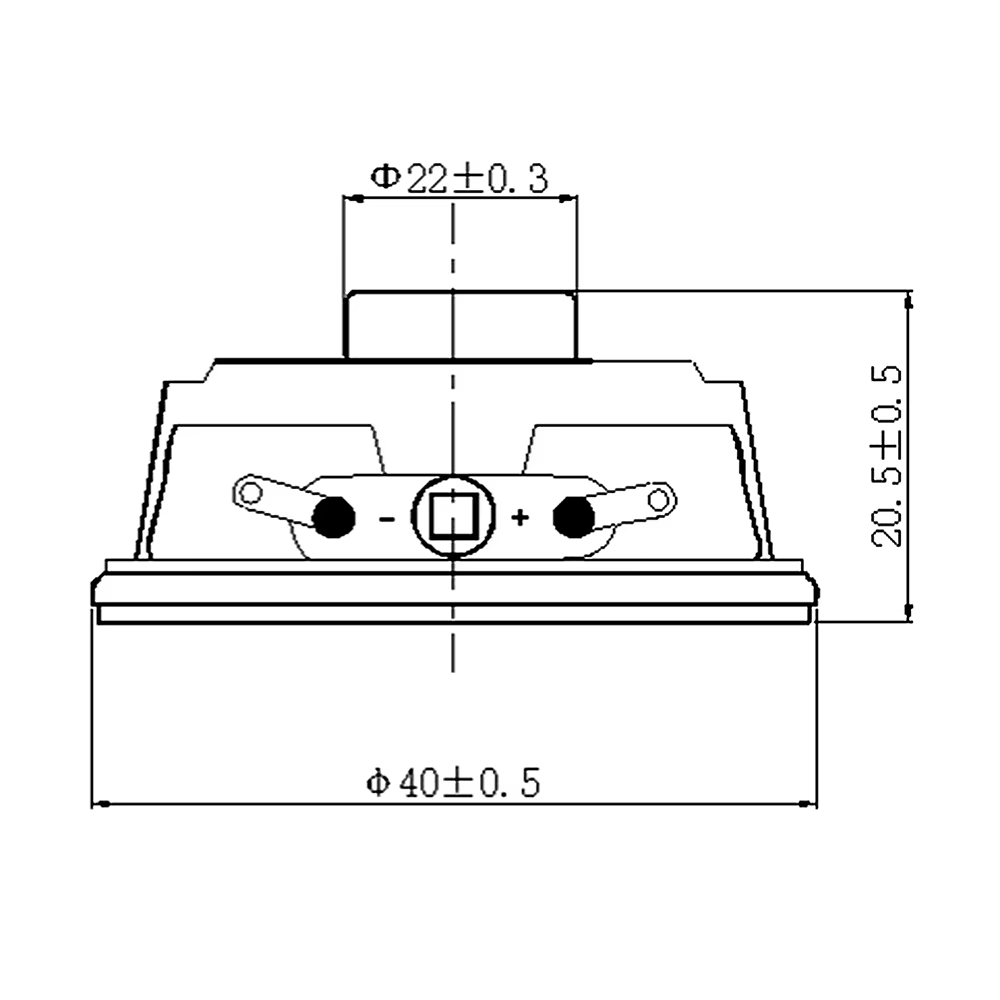

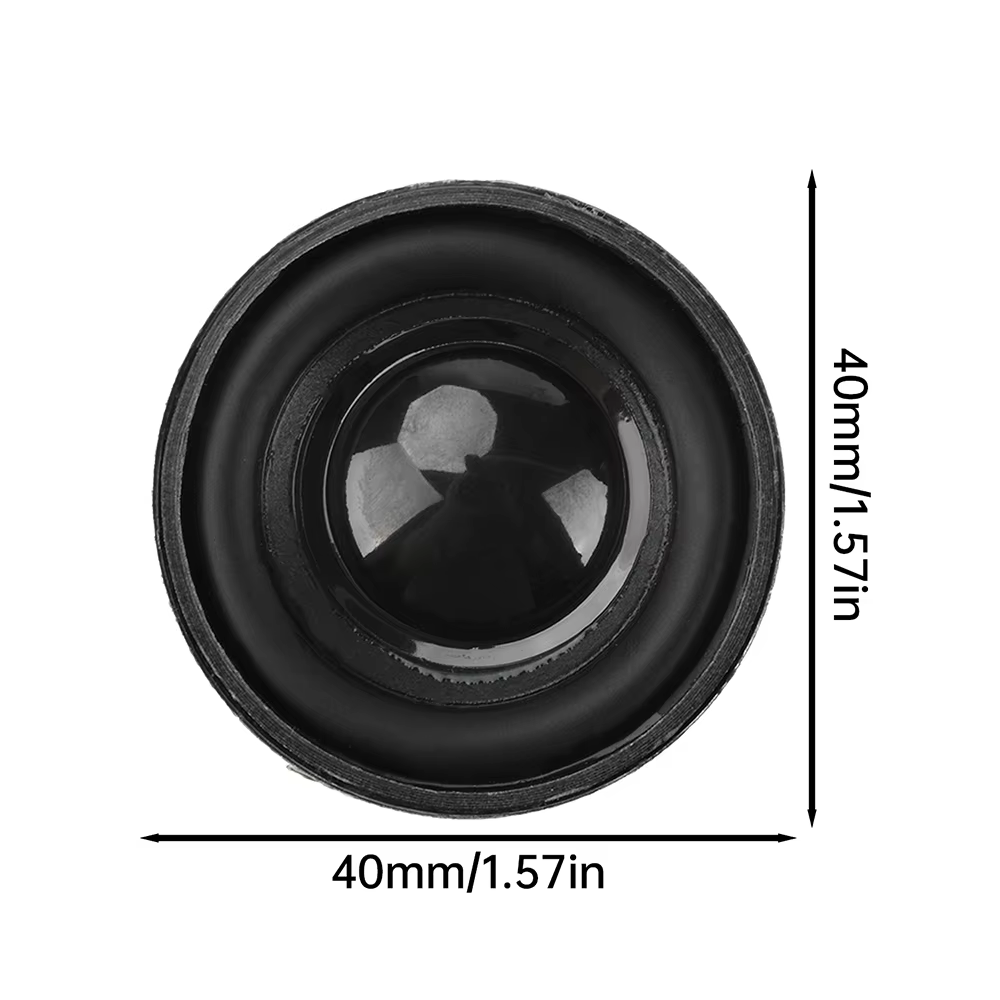

• Size: Diameter 40 mm, Height 20 mm
• Material: Plastic Cabinet

• Internal magnetic horn speaker × 1
