I ordered 8Ohm-94dB, but received boxes labeled 8Ohm-92dB. The actual sensitivity is 88dB-89dB. Did the seller do this to me or to everyone? The unevenness in the frequency response in the 4K - 20K range is about 4dB.
Sale

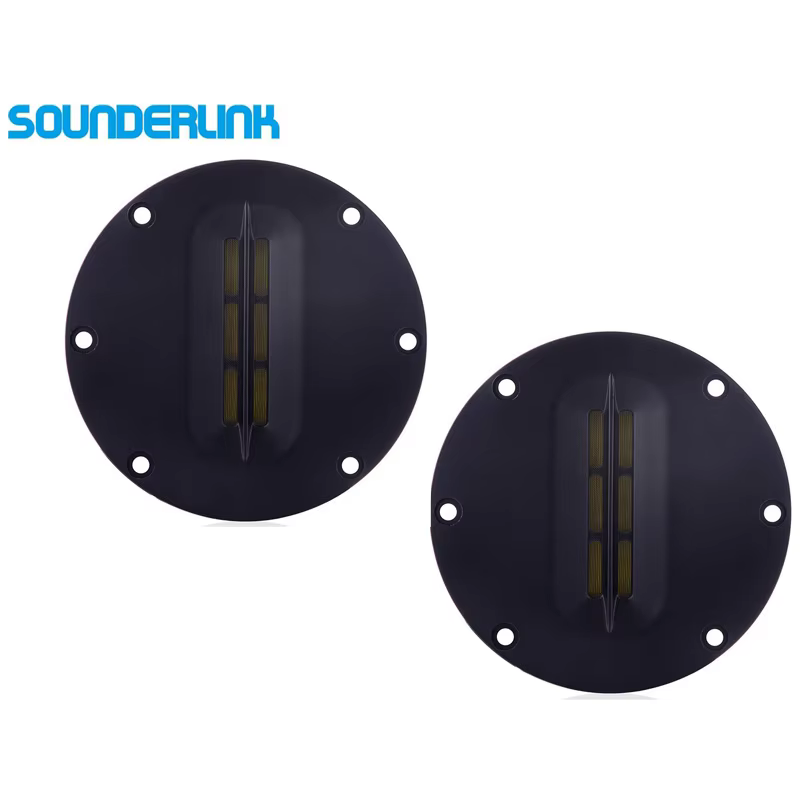

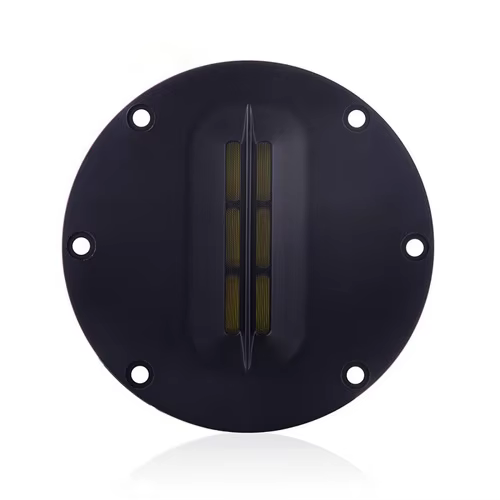

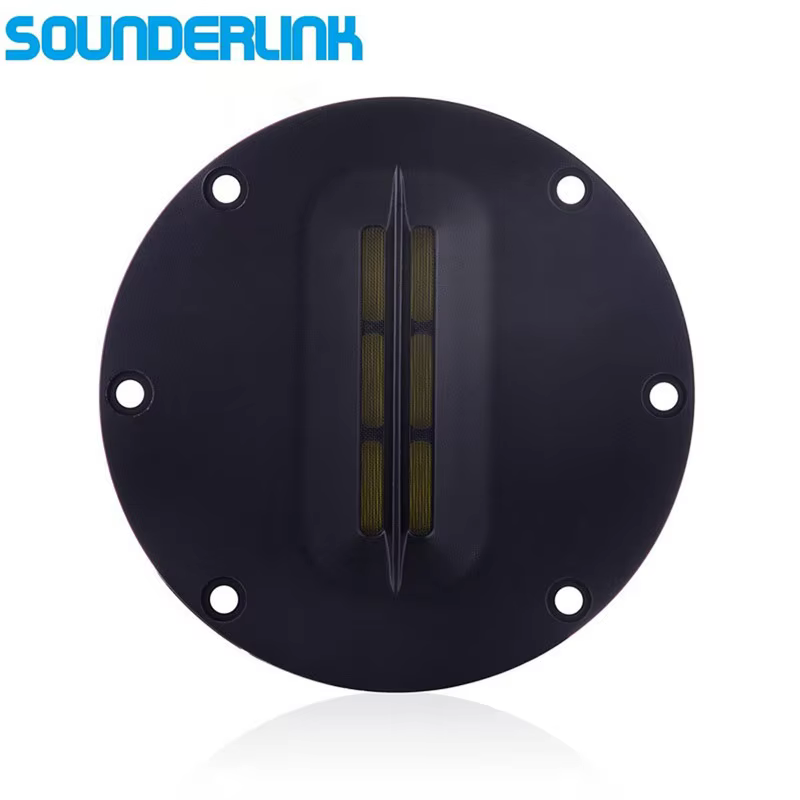

4 Inch Professional Planar AMT Ribbon Tweeter 8 Ohm 2PCS
Price range: $35.00 through $38.35
Pay now, in 4 interest-free payments of $8.75, or over 3β6 months
4 interest-free payments of $8.75
Upgrade your audio with this 2-piece set of 4" planar AMT ribbon tweeters featuring a low-mass Kapton diaphragm and strong Neodymium magnet for clear, natural high frequencies.
- 8Ξ© impedance with 15W RMS power handling
- Frequency range 1,500 - 33,000 Hz
- Powder coated ABS plastic faceplate for secure mounting
β
Estimated Delivery Time3β7 business days
Clear, Natural High Frequencies with Planar AMT Technology
These 4-inch planar AMT ribbon tweeters deliver precise and dynamic high-frequency sound with very low distortion. Using a low-mass pleated Kapton diaphragm combined with aluminum foil conductive lines, they produce clear and natural audio output ideal for professional and DIY HiFi speaker builds.
Robust Construction and Mounting

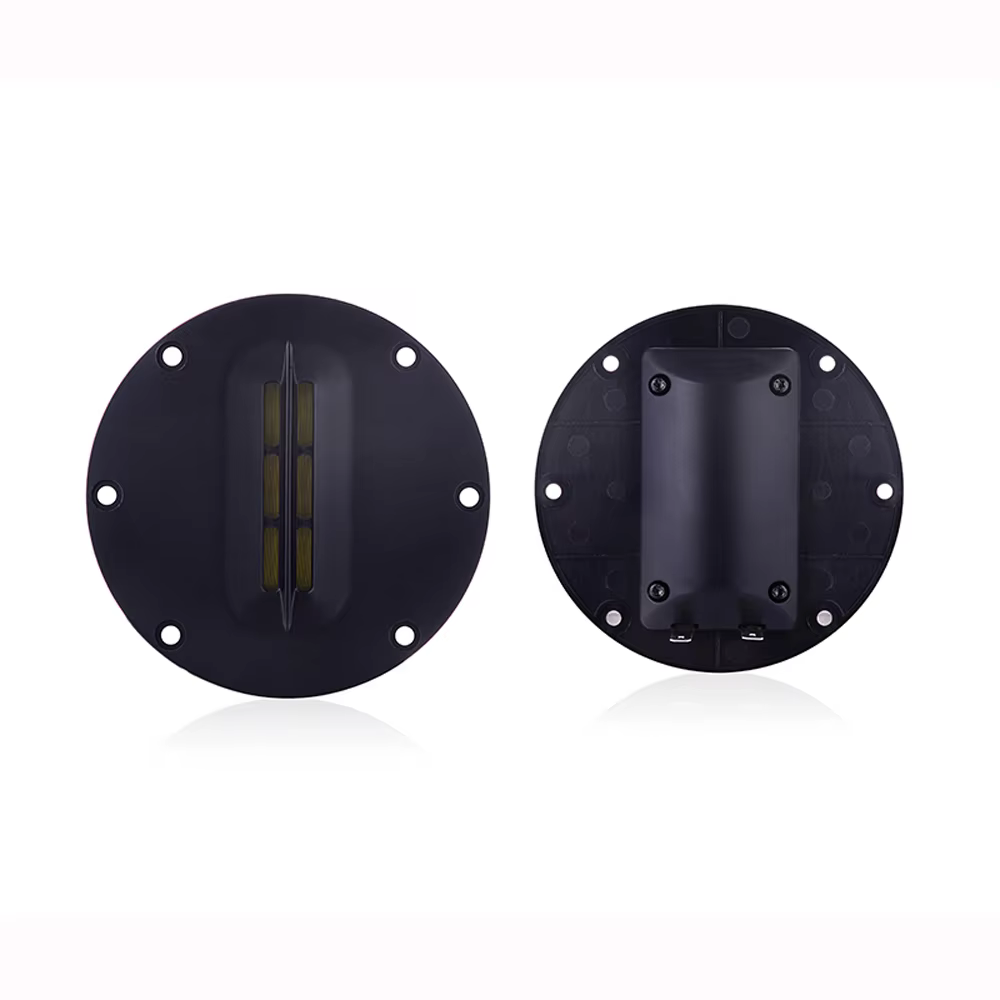

Each tweeter includes an ABS plastic faceplate with a powder-coated finish to ensure secure and stable mounting while protecting the delicate diaphragm components.
- Durable, lightweight Kapton diaphragm
- Secure ABS plastic faceplate with powder coat finish
- Compact 4-inch size with slim profile (0.76 inches depth)
Power and Sensitivity
With an impedance of 8 ohms, these tweeters handle 15 watts RMS and 30 watts max power, delivering 92 dB sensitivity at 1 watt/1 meter for efficient audio reproduction.
- Rated power handling: 15 W RMS, 30 W max
- Sensitivity: 92 dB at 1W/1m
- Linear impedance ensures consistent performance
High-Quality Magnetic System
Equipped with a strong Neodymium magnet system, these tweeters provide fast transient response and high power handling capacity for detailed sound reproduction.
- Neodymium magnet for powerful magnetic flux
- Enables fast and dynamic sound transitions
Key Specifications
- Impedance: 8 Ξ©
- Frequency response: 1.5 kHz β 33 kHz
- Diaphragm: Kapton film with aluminum foil
- Recommended crossover frequency: 3.5 kHz
- Overall diameter: 4 inches
- Depth: 0.76 inches
- Weight: 115 grams
What's in the box
- 2 x 4 inch planar AMT ribbon tweeters with ABS plastic faceplates
Product FAQ
Frequently asked questions
01 What is the impedance of this planar AMT ribbon tweeter?
The tweeter has a rated impedance of 8 ohms, suitable for many HiFi speaker applications.
02 What frequency range does the tweeter cover?
It covers a frequency response range from 1,500 Hz to 33,000 Hz, ensuring clear high frequency detail.
03 What materials are used in the diaphragm and conductive lines?
The diaphragm is made of low-mass pleated Kapton film with aluminum foil conductive lines.
04 What is the power handling capability of this tweeter?
It handles 15 watts RMS power and can tolerate up to 30 watts maximum power.
05 What kind of magnet does this tweeter use?
The tweeter uses a strong Neodymium magnet system for high performance and fast response.
06 What is the recommended crossover frequency?
A crossover frequency of 3.5 kHz or higher is recommended for optimal performance.
07 How is the tweeter mounted?
It features an ABS plastic faceplate with a powder-coated finish for secure and stable mounting.
08 What are the physical dimensions and weight?
Overall outside diameter is approximately 4 inches with a depth of 0.76 inches, and it weighs 115 grams.
09 Is this tweeter suitable for DIY speaker projects?
Yes, it is designed for professional and DIY audio loudspeaker applications.
10 What terminals does the tweeter use for connection?

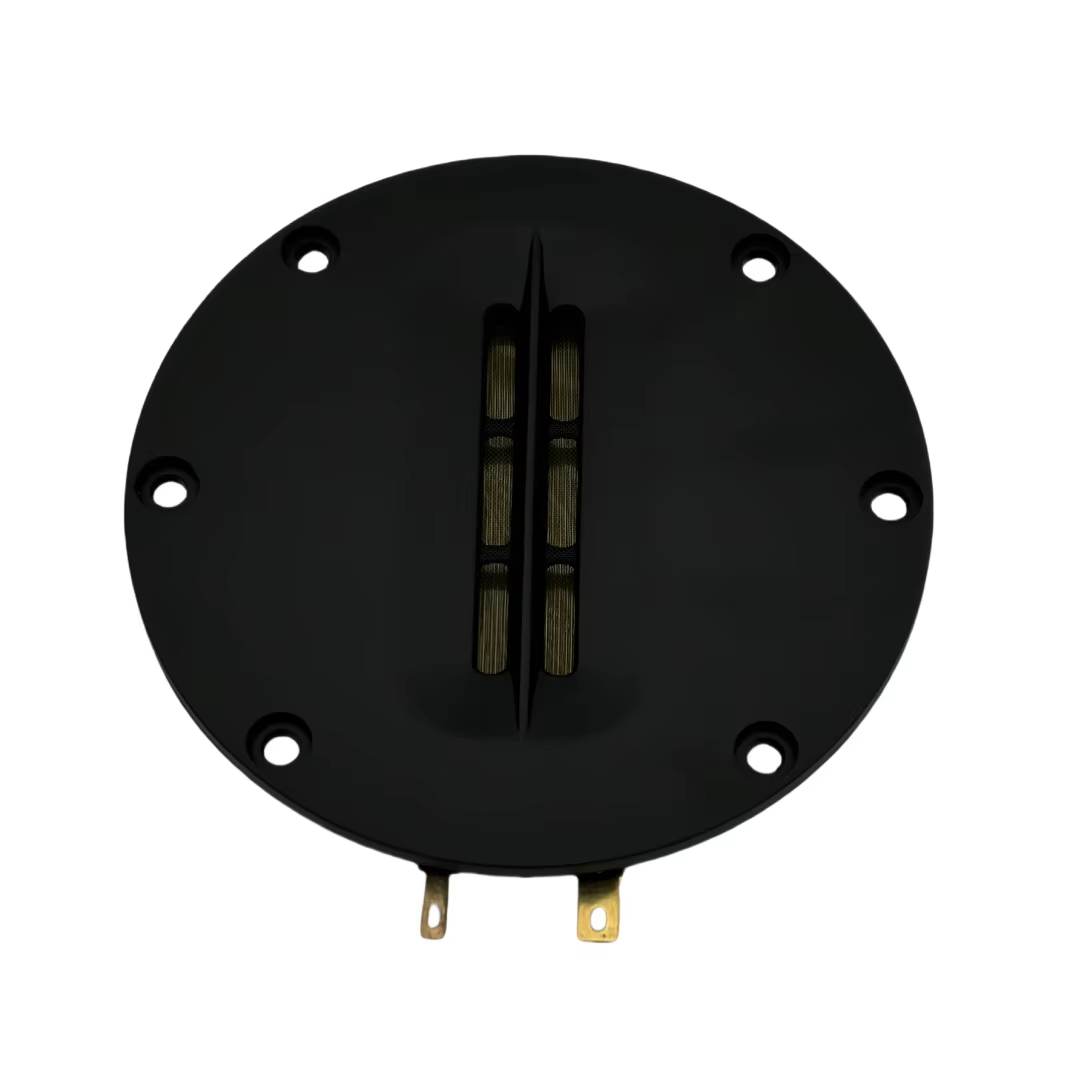

The tweeter has 5.5 mm x 0.5 mm terminals for positive and negative connections.
Discussion
4.0
Based on 11 reviews
Very good product, very efficient.
everything is bad!!! low sensitivity [you can hear it only when you bring the ear very close], low weight indicates that there are no magnets! money down the drain!! don't be fooled by the low price...
Great product. Clear and crystal-like treble.
8 ohms. I liked everything: the high-frequency quality is absolutely effortless, it creates a sense of space, the packaging is good, and the delivery was on time. The terminals are labeled.
+ and - The tester shows a resistance of 7.6 ohms for both, this is not impedance, but the main thing is that the value is the same. I will use it for other projects in the future.
