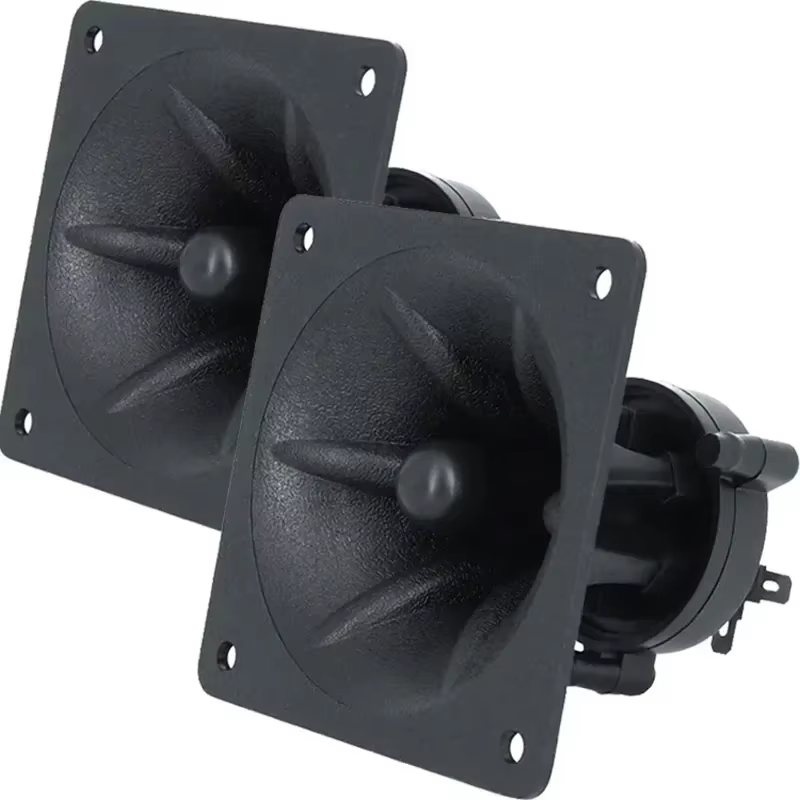

2PCS 150W 85MM Ceramic Piezo Tweeter Horn Speaker
Price range: $6.66 through $7.11
Pay now, in 4 interest-free payments of $1.67, or over 3β6 months
4 interest-free payments of $1.67
Set of 2 ceramic piezo tweeters with 85mm size and 150W power capacity for vibrant, high-decibel sound.
- Impedance: 4-8 ohms
- Frequency range: 2.2K-27KHz
- Sound pressure: 100dB at 1 meter
β
Estimated Delivery Time3β7 business days
High-Power Ceramic Tweeters
Experience clear and powerful audio with these 2PCS 85mm ceramic piezo tweeters. Each can handle from 75 to 150 watts of power, delivering crisp high-frequency sound with minimal current draw. Ideal for upgrading or replacing existing tweeters in speakers or mobile stage audio setups.
Wide Frequency Range and Loud Output
Designed to operate within 2.2KHz to 27KHz frequency response range, these tweeters offer expansive high-frequency clarity. They achieve a sound pressure level of 100dB at 1 meter, producing a loud and clear output that pulls details from your audio sources.
Electrical and Physical Specifications
With an impedance of 4 to 8 ohms, these tweeters efficiently work with two-way audio crossover systems. Sized at 85mm square and 70mm deep, their compact horn shape supports direct sound projection, suitable for various audio DIY projects and stage equipment.
- Impedance: 4-8 ohms
- Frequency response: 2.2K-27KHz
- Sound pressure: 100dB/1M
- Dimensions: 85Γ85Γ70mm
Key specifications
- Power Handling: 75-150W
- Impedance: 4-8 ohms
- Frequency Response: 2.2KHz to 27KHz
- Sound Pressure Level: 100dB at 1 meter
- Size: 85Γ85Γ70mm
What's in the box
- 2 PCS 85mm Ceramic Piezo Tweeter Horn
Product FAQ
Frequently asked questions
01 What is the power rating of each tweeter?
Each ceramic piezo tweeter supports a power handling of 75-150W, with actual power consumption between 3-5W.
02 What is the size of these tweeters?
The tweeters measure 85mm in diameter and 70mm in depth.
03 What frequency range do these tweeters cover?
They provide a frequency response from 2.2 kHz up to 27 kHz.
04 What is the impedance of these tweeters?
The impedance ranges from 4 to 8 ohms depending on the parallel and capacitive reactance.
05 What sound pressure level can these tweeters achieve?
They deliver a sound pressure level of 100 dB measured at 1 meter distance.
06 Are these tweeters suitable for DIY audio projects?
Yes, they are designed for DIY audio, mobile stages, or audio replacement purposes.
07 What type of cabinet material is compatible with these tweeters?
While the tweeter itself is standalone, the supplier notes wood cabinets are typically used with this product.
08 Do these tweeters come with an adapter or crossover?
No, these tweeters do not include an inbox adapter, but are compatible with two-way audio crossovers.
09 What is the power source requirement for these tweeters?
They operate with a DC power source, typical for audio speaker systems.
10 Are these tweeters waterproof or weather-resistant?
No, these tweeters are not waterproof and intended for indoor or protected use.
