Upgrade your earphones with these 14.2mm full-range flat-head dynamic drivers featuring LCP diaphragm, metal construction, and 32Ω impedance for clear sound.

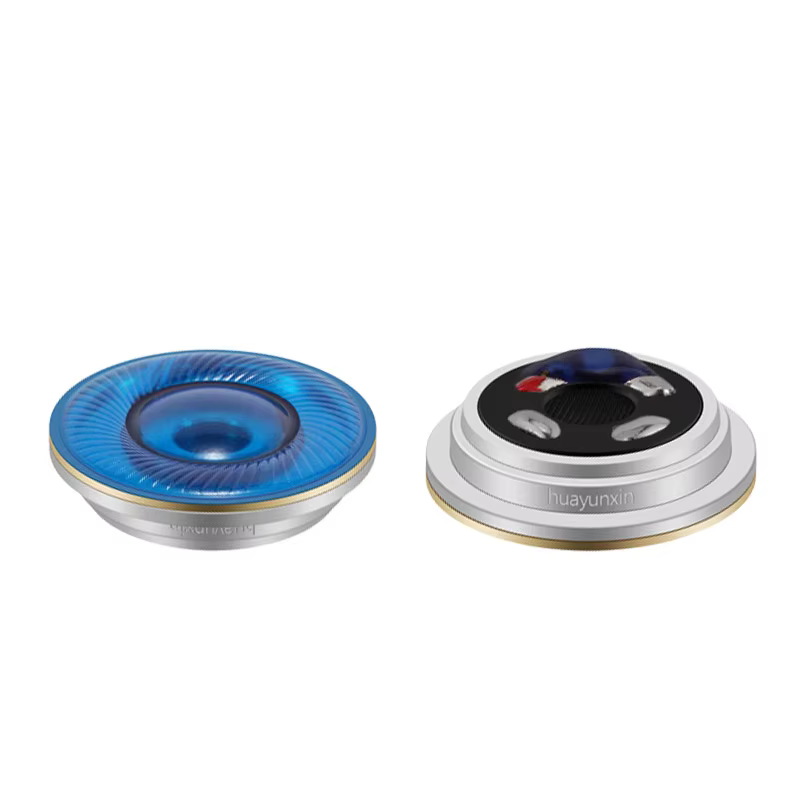

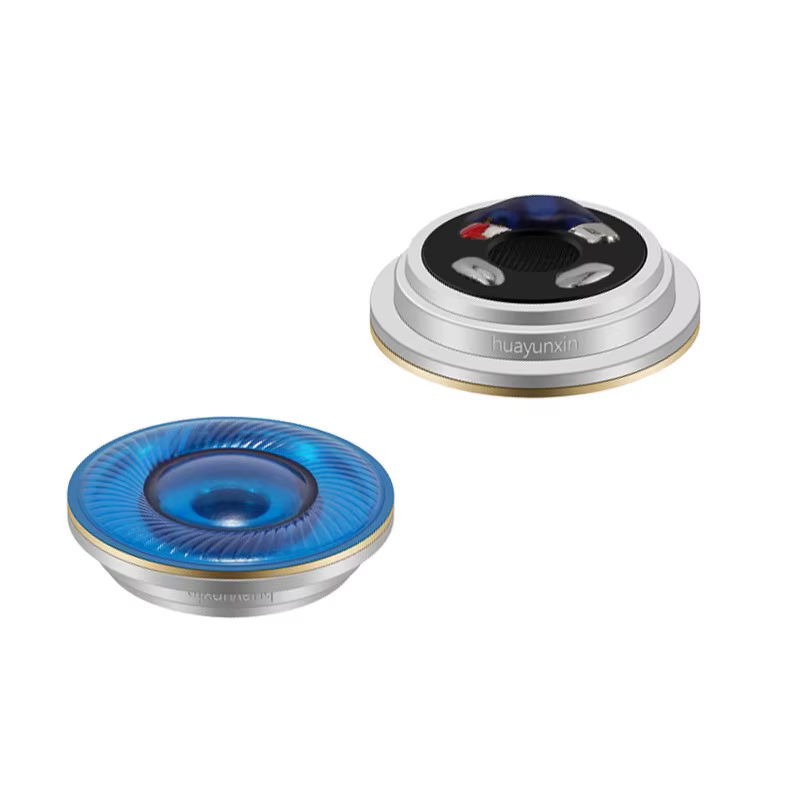

These 14.2mm flat-head dynamic drivers deliver high-fidelity sound for mid to high-end earphones. Equipped with a blue LCP diaphragm, they ensure clear, balanced audio across the full frequency spectrum from 20Hz to 20kHz.
Built with quality materials including PCB, sturdy magnets, and a protective lid inside a metal cabinet, the drivers provide durability alongside performance.
Designed to fit various hybrid HiFi earphones, sports Bluetooth headphones, in-ear monitors (IEM), and semi-in-ear flat-top designs, these drivers are ideal for audio enthusiasts seeking to upgrade or repair their earphone sound quality.
With a sensitivity of 123dB/mW at 1kHz and a resonant frequency covering a wide audible range, these drivers reproduce detailed sound with clarity and minimal distortion.
Their full-range capability means you get rich bass, clear mids, and sparkling highs in one driver setup.

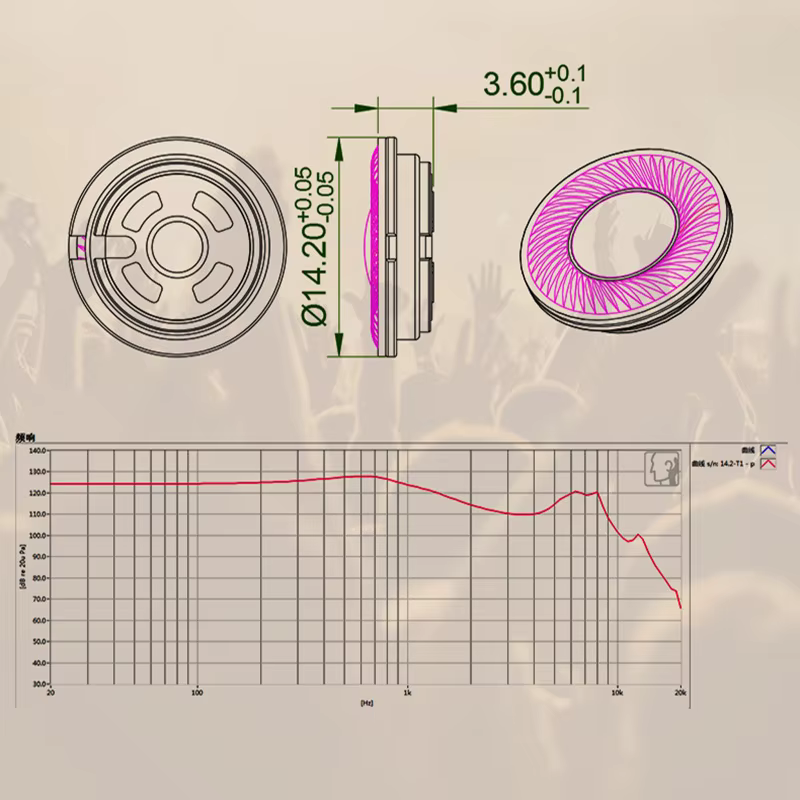

Each driver has a diameter of 14.2mm.
They feature an LCP (liquid crystal polymer) blue diaphragm for sound precision.
The impedance of these drivers is 32 ohms.
They are designed for various hybrid HiFi earphones, sports Bluetooth headphones, IEMs, and semi-in-ear flat-top headphones.
The resonant frequency range spans from 20Hz to 20kHz.
Input power is rated at 10mW per driver.
They are constructed with PCB, magnet, voice coil, diaphragm, and a protective lid inside a metal cabinet.
The package includes 2 dynamic drivers.
Yes, they support full-range audio crossover for complete frequency reproduction.
No power source or battery is required; they operate as passive components in earphones.
I had to see what the difference between the blue and beige options were, in the exact same apple earpods shell the beige ones got less mid bass and more treble than the blue ones. the blue ones are for a more fun tuning and the beige ones are more for a neutral listening experience, though the treble can be a bit much on high volumes whereas the blue ones are a lot more relaxed. minor differences in the end, both are great.
Really good drivers, i made them work in apple earpods and they became a warm set that can go as deep as 20hz.
Replicating my build isn't recommended as a lot can go wrong or get damaged or you really have to know what you're doing, really pleased with this end result however.
Huayunxin has yet to disappoint with their drivers!
