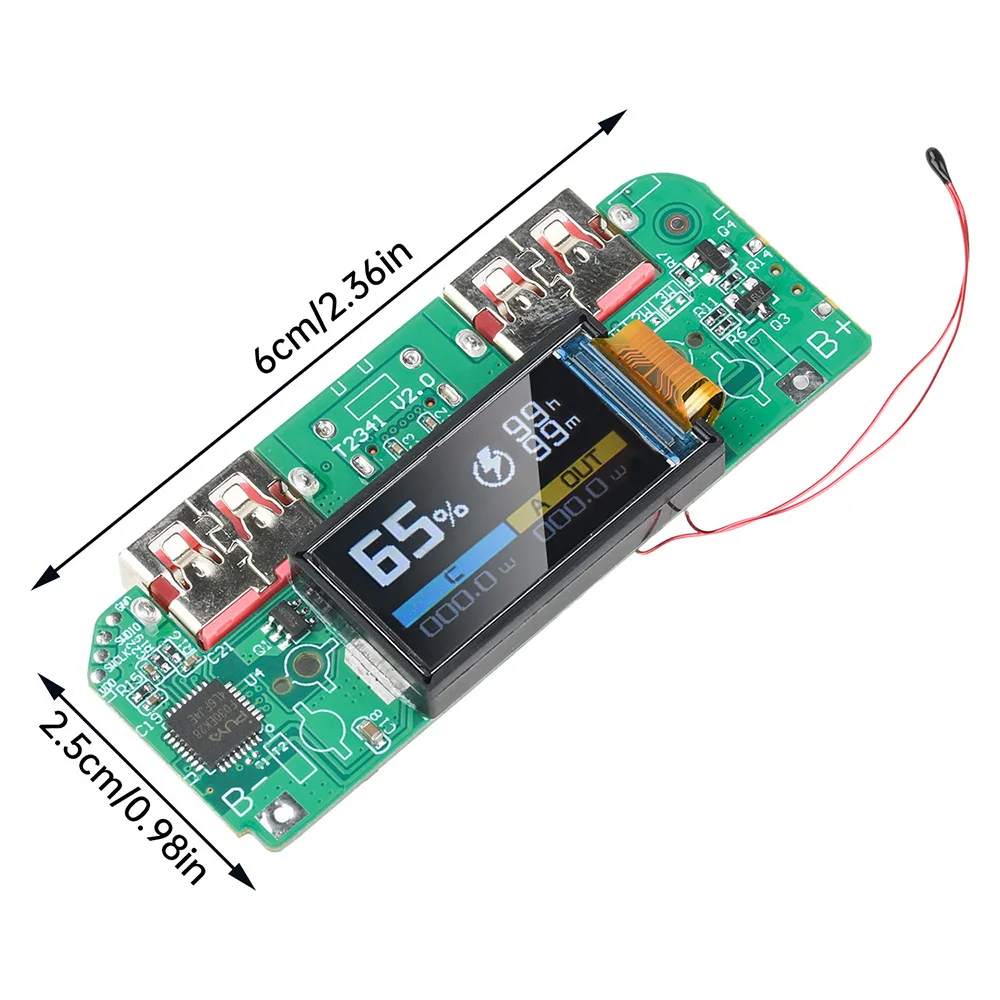

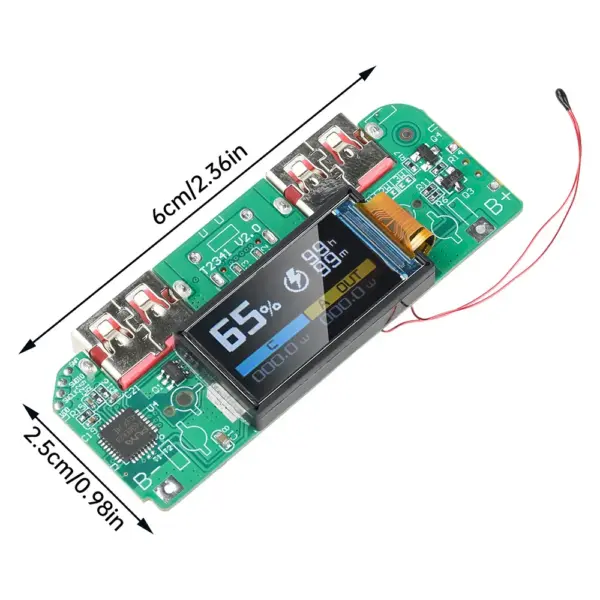

22.5W Mobile Power Motherboard with Bidirectional Fast Charging
Multi-protocol fast charging module with 22.5W output power, featuring intelligent protection and TFT screen display for battery power, voltage, and temperature monitoring.
99982 in stock
Efficient Fast Charging Module
This mobile power motherboard supports 22.5W bidirectional fast charging with input/output parameters up to 5V3A/9V2A/12V1.5A and 10V2.25A for compatible devices.

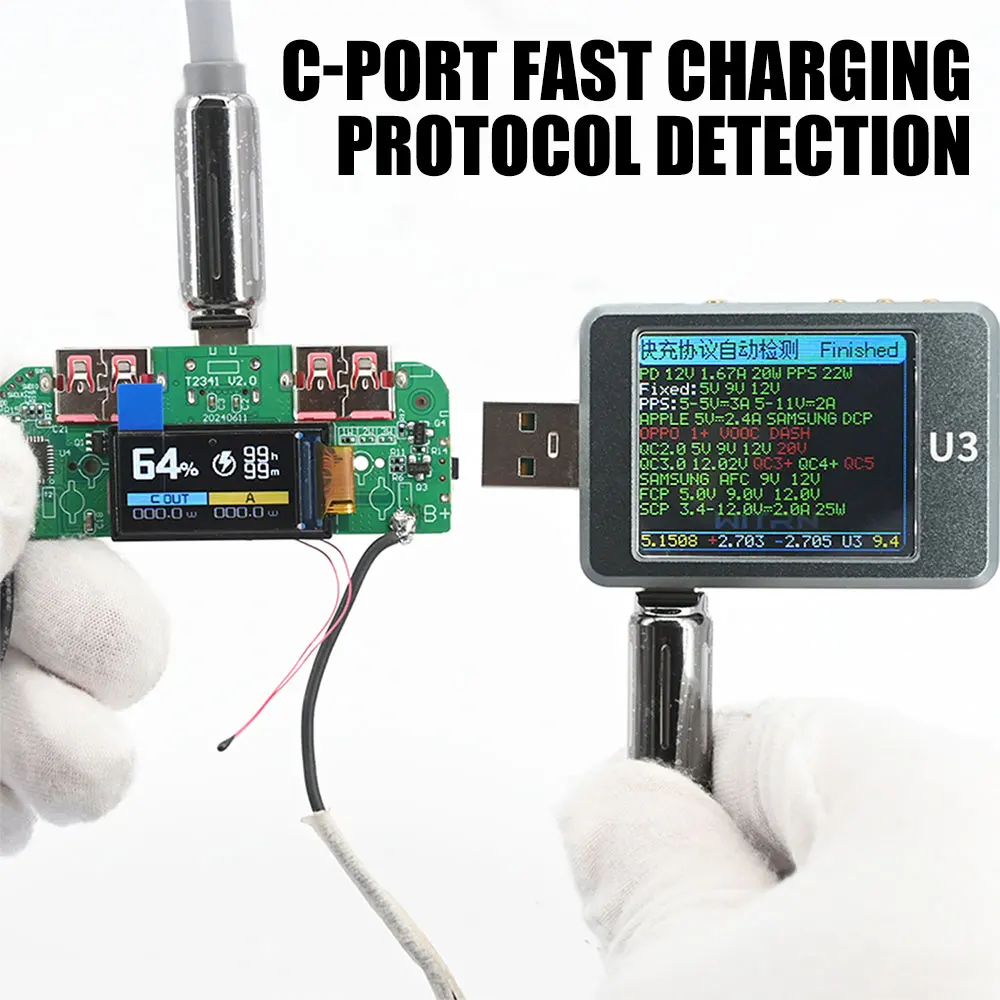

Compatible with multiple fast charging protocols including PD, QC, APPLE, FCP, SCP, and VOOC, it adapts to a wide range of devices for universal fast charging.
Comprehensive Safety Protections
It features quadruple intelligent protections against overcharging, over-discharging, over-voltage, and overheating, ensuring safe operation and protecting your battery and devices.
- Integrated protection avoids the need for external protection boards.
- Stable current and high conversion rate for reliable performance.
Clear TFT Color Display
Equipped with a TFT color screen, this motherboard displays real-time information including power level, voltage, and temperature.
The display supports intelligent self-learning to accurately show remaining battery power after initial use.
Space-Saving Design

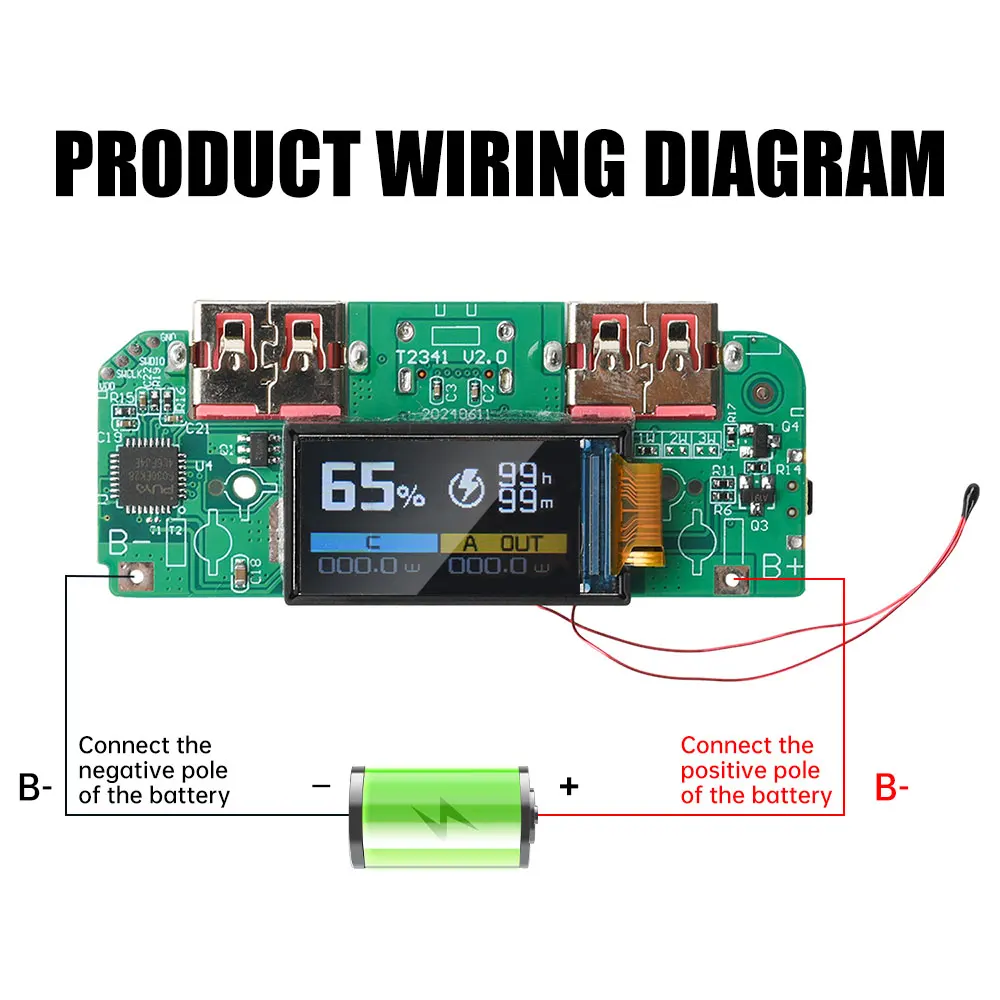

Protection functions are integrated directly on the main board allowing batteries to be welded directly, simplifying assembly and conserving space.
Designed for use with 3.7V ternary lithium batteries; lithium iron phosphate batteries are not supported due to voltage constraints.
Key Specifications
- Input: 5V3A / 9V2A / 12V1.5A
- Output: 5V3A / 9V2A / 12V1.5A / 10V2.25A
- Interfaces: 1 Type-C (charging and output), 2 USB fast charging output ports
- Protocols Supported: PD, QC, APPLE, FCP, SCP, VOOC
- Power: 22.5W super fast charging
Package Contents

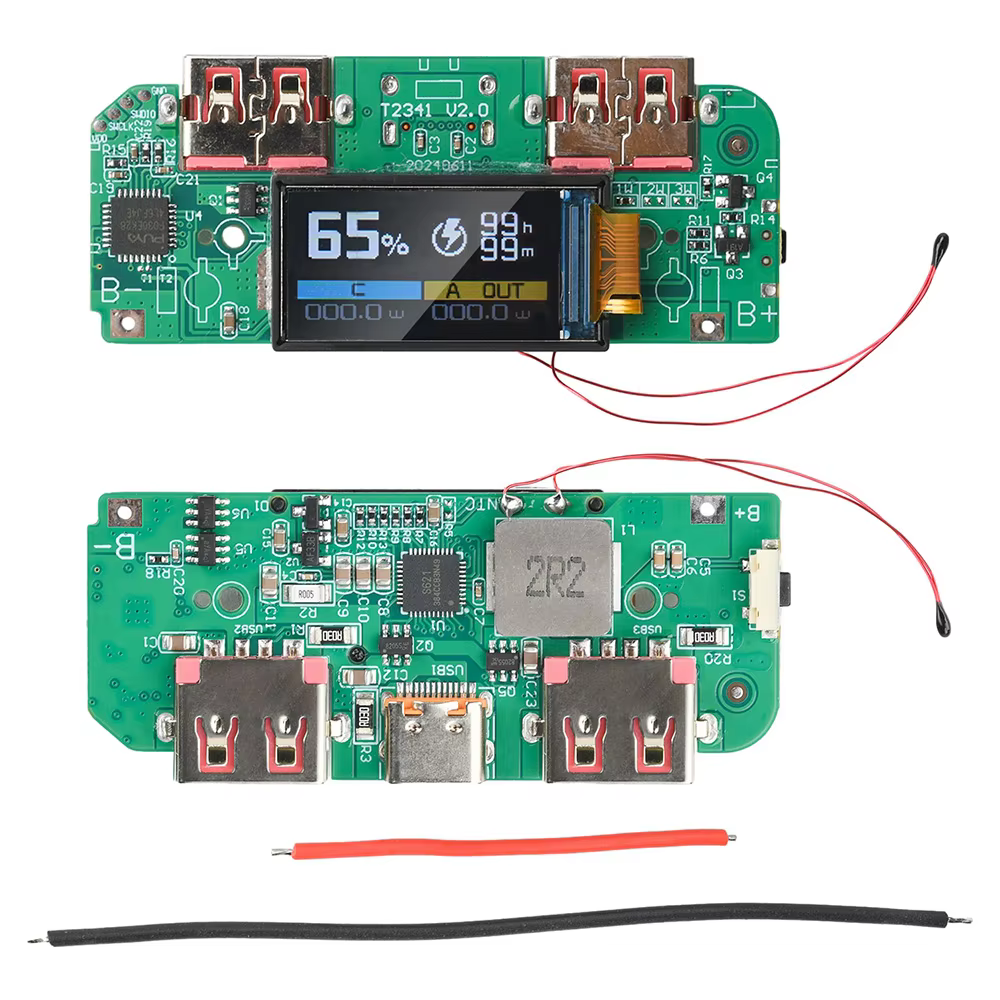

- 1x Fast charging module motherboard
- 2x Wiring cables
