1U Rack Mini PC Q10900H6 N100/i3-N305 10G & 2.5G LAN

Experience powerful networking with the Qotom Q10900H6 Series 1U Rack Mini PC, designed for commercial use and optimized for rack mounting. Featuring Intel Alder Lake-N processors—choose between the efficient Quad Core N100 up to 3.4GHz or the robust 8-Core i3-N305 up to 3.8GHz—this mini desktop delivers reliable performance with low power consumption (TDP 6–15W).

• Memory & Storage: Supports up to 16GB DDR5 via 1 SO-DIMM socket and 1 M.2 NVMe SSD slot (2280, PCIe 3.0 x1), with 1TB hard drive capacity.
• Networking: Equipped with 2 x Marvell AQC113 10 Gigabit LAN ports and 4 x Intel I226-V 2.5 Gigabit LAN ports for high-density network connectivity without extra switches.

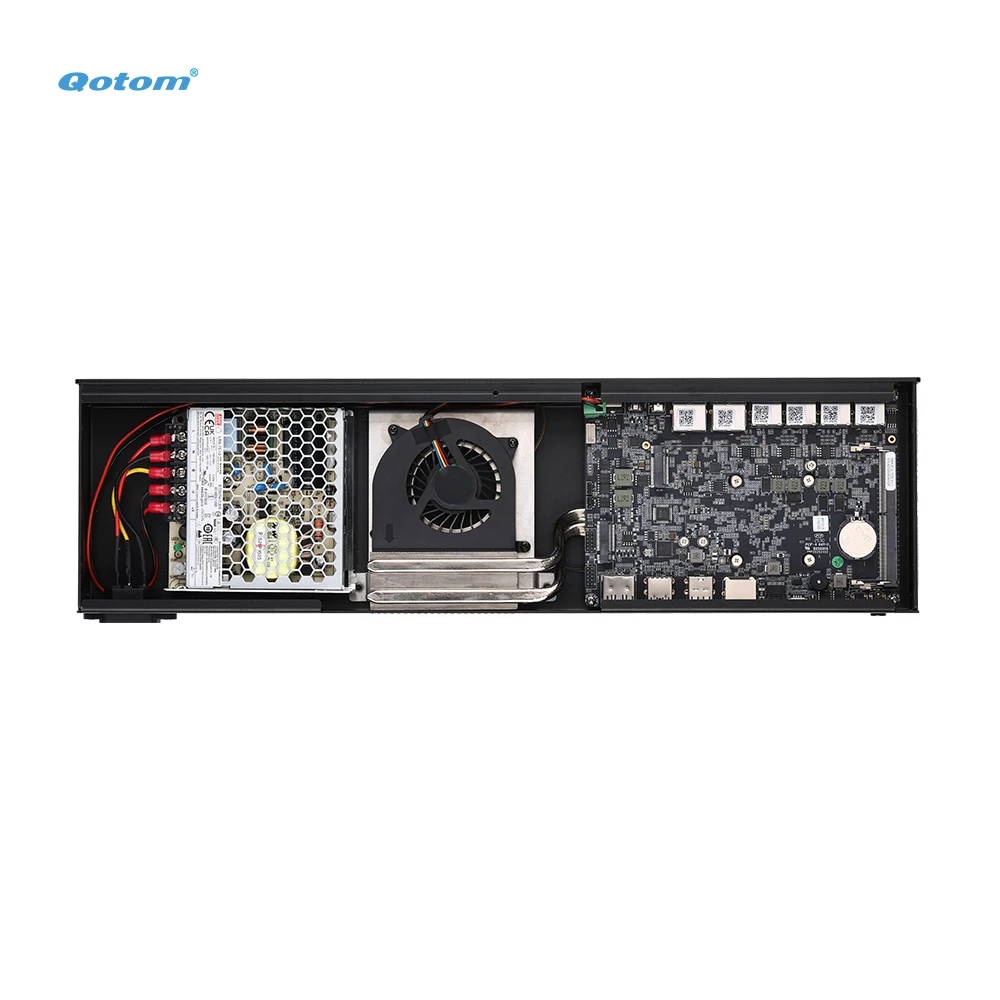

• Cooling & Build: Fan-assisted cooling in a compact 440 x 127 x 44mm aluminum alloy chassis ensures stable, quiet 24/7 operation in standard 1U rack spaces.
• Compatibility: Supports Windows-based and Linux-based OS like UEFI Windows 10, UEFI Linux, and OpenWrt. Note: No support for Unix-based OS such as pfSense or OPNsense due to LAN driver limitations.

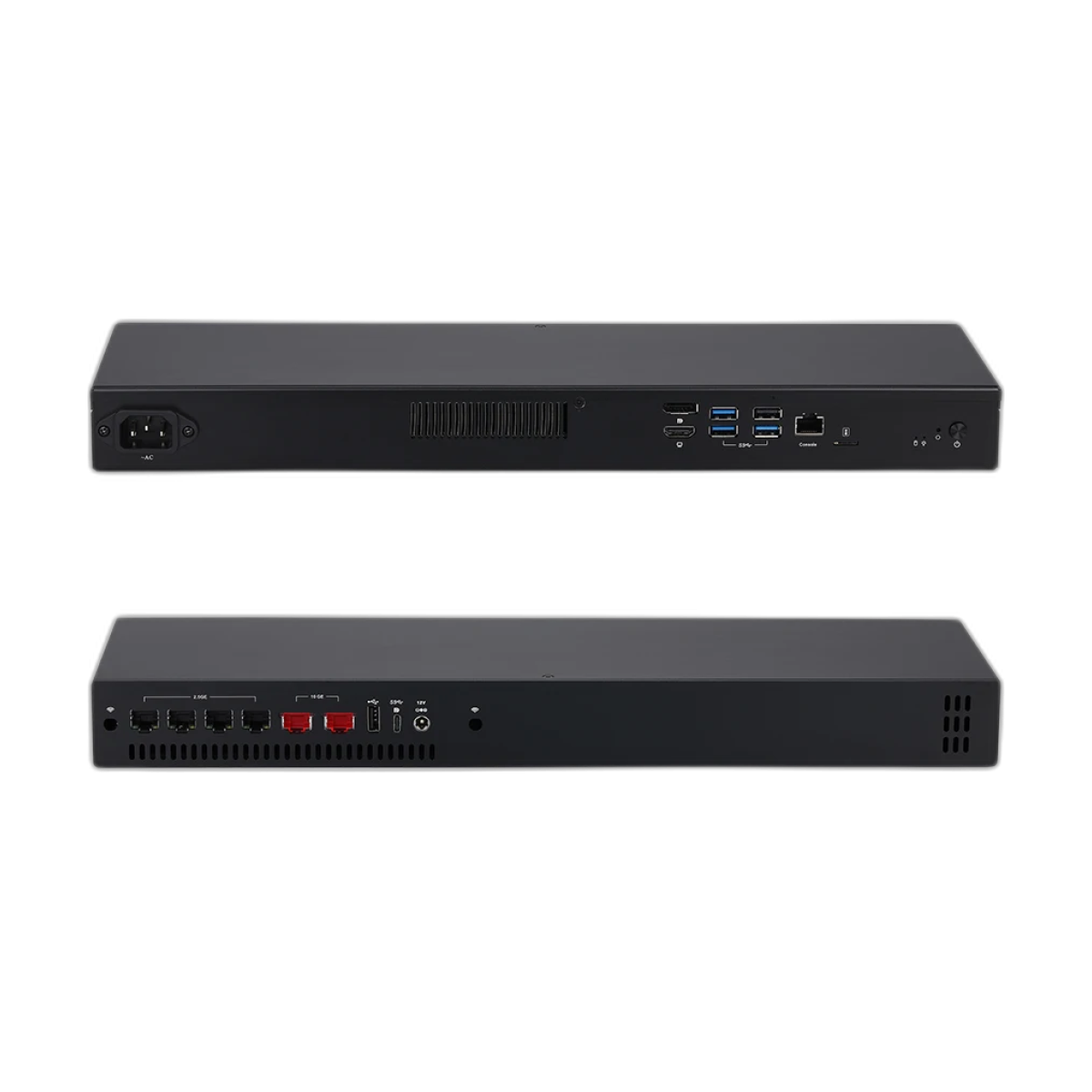

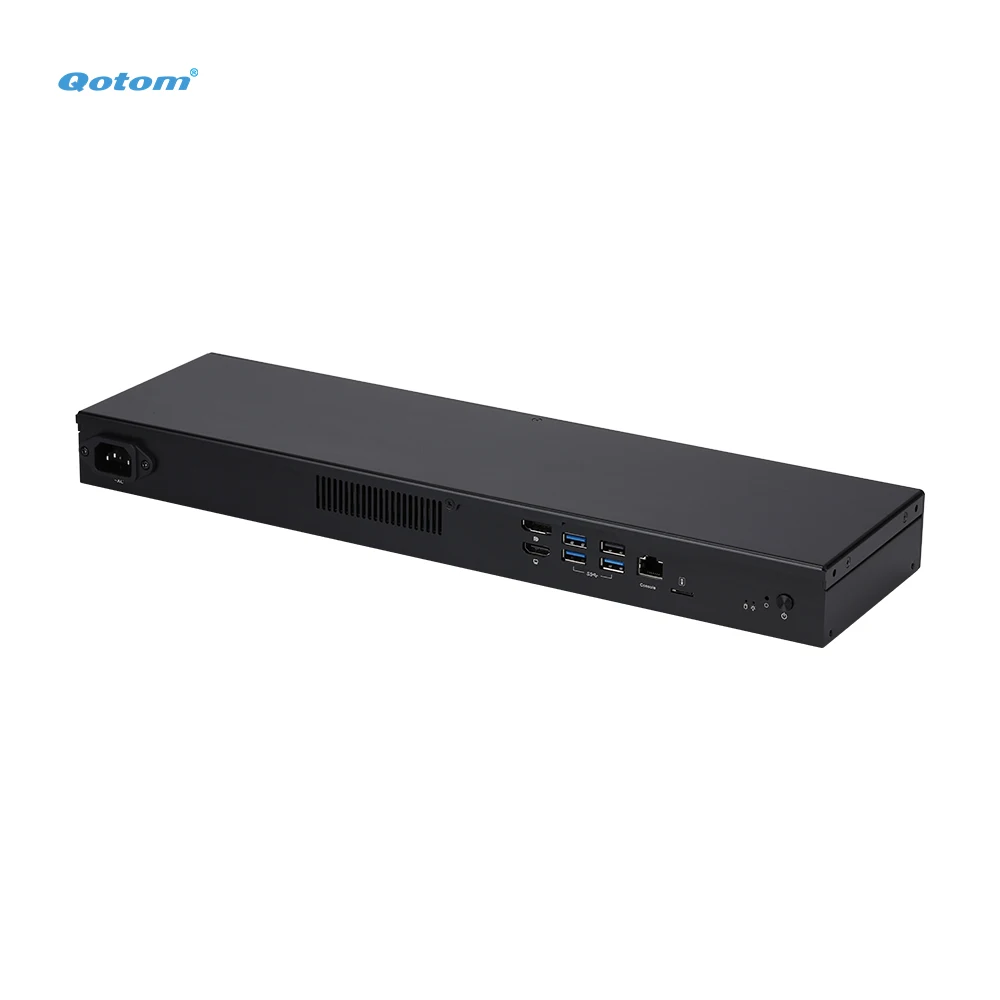

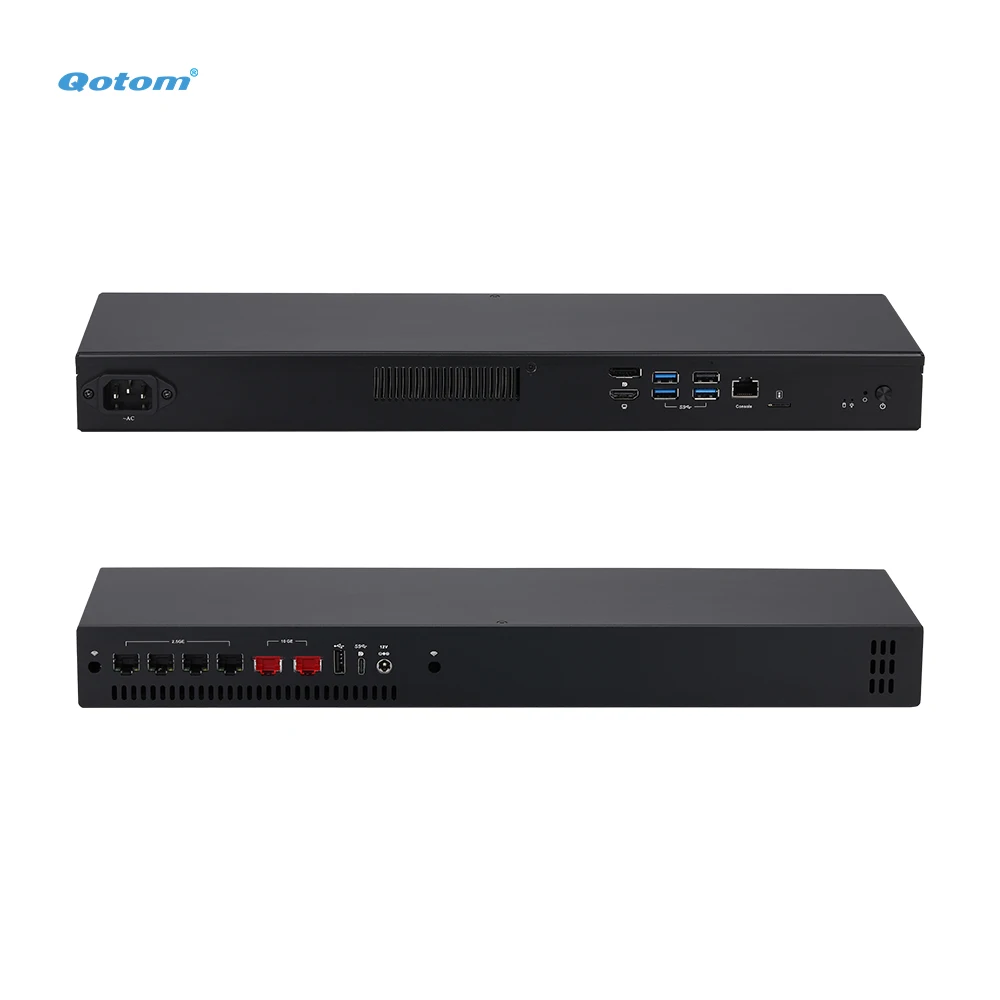

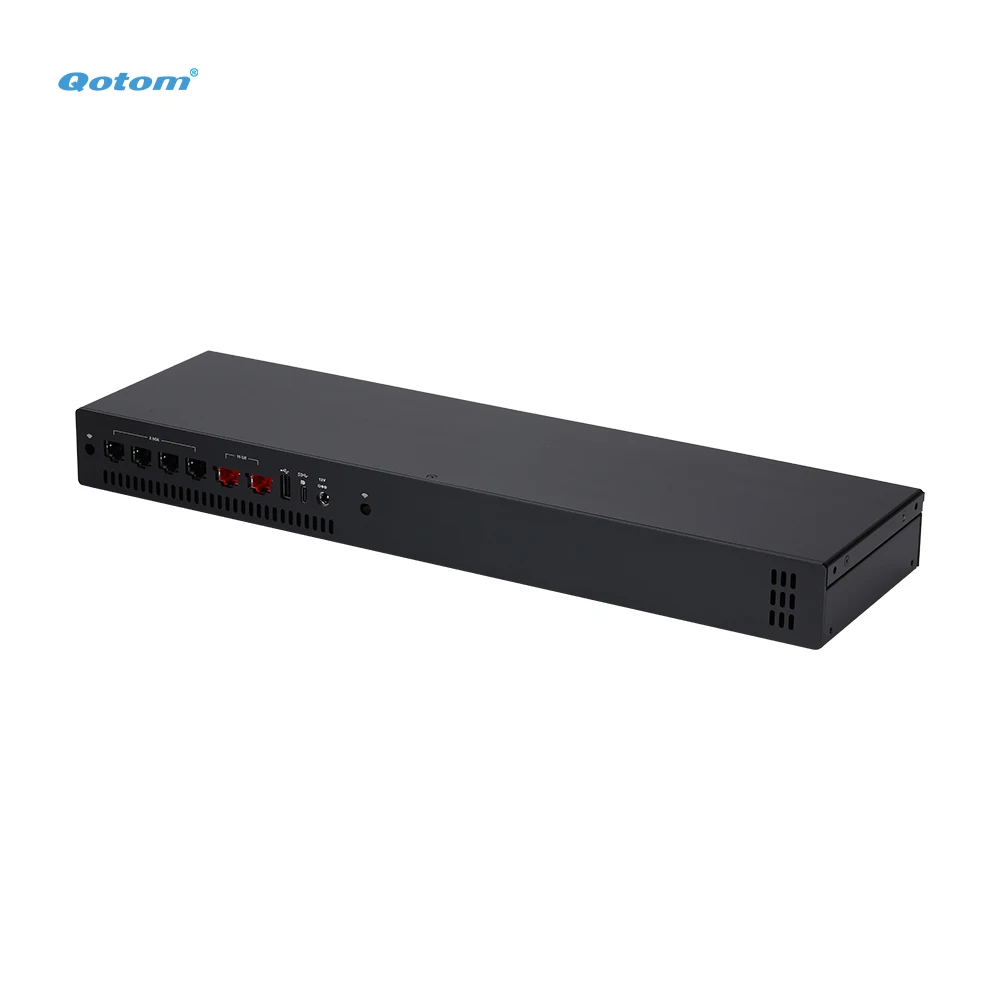

• Connectivity: Front I/O includes power/reset buttons, LEDs, Nano SIM slot, RS-232 serial port, HDMI, DisplayPort, and USB ports. Rear includes DC jack, USB, Type-C, and multiple LAN ports.
• Expansion: Additional M.2 slot for 4G/5G modules, SIM card slot, and jumper options for AutoStart and CMOS clear.

Ideal for use as a mini PC, firewall, router, VPN appliance, or mini server in home labs, SOHO, or edge data centers. Comes with 12 months warranty and multiple power plug options.
