10mm Ultra-Thin 8Ohm Mini Loudspeaker for Audio DIY
Price range: $6.20 through $7.27
Pay now, in 4 interest-free payments of $1.55, or over 3β6 months
4 interest-free payments of $1.55
Compact 10mm diameter speaker featuring 8Ξ© impedance and power ratings from 0.5W up to 1W. Ideal for mobile phone repair, voice recorders, toys, and smart home devices.
β
Estimated Delivery Time3β7 business days
Compact design with broad usage

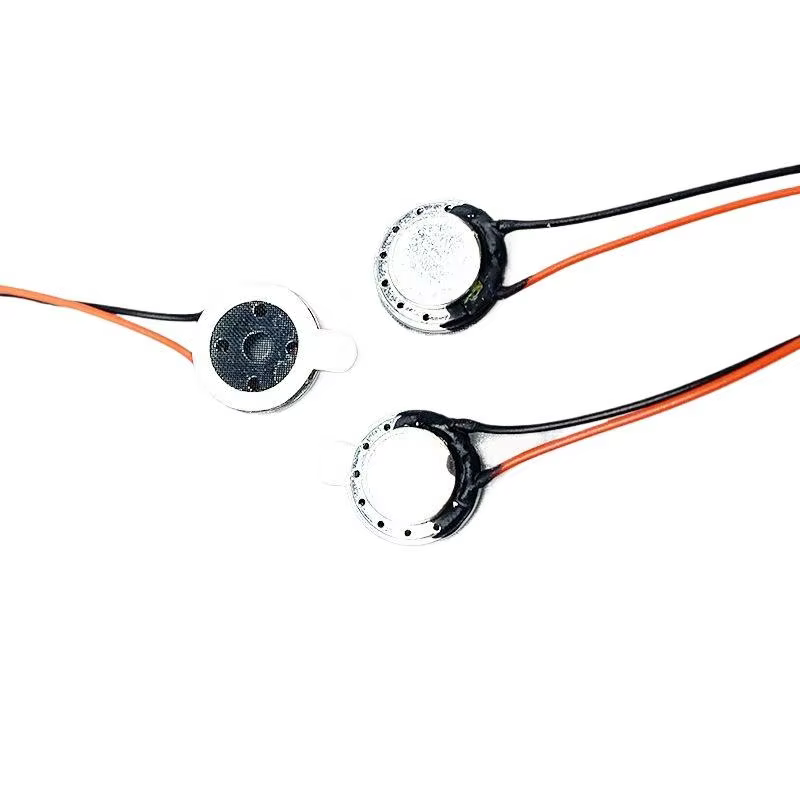

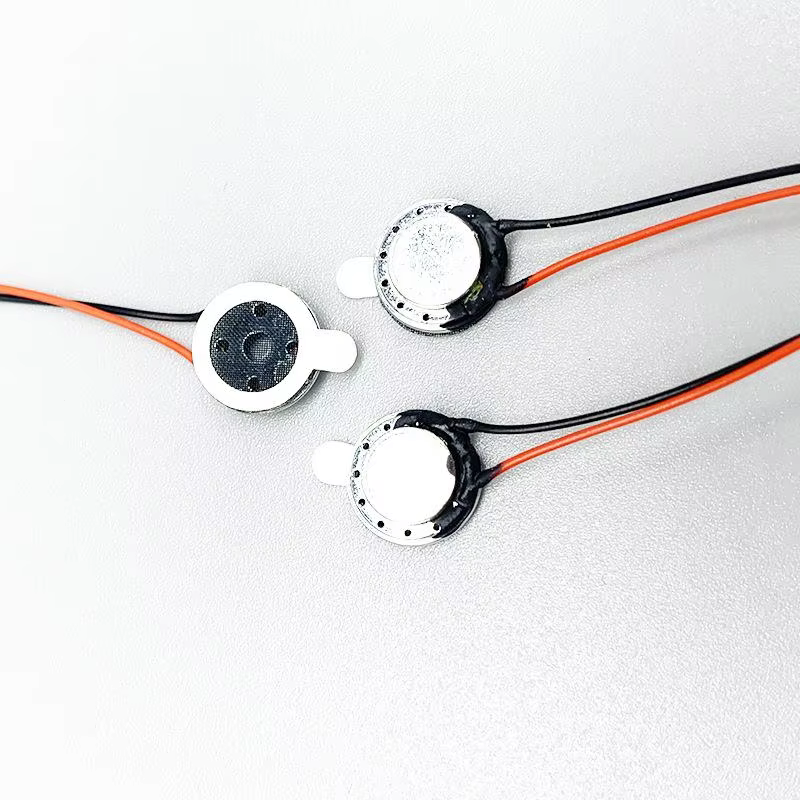

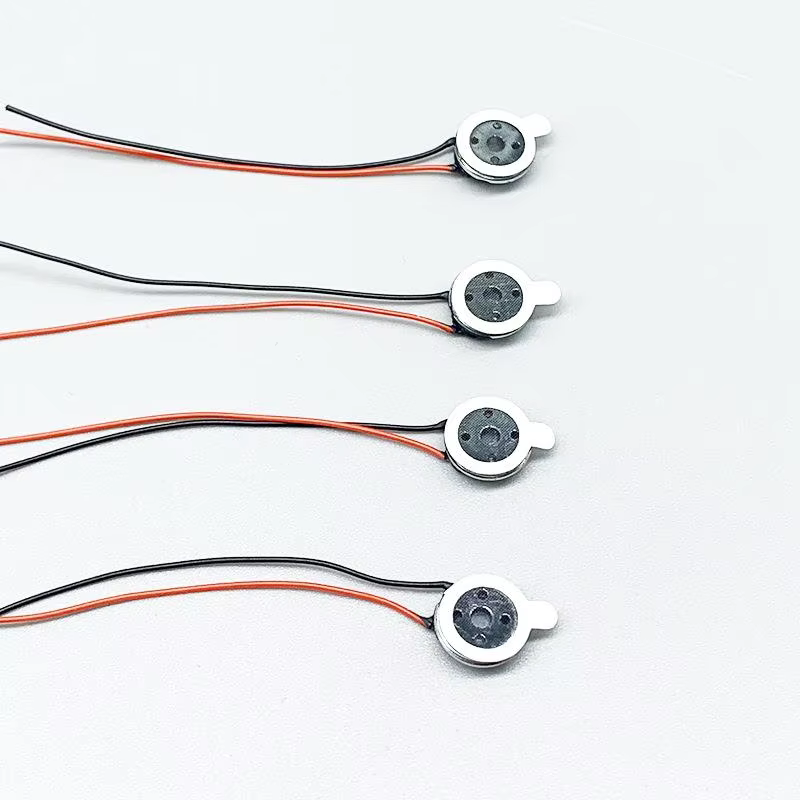

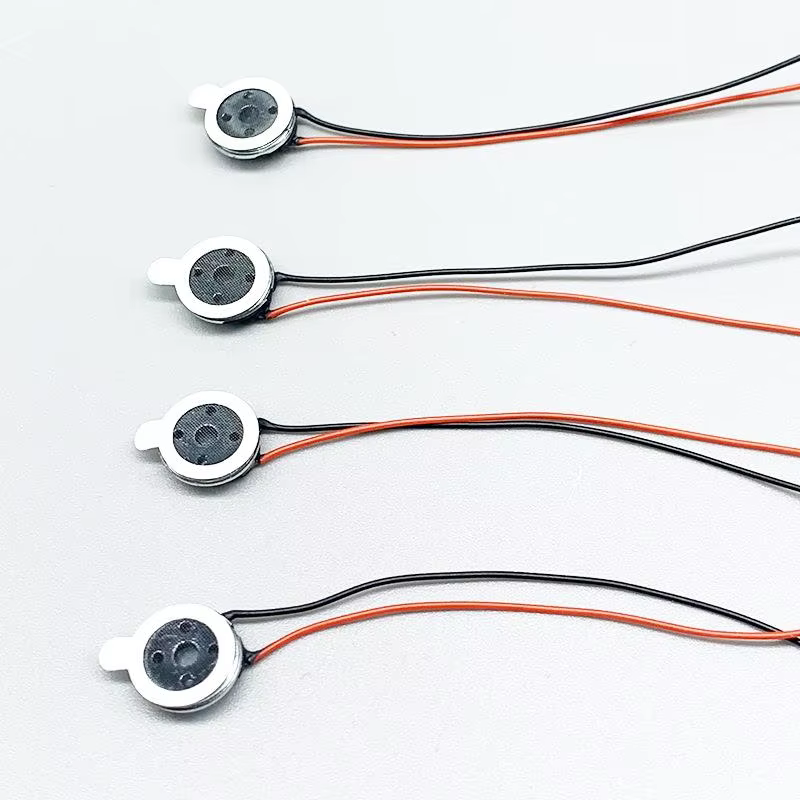

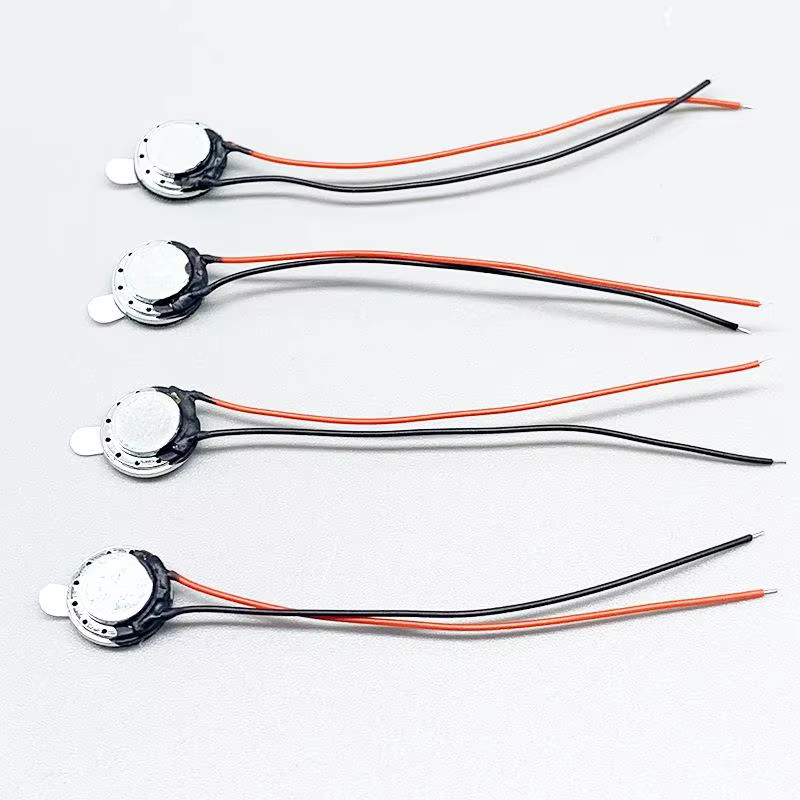

This 10mm diameter mini loudspeaker offers an ultra-thin profile measuring just 3.5mm thick, ideal for space-limited applications. Its round design makes it versatile for various audio DIY projects such as mobile phone repair, voice recorders, translation devices, robotic vacuum cleaners, toys, and smart home devices.
Reliable audio performance
Designed with an 8 ohm impedance and rated power of 0.5W (maximum 1W), this mini loudspeaker delivers clear sound across a frequency range of 500β6000 Hz. Its non-paper diaphragm provides consistent audio output suitable for voice and alerts in small electronics.
Durable build and materials
Encased in plastic housing, the speaker combines durability with lightweight construction. The absence of waterproof certification suggests use in protected indoor environments or devices with additional enclosure.
Key specifications
- Diameter: 10mm
- Thickness: 3.5mm
- Rated impedance: 8Ξ©
- Rated power: 0.5W
- Maximum power: 1W
- Frequency range: 500β6000 Hz
- Diaphragm material: Non-paper
What's in the box
- Mini loudspeaker(s) 10mm diameter
Product FAQ
Frequently asked questions
01 What is the diameter of this mini loudspeaker?
The loudspeaker has a diameter of 10mm.
02 What is the rated impedance of the speaker?
The speaker features a rated impedance of 8 ohms.
03 What power ratings does this speaker support?
It supports a rated power of 0.5 watts and a maximum power of 1 watt.
04 What is the frequency response range of the speaker?
The frequency range is from 500 Hz to 6000 Hz.
05 What materials are used for the diaphragm?
The diaphragm is made from a non-paper material.
06 Is the speaker suitable for mobile phone repair?
Yes, it is designed for mobile phone repair and audio DIY projects.
07 Can this speaker be used in toys or smart home appliances?
Yes, it is suitable for toys, voice recorders, robotic vacuum cleaners, and smart voice-enabled home appliances.
08 What are the physical dimensions of the speaker?
The speaker measures approximately 10mm in diameter and 3.5mm in thickness.
09 Is the loudspeaker waterproof?
The supplier data does not specify waterproof capabilities, so it should be considered non-waterproof.
10 How many pieces can be purchased in one pack?

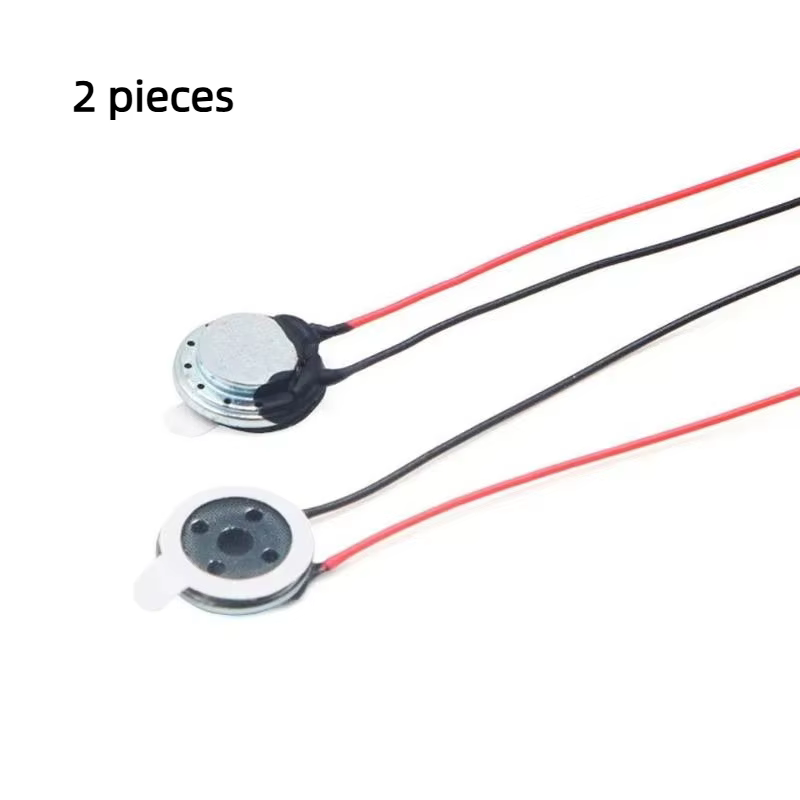

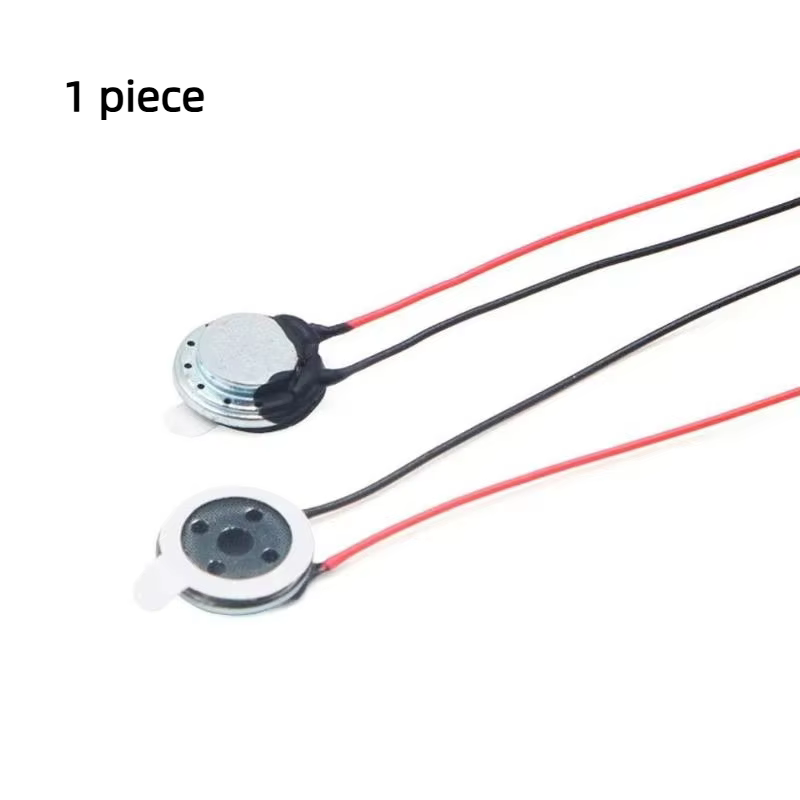

The speaker is available in packs of 1, 5, or 10 pieces.
