0.96 Inch 128×64 OLED Display with SSD1306 or SSD1315
Price range: $4.25 through $4.84
Pay now, in 4 interest-free payments of $1.06, or over 3β6 months
4 interest-free payments of $1.06
Compact 0.96-inch OLED display featuring 128x64 resolution and selectable SSD1306 or SSD1315 control chips for versatile use.
- Multiple interface types: SPI, IIC, and 8-bit parallel.
- Available in white, blue, or yellow-blue dual color.
β
Estimated Delivery Time3β7 business days
Compact OLED Display with Flexible Driver Options

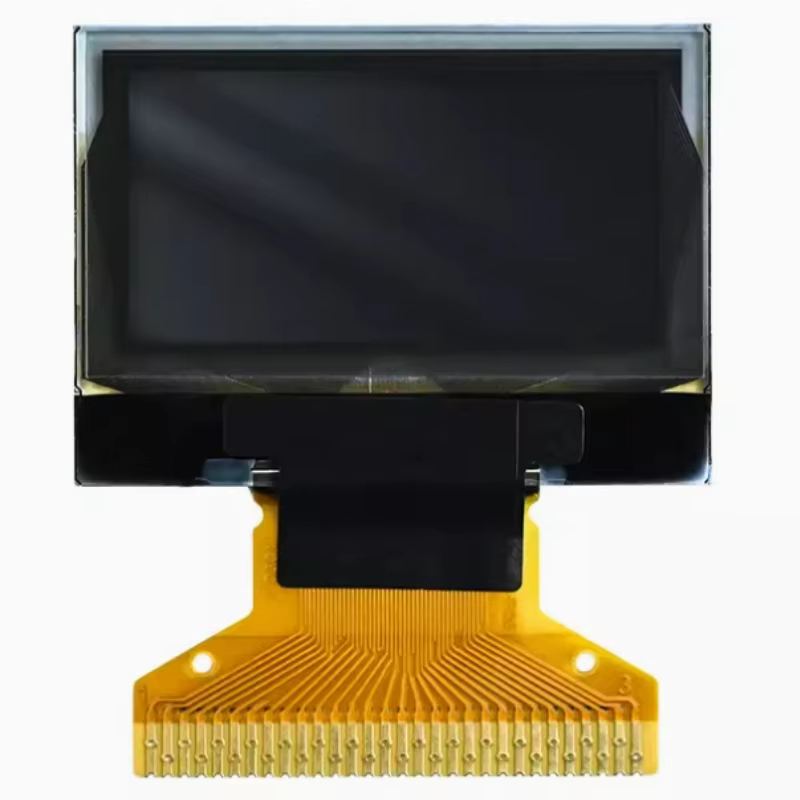

This 0.96-inch OLED screen offers a crisp 128Γ64 pixel resolution in a compact form factor. Choose between the SSD1306 or SSD1315 control chips, both compatible for easy integration.
The SSD1315 controller is a more recent design offering cost advantages, while the SSD1306 is a mature, reliable option.
Color and Interface Versatility

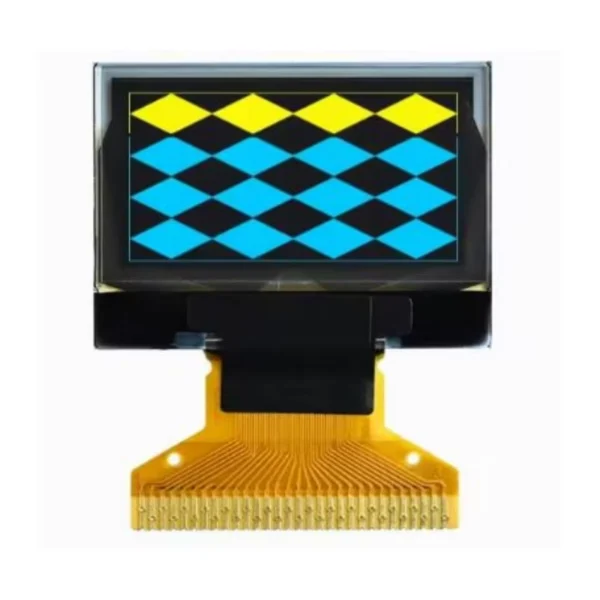

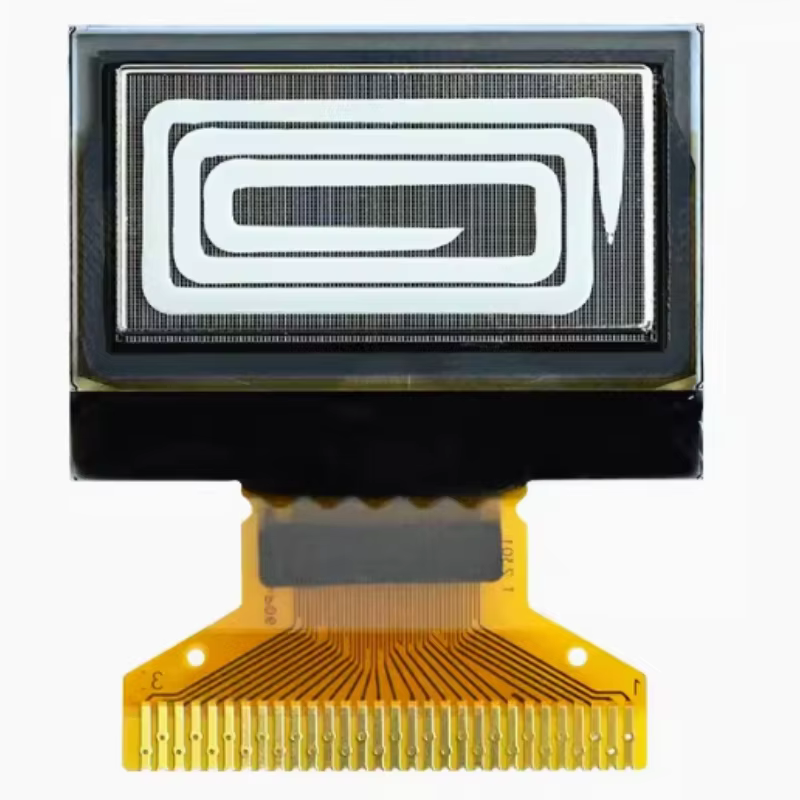

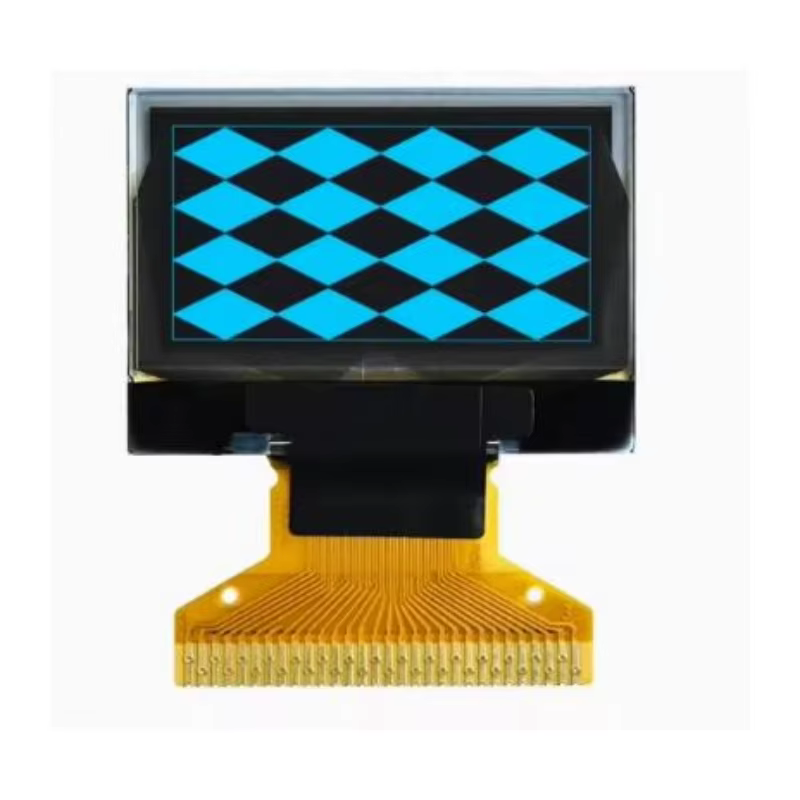

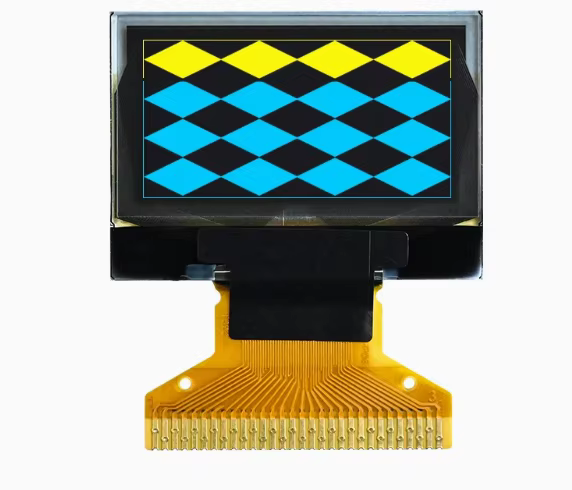

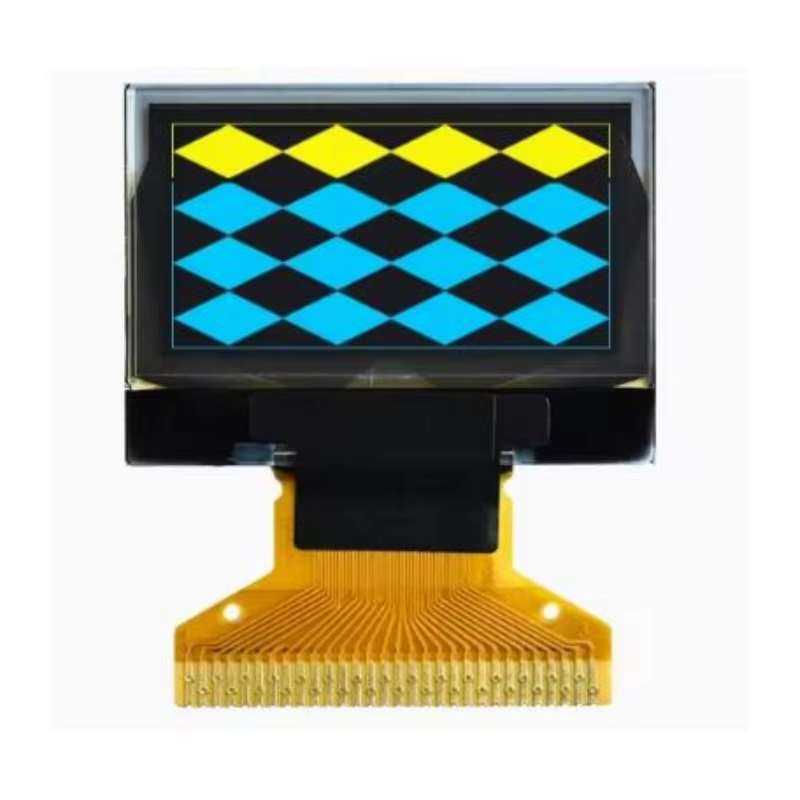

Multiple color configurations are available, including bright white, blue, and yellow-blue dual color displays, allowing tailored visual effects.
The display supports SPI, IIC, and 8-bit parallel interfaces, ensuring broad compatibility with various MCU platforms.
Precise Design and Dimensions

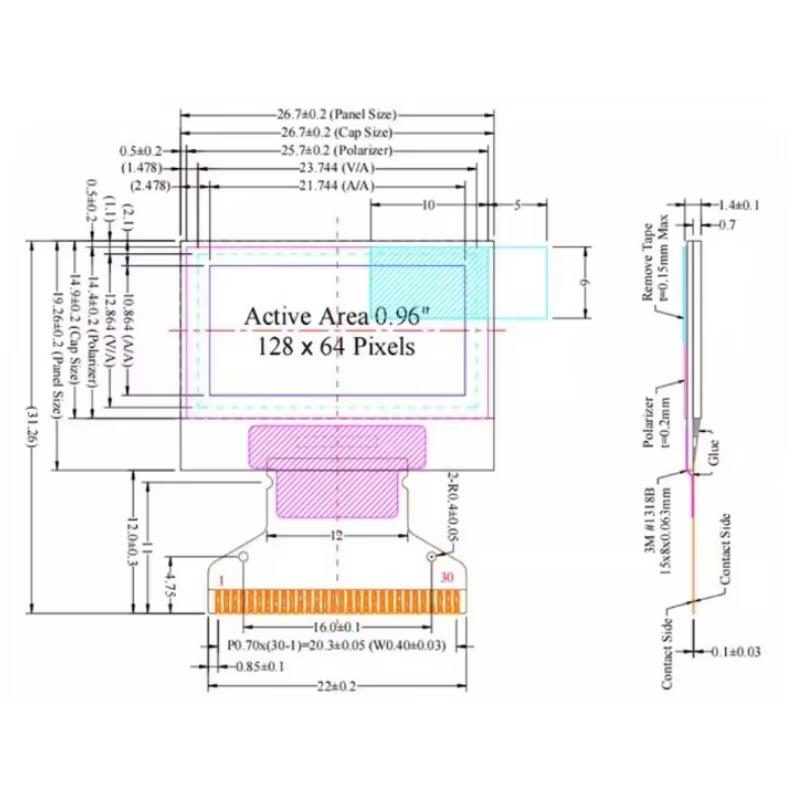

The OLED panel measures 26.70 x 19.26 x 1.4 mm, with a 21.744 x 10.864 mm active display area, suitable for compact embedded designs.
Featuring a 30-pin, 0.7 mm welded connector and a 12 mm cable length, the display is designed for straightforward hardware integration.
Wide Operating Temperature and Viewing Angle
Operates reliably across a temperature range of -40Β°C to 70Β°C, suitable for diverse environments.
The screen offers a full viewing angle to maintain readability from various perspectives.
Key Specifications
- Display size: 0.96 inch
- Resolution: 128 x 64 pixels
- Driver: SSD1306 or SSD1315
- Colors: White, Blue, Yellow-Blue dual
- Interface: SPI, IIC, 8-bit parallel
- Panel size: 26.7 x 19.26 x 1.4 mm
- Active area: 21.744 x 10.864 mm
- Pin count: 30-pin (0.7 mm)
- Operating temp: -40 to 70 Β°C
What's in the box
- 0.96 inch OLED Display Module with selected SSD1306 or SSD1315 driver chip
Product FAQ
Frequently asked questions
01 What driver chips are available for this OLED display?
The display supports two compatible driver chips: SSD1306 and SSD1315, selectable based on your needs.
02 What color options are offered for the display?
Display colors include white, blue, and a yellow-blue dual color option.
03 What is the screen resolution of this OLED display?
The screen resolution is 128 by 64 pixels.
04 Which interface types does this OLED screen support?
It supports SPI, IIC, and 8-bit parallel port interfaces.
05 What are the physical dimensions of the display panel?
The panel measures 26.70 mm by 19.26 mm by 1.4 mm.
06 How many pins does the display connector have?
It has a 30-pin connector with 0.7mm welded pins.
07 What is the active display area size?
The active display area is 21.744 mm by 10.864 mm.
08 What is the working temperature range for this display?
It operates reliably within a temperature range of -40Β°C to 70Β°C.
09 What is the pixel pitch and pixel size?
Pixel spacing is 0.17 mm by 0.17 mm, and each pixel measures 0.154 mm by 0.154 mm.
10 Are the SSD1306 and SSD1315 driver chips interchangeable?
Yes, they are basically compatible, allowing replacement in most use cases.
Discussion
3.9
Based on 7 reviews
Good
Foarte mici
Foarte mici
Although these are 30 pins flexprint connector sized they are not usable for dreambox dm800hdse satellite receivers to replace its color oled screens because those have smaller 30 pins flex pcb connectors. and sadly are not identical to these only 2 color oled also 0.96 inch displays.
