| Product No. |
SST-HA1200R-PM |
| Model (Safety Certification) |
SST-AX1200MCPT-A |
| Color |
Black (lead-free paint) |
| Max. DC Output |
1200W |
| Power Density |
620W per liter |
| Load Range Outputs |
+3.3V, +5V, +12V, +5VSB, -12V |
| Max. Amps |
22A (3.3V, 5V), 100A (12V), 2.5A (5VSB), 0.3A (-12V) |
| Voltage Range (%) |
±3% (3.3V, 5V), +5/-7% (12V), ±5% (5VSB), ±5% (-12V) |
| Line Regulation |
±1% |
| Ripple (mVp-p) |
30-70mV |
| Combined Power |
+3.3V & +5V: 120W; +12V: 1200W |
| Input Voltage/Frequency |
90 ~ 264 Vrms / 47Hz ~ 63Hz |
| PFC |
Active PFC (PF>0.9 at full load) |
| Efficiency |
≥87% & <89% overall efficiency |
| MTBF |
100,000 hours |
| Operating Temperature |
0°C ~ 50°C |
| Protection |
Multiple types including over current, power, etc. |

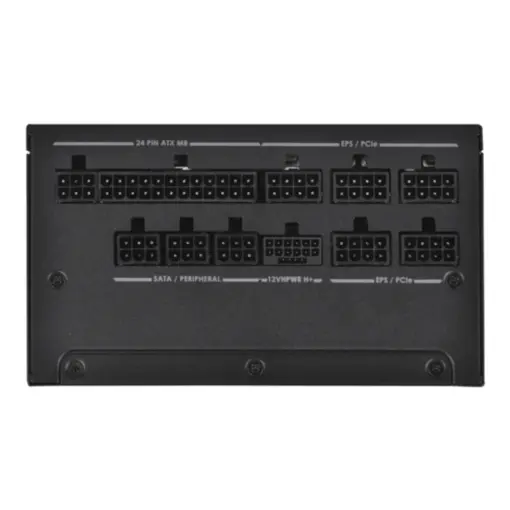

| Connectors |
Various types including motherboard, PCIe, SATA |
| Cooling System |

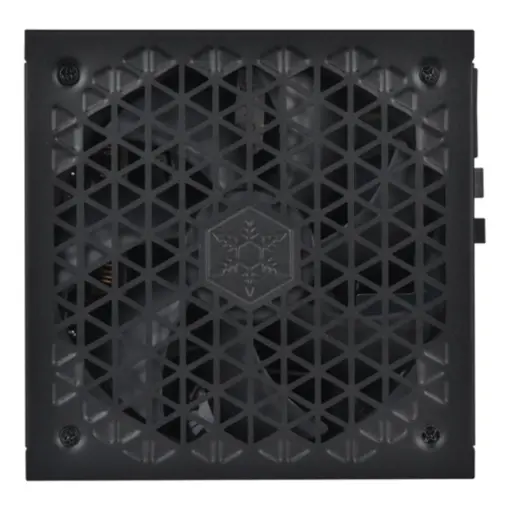

Silent 135mm FDB fan |
| Noise Level |
0 dBA minimum |
| Certification |
Cybenetics Platinum |
| Form Factor |
ATX (PS2) |
| Dimension |
150mm (W) × 86mm (H) × 150mm (D) |
| Weight |
2.9 kg |
