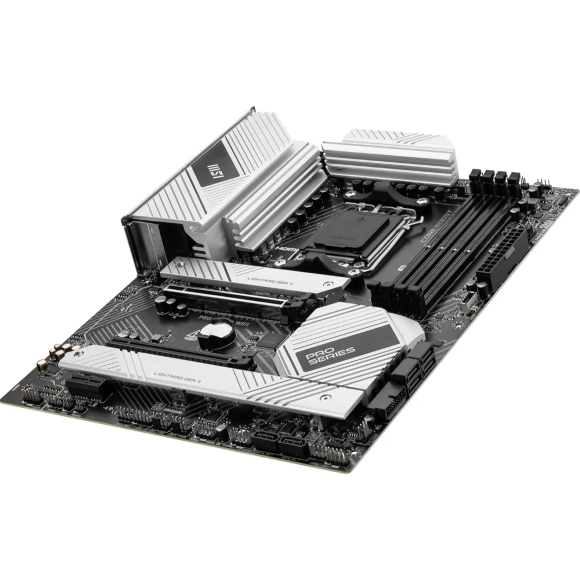

MSI PRO B650-A WIFI AM5 DDR5 AMD Ryzen ATX Motherboard

  • CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
  • Bios update MAY required when used with 9000 Series processor
  • Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology
  • Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
  • Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps
  • Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed
  • M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • 2.5G Network Solution
  • Memory Boost

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

 82,500

SKU: B650-A WIFI

Payment Methods:

Description

MSI PRO B650-A WIFI AM5 DDR5 AMD Ryzen ATX Motherboard Price in Pakistan

Best Seller Ranking #95 in AMD Motherboards
Model
Brand MSI
Model PRO B650-A WIFI
Supported CPU
CPU Socket Type  AM5
CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
Chipsets
Chipset  AMD B650
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 4800
Maximum Memory Supported 256GB
Channel Supported  Dual Channel
ECC Supported Non-ECC
Buffer Supported Un-buffered
Memory Feature Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
– 1DPC 1R Max speed up to 7200+ MHz
– 1DPC 2R Max speed up to 6000+ MHz
– 2DPC 1R Max speed up to 6000+ MHz
– 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

Expansion Slots
PCI Express 4.0 x16 PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI Express x4 PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1 PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
SATA RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 8125BG
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
Bluetooth Bluetooth 5.3
Rear Panel Ports
Back I/O Ports 4 x USB 3.2 Gen 2 10Gbps (Type-A)
4 x USB 3.2 Gen 1 5Gbps (Type-A)
1 x 2.5G LAN
2 x Wi-Fi / Bluetooth
3 x Audio connectors
1 x Flash BIOS Button
1 x DisplayPort
1 x HDMI
Internal I/O Connectors
Onboard USB 4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Other Connectors 1 x CPU Fan
1 x Pump Fan
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
2 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6″ x 9.6″
Power Pin 1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
Software Feature
Windows 11 Support for Windows 11 64-bit, Windows 10 64-bit
