SKU: MAG X870E CARBON WIFI Category: Motherboards

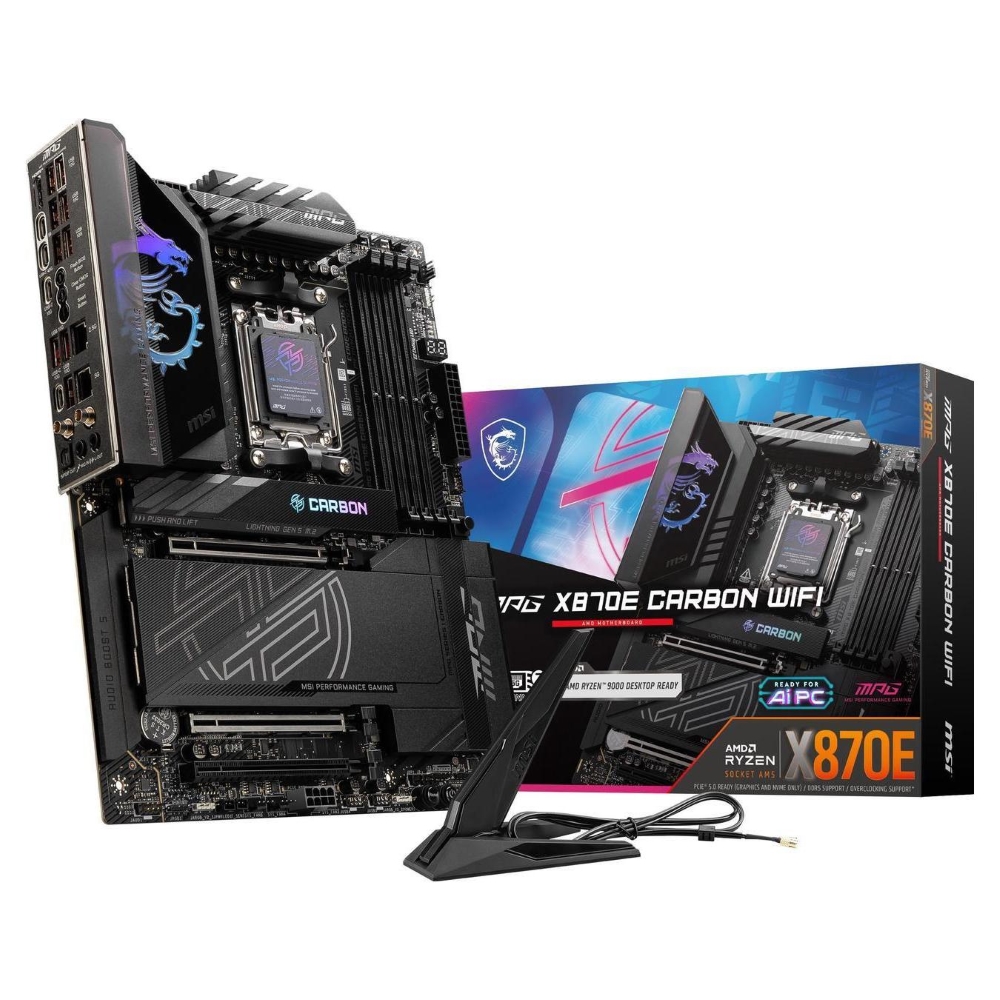

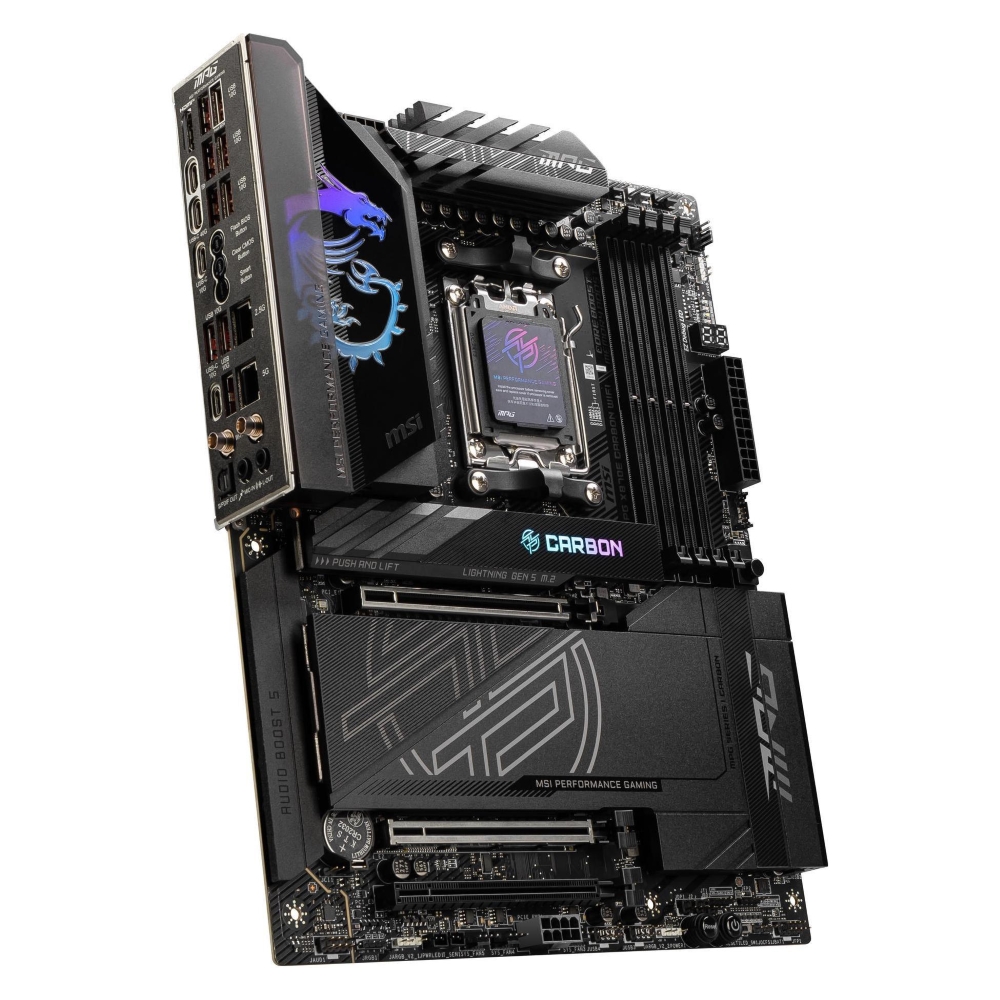

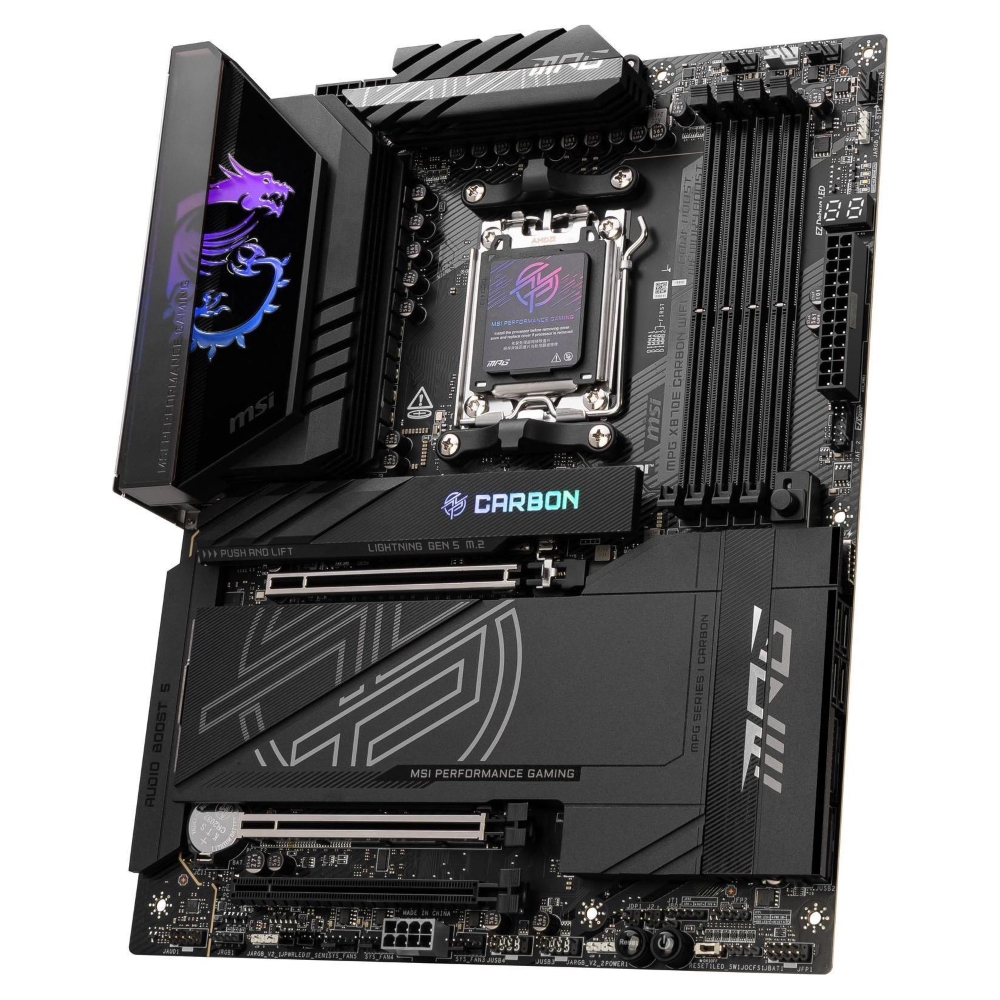

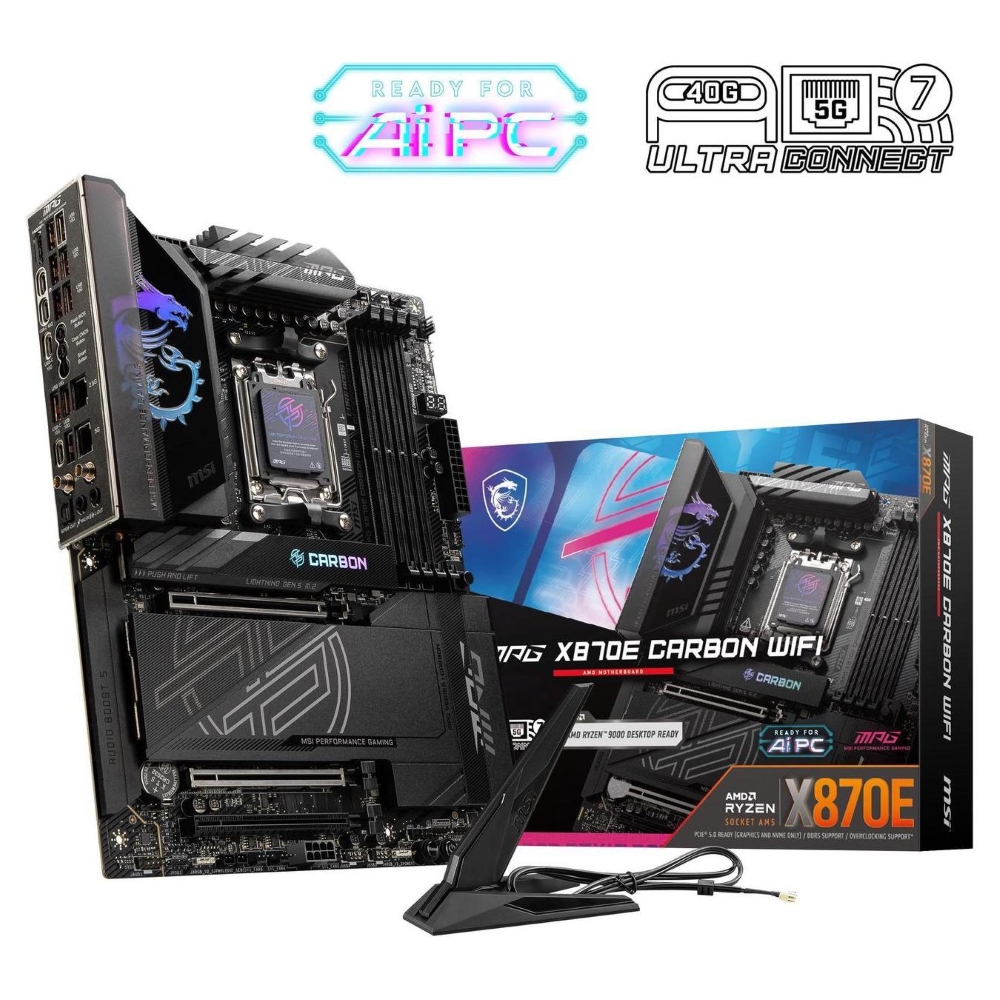

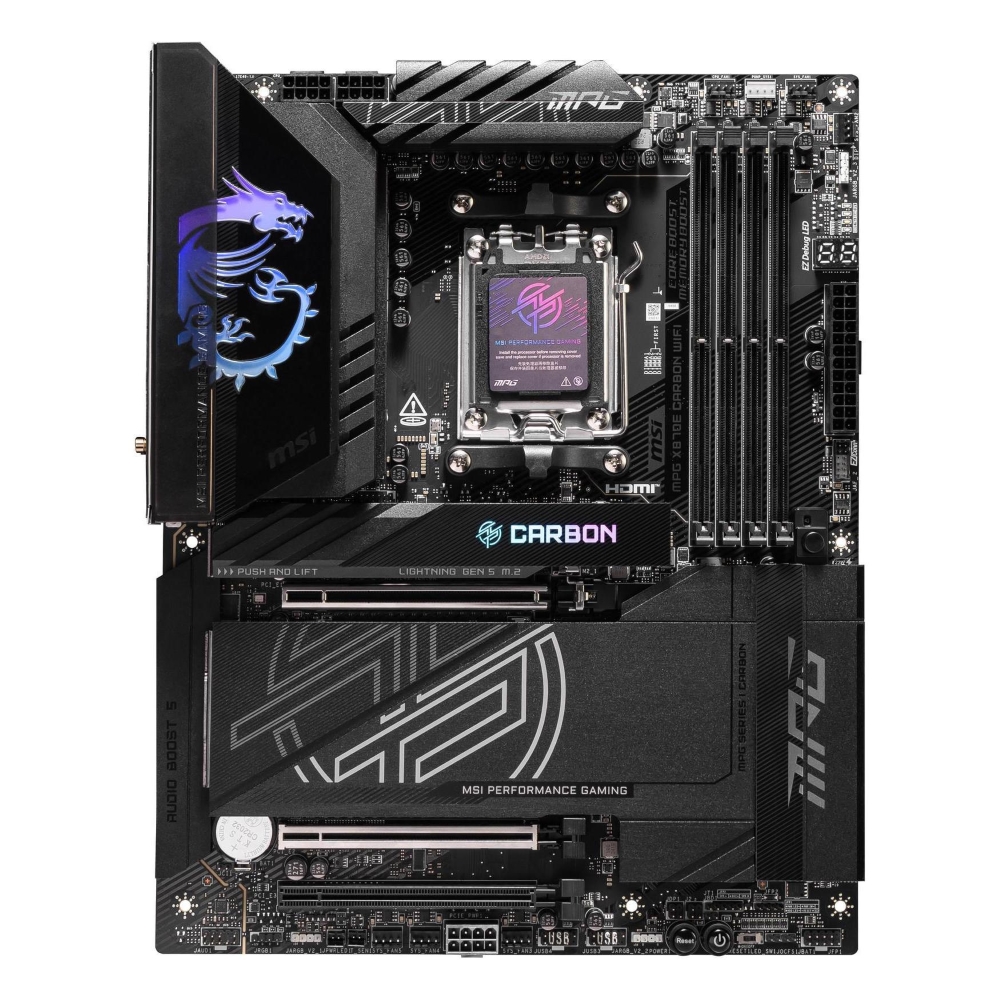

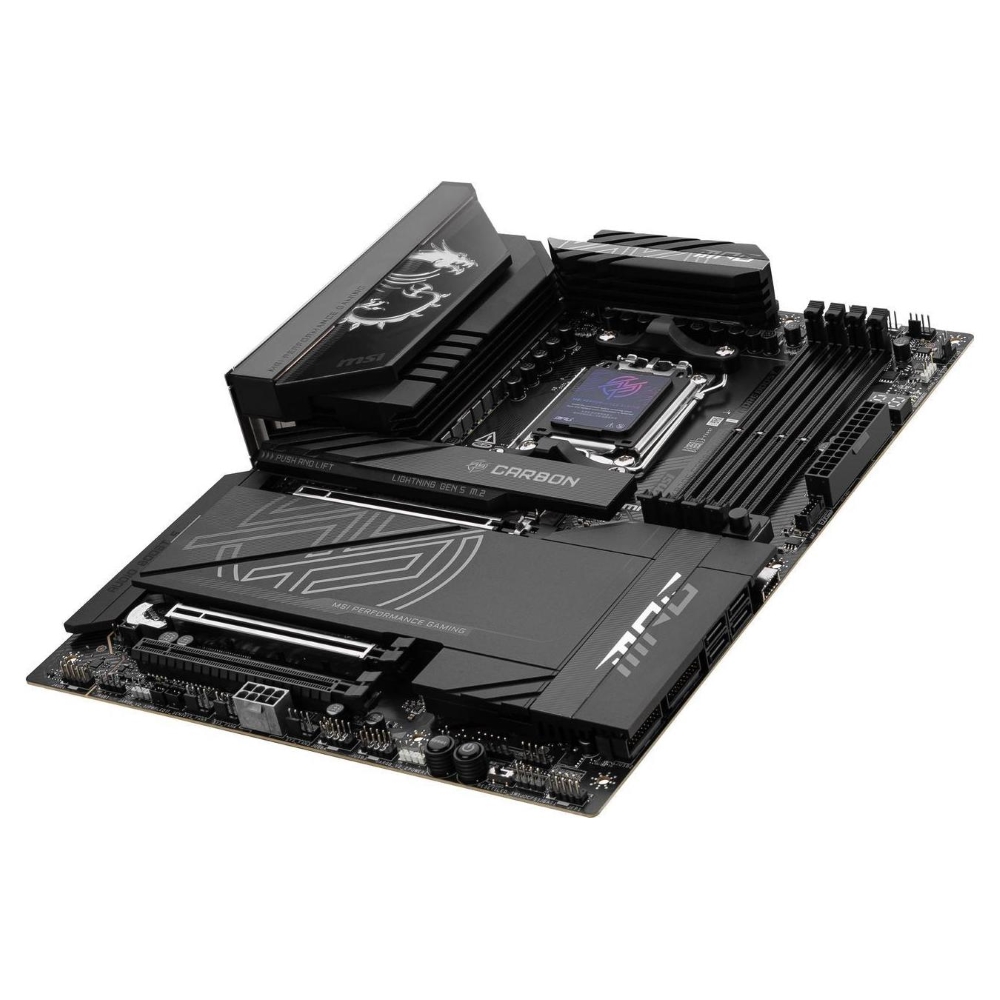

MSI MPG X870E CARBON AM5 ATX Gaming Motherboard

Premium Thermal Design:Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/ mK MOSTFET thermal pads / onboard M.2 Shield Frozr
EZ PCIe Release:A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II:The new tool-less design makes installing removing your M.2 SSD and Shield Frozr much easier
Lightning Gen 5:The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage transmission speed.
Dual LAN:Dual premium network solution for both intranet and internet, offering a smooth gaming experience for effective network connection
Wi-Fi 7:The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps.

₨ 169,000

Payment Methods:

MSI MPG X870E CARBON AM5 ATX Gaming Motherboard Price in Pakistan


Best Seller Ranking	#6 in AMD Motherboards

Model
Brand	MSI
Model	MPG X870E CARBON WIFI

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Chipsets
Chipset	AMD X870E

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: – 1DPC 1R Max speed up to 8400+ MT/s – 1DPC 2R Max speed up to 6400+ MT/s – 2DPC 1R Max speed up to 6400+ MT/s – 2DPC 2R Max speed up to 4800+ MT/s

Expansion Slots
PCI Express 5.0 x16	PCI_E1 slot (From CPU): Support up to PCIe 5.0 x16 PCI_E2 slot (From CPU): Support up to PCIe 5.0 x4 * Supports x16/x0 or x8/x4 (For Ryzen 9000/7000 Series processors) * Supports x8/x0 (For Ryzen 7 8700G and Ryzen 5 8600G processor) * Supports x4/x0 (For Ryzen 5 8500G processor)
PCI Express x4	PCI_E3 slot (From X870E chipset): Supports up to PCIe 4.0 x1
Other Slots	* PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M) M2_1 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2260/2280 storage devices M2_2 slot (From CPU) – Supports up to PCIe 5.0 x4 – Supports 2260/2280 storage devices M2_3 slot (From Chipset) – Supports up to PCIe 4.0 x4 – Supports 2280/22110 storage devices M2_4 slot (From Chipset – Supports up to PCIe 4.0 x4 – Supports 2260/2280 storage devices * PCI_E1 & PCI_E2 & M2_2 share the bandwidth. PCI_E1 will run at x8 speed when installing device in the PCI_E2 or M2_2 slot.
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Rear Panel Ports

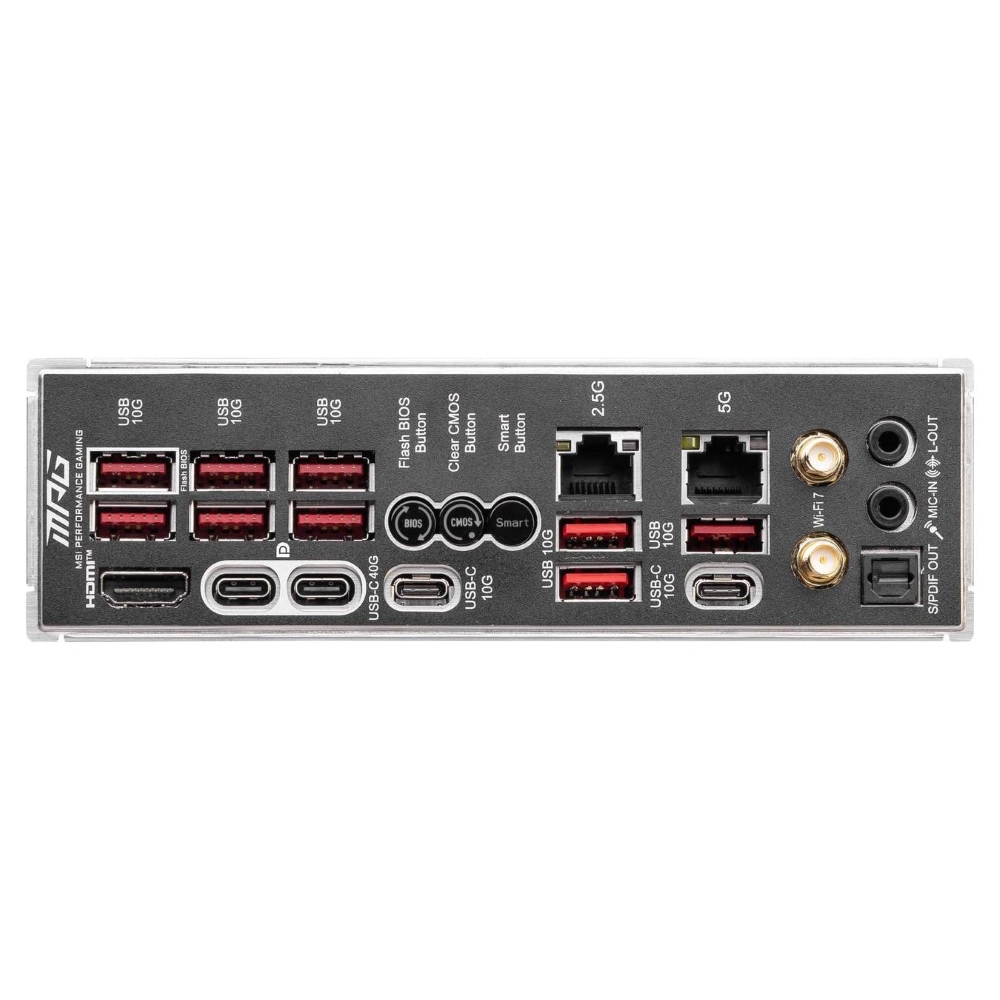

Back I/O Ports	2 x USB 10Gbps Type A (From X870E Chipset) 4 x USB 10Gbps Type A (From RTS5420) 1 x HDMI port 2 x USB 40Gbps Type-C (From CPU/ASM4242) 2 x USB 10Gbps Type C (1 from CPU/ 1 from X870E Chipset) 3 x USB 10Gbps Type A (1 from CPU/ 1 from X870E Chipset) 1 x Clear CMOS Button 1 x Flash BIOS Button 1 x Smart Button 1 x 5G LAN (RJ45) port 1 x 2.5G LAN (RJ45) port 2 x Wi-Fi Antenna connectors 2 x audio jacks 1 x Optical S/PDIF Out connector

Internal I/O Connectors
Other Connectors	AMD X870 Chipset – 1x USB 3.2 Gen 2×2 20Gbps Type-C connectors Supports up to 27W fast charging – 2x USB 3.2 Gen 1 5Gbps connectors Supports additional 4 USB 3.2 Gen 1 5Gbps ports – 2x USB 2.0 Type-A connectors Supports additional 4 USB 2.0 ports Fan Connectors – 1x 4-pin CPU fan connector – 1x 4-pin PUMP_SYS fan connectors – 5x 4-pin system fan connectors System Connectors – 1x Front panel audio connector – 2x System panel connectors – 1x Chassis Intrusion connector – 1x 2-pin Thermal sensor connectors – 1x EZ Conn-Header V2 (JAF_2) Jumpers – 1x Clear CMOS jumper – 1x OC safe boot jumper

Physical Spec
Form Factor	ATX
LED Lighting	1 x 4-pin RGB LED connector 3 x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors 4 x EZ Debug LED 1 x 2-Digit Debug Code LED
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin Power Connector (ATX_PER) 2 x 8-pin Power Connector (CPU_PWR) 1 x 8-pin Power Connector (PCIE_PWR)

Software Feature
BIOS Feature	1 x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.7 Multi-language
Software	Drivers MSI Center Acrobat Adobe Creative Cloud AIDA64 Extreme-MSI Edition CPU-Z MSI GAMING MSI App Player(BlueStacks) Norton 360 Voicemod

Features
Features	EZ DIY – Magnetic M.2 Shield Frozr – EZ M.2 Clip II – EZ PCIe Release – Smart Button – Flash BIOS Button – Clear CMOS Button – Pre-installed I/O Shield – EZ Antenna – EZ Front Panel Cable – EZ Conn-Design – PCI-E Steel Armor II – EZ Digi-Debug LED – EZ LED Control (Switch) Thermal Features – Heat-pipe Design – Extended Heatsink Design – M.2 Shield Frozr – 7W/mK MOSFET thermal pad – 5W/mK Extra choke pad – FAN Headers (CPU1 + PUMP_SYS1 + SYSTEM*5) Performance – Core Boost – VRM Power Design (VCore – M.2 Shield Frozr – 7W/mK MOSFET thermal pad – Choke thermal pad – Fan headers (CPU + PUMP + SYSTEM) Performance – Core Boost – VRM Design – Dual CPU Power – Memory Force – Lightning Gen 5 PCI-E Slot – Lightning Gen 5 M.2 Slot – Lightning Gen 4 PCI-E Slot – Lightning Gen 4 M.2 Slot – Front USB Type-C – USB with PD (27W/Front Type-C( – Supplemental PCIe Power Connector – Server Grade PCB – 2oz Copper thickened PCB Audio – Audio Boost 5 RGB – Mystic Light – Mystic Light Extension (RGB) – Mystic Light Extension (A-RGB V2) – Ambient Devices Support BIOS – Click BIOS X – AI Boost – Performance Preset
