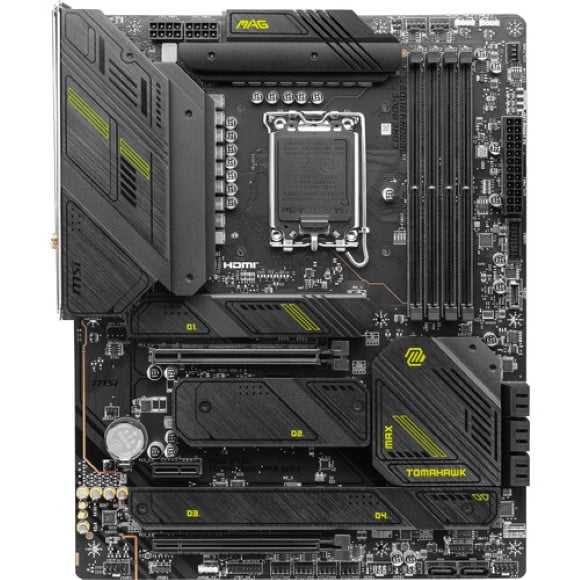

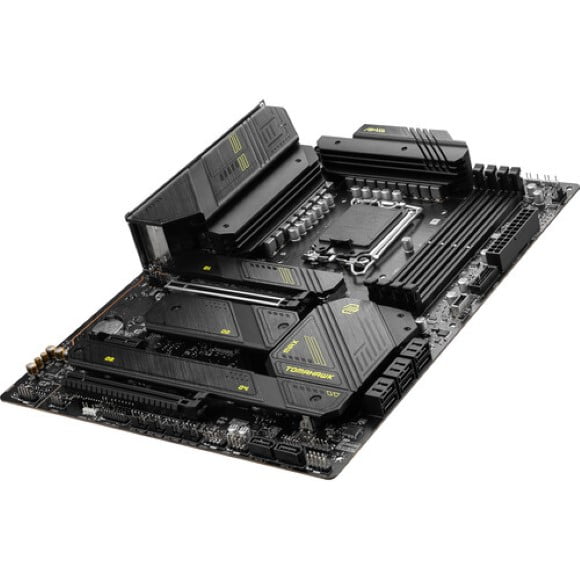

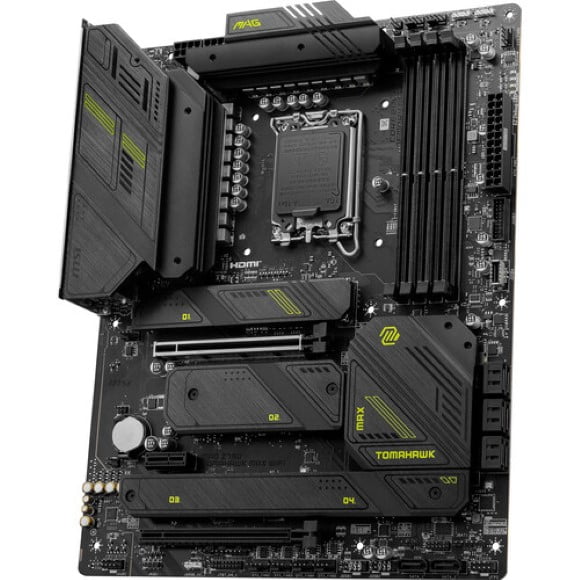

MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard

  • ATX Form Factor
  • Intel Z790 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR5
  • 8 x SATA III, 4 x M.2
  • 1 x PCIe 5.0 x16 & 1 x PCIe 4.0 x16 Slot
  • 1 x PCIe 3.0 x1 Slot
  • 2.5 GbE LAN, Wi-Fi 7, & Bluetooth 5.4
  • USB 2.0, 3.2 Gen 1, Gen 2, Gen 2×2
  • Windows 10 & 11 Support

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

 98,000

SKU: MAG Z790 TOMAHAWK MAX WIFI

Payment Methods:

Description

MSI MAG Z790 TOMAHAWK MAX WIFI LGA 1700 ATX Motherboard Price in Pakistan Specs

CPU
Chipset
Intel Z790
CPU Socket
LGA 1700

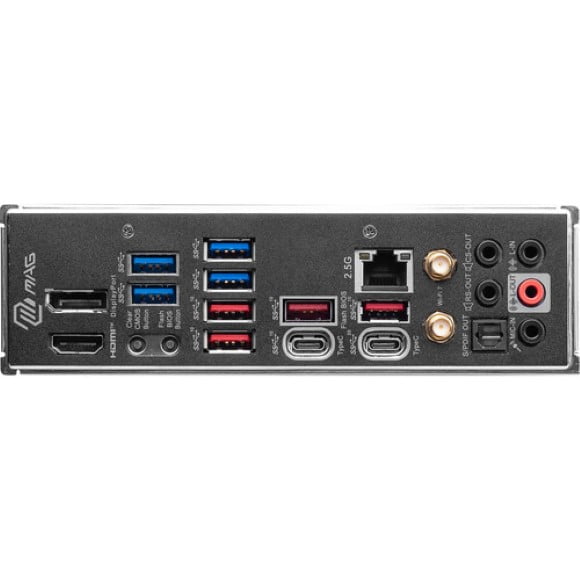

Back Panel I/O
USB
4x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 3.1/3.2 Gen 2)
1x USB-C (USB 3.1/3.2 Gen 2)
1x USB-C (USB 3.2 Gen 2×2)
Thunderbolt
No
Display
1x DisplayPort
1x HDMI
Audio
5x 1/8″ / 3.5 mm
1x S/PDIF
Ethernet / Controller
1x Intel 2.5Gigabit
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback, Clear CMOS
Memory
Memory Slots
4x 288-Pin
Memory Support
DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800 MHz
Maximum Capacity
192 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
8x SATA III
M.2
1x M Key 2260, 2280, 22110 (PCIe 5.0 x4)
1x M Key 2260, 2280 (PCIe 4.0 x4)
1x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III)
RAID Support
RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2)
Internal I/O
Expansion Slots
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 3.0 x1
USB
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling
1x 4-Pin CPU
6x 4-Pin System
Liquid Cooling
1x 4-Pin Pump
Power Connectors
1x 24-Pin Mainboard
2x 8-Pin ATX
Security
Chassis Intrusion, TPM Header
LED Header
4x RGB
Audio
No
Diagnostics
2-Digit Debug LED, Clear CMOS
Add-On
1x Thunderbolt Header
1x Tuning Controller
Front Panel I/O
Front Panel I/O
AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
Audio
Audio Codec
Realtek ALC4080 (7.1-Channel)
DAC
No
Wireless
Wi-Fi
Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth
5.4
Software
OS Compatibility
Windows 10 to 11 (64-Bit Only)
Physical
Form Factor
ATX
Dimensions
9.6 x 12.0″ / 243 x 304 mm
