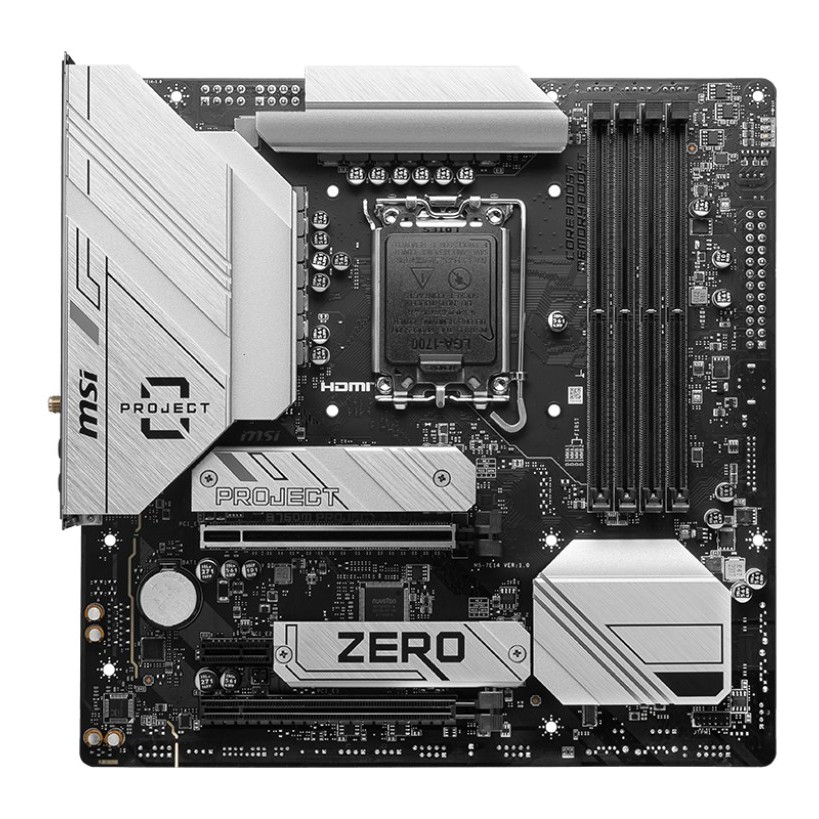

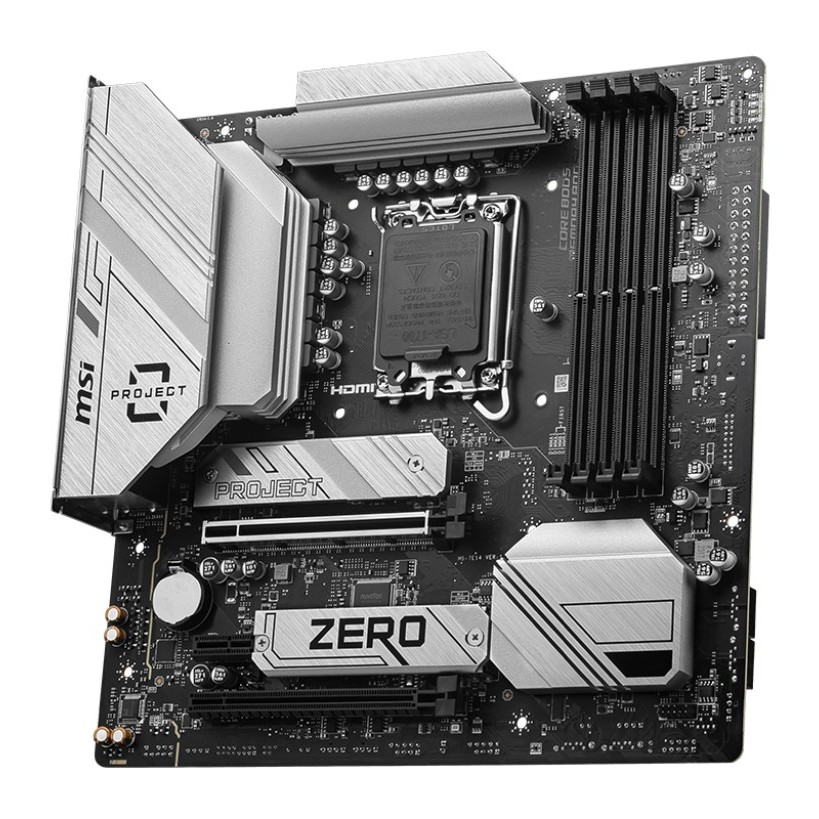

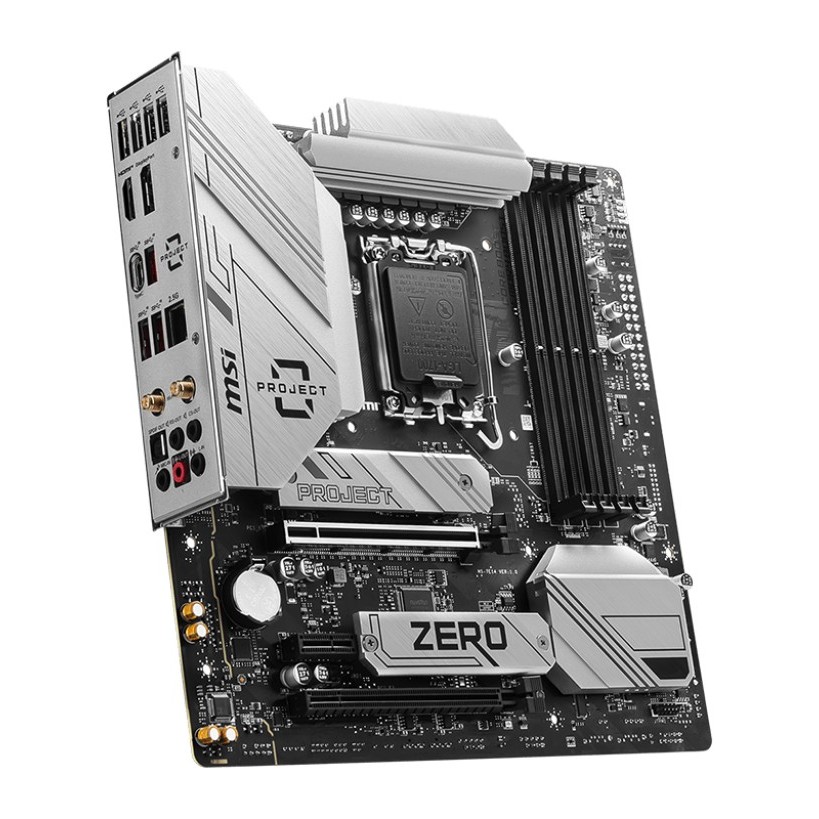

MSI B760M PROJECT ZERO Wi-Fi 6E LGA 1700 LGA1700 DDR5 Back Connect Design mATX Motherboards

Back-Connect Design:Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
Lightning Gen 5:The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.
Latest DDR5 Memory:A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Wi-Fi 6E:The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution:Featuring premium 2.5G LAN to deliver better network
experience.
Lightning USB 20G:Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR:M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
6 Layer PCB with 2oz Thickened Copper:An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
Core Boost.

Hurry and get discounts on all products up to 2%

02_sale

₨ 65,000

Payment Methods:

MSI MPG X870E CARBON AM5 ATX Gaming Motherboard Price in Pakistan

Model
Brand	MSI
Model	B760M PROJECT ZERO

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

Chipsets
Chipset	Intel B760

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Max. overclocking frequency: – 1DPC 1R Max speed up to 7800+ MHz – 1DPC 2R Max speed up to 6600+ MHz – 2DPC 1R Max speed up to 6400+ MHz – 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile

Expansion Slots
PCI Express 5.0 x16	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1-Channel High Performance Audio Supports S/PDIF output

Onboard LAN
LAN Chipset	Realtek 2.5Gbps LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth	Supports Bluetooth 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Rear Panel Ports

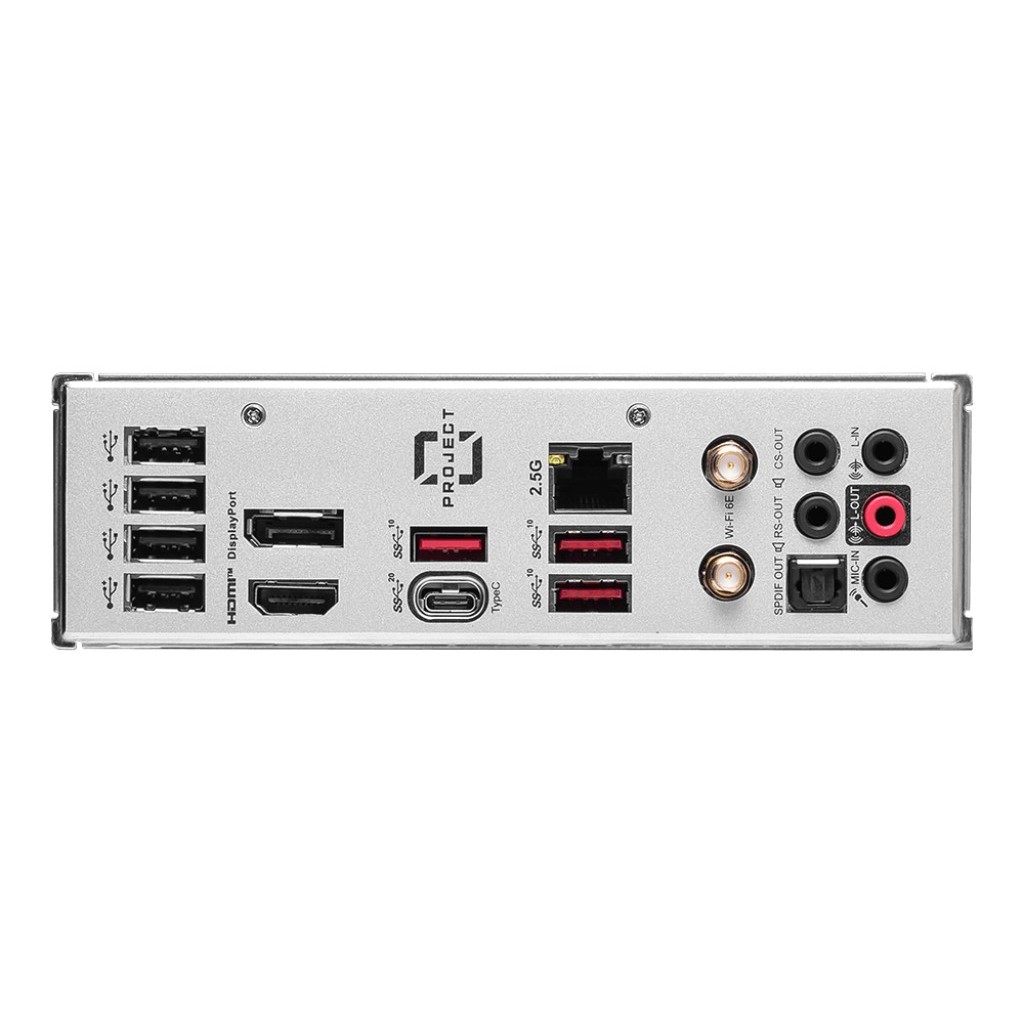

Back I/O Ports	4 x USB 2.0 1 x DisplayPort 1.4 3 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN Port 2 x Wi-Fi / Bluetooth Antenna 5 x HD Audio Connectors 1 x HDMI 2.1 Port 1 x USB 3.2 Gen 2×2 20Gbps Type-C 1 x Optical S/PDIF OUT

Internal I/O Connectors
Onboard USB	4 x USB 2.0 2 x USB 3.2 Gen1 Type A 1 x USB 3.2 Gen2 Type C
Other Connectors	1 x CPU Fan 1 x Pump Fan 4 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x TBT connector (JTBT, supports RTD3) 1 x Tuning Controller connector (JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector (JRGB) 1 x TPM pin header (Support TPM 2.0)

Software Feature
Windows 11	Support for Windows 11 64-bit, Windows 10 64-bit

Physical Spec
Form Factor	Micro ATX (Back Connect)
Dimensions (W x L)	9.6″ x 9.6″
Power Pin	1 x Power Connector (ATX_PWR) 2 x Power Connector (CPU_PWR)

Features
Features	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket Supports DDR5 Memory, up to 7800+(OC) MHz Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works Audio Boost: Reward your ears with studio grade sound High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Packaging

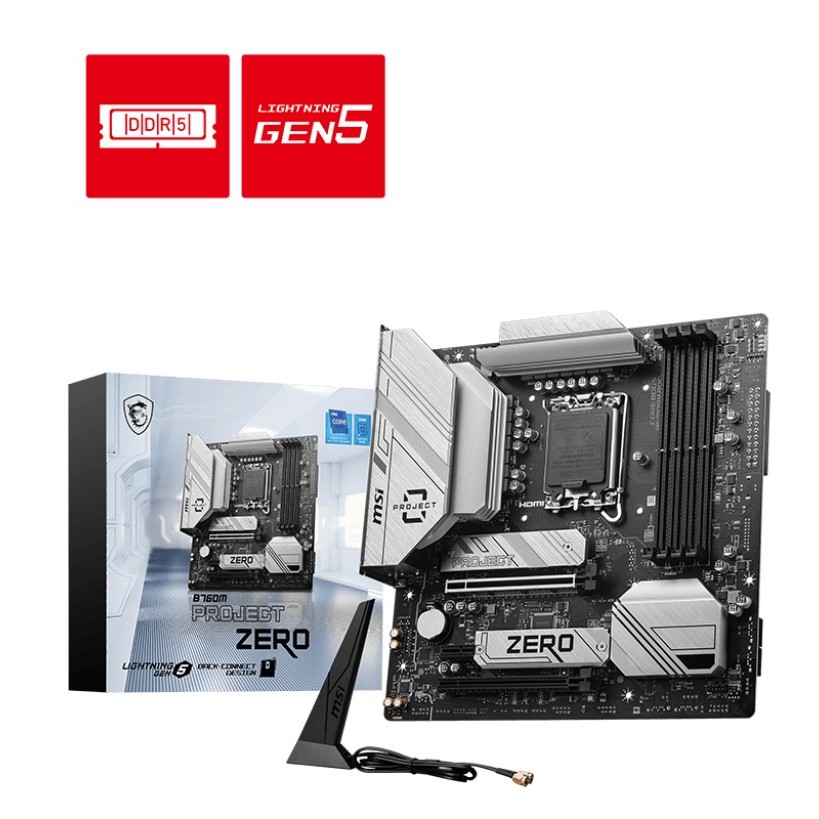

Package Contents	Quick Installation Guide SATA Cable EZ M.2 Clip Package M.2 Screw / Standoff Set Cable Sticker Wi-Fi Antenna
