Compatibility

   Intel LGA1851/1700/1200/1151/1150/1155/1156

   AMD AM5/AM4

   TDP

   180W

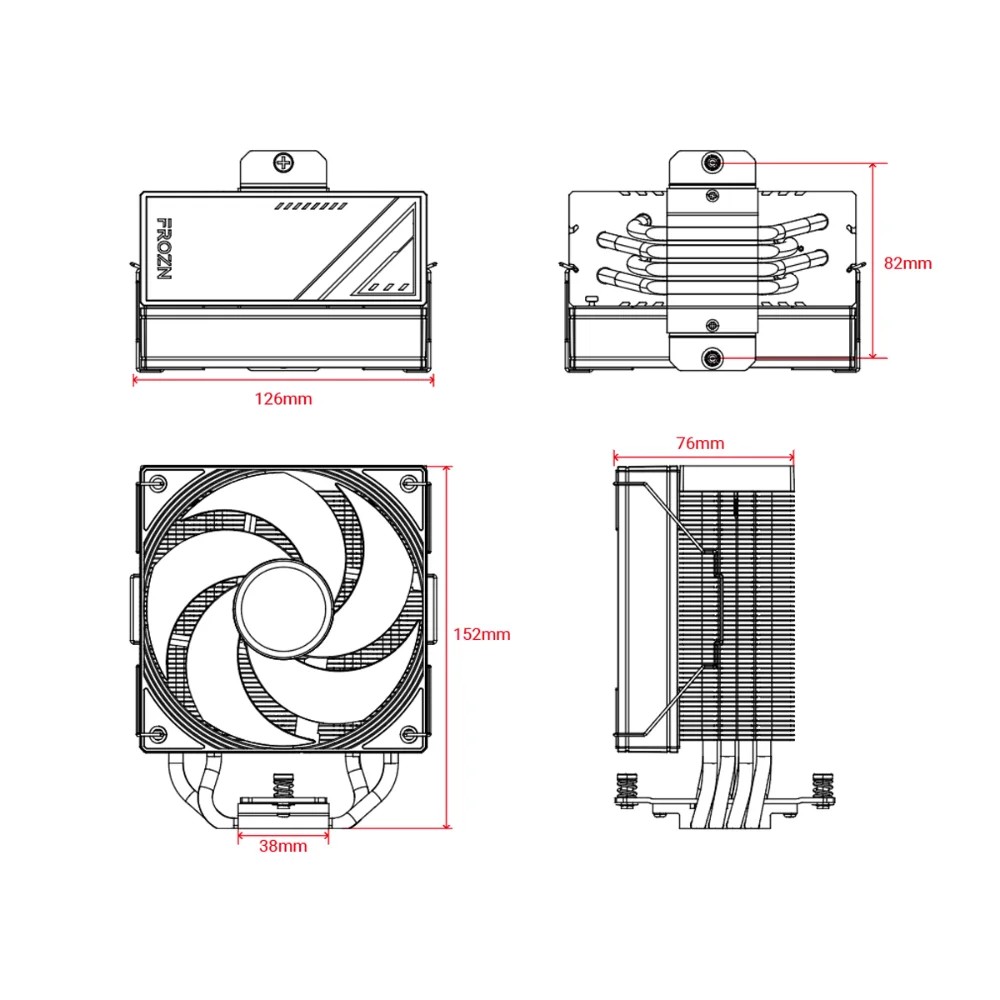

   Overall Dimension

   128×76×152mm (L×W×H)

   Heatsink Material

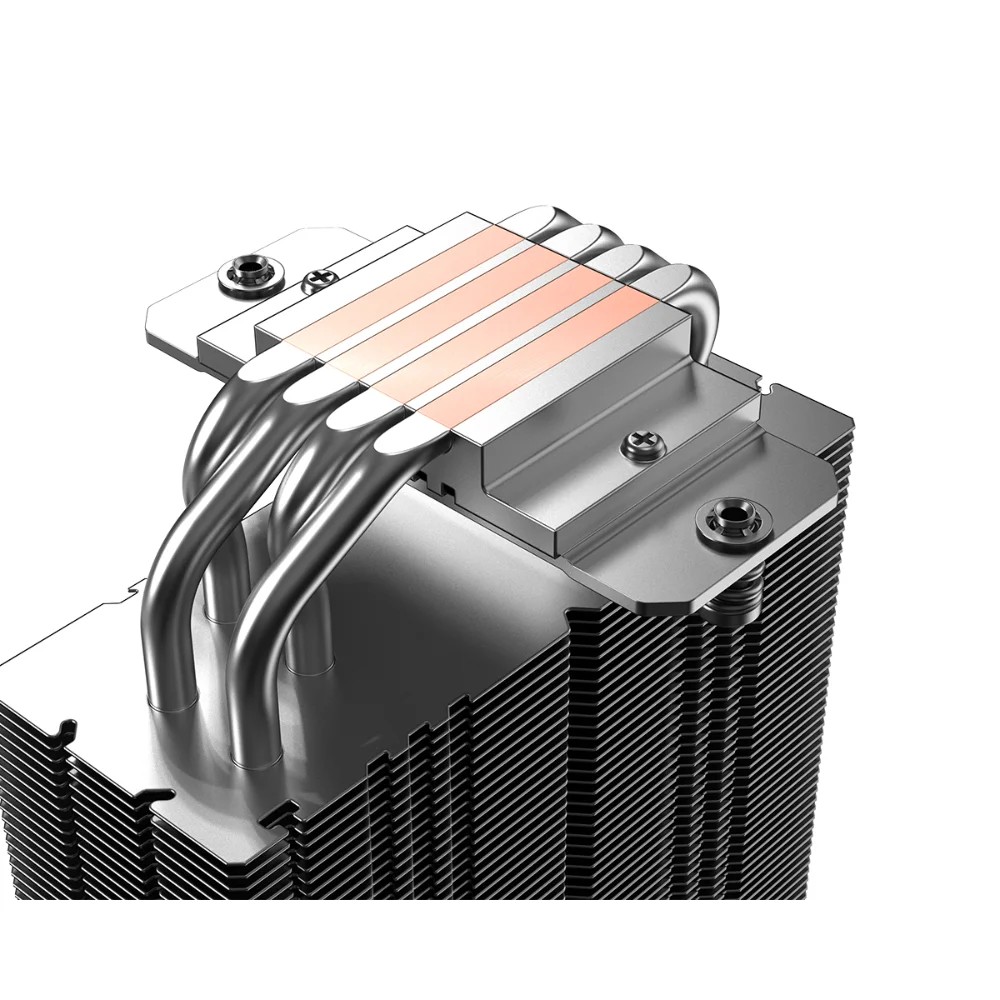

   4×Ф6mm Heatpipe (Direct Touch) + Aluminum Fin

   Weight

   720g (heatsink+fan)

   Fan Dimension

   120×120×25mm

   Fan Speed

    300±200 ~ 1800±10% RPM

   Max. Air Flow

    55.2CFM

   Max. Static Pressure

    1.68mmH2O

   Noise

    24.8dB(A) Max.

   Rated Voltage

   12VDC

   Operating Voltage

   10.8 ～ 13.2VDC

   Started Voltage

   7VDC

   Rated Current

   0.1A

   Power Input

   1.2W

   Bearing Type

   Hydraulic Bearing

   Connector

   4Pin PWM
