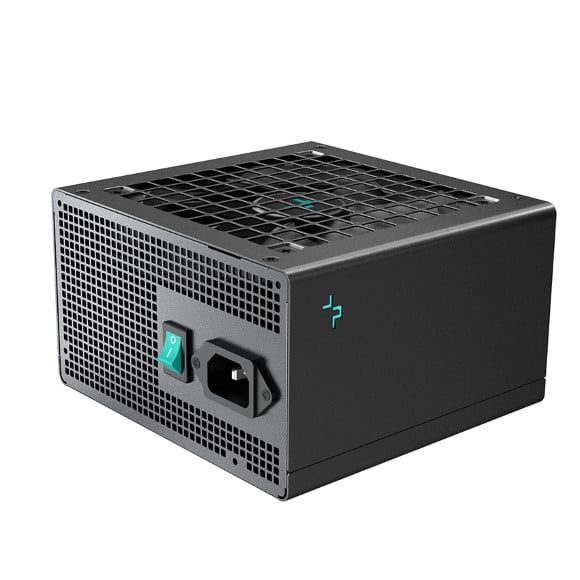

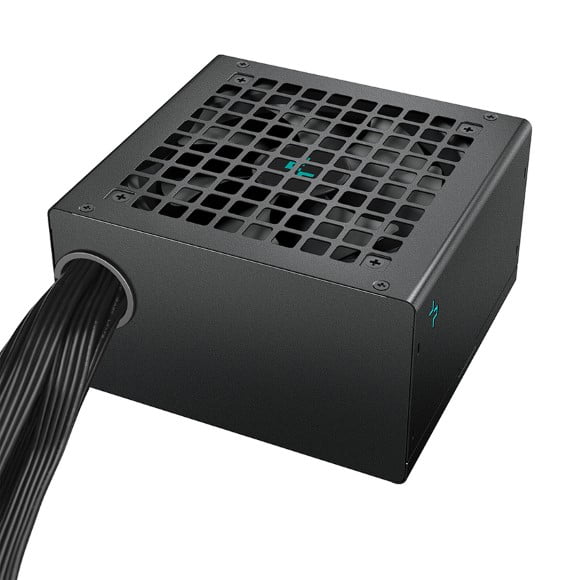

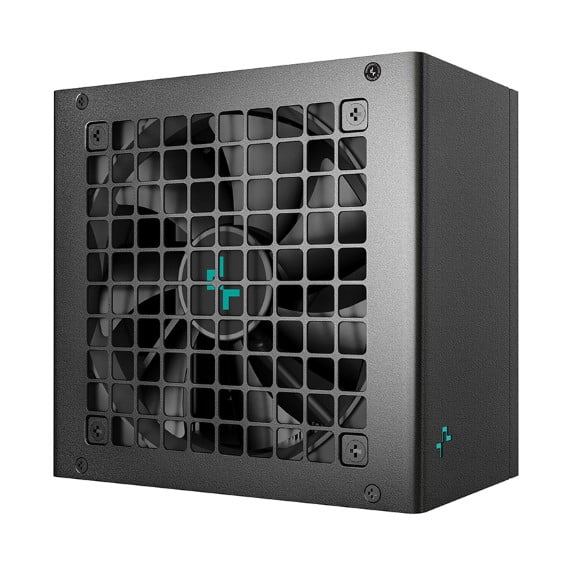

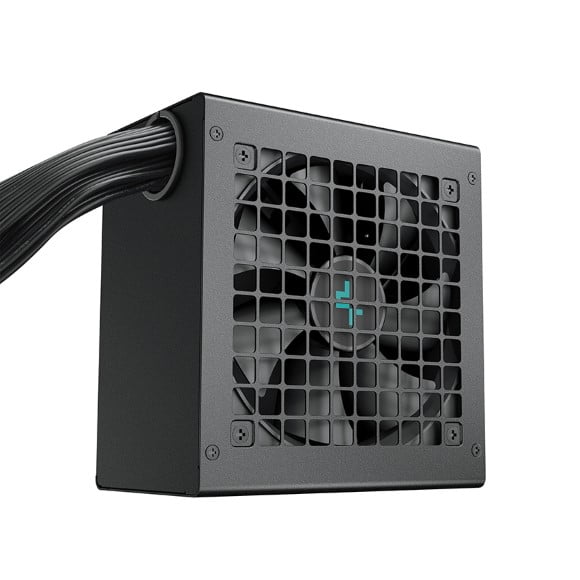

DeepCool PN750D 750W 80 PLUS Gold ATX 3.1 Power Supply

The DeepCool PN750D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2×6, 2 EPS, and 3 PCIe connectors, the PN850D provides stable power for a wide range of modern high-power components.

  • 750W Power Supply for Performance
  • Modern high-power components
  • 90% Efficiency for Typical Loads
  • latest Intel ATX 3.1 and PCIe 5.1
  • 12V-2×6, 2 EPS, and 3 PCIe
  • Full-Bridge SRC LLC

₨ 24,400

Add to compare
Add to wishlist
SKU: PN750D

Payment Methods:

Description

DeepCool PN750D 750W 80 PLUS Gold ATX 3.1 Power Supply Price in Pakistan

Type ATX12V V3.1
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80Plus Gold

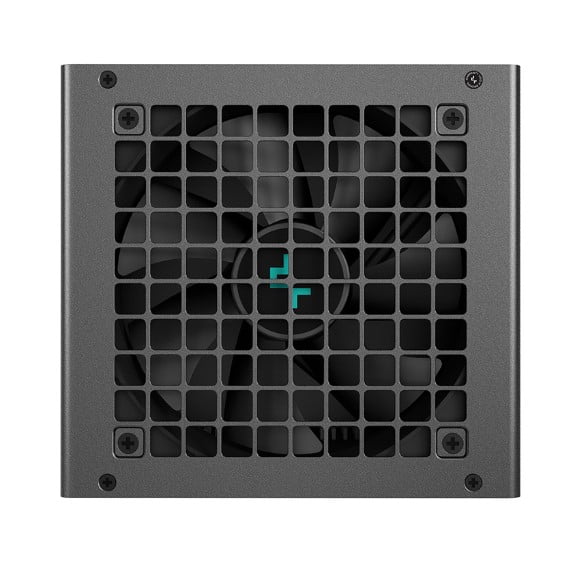

Fan Size 120mm
Fan Bearing HYB(Hydro Bearing)
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Chinese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms(80% Load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0 – 40℃
Regulatory CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC
Erp Regulation ErP 2014
Environment Protection WEEE/中国 RoHS/Triman/P65
MTBF 100,000 Hours
EAN P/N 6933412718710 R-PN750D-FC0B-CN
6933412718727 R-PN750D-FC0B-AU
6933412718734 R-PN750D-FC0B-EU
6933412718741 R-PN750D-FC0B-JP
6933412718758 R-PN750D-FC0B-UK
6933412718765 R-PN750D-FC0B-US
6933412718772 R-PN750D-FC0B-WO
6933412718789 R-PN750D-FC0B-BP
