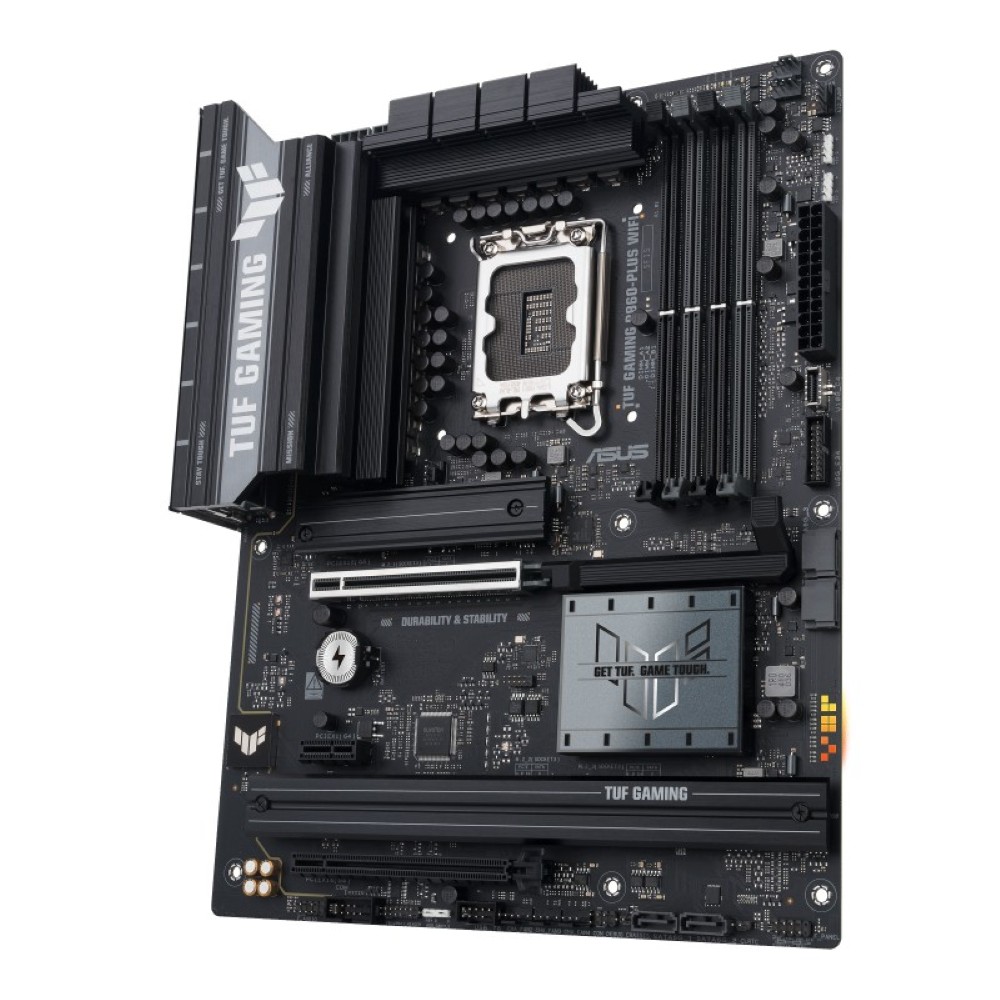

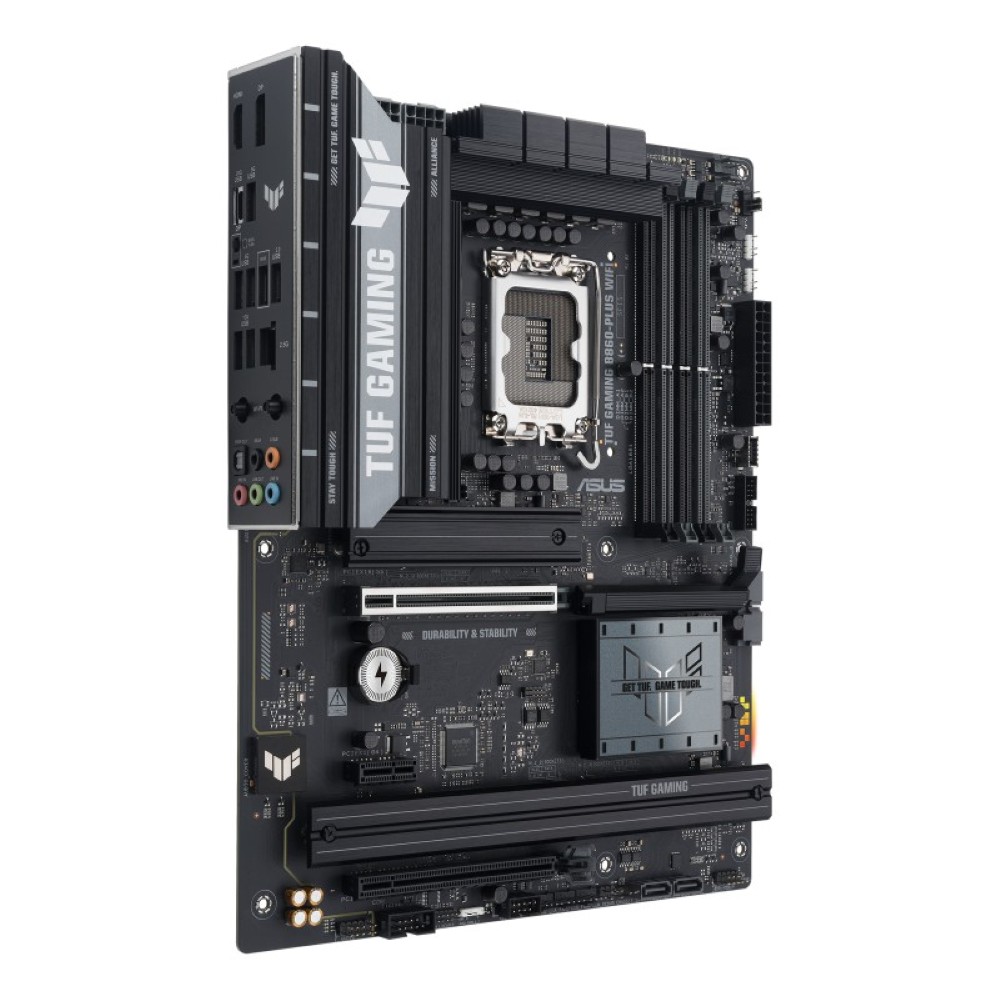

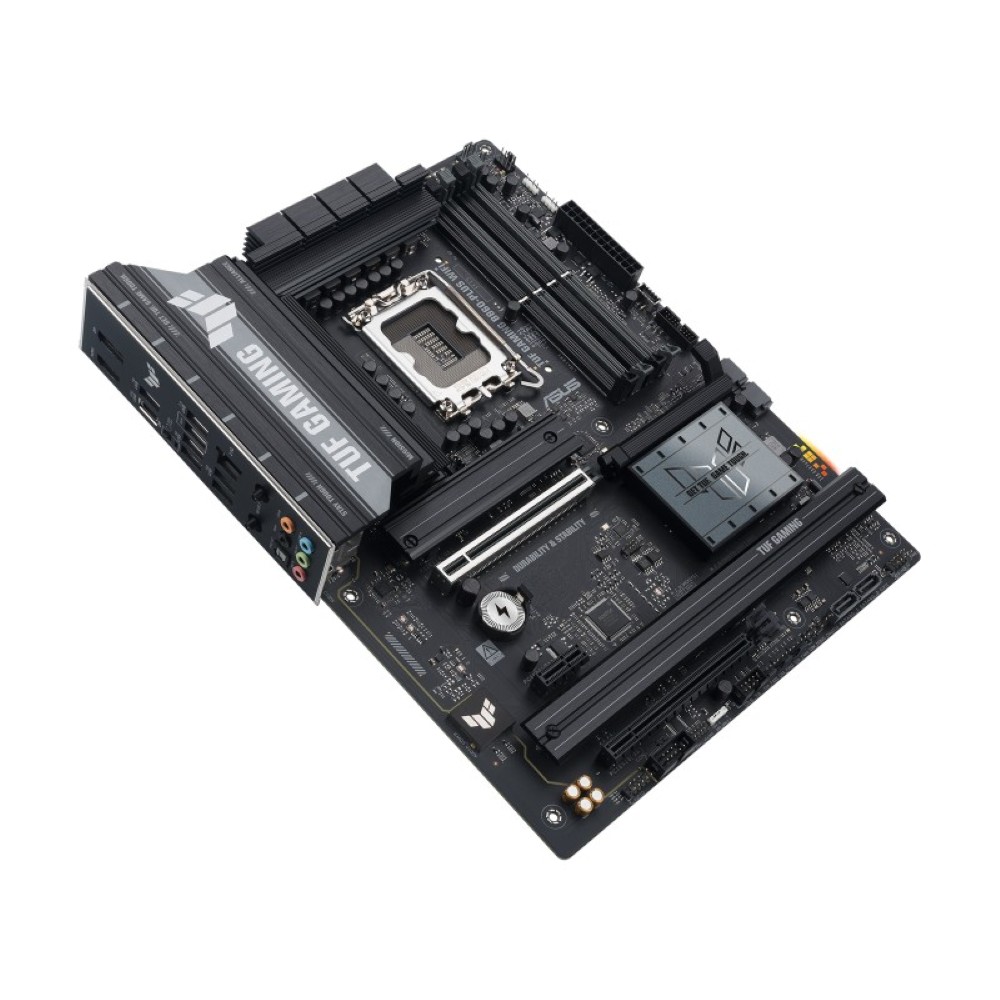

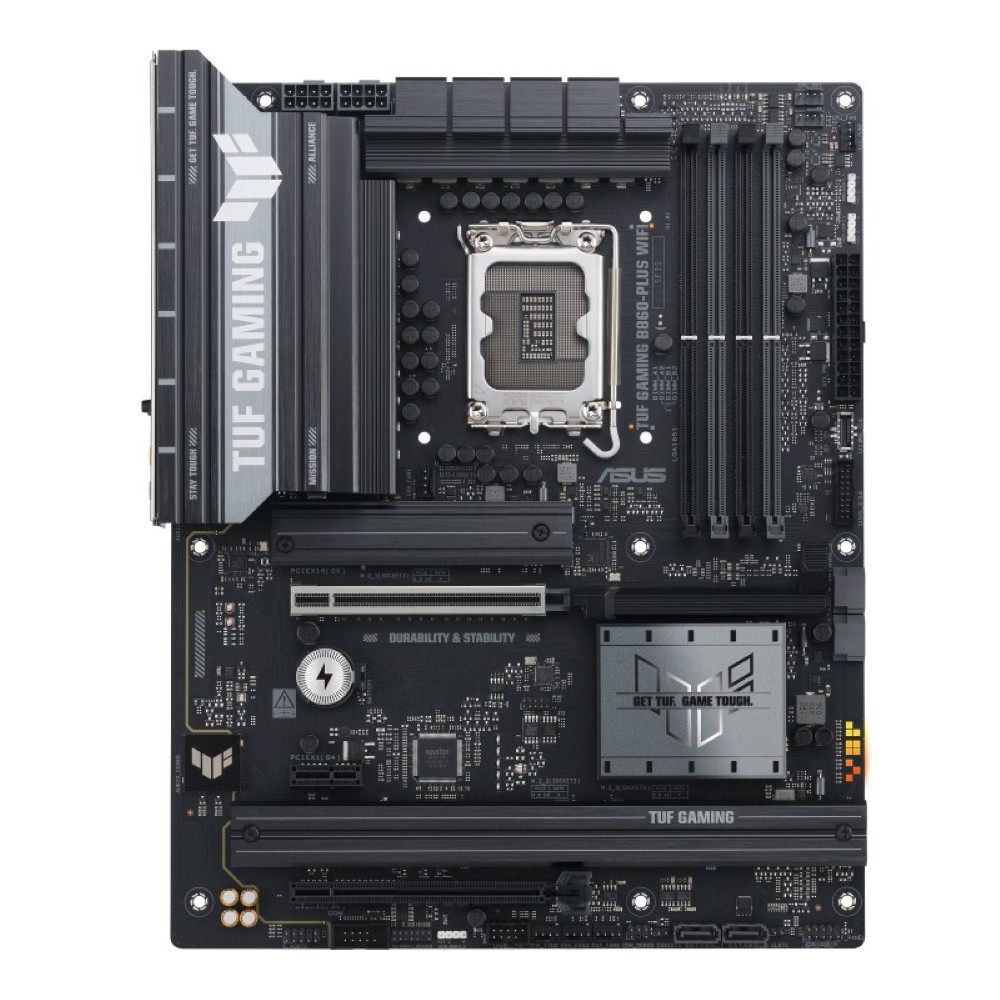

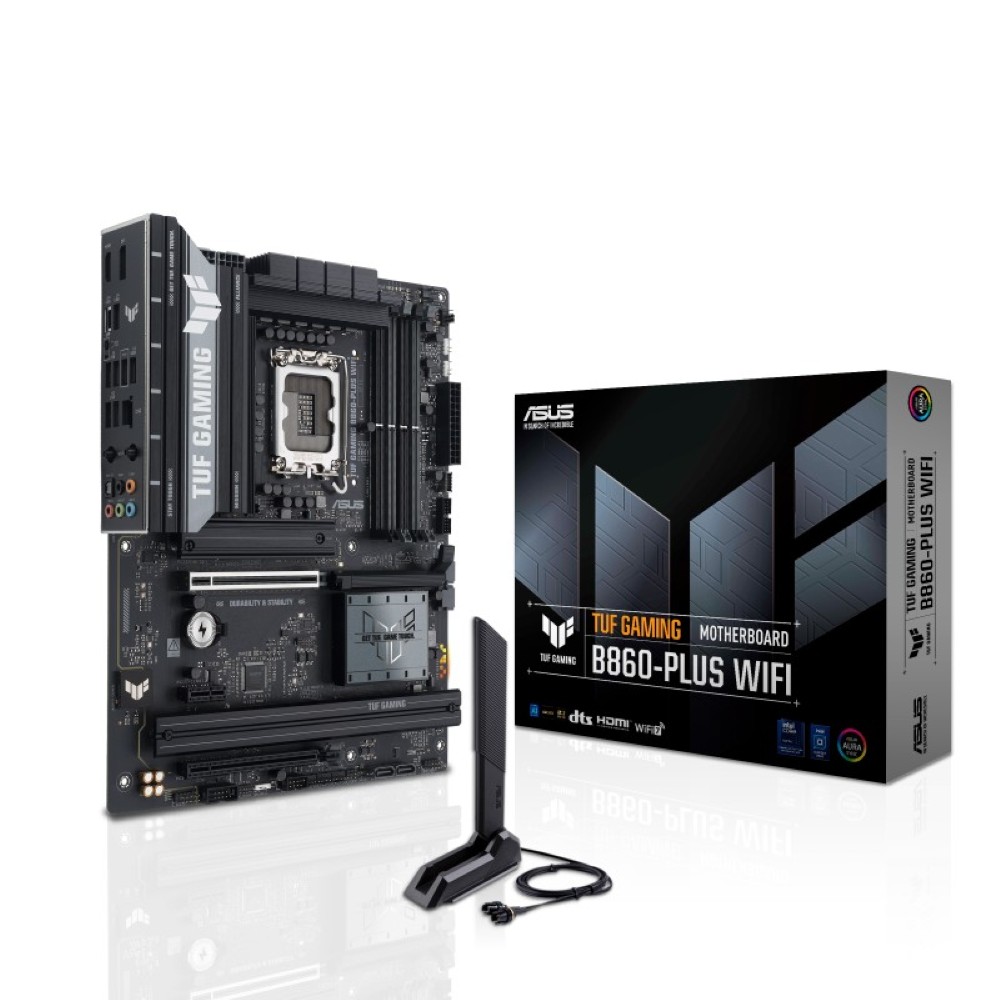

Asus TUF Gaming B860-PLUS WiFi B860 LGA 1851 ATX Motherboard, Intel® Core™ Ultra Series 2 Ready, Advanced AI PC-Ready, 12+1+2+1 Stages, DDR5,PCIe 5.0, 3X M.2, Wi-Fi 7, 2.5Gb LAN, USB 20Gbps Type-C Price in Pakistan Specs
Key Specs
Chipset |
Intel B860
|
CPU Socket |
LGA 1851
|
Memory Slots |
4x 288-Pin
|
Memory Support |
DDR5 8666 MT/s
|
Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4) |
Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 1x PCIe 4.0 x1 |
Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
Form Factor |
ATX
|
CPU
Chipset |
Intel B860
|
CPU Socket |
LGA 1851
|

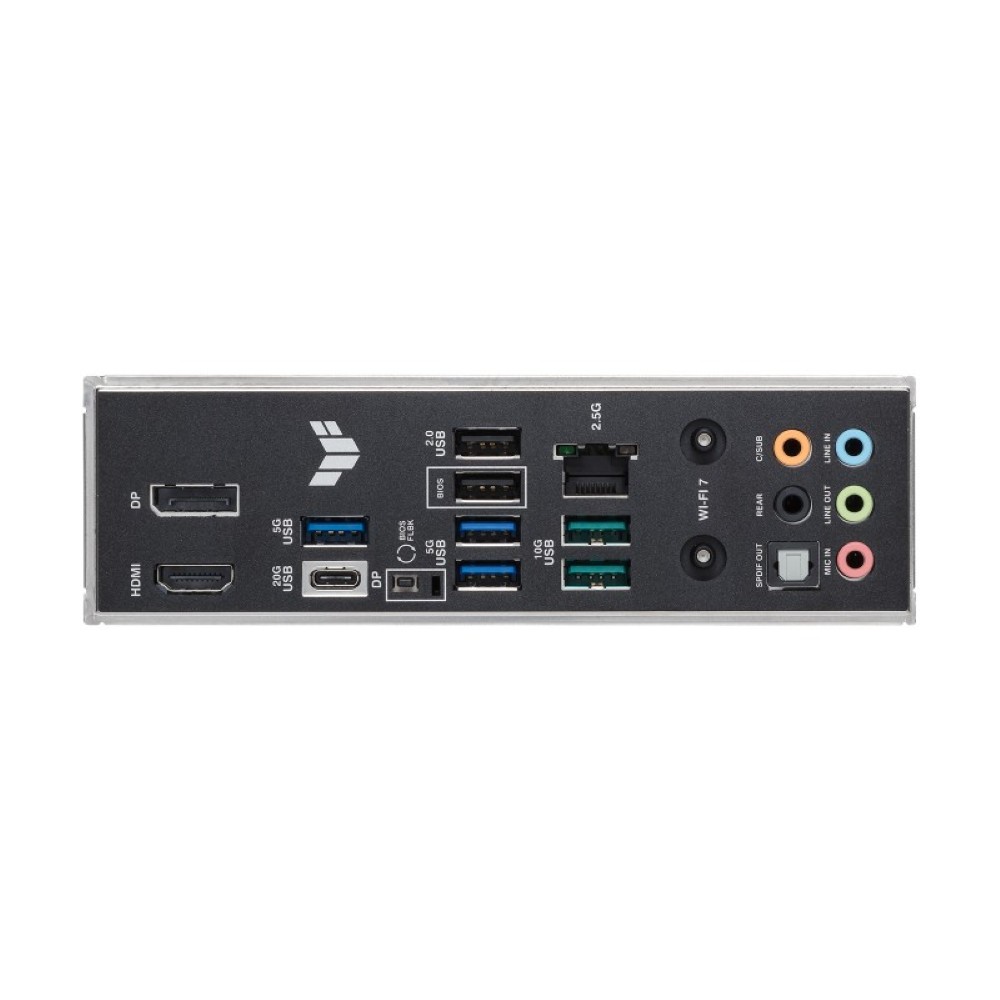

Back Panel I/O
USB |
1x USB-C (USB 3.2 Gen 2×2)
2x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) |
Thunderbolt |
No
|
Display |
1x HDMI 2.1
1x DisplayPort 1.4 |
Audio |
5x 1/8″ / 3.5 mm
1x S/PDIF |
Ethernet / Controller |
1x Realtek 2.5Gigabit
|

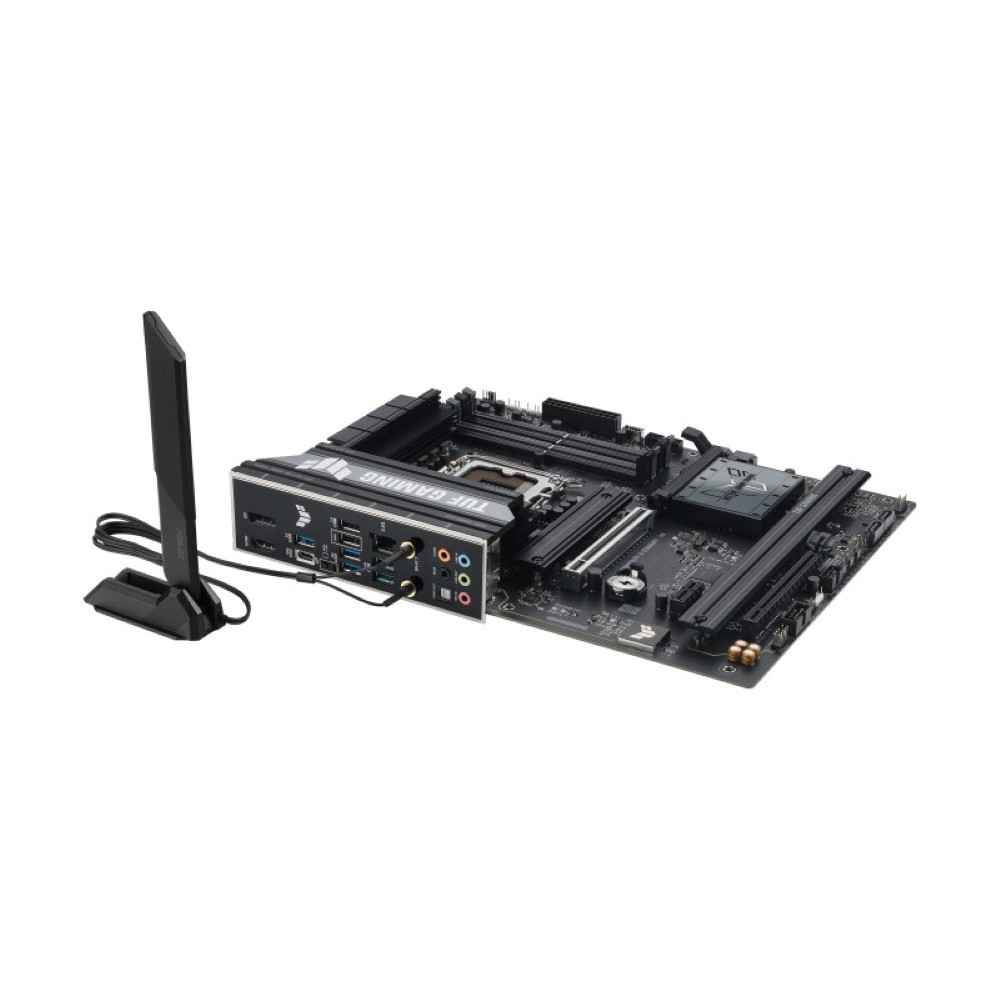

Wi-Fi Antenna |
2x Connector
|
Memory
Memory Slots |
4x 288-Pin
|
Memory Support |
DDR5 8666 MT/s
|
Maximum Capacity |
192 GB
|
Channel Architecture |
Dual Channel
|
ECC Support |
Non-ECC, ECC Unbuffered
|
Storage Expansion
SATA |
4x SATA III
|
Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4)
1x M.2 (M Key) 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4) |
Optane Memory Support |
No
|
RAID Support |
RAID 0, 1, 5, 10
|
Internal I/O
Expansion Slots |
1x PCIe 5.0 x16
1x PCIe 4.0 x4 1x PCIe 4.0 x1 |
USB |
1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 2 USB-A Port) |
Air Cooling |
2x 4-Pin CPU
4x 4-Pin System |
Liquid Cooling |
1x 4-Pin Pump
|
Power Connectors |
1x 24-Pin Mainboard
2x 8-Pin CPU |
Security |
Chassis Intrusion
|
LED Header |
3x RGB
|
Audio |
1x Speaker
|
Diagnostics |
Clear CMOS
|
Add-On |
1x Thunderbolt Header
|
Legacy |
1x Serial
|
BIOS
ROM |
2x 128 Mb
|
Front Panel I/O
Front Panel I/O |
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2
|
Audio
Audio Codec |
Realtek (7.1-Channel)
|
DAC |
No
|
Wireless
Wi-Fi |
Wi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)
|
Bluetooth |
5.4
|
Module Support |
1 E Key M.2
|
Software
OS Compatibility |
Windows 11
|
Physical
Form Factor |
ATX
|
Dimensions |
12 x 9.6″ / 304.8 x 243.8 mm
|
