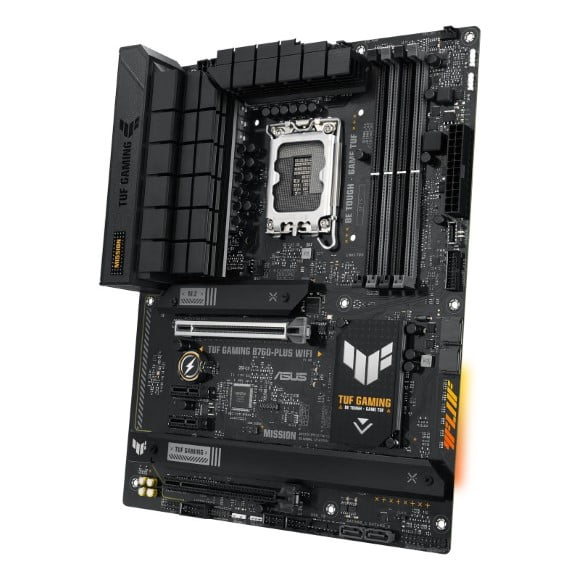

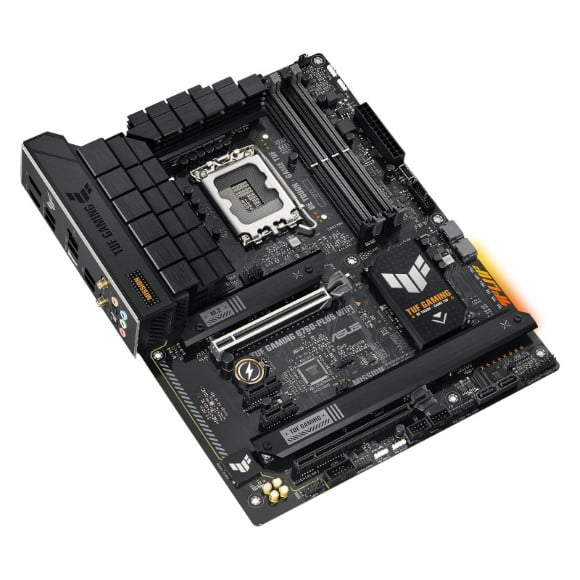

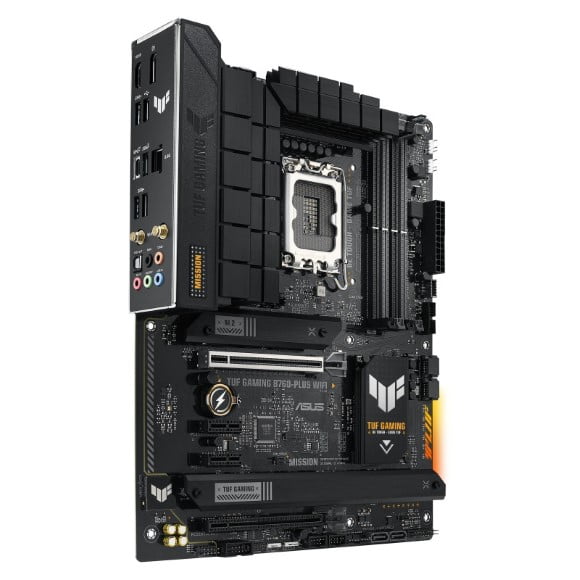

ASUS TUF GAMING B760-PLUS WIFI D5 Intel B760 (13th and 12th Gen) LGA 1700 ATX Motherboard

  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron® Processors.
  • Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability.
  • Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4.
  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C, front panel header for USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) header support.
  • Made for online gaming: Intel® WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard.
  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
  • Memory: DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

₨ 59,500

Add to compare
Add to wishlist
SKU: B760-PLUS WIFI D5

Payment Methods:

Description

ASUS TUF GAMING B760-PLUS WIFI D5 Intel B760 (13th and 12th Gen) LGA 1700 ATX Motherboard Price in Pakistan

Model
TUF GAMING B760-PLUS WIFI
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem II
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
  1 x HDMITM port***
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMITM 2.1.
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
  1 x PCIe 5.0 x16 slot
  Intel® B760 Chipset
  1 x PCIe 3.0 x16 slot (supports x4 mode)*
  2 x PCIe 3.0 x1 slots*
  * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
  – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Intel® Core™ Processors (14th & 13th & 12th Gen)
  1 x PCIe 5.0 x16 slot
  Intel® B760 Chipset
  1 x PCIe 3.0 x16 slot (supports x4 mode)*
  2 x PCIe 3.0 x1 slots*
  * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.
  – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Processors (14th & 13th & 12th Gen)
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel® B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
  TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6
  2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth® v5.2*
  *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.”
USB
Rear USB (Total 6 ports)
  1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  1 x USB 3.2 Gen 2 port (1 x Type-A)
  3 x USB 3.2 Gen 1 ports (3 x Type-A)
  1 x USB 2.0 port (1 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – Supports up to 24-Bit/192 kHz playback
  Audio Features
  – Audio Shielding
  – Rear optical S/PDIF out port
  – Premium audio capacitors
  – Dedicated audio PCB layers
  – Audio cover

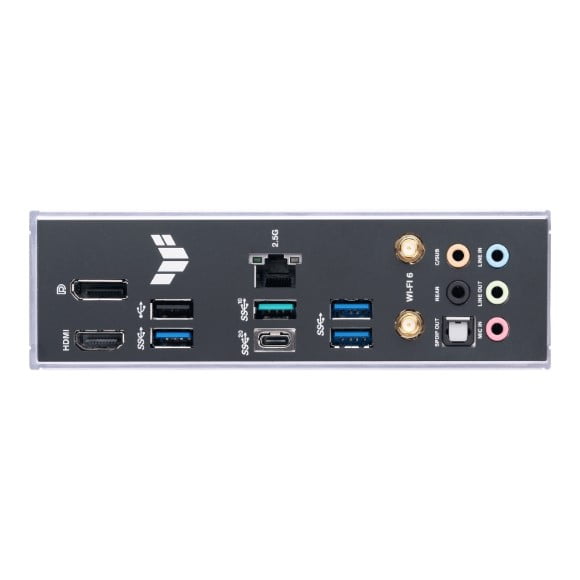

Back Panel I/O Ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  1 x USB 3.2 Gen 2 port (1 x Type-A)
  3 x USB 3.2 Gen 1 ports (3 x Type-A)
  1 x USB 2.0 port (1 x Type-A)
  1 x DisplayPort
  1 x HDMITM port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port
Internal I/O Connectors
Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thunderbolt™ (USB4®) header
Special Features
ASUS TUF PROTECTION
  – DIGI+ VRM (- Digital power design with DrMOS)
  – ESD Guards
  – TUF LANGuard
  – Overvoltage Protection
  – SafeSlot Core+
  – Stainless-Steel Back I/O
  ASUS Q-Design
  – M.2 Q-Latch
  – Q-DIMM
  – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  – Q-Slot
  ASUS Thermal Solution
  – M.2 heatsink
  – VRM heatsink design
  ASUS EZ DIY
  – CPU Socket lever protector
  – ProCool
  – Pre-mounted I/O shield
  – SafeSlot Core+
  – SafeDIMM
  Aura Sync
  – Aura RGB header
  – Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
  Armoury Crate
  – Aura Creator
  – Aura Sync
  – Fan Xpert 4
  – Power Saving
  – Two-Way AI Noise Cancellation
  AI Suite 3
  – DIGI+ VRM
  – PC Cleaner
  TUF GAMING CPU-Z
  DTS Audio Processing
  MyASUS
  Norton 360 for Gamers
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antenna
  1 x TUF Gaming sticker
  2 x M.2 Rubber Packages
  1 x Screw package for M.2 SSD
  Documentation
  1 x TUF Certification card
  1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
