| Model |

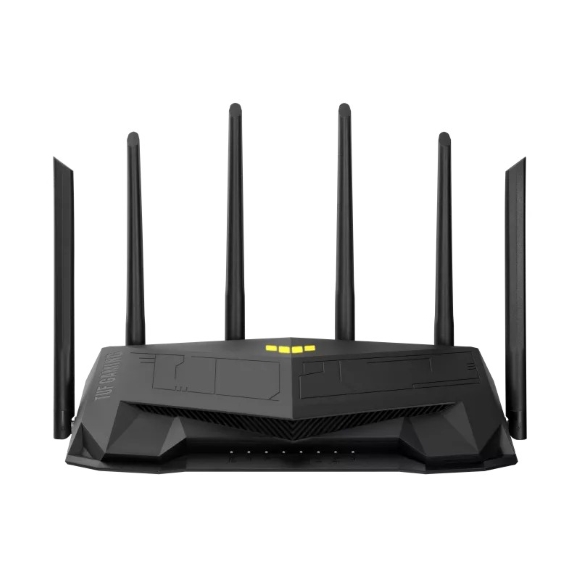

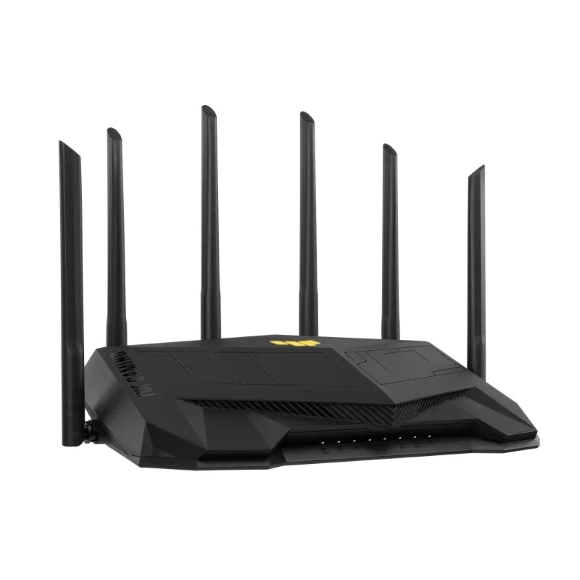

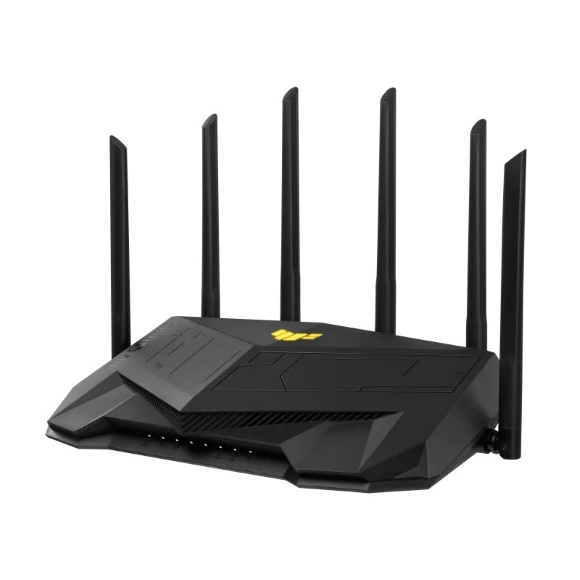

TUF Gaming AX6000 (TUF-AX6000) |
| Network Standard |
IEEE 802.11a |
| IEEE 802.11b |
| IEEE 802.11g |
| WiFi 4 (802.11n) |
| WiFi 5 (802.11ac) |
| WiFi 6 (802.11ax) |
| IPv4 |
| IPv6 |
| Product Segment |
AX6000 ultimate AX performance : 1148+4804 Mbps |
| WiFi Data Rate |
802.11a : up to 54 Mbps |
| 802.11b : up to 11 Mbps |
| 802.11g : up to 54 Mbps |
| WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps |
| WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps |
| Antenna |
External antenna x 6 |
| Transmit / Receive |
2.4GHz 4×4 |
| 5GHz 4×4 |
| Processor |
2.0 GHz quad-core processor |
| Memory |
256 MB Flash |
| 512 MB RAM |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) |
| Beamforming: standard-based and universal |
| 1024-QAM high data rate |
| 20/40/80/160 MHz bandwidth |
| Operating Frequency |
2.4GHz / 5GHz |
| Operating Mode |
Wireless router mode |
| Access point mode |
| Media bridge mode |
| I/O Ports |
RJ45 for 2.5 Gigabits BaseT for WAN x 1, |
| RJ45 for 2.5 Gigabits BaseT for LAN x 1, |
| RJ45 for Gigabits BaseT for LAN x 4, |
| USB 3.2 Gen 1 x 1, |
| Buttons |
WPS Button, Reset Button, Power Button |
| LED Indicator |
Power x 1 |
| WiFi x 1 |
| 1G LAN x 4 |
| 2.5G WAN x 1 |
| 2.5G LAN x 1 |
| Power Supply |
AC Input : 100V~240V (50~60Hz) |
| DC Output : 12 V with max. 2.5 A current |
| Package Content |
TUF Gaming AX6000 Dual Band WiFi 6 router |
| RJ-45 cable |
| Power adapter |
| Quick Start Guide |
| Warranty card |
| Product Weight (g) |
696g |
| Product Dimensions |
301.02 x 174 x 216 mm |
| AiMesh |
AiMesh |
| • Primary AiMesh Router |
| • AiMesh Node |
| Game |
Game Boost / Acceleration |
| Mobile Game Mode |
| Parental Control |
“Allow you to block access to unwanted websites and apps.” |
| Safe Browsing |
| Customized Internet Schedule |
| Guest Network |
“The Guest Network provides Internet connection for guests but restricts access to your local network.” |
| • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 |
| Guest Network Connection Time Limit |
| Security |
AiProtection |
| WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise |
| WPS |
| Let’s Encrypt |
| DNS-over-TLS |
| SSH |
| Security Scan |
| Firewall |
| • Maximum Firewall Keyword Filter : 64 |
| • Maximum Firewall Network Service Filter : 32 |
| • Maximum Firewall URL Filter : 64 |
| AiProtection |
• Router Security Assessment |
| • Malicious Site Blocking |
| • Two-Way IPS |
| • Infected Device Prevention and Blocking |
| VPN |
VPN Client L2TP |
| VPN Client Open VPN |
| VPN Client PPTP |
| VPN Client WireGuard |
| VPN Server IPSec |
| VPN Server Open VPN |
| VPN Server PPTP |
| VPN Server WireGuard |
| VPN Fusion |
| Traffic Control |
Adaptive QoS |
| • Bandwidth Monitor |
| • Bandwidth Limiter |
| — Maximum Bandwidth Limiter Rule : 32 |
| Traditional QoS |
| — Maximum Traditional QoS Rule : 32 |
| Traffic Monitor |
| • Real-time Traffic Monitor |
| • Wired Traffic Monitor |
| • Wireless Traffic Monitor |
| Traffic Analyzer |
| • Traffic Analysis Period : Daily, Weekly, Monthly |
| • Website History |
| WAN |
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP |
| WAN Aggregation |
| 3G / 4G LTE dongle |
| Port forwarding |
| • Maximum Port Forwarding Rule : 64 |
| Port triggering |
| • Maximum Port Triggering Rule : 32 |
| DMZ |
| DDNS |
| NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN |
DHCP Server |
| IGMP Snooping |
| IPTV |
| LAN Link Aggregation |
| Manually Assign IP Address |
| • Maximum Manually Assign IP Address Rule : 64 |
| Wake on LAN (WOL) |
| Wireless |
UTF-8 SSID |
| WiFi MAC Address Filter |
| • Maximum MAC Filters : 64 |
| Wireless Scheduler |
| Airtime Fairness |
| RADIUS Client |
| Universal Beamforming |
| Explicit Beamforming |
| USB application |
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 |
| Safely Remove Disk |
| AiCloud |
| Download Master |
| AiDisk |
| Media Server |
| Time Machine |
| Samba Server |
| FTP Server |
| Shared Folder Privileges |
| Administration |
Configuration Backup and Restore |
| Diagnosis tools |
| Feedback System |
| System Log |
| New Device Connect Notification |
| Login Captcha |
| Connection Diagnosis |
| Auto Firmware Update |
