ASUS PRIME Z790-P WIFI-CSM LGA 1700 (Intel 12th&13th 14th Gen) ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
  • Supports Latest Intel 13th & 12th Gen
  • 4 x DIMM, DDR5 7200+(OC)
  • 14 + 1 Teamed Power Stages
  • USB 3.2 Gen 2×2 Type-C®

₨ 69,990

  • Ship from Dubai
  • Estimated Delivery 8 -10 Days

Payment Methods:

Description

ASUS PRIME Z790-P WIFI-CSM LGA 1700 (Intel 12th&13th 14th Gen) ATX Motherboard Price in Pakistan

Model

PRIME Z790-P WIFI-CSM

CPU

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z790 Chipset

Memory

4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  OptiMem II
  * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
  1 x HDMI® port***
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)*
  1 x PCIe 5.0 x16 slot
  Intel® Z790 Chipset
  3 x PCIe 4.0 x16 slots (support x4 mode)
  1 x PCIe 3.0 x1 slot
  * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel® Core™ Processors (14th & 13th & 12th Gen)*
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  Intel® Z790 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6
  2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth® v5.2

USB

Rear USB (Total 8 ports)
  1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  1 x USB 3.2 Gen 2 port (1 x Type-A)
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 9 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
  * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio




Realtek 7.1 Surround Sound High Definition Audio CODEC*
  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – Supports up to 24-Bit/192 kHz playback
  Audio Features
  – Audio Shielding
  – Premium audio capacitors
  – Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

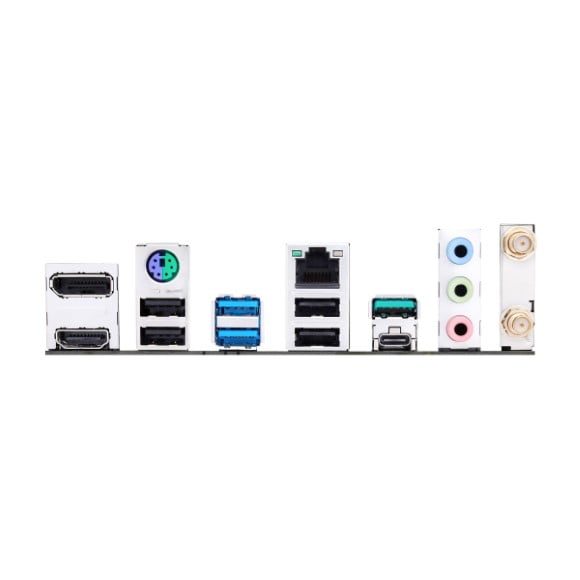

Back Panel I/O Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
  1 x USB 3.2 Gen 2 port (1 x Type-A)
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI® port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors


Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
  2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  2 x Aura RGB headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 20-5pin System Panel header
  1 x Thunderbolt™ (USB4®) Header

Special Features

ASUS 5X PROTECTION III
  – DIGI+ VRM (- Digital power design with DrMOS)
  – LANGuard
  – Overvoltage Protection
  – SafeSlot Core+
  – Stainless-Steel Back I/O
  ASUS Q-Design
  – Q-DIMM
  – Q-Slot
  – Q-LED Core
  ASUS Thermal Solution
  – Flexible M.2 heatsink
  – VRM heatsink design
  ASUS EZ DIY
  – ProCool
  Aura Sync
  – Aura RGB headers
  – Addressable Gen 2 headers

Software Features


ASUS Exclusive Software
  Armoury Crate
  – Aura Sync
  – Fan Xpert 4 (with AI Cooling II)
  – Power Saving
  AI Suite 3
  -TurboV EVO
  -PC Cleaner
  -DIGI+ VRM
  ASUS CPU-Z
  MyASUS
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – ASUS EZ Flash 3
  – ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 Rubber Package
  2 x Screw packages for M.2 SSD
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor

ATX Form Factor
  12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
