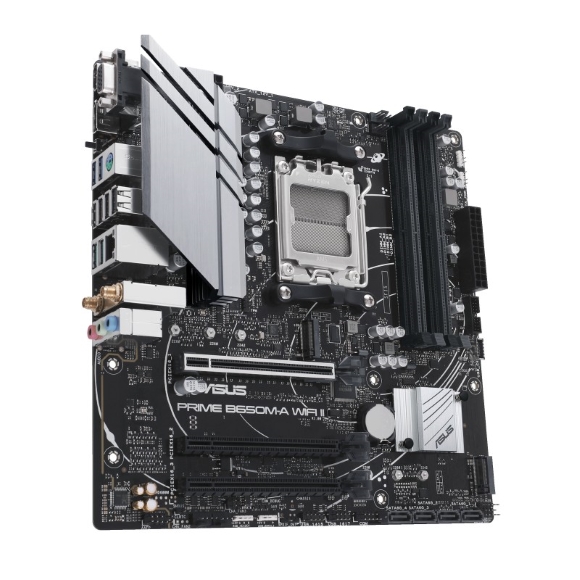

ASUS PRIME B650M-A WIFI II Micro-ATX with DDR5, PCIe 5.0 M.2, 2.5Gb Gaming Motherboard Price in Pakistan
|
Model |
PRIME B650M-A WIFI II |
|
CPU |
AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
|
Chipset |
AMD B650 Chipset |
|
Memory |
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
|
Graphics |
1 x DisplayPort** |
| 1 x VGA port | |
| 1 x HDMI® port*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| *** Supports 4K@60Hz as specified in HDMI® 2.1. | |
|
Expansion Slots |
AMD Ryzen™ 7000 Series Desktop Processors* |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** | |
| AMD B650 Chipset | |
| 2 x PCIe 4.0 x16 slots (support x1 mode) | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** Specifications vary by CPU types. | |
| – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
|
Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD B650 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
|
Ethernet |
1 x Realtek 2.5Gb Ethernet |
|
Wireless & Bluetooth |
Wi-Fi 6 |
| 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5GHz frequency band | |
| Bluetooth® v5.2 | |
| * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. | |
|
USB |
Rear USB (Total 8 ports) |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
|
Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| – Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| – Audio Shielding | |
| – Premium audio capacitors | |
| – Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
|
Back Panel I/O Ports |
2 x USB 3.2 Gen 2 ports (2 x Type-A) |
| 2 x USB 3.2 Gen 1 ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x VGA port | |
| 1 x HDMI® port | |
| 1 x Wi-Fi Module | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| 1 x PS/2 Keyboard/Mouse combo port | |
|
Internal I/O Connectors |
Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| 1 x 4-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) | |
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel header | |
|
Special Features |
ASUS 5X PROTECTION III |
| – DIGI+ VRM | |
| – LANGuard | |
| – Overvoltage Protection | |
| – Safeslot Core+ | |
| – Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| – Q-DIMM | |
| – Q-LED Core | |
| – Q-Slot | |
| ASUS Thermal Solution | |
| – VRM heatsink design | |
| ASUS EZ DIY | |
| – BIOS FlashBack™ button | |
| – BIOS FlashBack™ LED | |
| Aura Sync | |
| – Aura RGB header | |
| – Addressable Gen 2 headers | |
|
Software Features |
|
|
ASUS Exclusive Software |
|
| Armoury Crate | |
| – Aura Creator | |
| – Aura Sync | |
| – Fan Xpert 2+ | |
| – Power Saving | |
| AI Suite 3 | |
| – TurboV EVO | |
| – DIGI+ VRM | |
| – PC Cleaner | |
| ASUS CPU-Z | |
| MyASUS | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| – ASUS CrashFree BIOS 3 | |
| – ASUS EZ Flash 3 | |
| – ASUS UEFI BIOS EZ Mode | |
|
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
|
Manageability |
WOL by PME, PXE |
|
Accessories |
Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x I/O Shield | |
| 1 x Screw Package for M.2 SSD | |
| Documentation | |
| 1 x User guide | |
|
Operating System |
Windows® 11, Windows® 10 64-bit |
|
Form Factor |
mATX Form Factor |
| 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
