ASUS Prime AP-850W 80 Plus Gold Modular Power Supply

  • 850W Single +12V Rail
  • 135mm Internal Fan
  • Intel ATX12V Version 3.0
  • 16-Pin 12VHPWR Connector
  • 3 x PCIe Connectors
  • 5 x SATA Connectors
  • 3 x Peripheral Connectors
  • 80 Plus Gold Certification

₨ 34,000

Add to compare
Add to wishlist
SKU: AP-850W

Payment Methods:

Description

ASUS Prime AP-850W 80 Plus Gold Modular Power Supply Price in Pakistan Specs

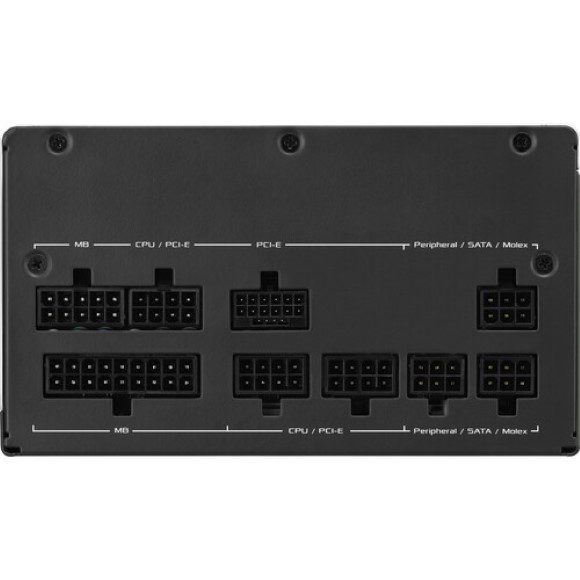

Connectivity
Total Connectors
1 x 20+4-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
1 x 16-Pin PCIe (12VHPWR)
3 x 8-Pin PCIe
5 x 15-Pin SATA
3 x 6-Pin SATA / Peripheral
Cable Design
Modular
PCIe Connector Distances
26.6″ / 675 mm
SATA Connector Distances
15.7″ / 400 mm
20.5″ / 520 mm
25.2″ / 640 mm
Peripheral Connector Distances
15.7″ / 400 mm
21.7″ / 550 mm
27.6″ / 700 mm
ATX Connector Distance
24″ / 610 mm
EPS Connector Distances
25.6″ / 650 mm
Electrical
Total Wattage
850 W
Number of +12 V Rails
1
Combined Power for +12 V
846 W
Max Load for +12 V
70.5 A
Combined Power for +3.3/+5 V
110 W
Max Load for +3.3 V
20 A
Max Load for +5 V
20 A
Max Power for +5 Vsb
12.5 W
Max Load for +5 Vsb
2.5 A
Max Power for -12 V
3.6 W
Max Load for -12 V
0.3 A
AC Input Power
100 to 240 VAC, 50 / 60 Hz
General
Efficiency Rating
80 PLUS Gold
Active Power Factor Correction
Yes
Efficiency
91% at 25% Load
91% at 50% Load
90% at 75% Load
89% at 100% Load
Cooling
Fan Size
135 mm
Bearing Type
Ball
Environmental
Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
20 to 80%
Physical
Form Factor
ATX
Compliance
ATX 12 V v3.0
Protection
Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications
RoHS
Dimensions
5.9 x 3.4 x 5.9″ / 150 x 86 x 150 mm
Weight
3.3 lb / 1.5 kg
