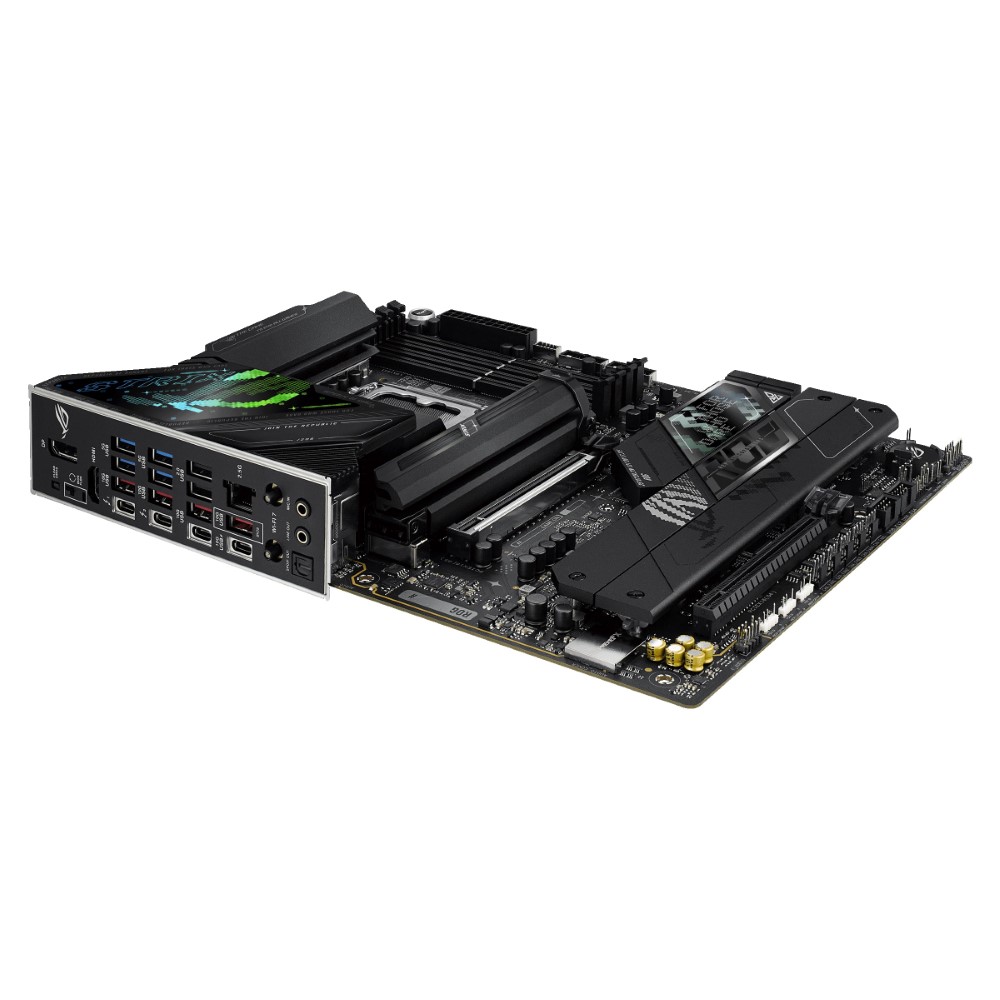

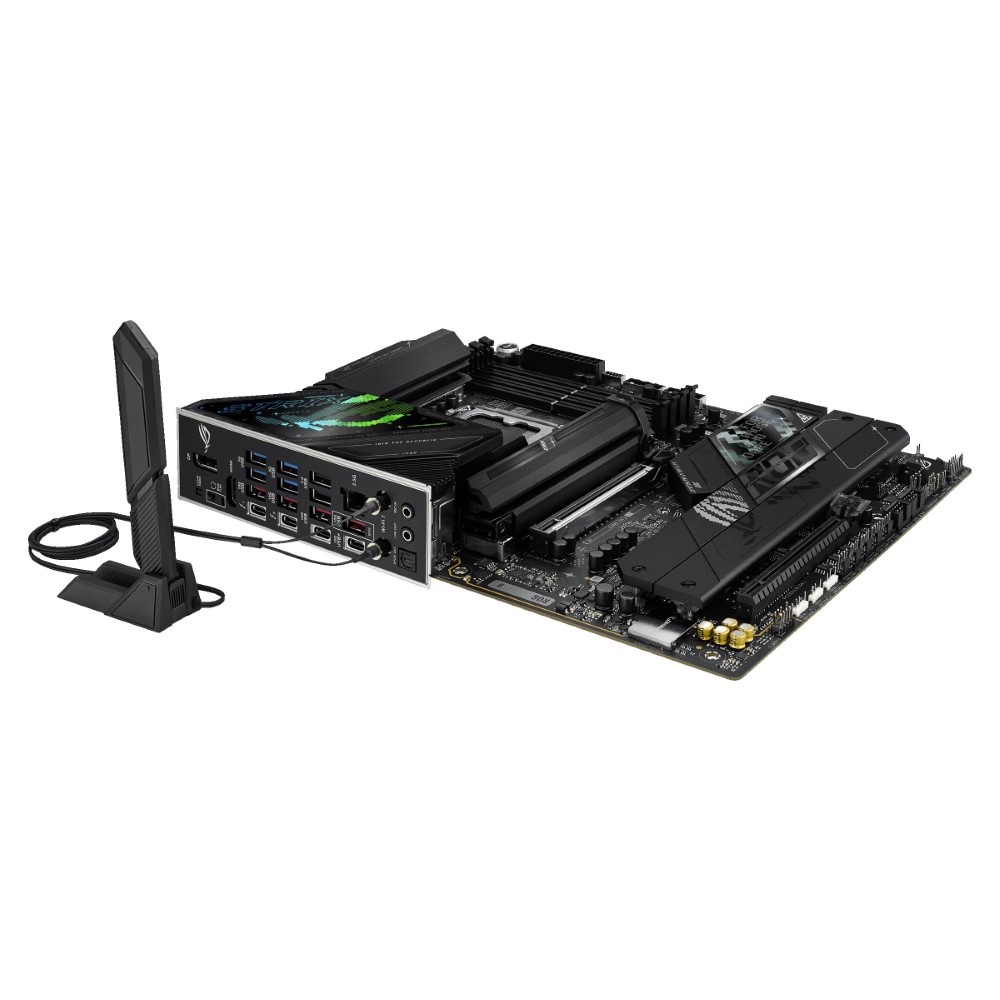

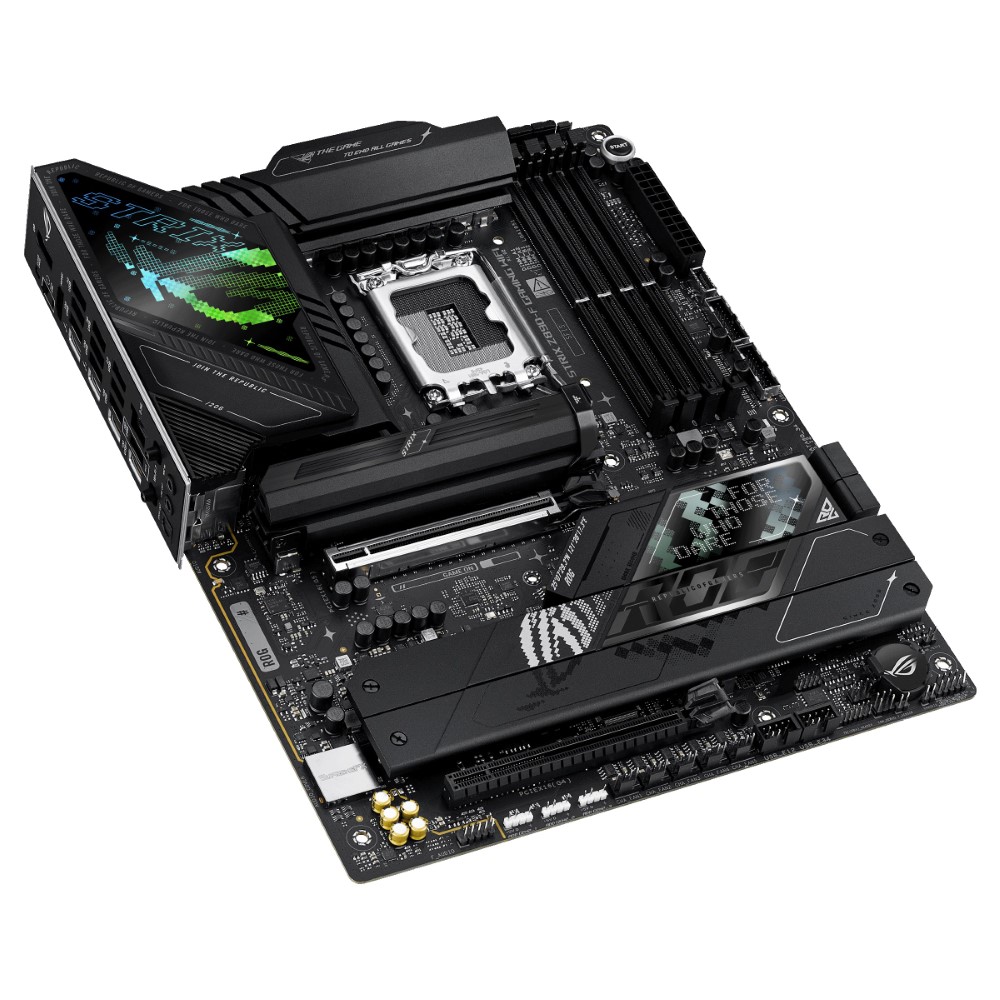

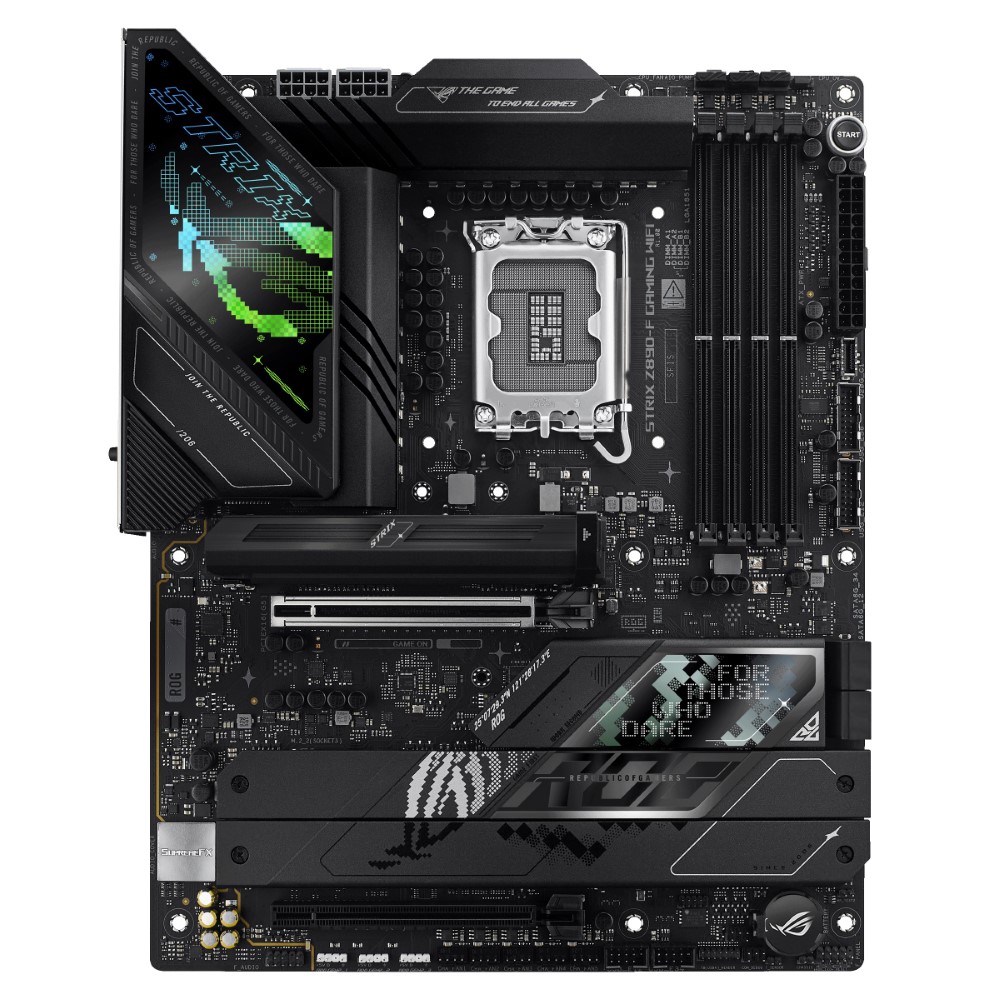

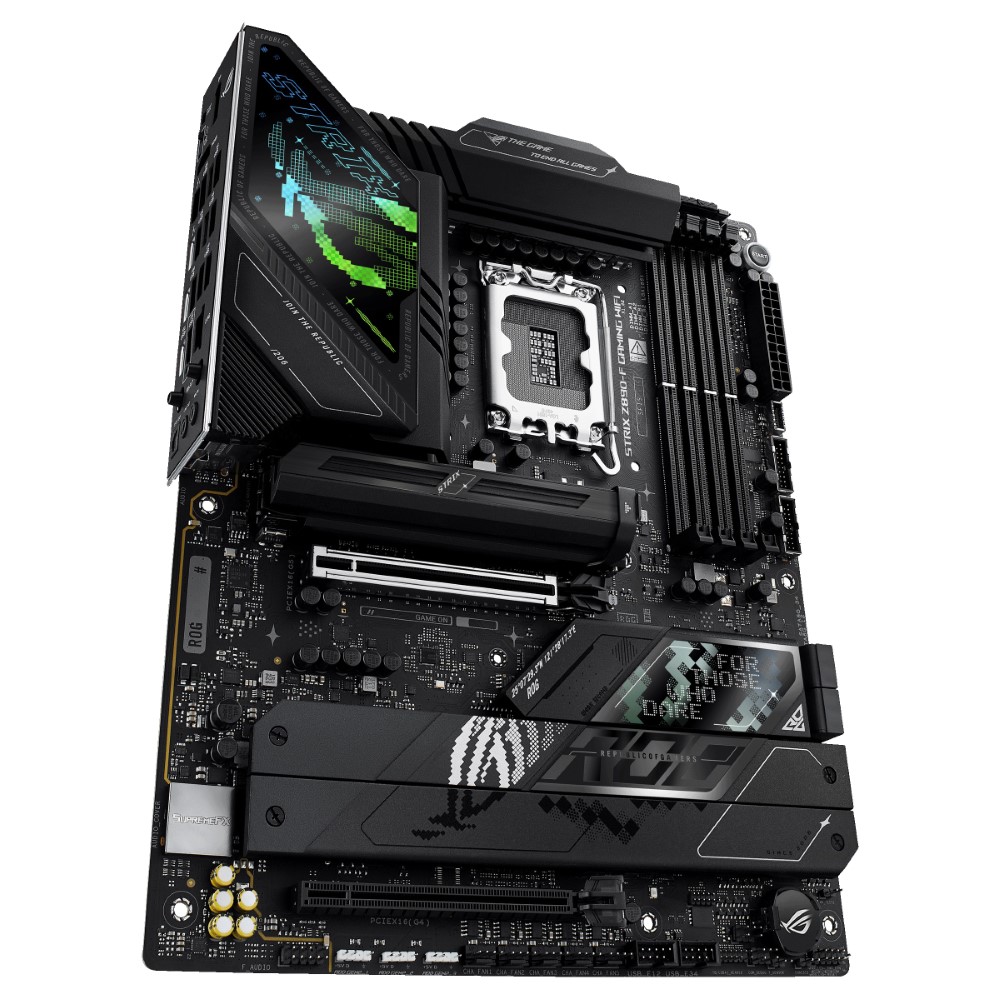

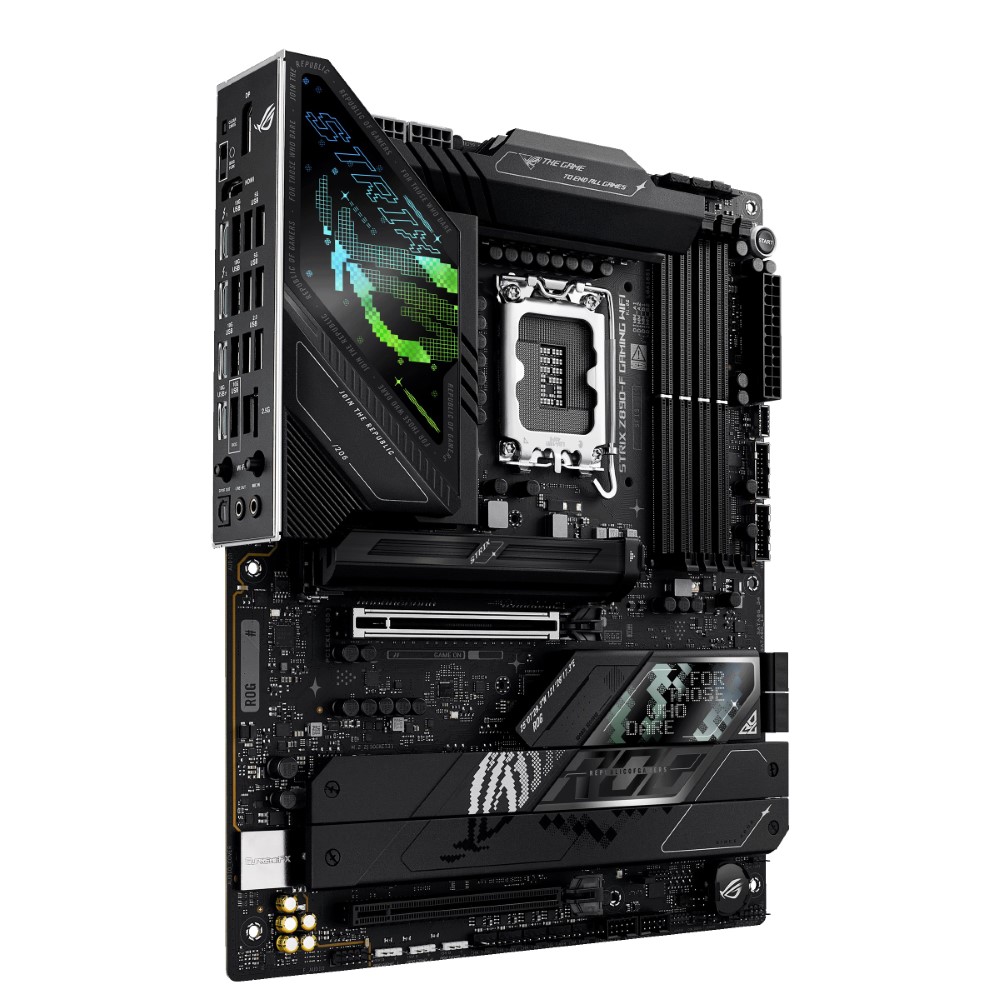

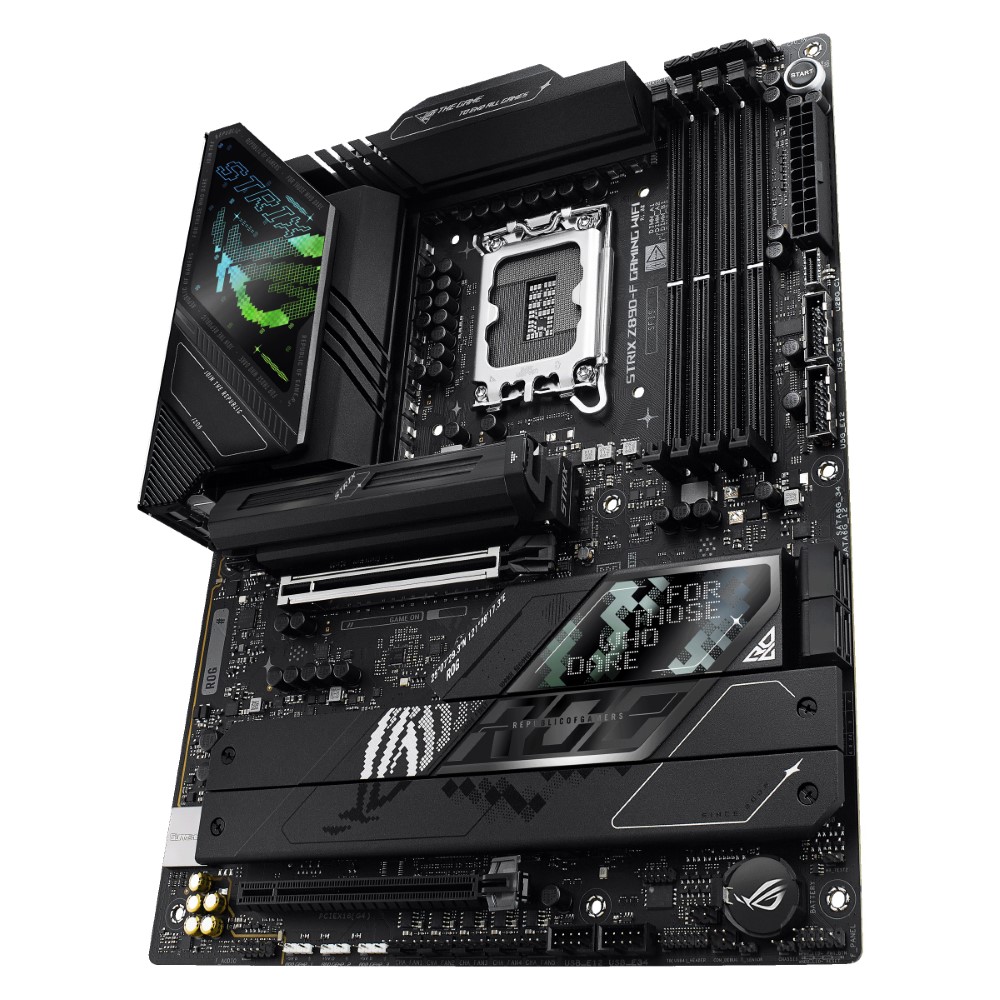

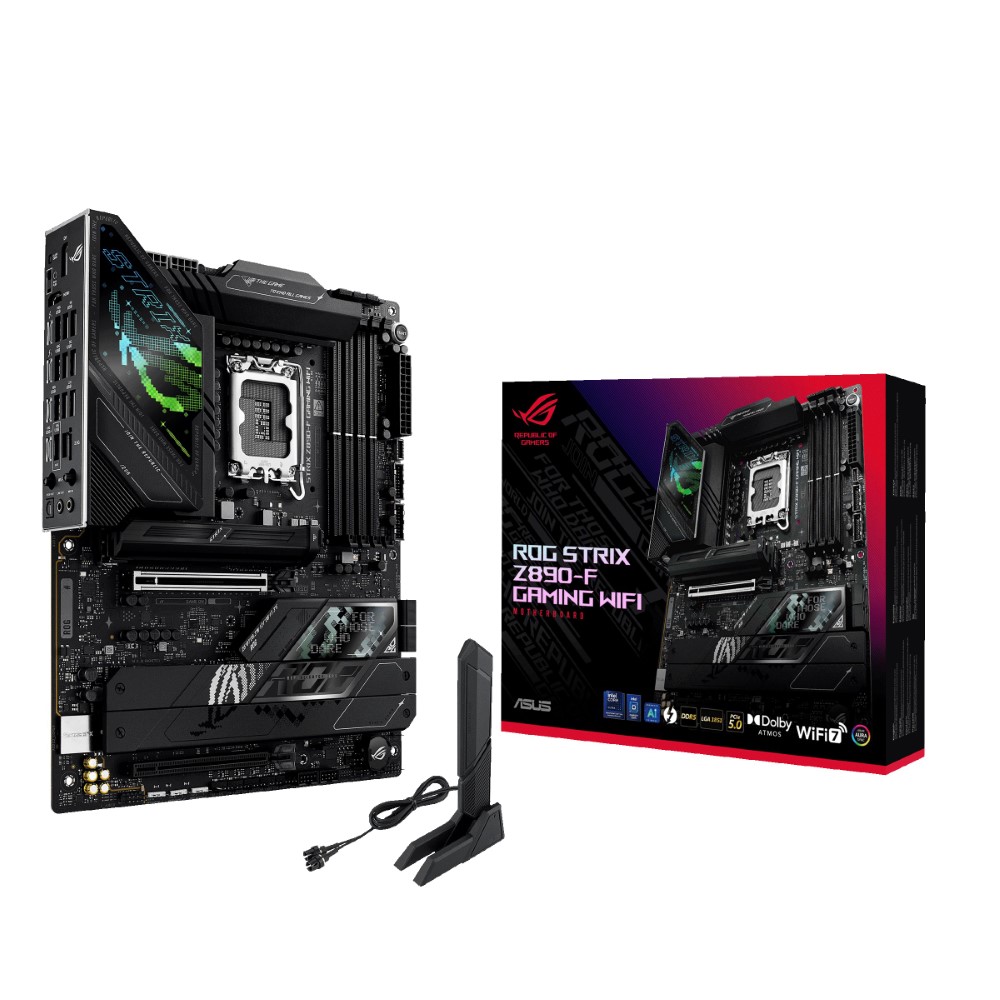

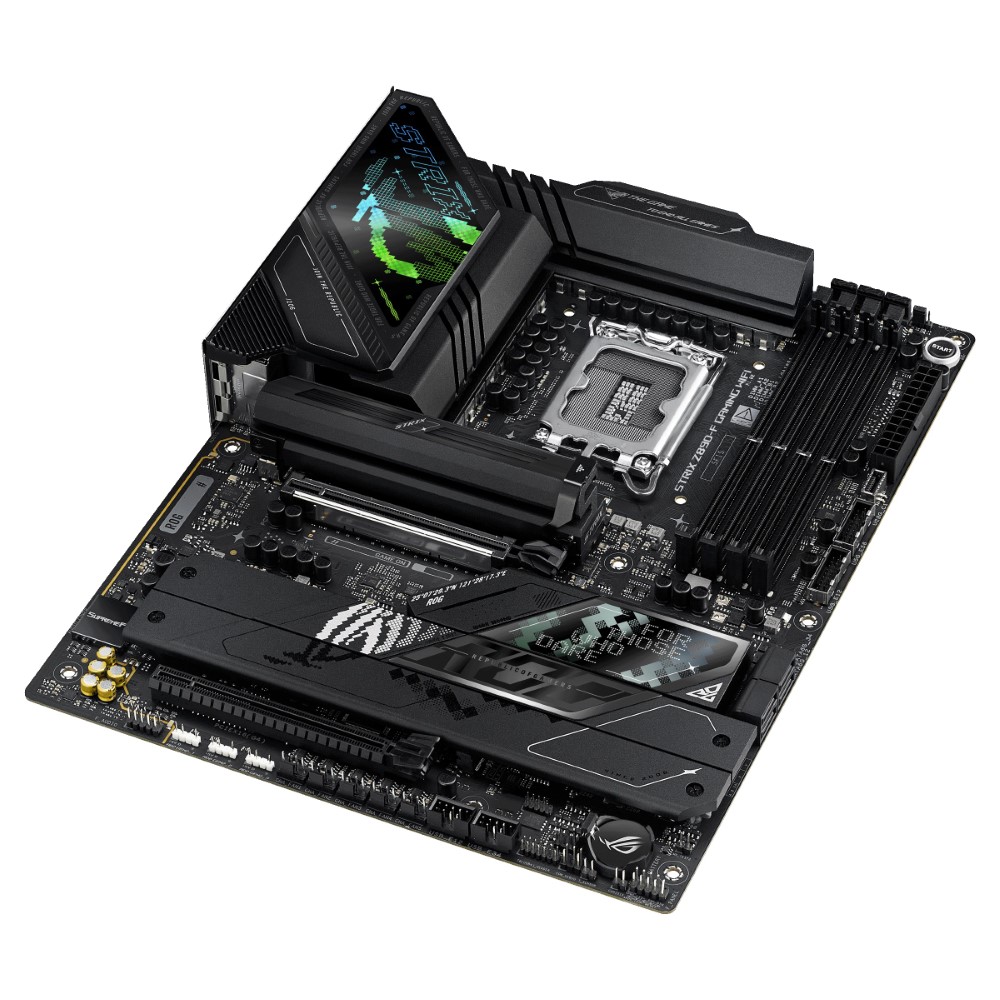

ASUS Intel ROG Strix Z890-F Gaming WiFi ATX Motherboard, 16+1+2+2 power stages, DDR5 slots, PCIe 5.0 w/full support for next-gen GPUs, five M.2 slots, WiFi 7, AI Overclocking, AI Networking II

  • Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • Intel LGA 1851 Socket: Ready for Intel Core Ultra processors (Series 2)
  • Exclusive AI Technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II
  • Exclusive Memory Technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
  • Robust Power Solution: 16(110A)+1(90A)+2(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
  • Optimized Thermal Design: Massive heatsinks with integrated I/O cover, High-conductivity Thermal pads, and connected with an L-shaped heatpipe
  • Latest M.2 Support: One PCIe 5.0 M.2 slot and four PCIe 4.0 M.2 slots, all with substantial cooling solutions

Summer Shopping Season Sale

Hurry and get discounts on all products up to 2%

02_sale

 155,000

Payment Methods:

Description

ASUS Intel ROG Strix Z890-F Gaming WiFi ATX Motherboard, 16+1+2+2 power stages, DDR5 slots, PCIe 5.0 w/full support for next-gen GPUs, five M.2 slots, WiFi 7, AI Overclocking, AI Networking II Price in Pakistan

Brand

ASUS

Compaitability

Intel

CPU Socket Type

LGA 1851

Chipset

Intel® Z890 Chipset

Number of Memory Slots

4 x DIMM slots, max. 192GB, DDR5

Maximum Memory Supported

192GB

Memory Type Supported

DDR5

Channel Supported

Dual Channel

Storage Supported

5 x M.2 slots, 4 x SATA 6Gb/s ports*

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– Audio Shielding
– Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

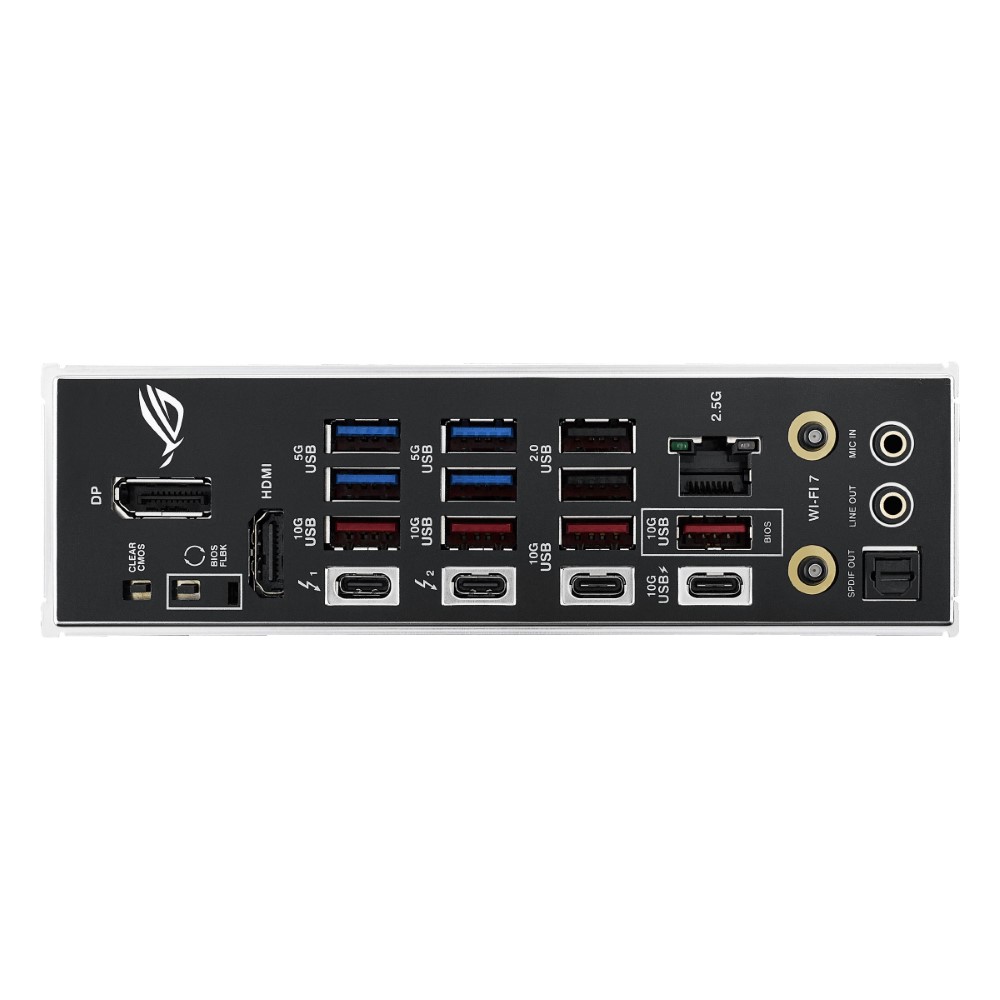

BACK PANEL I/O PORTS

2 x Thunderbolt™ 4 (2 x USB Type-C®)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

I/O (Internal)

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

OS Supported

Windows 11

Form Factor

ATX
