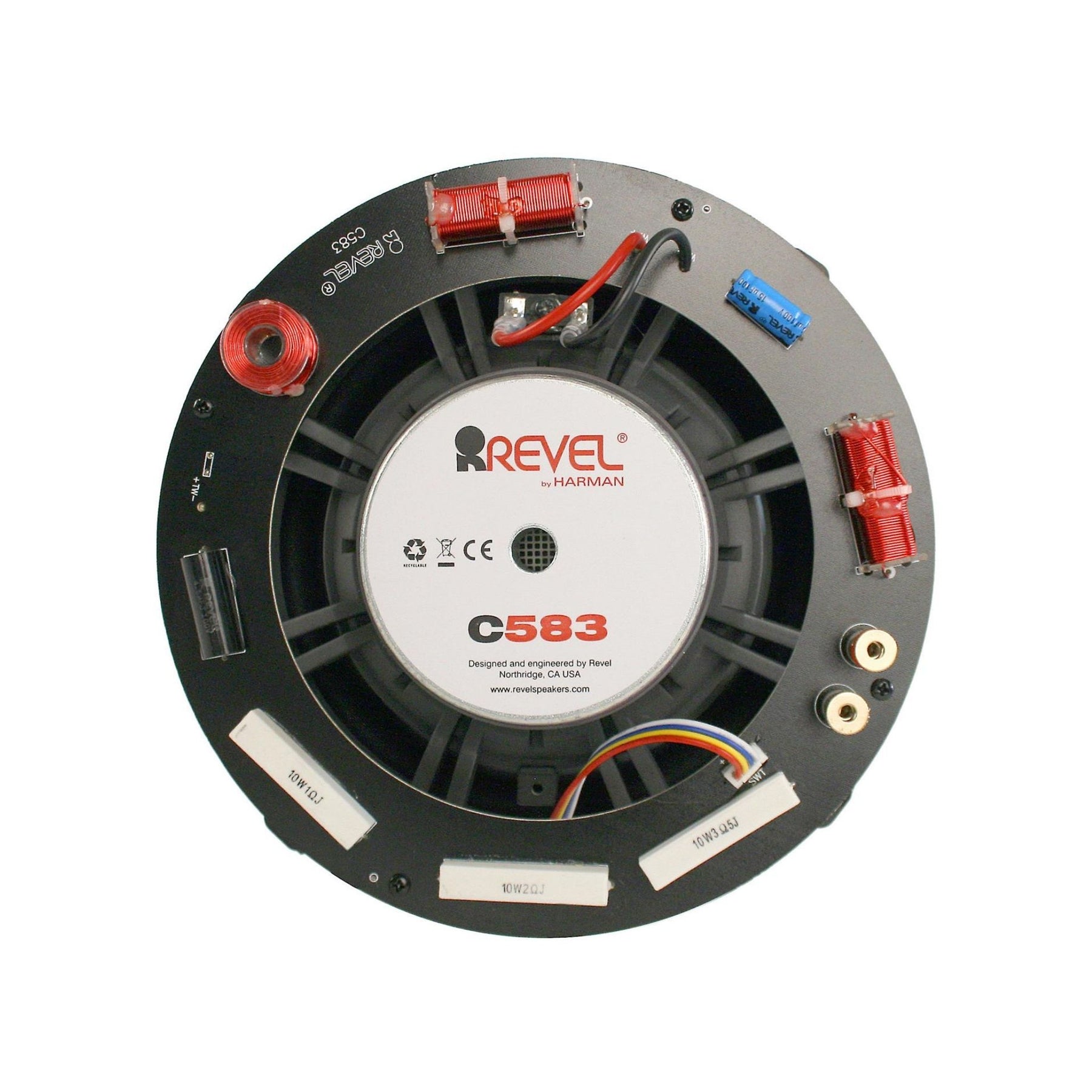

Revel C583 In Ceiling Speaker Each
- 8″ In-Ceiling Loudspeaker.
- Features 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide.
- Long-throw woofers with cast frames and rubber surrounds.
- High-order crossover network with premium-quality components.
- Boundary compensation switch (C783/C763) lets you adjust the speaker.
- Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
We Only Sell 100% Original, Top-Quality Revel
Genuine Products.
We Only Sell 100% Original, Top-Quality Revel Genuine Products.
Specifications
⚡General
- Brand: Revel
- Model: C583
- Color: white
⚡Features

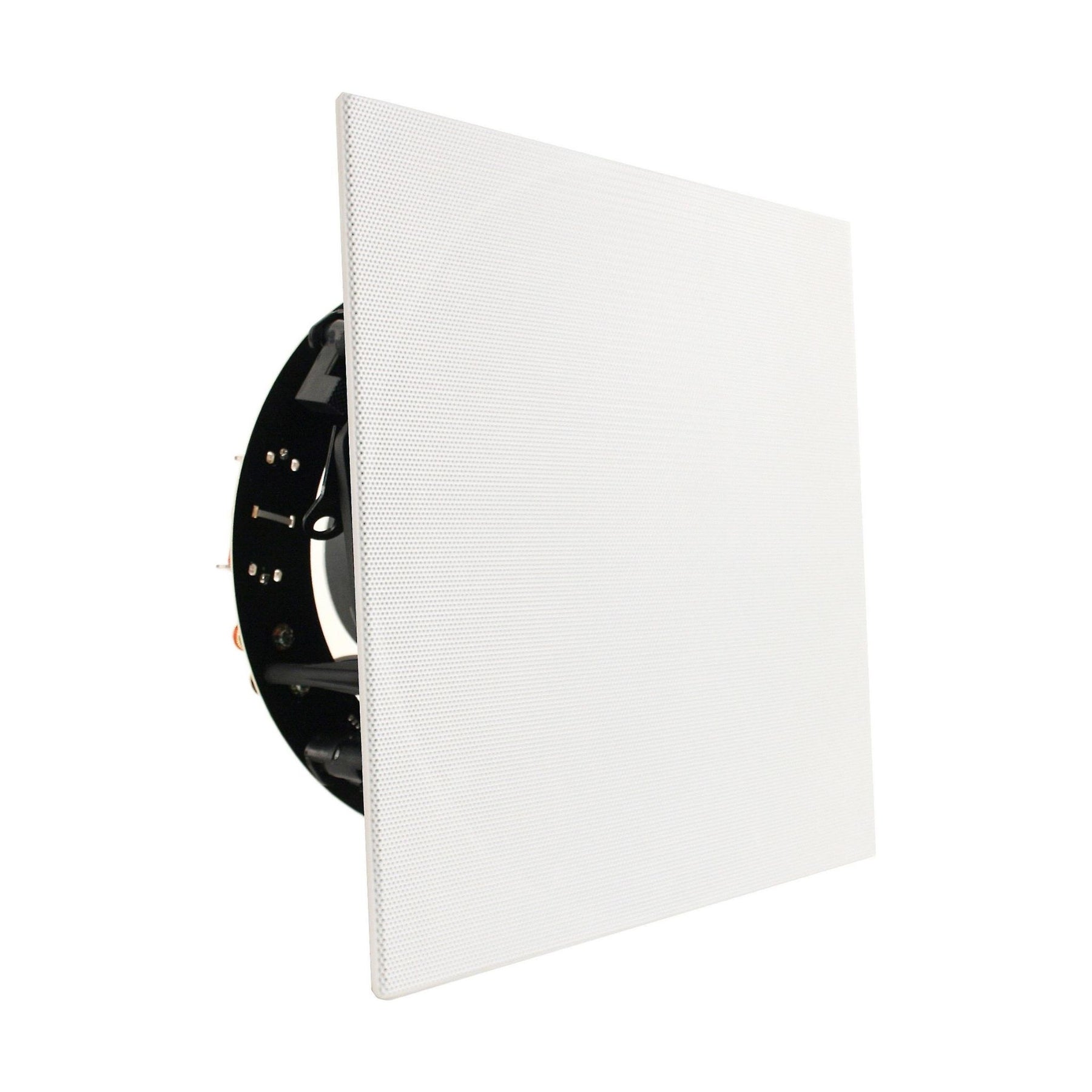

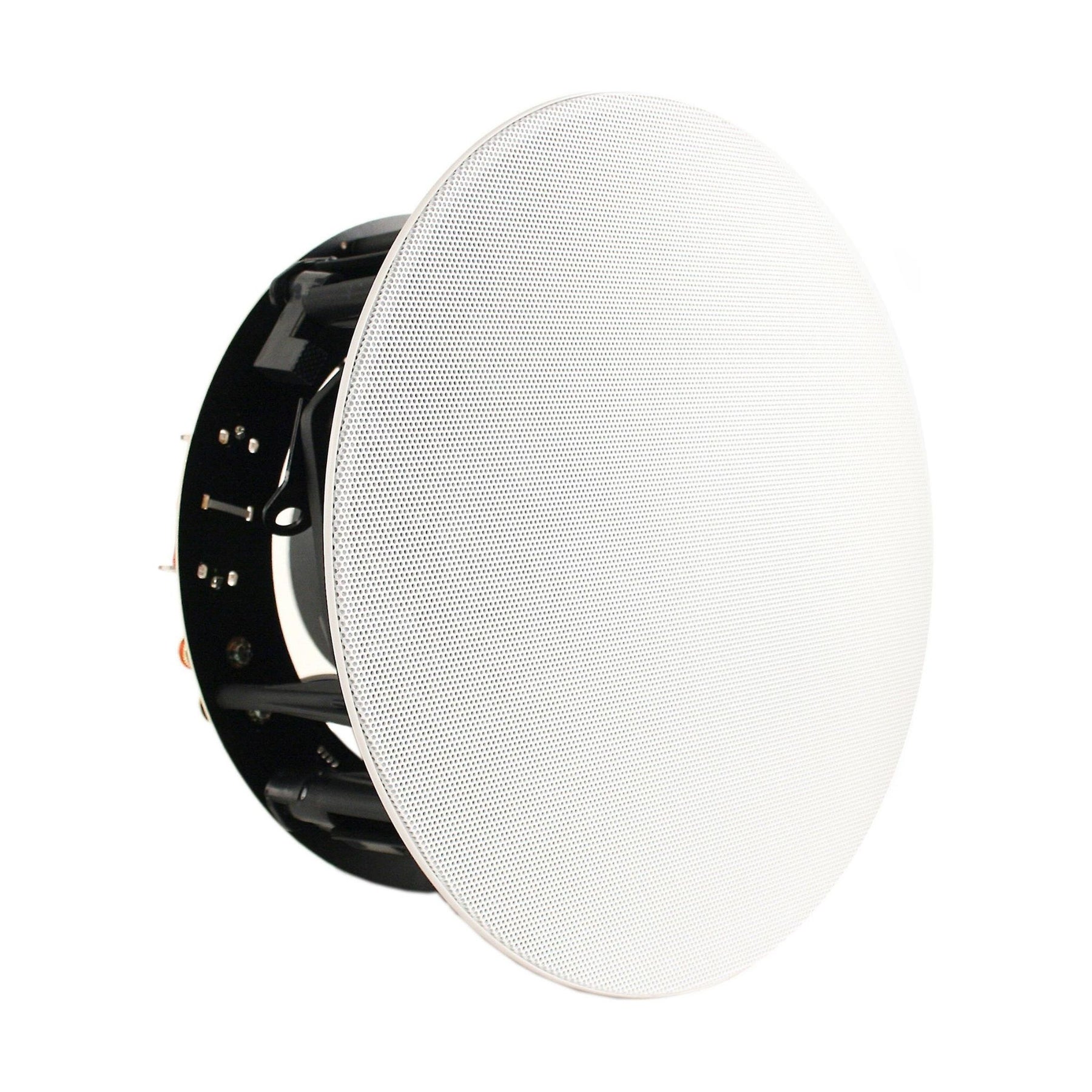

- Features: Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7″ (27.2 cm)
- High-frequency Driver: Components 1″ aluminum dome swiveling tweeter with waveguide
- Low Frequency Extension: High Frequency Extension (-10dB) 3-position HF level control
- Mounting: C-2 fastening mechanism
Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm)
- Low-frequency Driver: Components 8″ Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
- Recommended Amplifier Power: 10 – 135 W RMS
⚡Dimension
- Height: Cutout dimensions (dia.) 9.6″ (24.4 cm) Square grille finished Height 10.7″ (27.2 cm)
- Width: Square grille finished Width 10.7″ (27.2 cm)
- Depth: Mounting depth 5.2″ (13.2 cm)
- Weight: 2.8 lb (1.3 kg)
⚡Warranty
- Warranty Type: Manufacturers
- Warranty Period: 1 Year
