Revel C563 In Ceiling Speaker Each

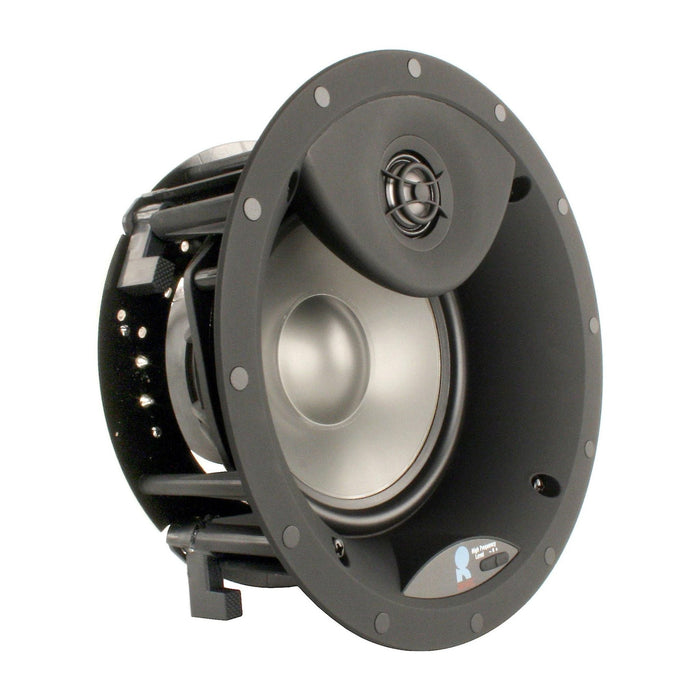

- A 6 ½” In-Ceiling Loudspeaker.
- 1-inch (25mm) angle-adjustable, metal-dome tweeter.
- Long-throw woofers with cast frames and rubber surround.

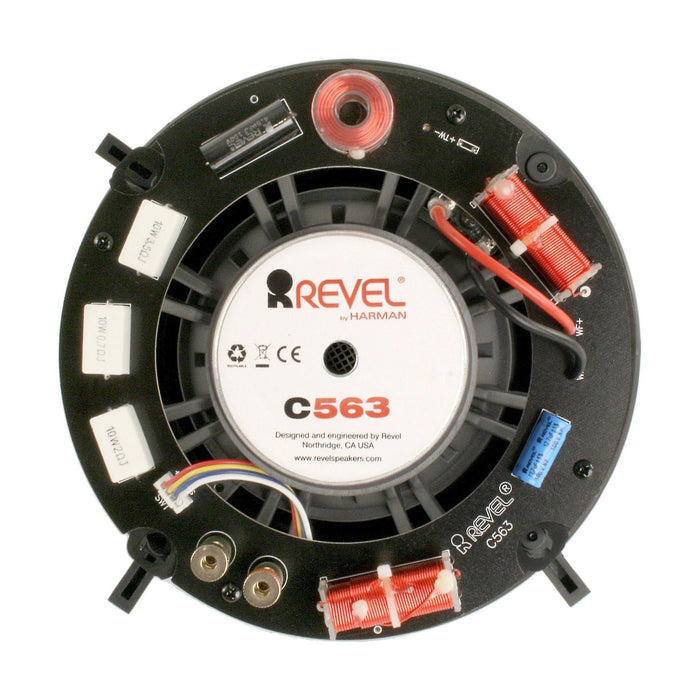

- High-order crossover network with premium-quality components.
- Boundary compensation switch (C783/C763).
- Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.
We Only Sell 100% Original, Top-Quality Revel
Genuine Products.
We Only Sell 100% Original, Top-Quality Revel Genuine Products.
Specifications
⚡General
- Brand: Revel
- Model: C563
- Color: white
⚡Features
- Features: Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1″ (23.1 cm)
- High Frequency Driver Components: 1″ aluminum dome swiveling tweeter with waveguide
- Low Frequency Extension: High frequency Extension 3-position HF level control
- Low Frequency Driver Components: 6 ½” Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
- Mounting: C-2 fastening mechanism
Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm) - Recommended Amplifier Power: 10 – 130 Watts RMS
⚡Dimension
- Height: Cutout dimensions (dia.) 8″ (20.3 cm)
Square grille finished Height 9.1″ (23.1 cm) - Width: Square grille finished Width 9.1″ (23.1 cm
- Depth: 4.9″ (12.5 cm)
- Weight: 0.9 kg
⚡Warranty
- Warranty Type: Manufacturers
- Warranty Period: 1 Year
