About this item

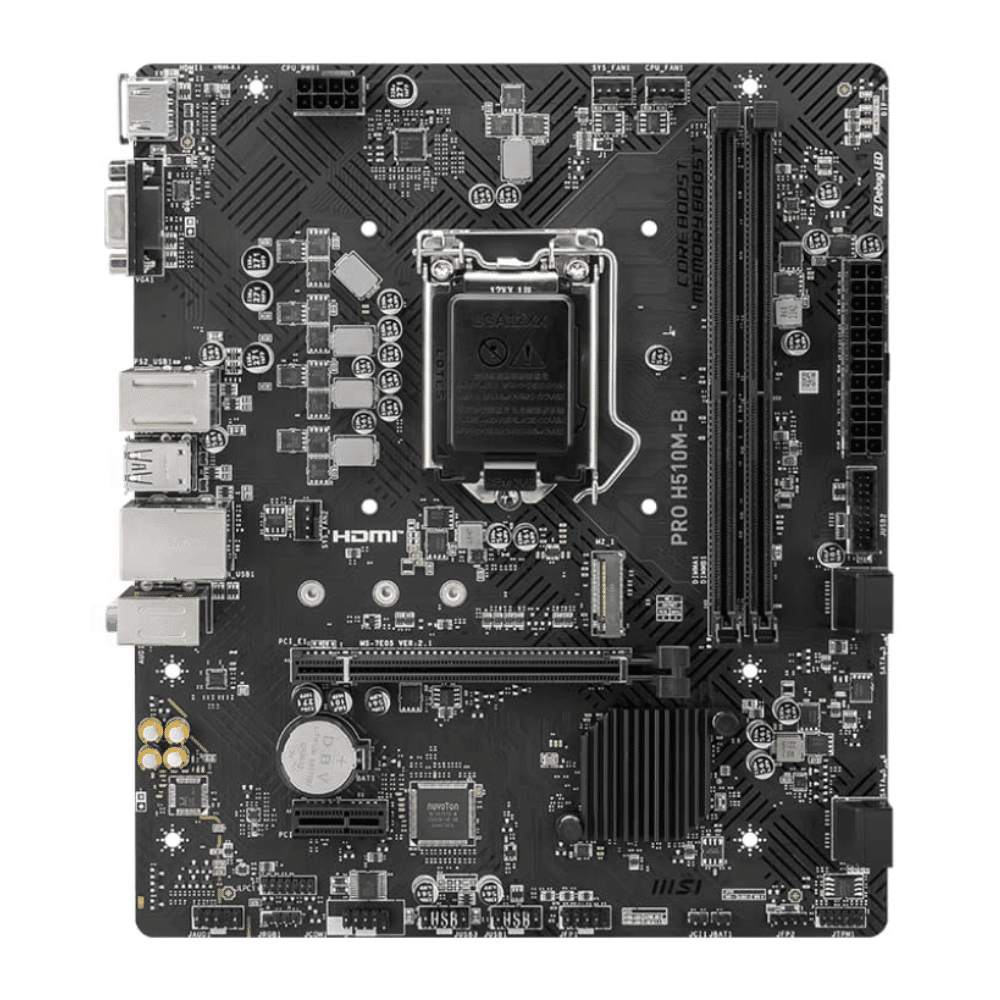

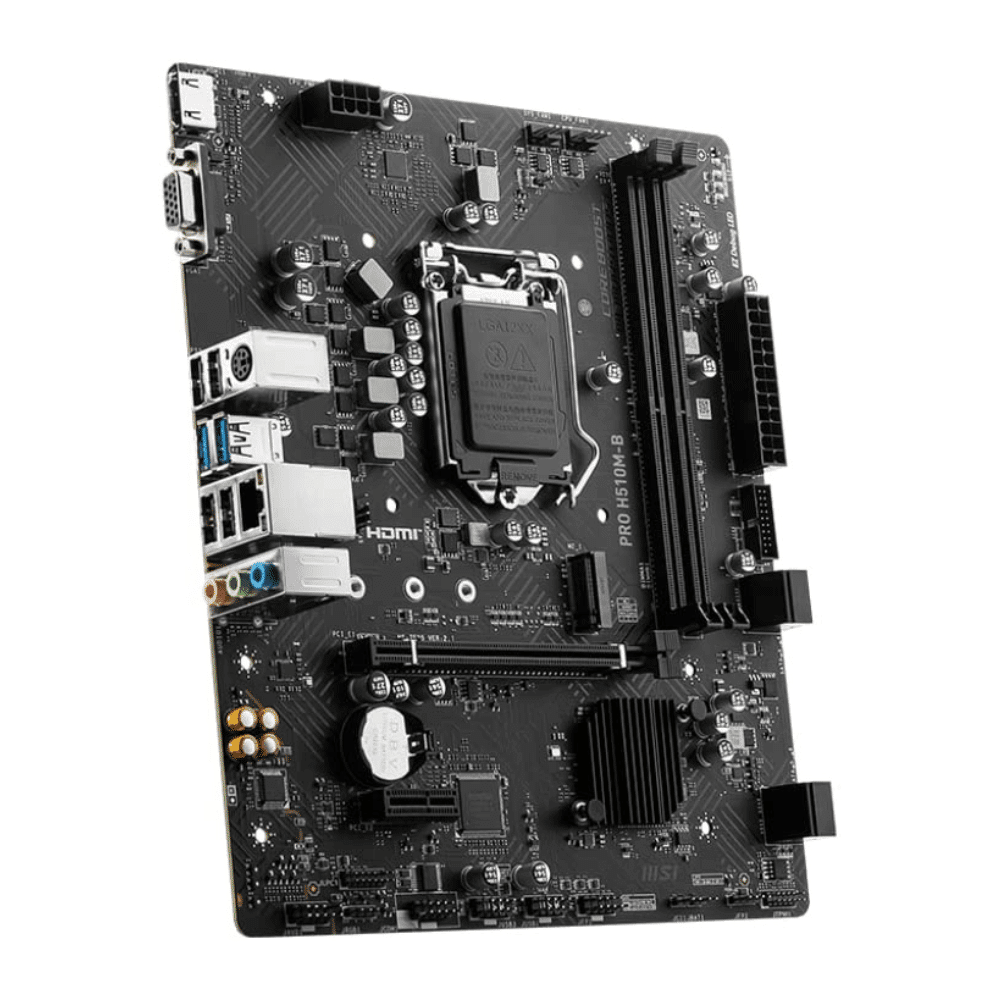

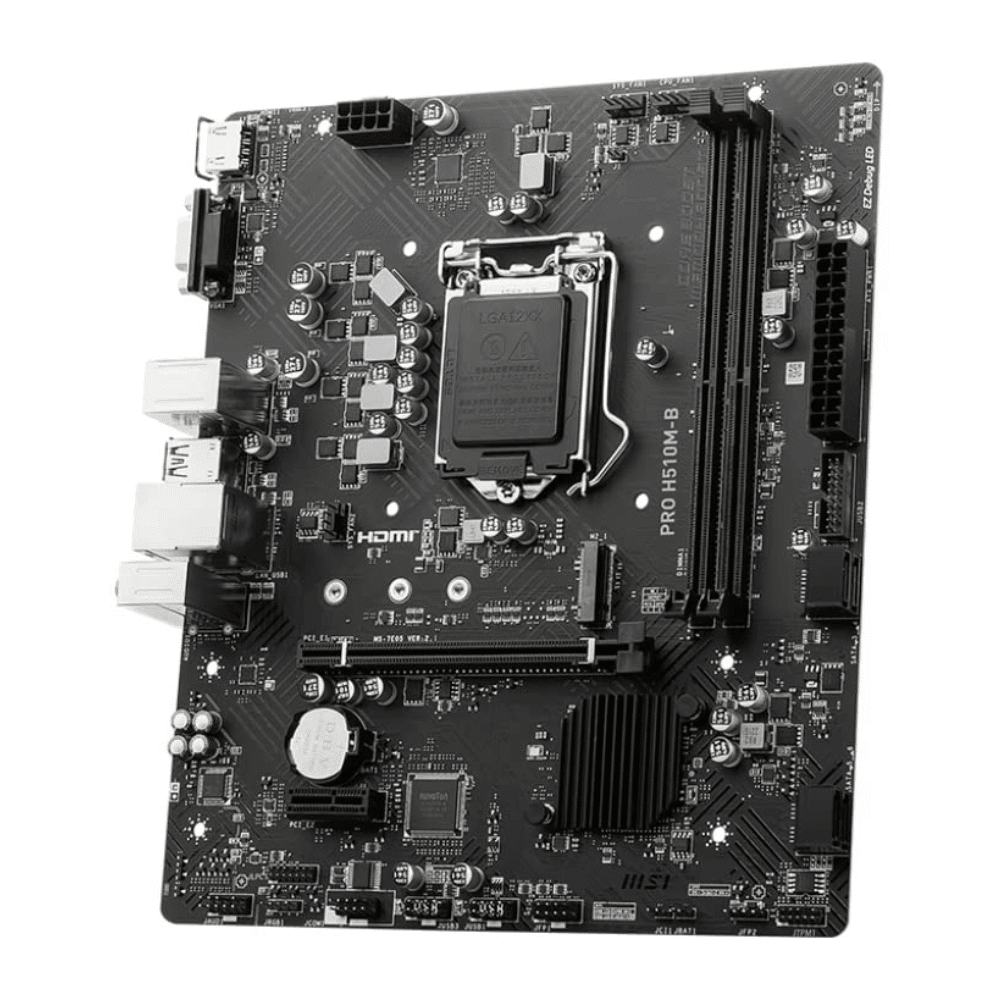

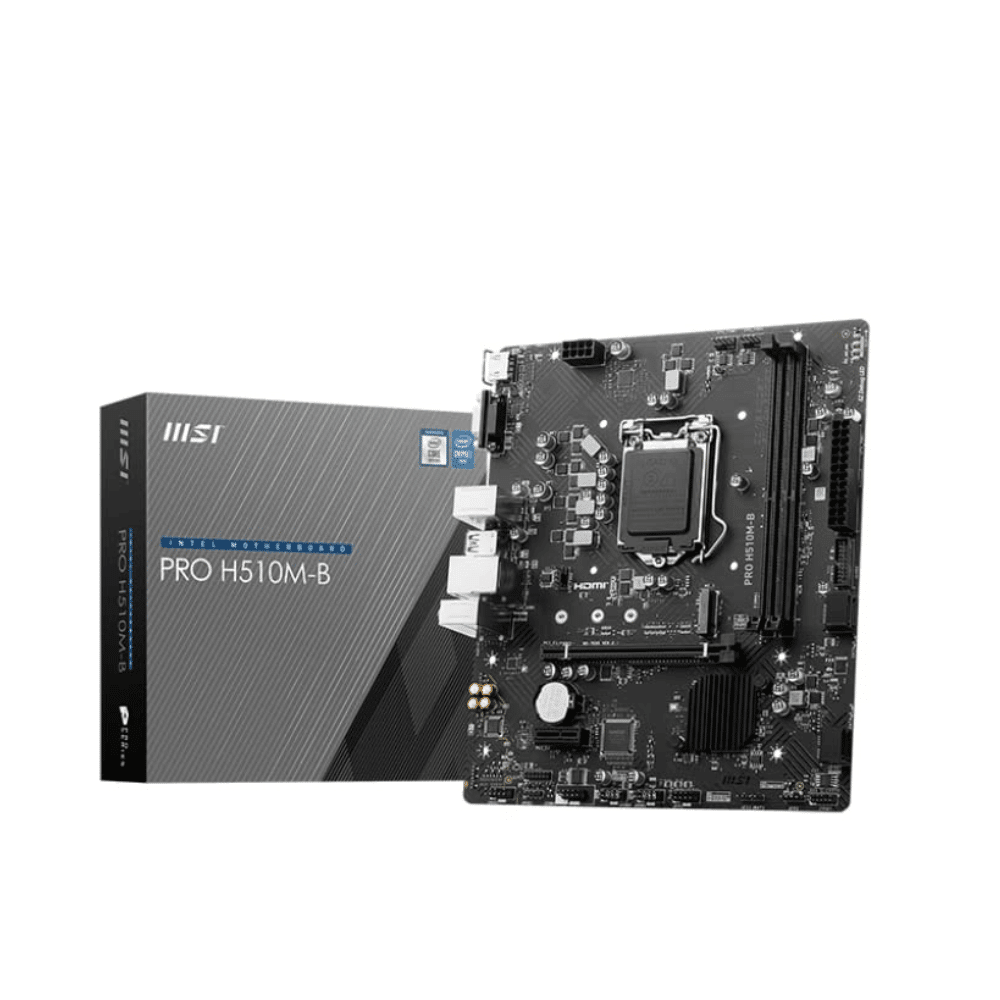

- 10TH GEN CORE READY – The PRO H510M-B is a compact micro-ATX motherboard outfitted with the latest Intel H510 chipset (LGA 1200, 10th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance
- GEN4 GPU SLOT, DUAL DIMMS – A PCIe 3.0 x16 slot supports state-of-the-art graphics cards; Dual DIMM’s with dual-channel DDR4 architecture support up to 64 GB of SDRAM (2933MHz)
- SATA STORAGE – The SATA 6Gb/s slot is designed to maximize SATA SSD performance; SSD storage reduces loading time
- PASSIVE & AI COOLING – A chipset heatsink provides passive cooling; a PCB base with thickened copper helps dissipate heat

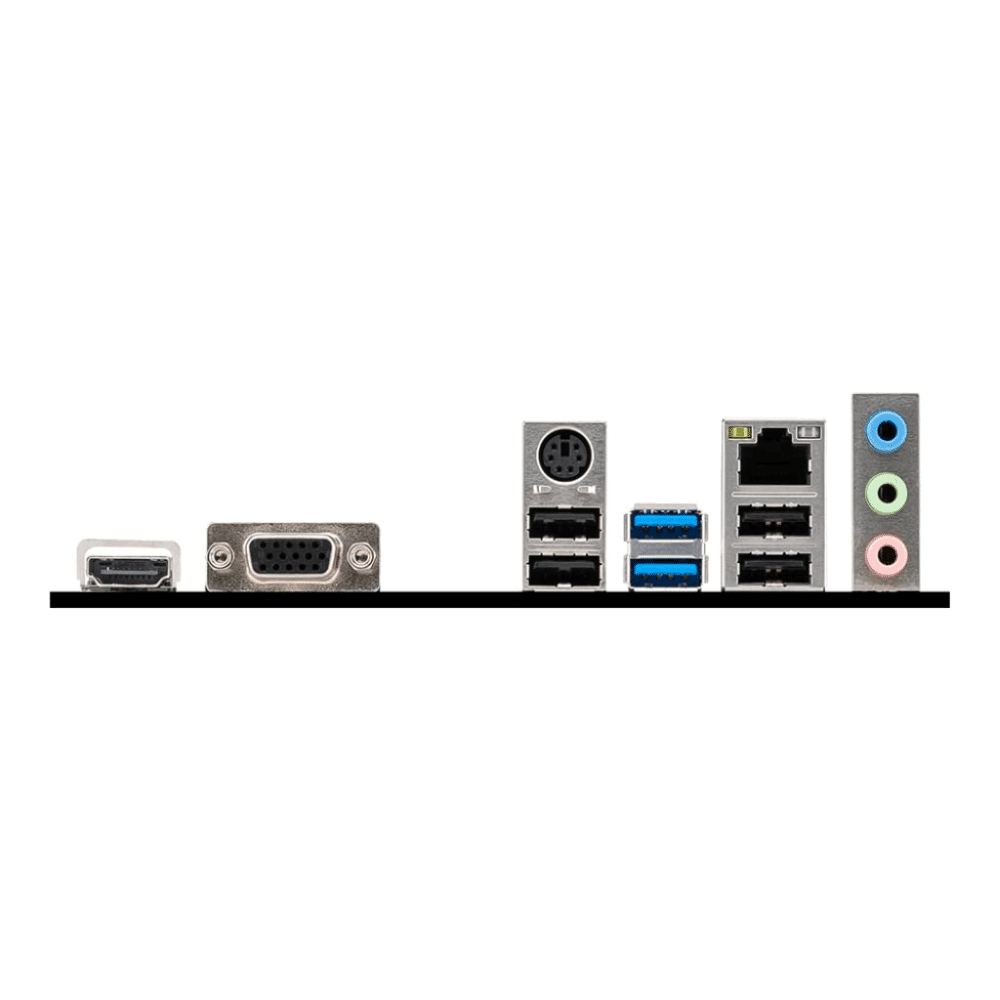

- GET CONNECTED – Features Realtek RTL8111H Gigabit LAN; Fixed ports include legacy VGA as well as HDMI 1.4 (4K/30Hz) – requires CPU with integrated graphics; 2 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost
Technical Details
- Brand MSI
- Manufacturer MSI, “Micro-Star INT’L CO., LTD. No.69, Lide St., Zhonghe Dist., New Taipei City 235, Taiwan”
- Item Height 28 Centimeters
- Item Width 50 Centimeters
- Product Dimensions 50 x 50 x 28 cm; 660 Grams
- Item model number 484597
- Processor Brand Intel
- Processor Socket LGA 1200
- Processor Count 1
- Memory Technology DDR4
- Maximum Memory Supported 64 GB
- Memory Clock Speed 2933 MHz
- Graphics Card Interface PCI-Express x4, PCI-Express x16
- Number of USB 2.0 Ports 2
- Wattage 65 Watts
- Are Batteries Included No
- Manufacturer MSI
- Country of Origin China
- Item Weight 660 g
- Warranty 3 Years
