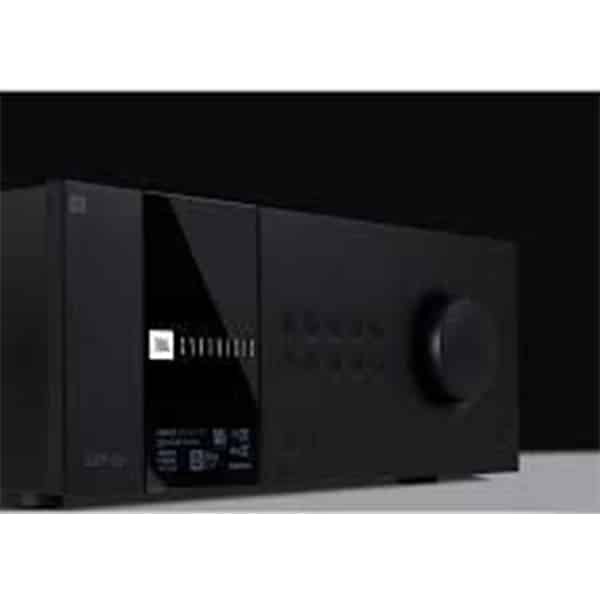

JBL Synthesis SDP 55 Dolby Atmos Sound Processor
- It has an immersive High Resolution Sound.
- It has an logic 16 will up-mix any input source from mono up to 15.1 including all Dolby formats.
- It has an IMAX Enhanced certified AV receiver.
- It has an cinematic Video Experience Dolby Vision, HDR10+, HDR10.
We Only Sell 100% Original, Top-Quality JBL Genuine Products.
We Only Sell 100% Original, Top-Quality JBL Genuine Products.
Specifications
General
- Brand: Jbl
- Model: SDP-55
- Color: black
Features
- Maximum input: 4.5V RMS
- Nominal sensitivity: 1V, 2V, 4V (user adjustable)
- Input impedance: 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo - Nominal output level (single-ended/balanced): 1V RMS / 2V RMS (max. 5V RMS / 10 V RMS)
- Output impedance: 560Ω
- THD+N (20Hz—20kHz): –100dB
- Maximum output level into 32Ω: 5Vrms
- Power consumption (standby): <0.5W
- direct: 100dB/110dB
- Frequency response: 20Hz—20kHz ± 0.1dB
- Output impedance: 560Ω:<100Ω
- Mains voltage: 110–120V or 220–240V, 50–60Hz
- Power consumption (maximum): 50W (Thermal dissipation approx. 170 BTU/hour)
- Power consumption (idle, typical): 40W (Thermal dissipation approx. 170 BTU/hour)
Dimensions
- Dimension: 17.05 x 16.73 x 6.73″
- Weight: 23.37 lbs
Warranty
- Warranty Type: Official Manufacturer Warranty
- Warranty: 1 Year
