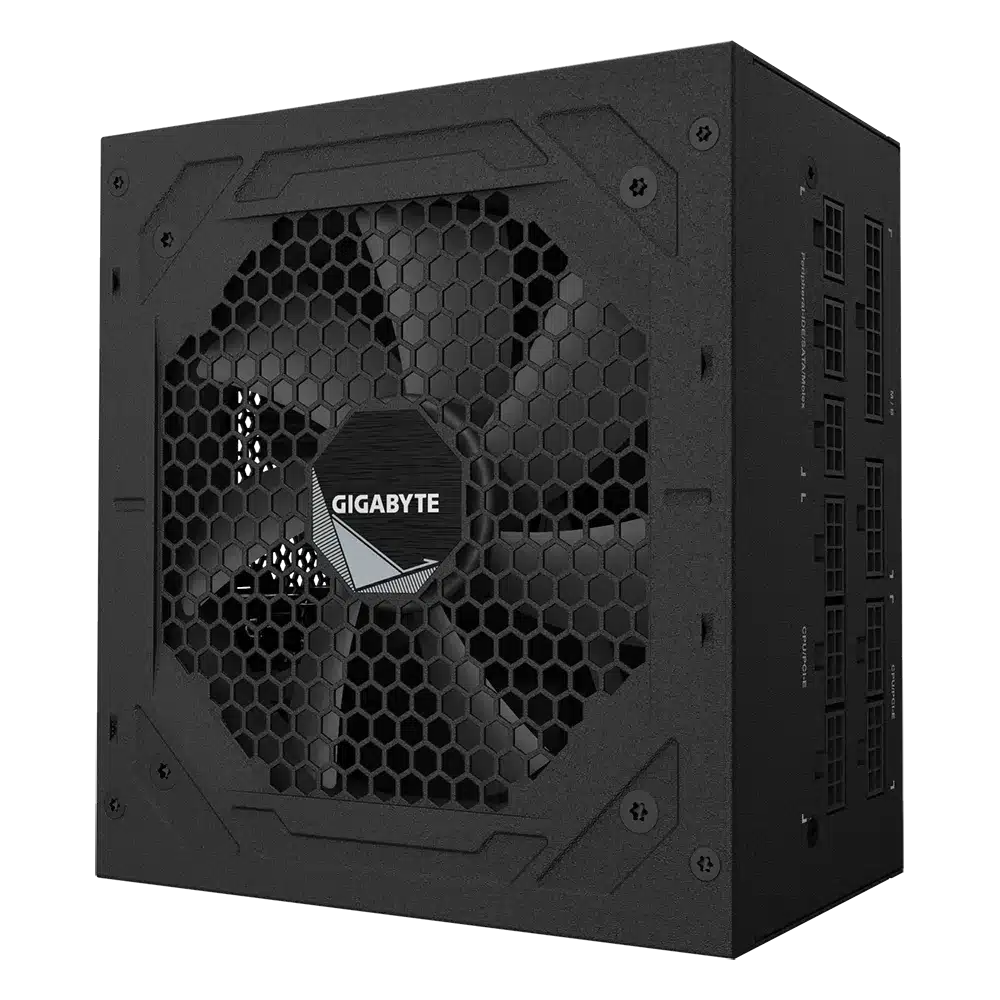

Gigabyte UD1000GM Powersupply

• Model

GP-UD1000GM

• Type

Intel Form Factor ATX 12V v2.31

• PFC

Active PFC (>0.9 typical)

• Input Voltage

100-240 Vac (full range)

• Input Current

15-6.5A

• Input Frequency

60-50 Hz

• Output Capacity

1000W

• Dimension

150 x 140 x 86 mm

• Fan Type

120mm Hydraulic Bearing(HYB)fan

• 80 PLUS

Gold

• Efficiency

90% at typical load

• MTBF

>100,000 hours

• Protection

OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

100-150ms

• Hold Up Time

>16ms

• Cable Type

Flat, All black

• Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 6 : 600mm+150mm*3
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
