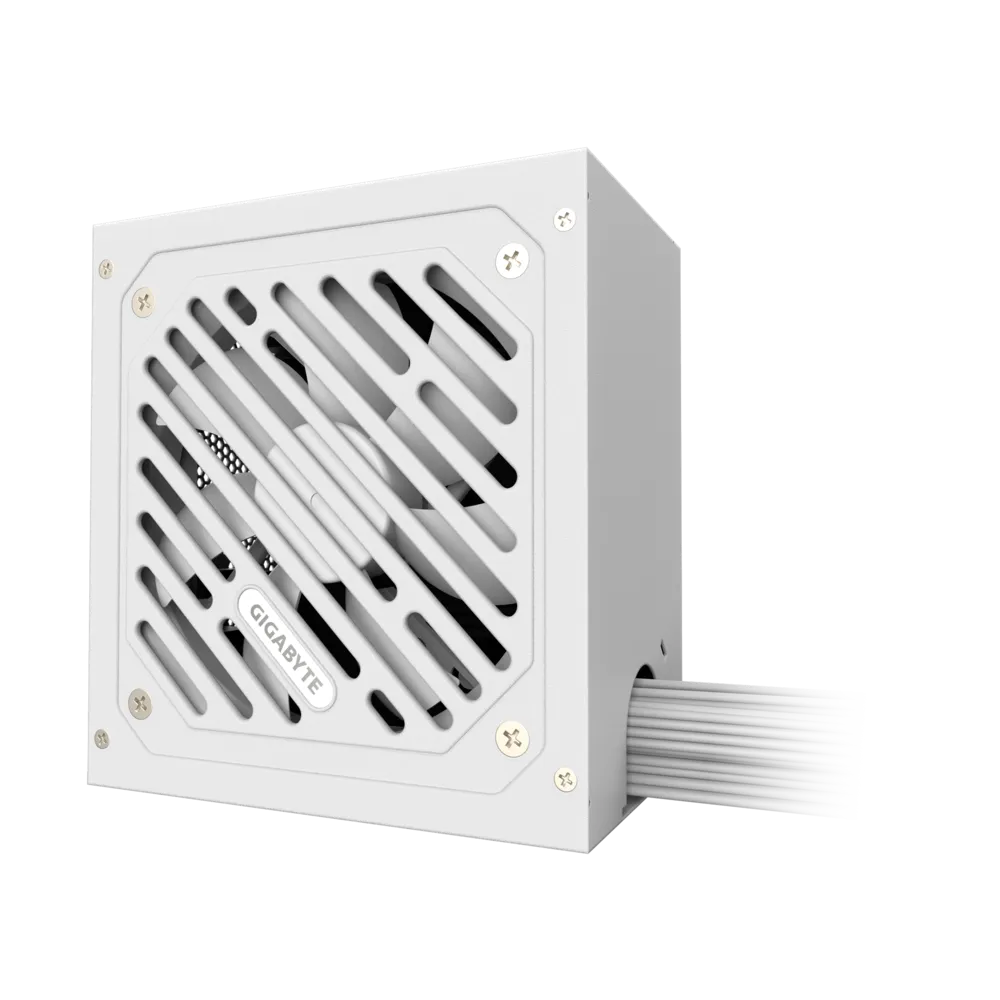

Gigabyte P650SS ICE SMPS

• Model

  GP-P650SS ICE

• Type

  Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  155-240 Vac

• Input Current

  6.3A

• Input Frequency

  60-50 Hz

• Output Capacity

  650W

• Dimensions

  150 x 140 x 86 mm

• Fan Type

  120mm Fluid Dynamic Bearing (FDB) fan

• 80 PLUS

  Silver

• Efficiency

  90% at typical load (230V EU)

• MTBF

  >100,000 hours

• Protections

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-150ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All white

• Connectors

  ATX/MB 20+4 Pin x 1 : 600mm*1
  CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
  PCI-e 6+2 Pin x 2 : 600mm*2
  SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
  SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*
