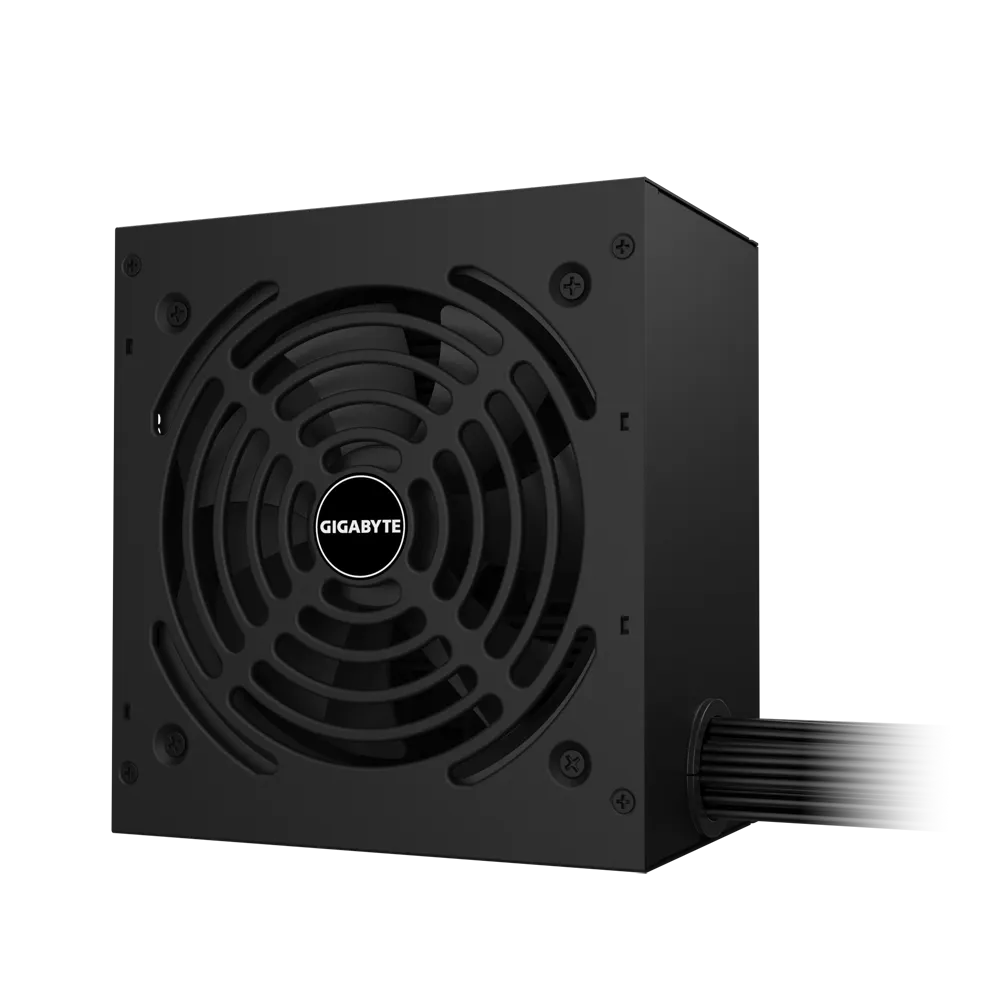

Gigabyte P650G 650W Gold SMPS

• Model

  GP-P650G

• Type

  Intel Form Factor ATX 12V

• PFC

  Active PFC(>0.9 typical)

• Input Voltage

  100-240 Vac(full range)

• Input Current

  9-4A

• Input Frequency

  60-50 Hz

• Output Capacity

  650W

• Dimensions

  150 x 140 x 86 mm

• Fan Type

  120mm Hydraulic Bearing (HYB) Fan

• 80 PLUS

  Gold

• Efficiency

  90% at typical load

• MTBF

  >100,000 hours

• Protections

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-500ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All black

• Connectors

  ATX/MB 20+4 Pin x 1 : 600mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
  PCI-e 6+2 Pin x 4 : 500mm+150mm*2
  SATA x 6 : 500mm+150mm+150mm*2
  4 Pin Peripheral x 3: 500mm+150mm+150mm*1
