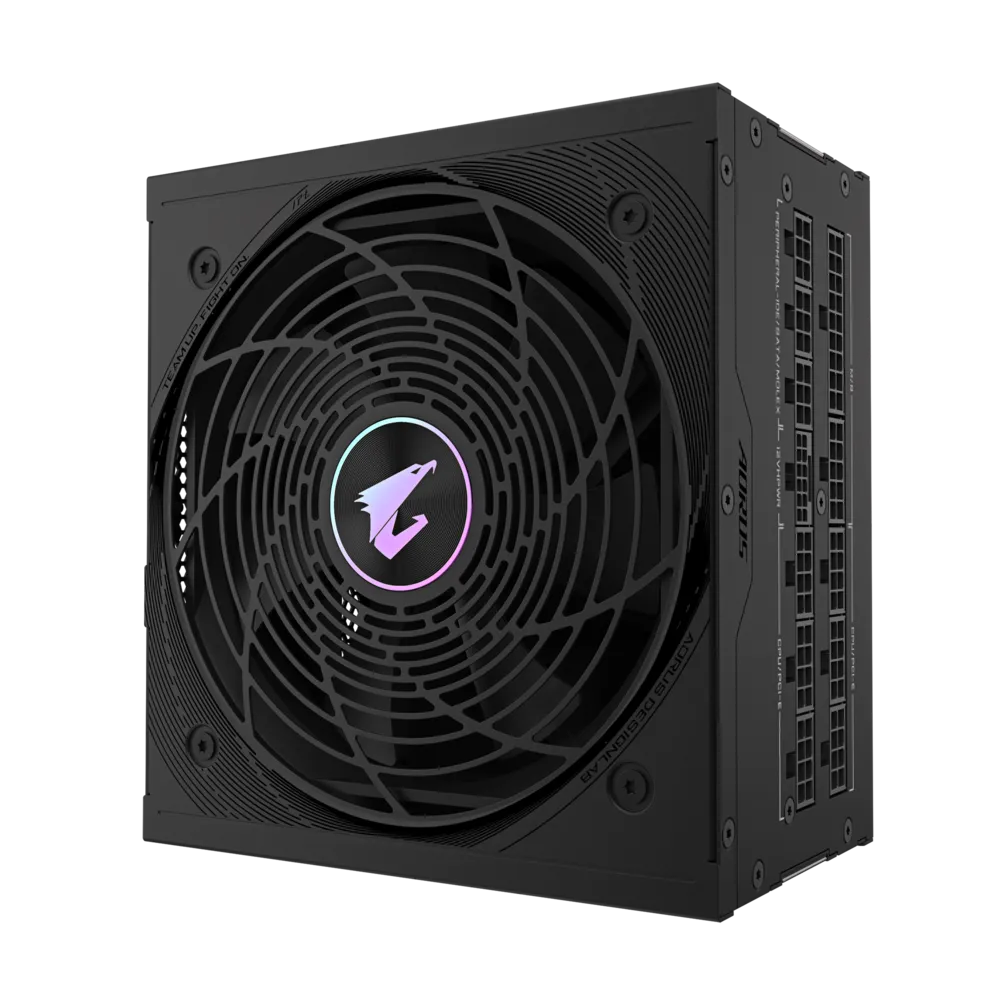

Gigabyte Aorus Elite P1000W Platinum SMPS

• Model

  GP-AE1000PM PG5/GP-AE1000PM PG5 ICE

• Type

  Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  100-240 Vac (full range)

• Input Current

  15-6.5A

• Input Frequency

  60-50 Hz

• Output Capacity

  1000W

• Dimensions

  150 x 140 x 86mm

• Fan Type

  120mm Fluid Dynamic Bearing (FDB) Fan

• 80 PLUS

  Platinum

• Efficiency

  92% at typical load

• MTBF

  >100,000 hours

• Protections

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-150ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All black

• Connectors

  ATX/MB 20+4 Pin x 1 : 650mm*1
  CPU/EPS 4+4 Pin x 2 : 700mm*2
  PCI-e 16 Pin x 1: 700mm*1
  PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
  SATA x 8 : 600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
