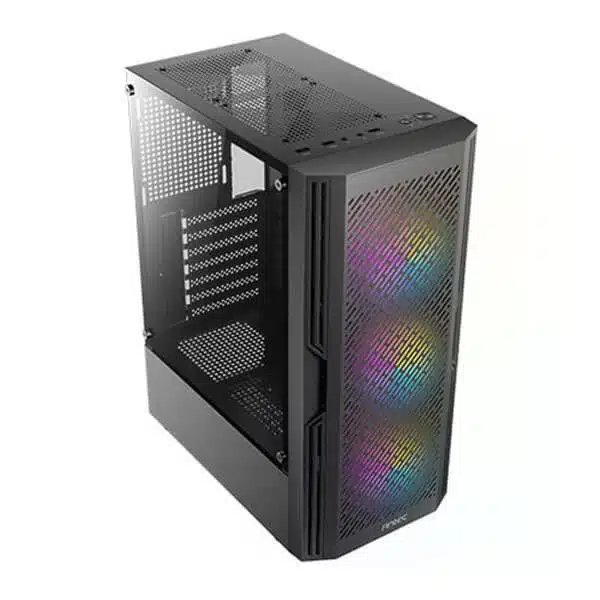

Antec AX20 Elite RGB (ATX) Mid Tower Cabinet Black comes with half-view tempered glass side panel design that allows you to show off your gaming configurations without obstacles.
Features:
Unique Design & Powerful Heat Dissipation:
AX20 features a slanted bar air intake design and an exceptionally dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.
Slanted Bar Air Intake Design:
Featuring dense mesh for massive airflow and efficient dust prevention.

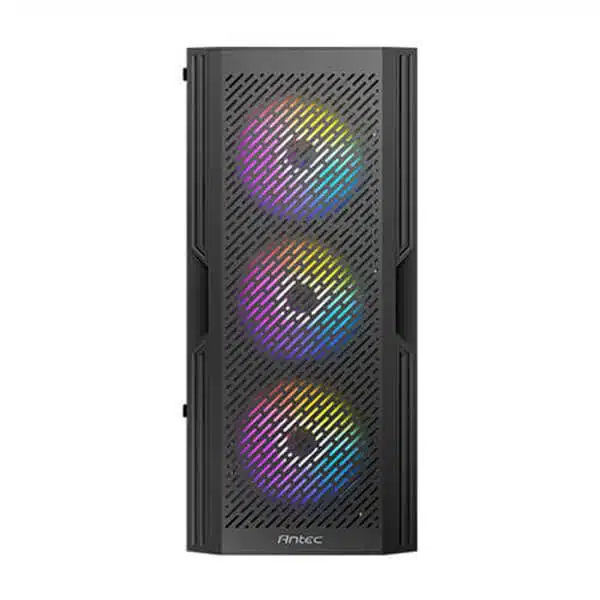

High-Airflow Front Panel:
Massive air intake at the front, top,and bottom. Creating multiple airflow paths.
Specifications:
| Model: | AX20 Elite |
| Colour: | Black |
| Dimensions:(mm) | 358 x 207 x 451(DWH) |
| Form Factor: | Mid Tower |
| Materials: | Steel+Plastic |
| Mainboard Support: | ATX, Micro-ATX, ITX |
| Front Access & Controls: | Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO |
| Side Panel: | Tempered glass |
| Expansion Slots: | 7 |
| Fan Support | |
| Front: | 3 x 120mm / 2 x 140mm |
| Top: | 2 x 120mm |
| Bottom: | 2 x 120mm |
| Rear: | 1 x 120mm |
| Included Fan(s): | 3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite) |
| Radiator Support (Front) | 120 / 140 / 240 / 280mm |
| Max GPU Length: | ≤ 270mm |
| Max CPU Cooler Height: | ≤ 155mm |
| Max PSU Length: | ≤ 170mm(with HDD) ≤ 295mm(without HDD) |
| Dust Filter: | Front |
| Warranty: | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice.
***Images are for representation purposes only |
- CABINET SIZEMID-TOWER
- MAX GPU LENGTH270mm
- MAX 3.5″ HDD2
- MAX 2.5″ SSD2
- EXPANSION SLOTS7
- MAX RADIATOR SUPPORT280mm
- MAX FAN SUPPORT8
- FRONT PANELMESH
- LEFT PANELTRANSPARENT
- CUSTOM COOLER COMPATIBLEYES
- MOTHERBOARD SIZEATX
- WARRANTY1 Years
