Mavam Three Group Under Counter Espresso Machine

Mavam Three Group Under Counter Espresso Machine

The newest machine to our range of equipment and the result of suggestions from the international coffee community and observations of work flow in cafes around the world.

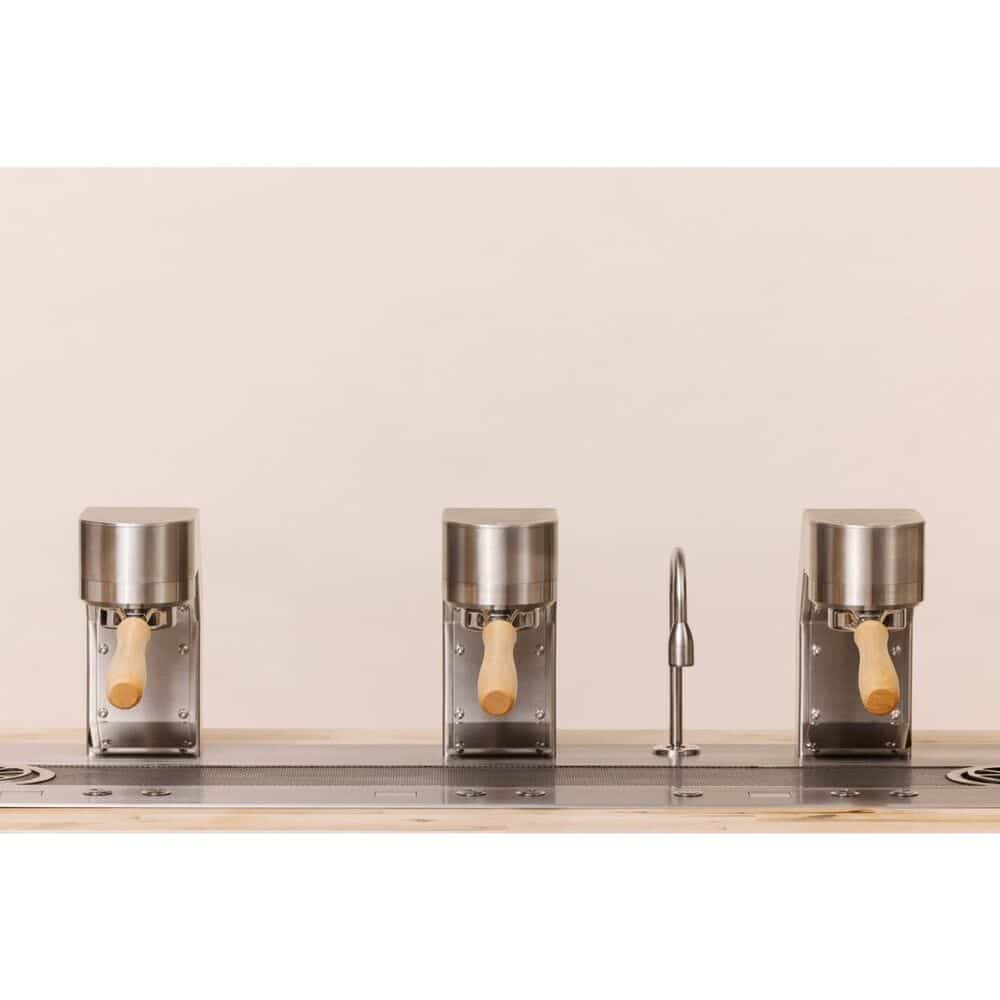

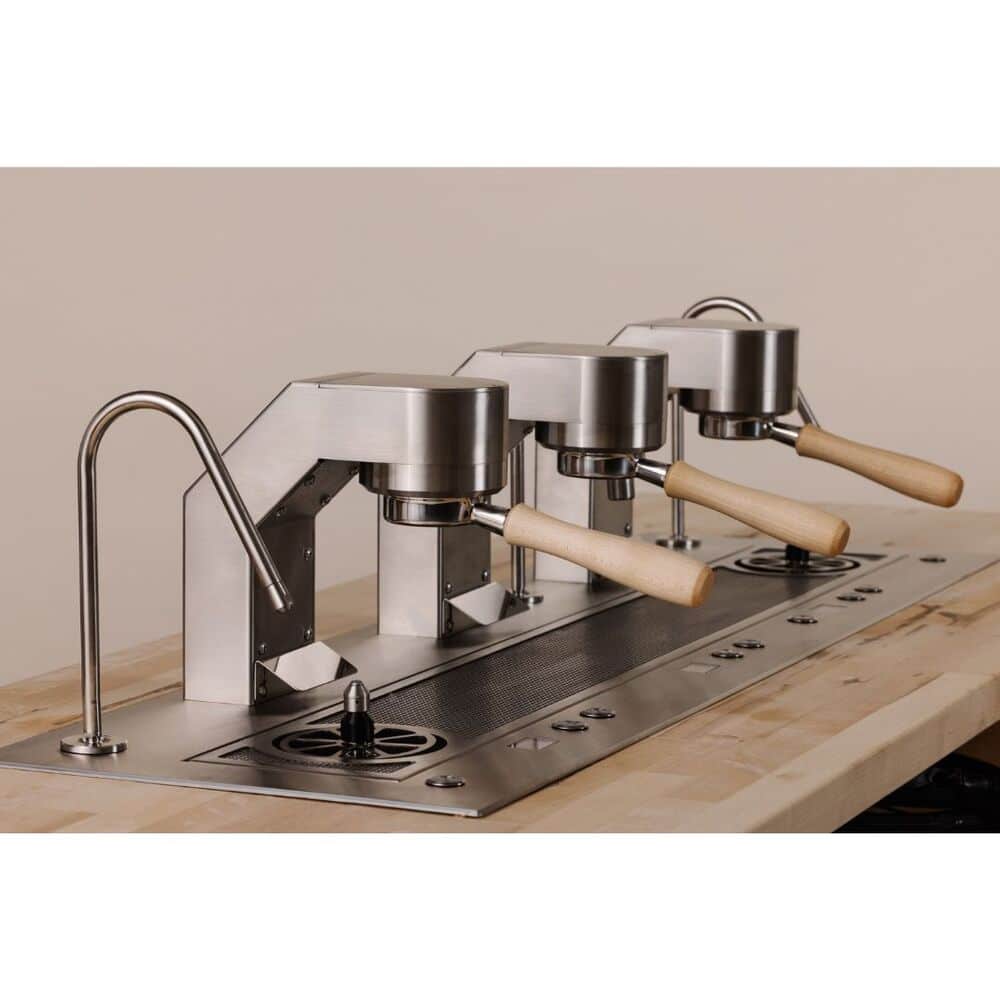

At 48” wide there is more than enough room for two Baristas to work comfortably side by side. The large drain grate has two built in milk jug rinsers to increase workflow and save water.

Improved Ergonomic Work Flow:

Mavam’s low profile interface and ergonomic design provides easy workflow for the barista and temperature reliability.

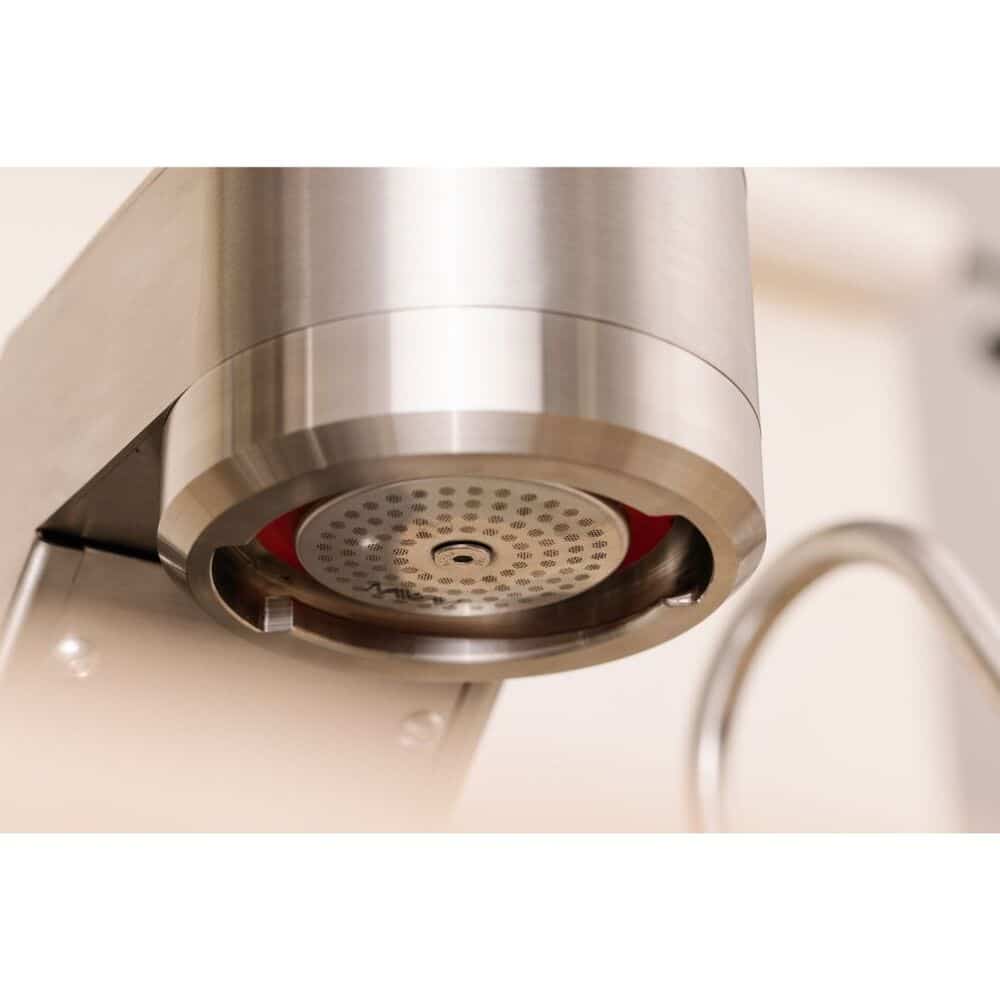

Stainless steel brew groups have a built in 200 watt heater assisting with temperature stability plus three PID control points per Group for temperature stability. Individual pumps for each brew group allow for uninterrupted brewing pressure and individual group brewing pressures. The 11 liter steam boiler is dedicated to producing a large volume of steam pressure while also preheating the brew group water plus individual 500ml brew boiler per group. Our patented heated transfer system is used on our steam lines to remove condensation and provided endless dry steam.

Features:

• Low Profile Countertop Interface
• Temperature Stability
• Multi Boiler Design
• Heated Brew Group
• Low Flow Pre-infusion
• Auto or Manual Extraction Modes
• Chronomass
• Digital display.
• Dry Steam
• Milk Jug Rinser
• Button Actuation
• Custom Steam Tips
• Customizing

Specifications:

• 380/400 volt /3 phase.
• Black or Silver interface
• Mavam Micro Precision Stainless screens.
• PESADO Stainless Steel Spouted Portafilter with Black Rubber Handle
• 11 Liter copper boiler 4KW
• 3 x 1 liter 316 Stainless steel boiler 500w
• 3 x group head heating element
• Individual pumps for each brew group

Dimensions:

• Interface Dimensions: 48” / 122cm L x 14” / 35.5cm D x 9” / 23cm H
• Boiler Unit Dimensions; 28” / 68.5cm L x 18” / 46cm D x 13” / 33cm H
• Pump Unit Dimensions: 5” / 13cm L x 11” / 28cm D x 8” / 20cm H
