DeepCool PX1000G 1000W Fully Modular Power Supply: Engineered for Modern Systems.
Specifications:
- Type: ATX12V V3.0
- Product Dimensions: 150×160×86mm (W x L x H)
- Efficiency certification: 80Plus GOLD/Cybenetics_Platinum
- Fan Size: 135mm
- Fan Bearing: FDB (Fluid Dynamic Bearing)
- Topology: Active PFC + Half Bridge SRC LLC + DC to DC
- Capacitors: Full Japan Electrolytic Capacitors
- Power Good Signal: 100-150ms
- Hold Up Time: ≥16ms
- Efficiency: ≥90% Under Typical Load(50% Loading)
- Protection: OPP/OVP/SCP/OTP/OCP/UVP
- Operation Temperature: 0 – 40℃
- Regulatory: CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;
- Erp Regulation: ErP 2014
Key Features:
- ATX 3.0 Standard Compatibility: Ensures seamless integration with modern systems.

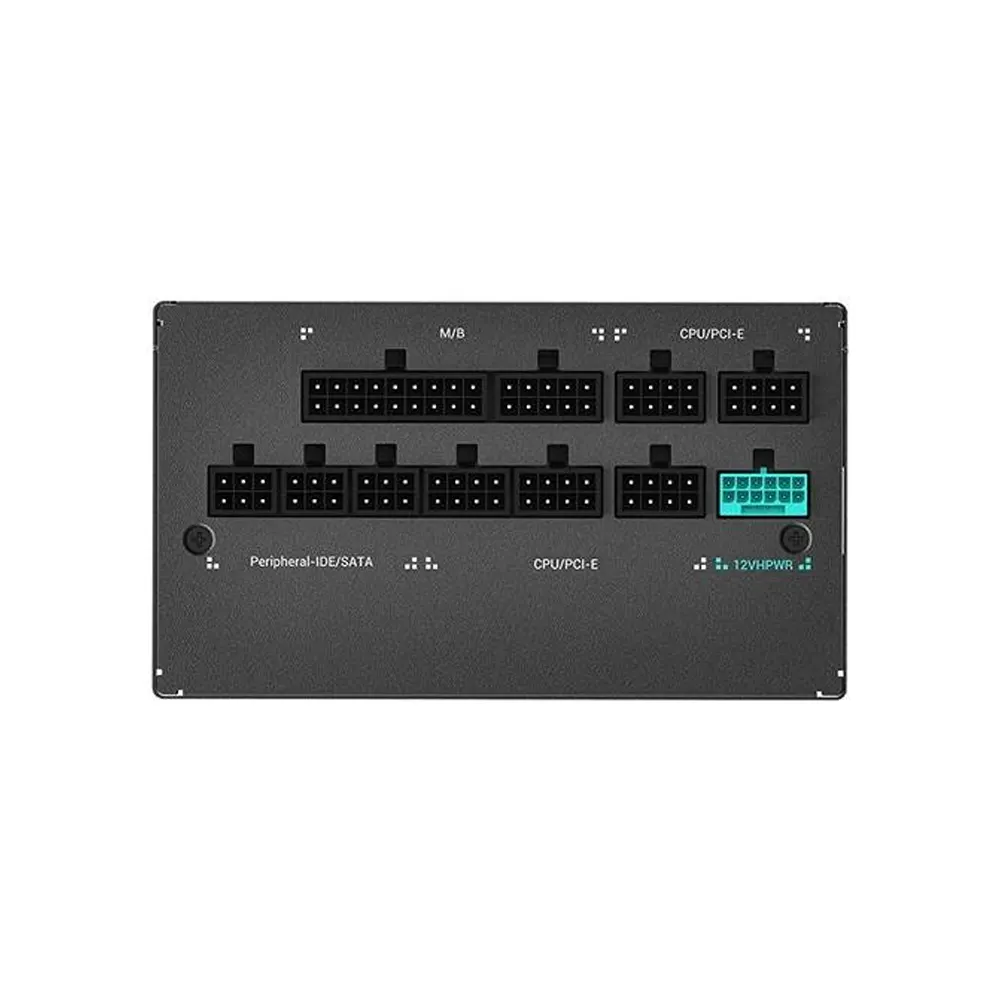

- Dedicated Power Ports: 12VHPWR, 2 EPS, and 3 PCI-e ports provide stable power for various components, including power-hungry GPUs.
- High Reliability: Boasts a 100,000-hour Mean Time Between Failures (MTBF) and supports ATX12V V3.0 for optimal efficiency.
- PCI-e Gen 5.0 12VHPWR Cable: Equipped with the latest cable technology, delivering up to 600W tailored for demanding graphics cards.

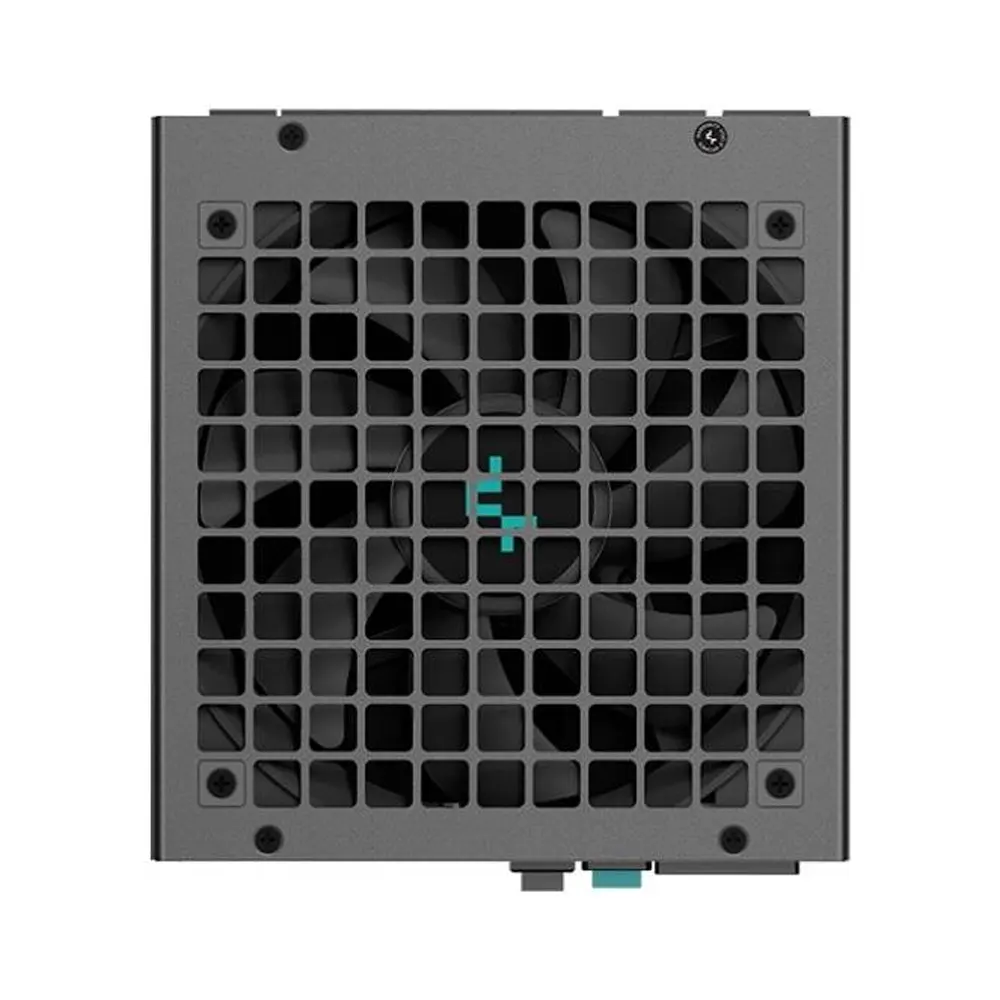

- Semi-Fanless Operation: Allows for hybrid mode, dynamically adjusting the 135mm Fluid Dynamic Bearing (FDB) fan for optimal cooling and energy efficiency.
- Comprehensive Safeguards: OPP, OVP, SCP, OTP, OCP, and UVP ensure the safety of your components.
